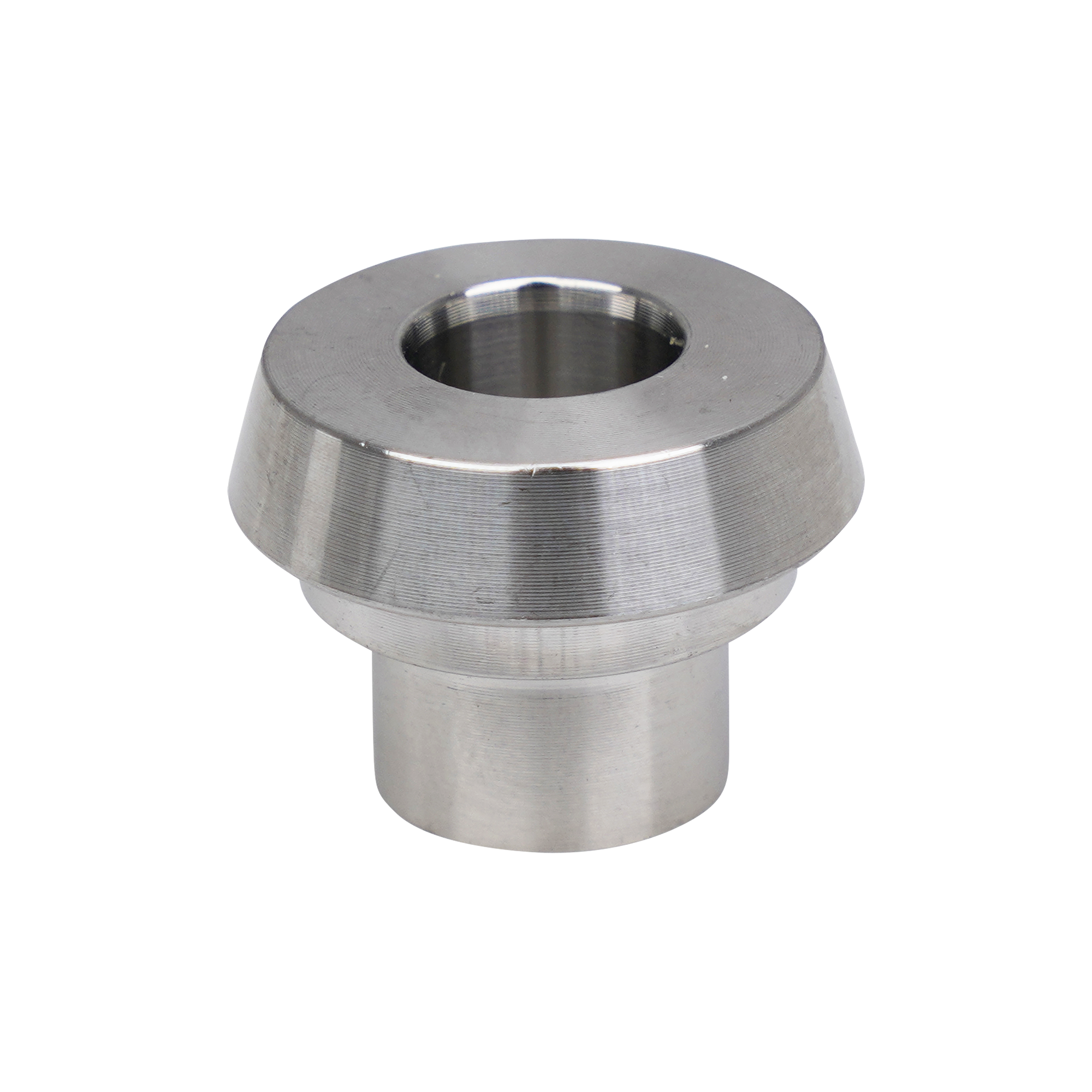

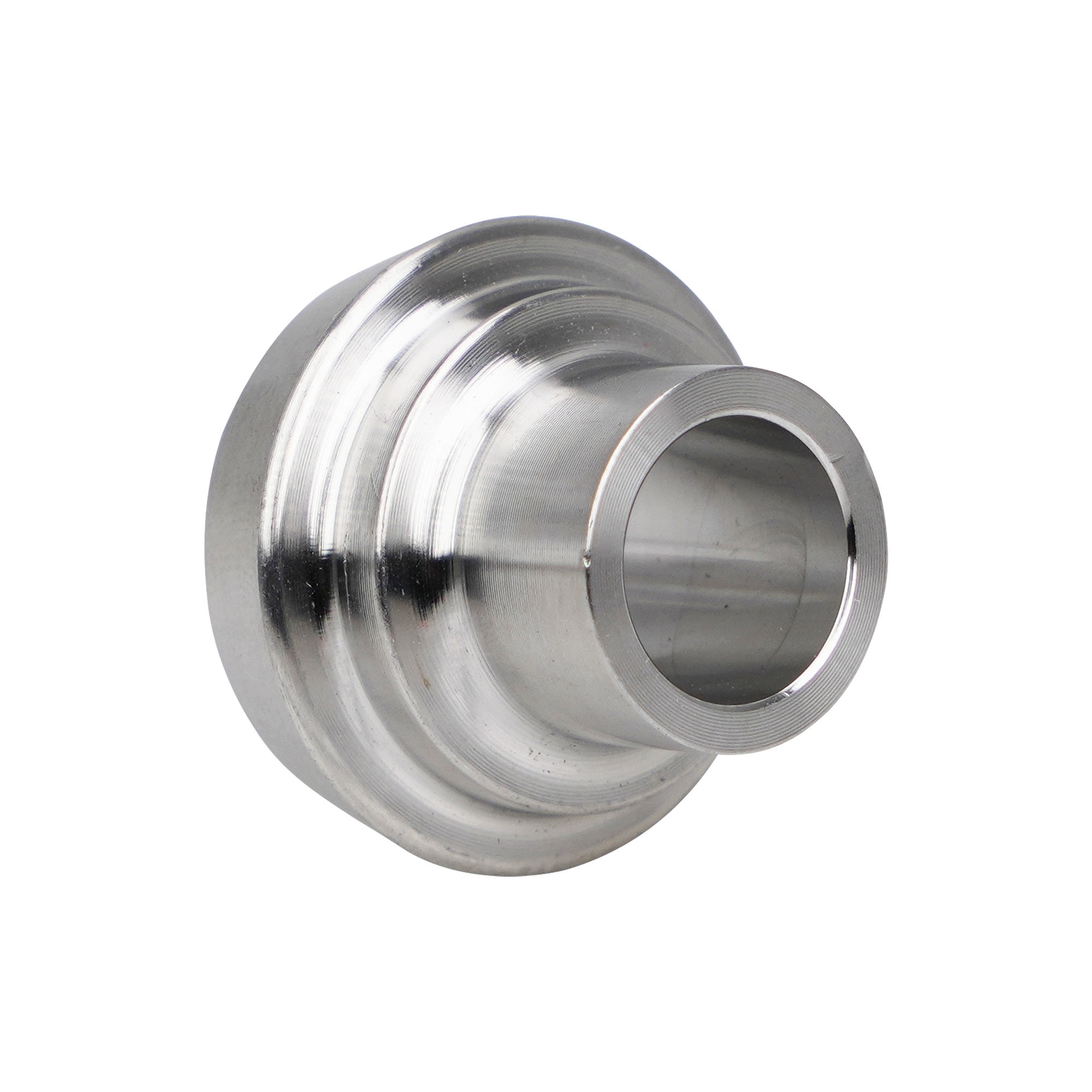

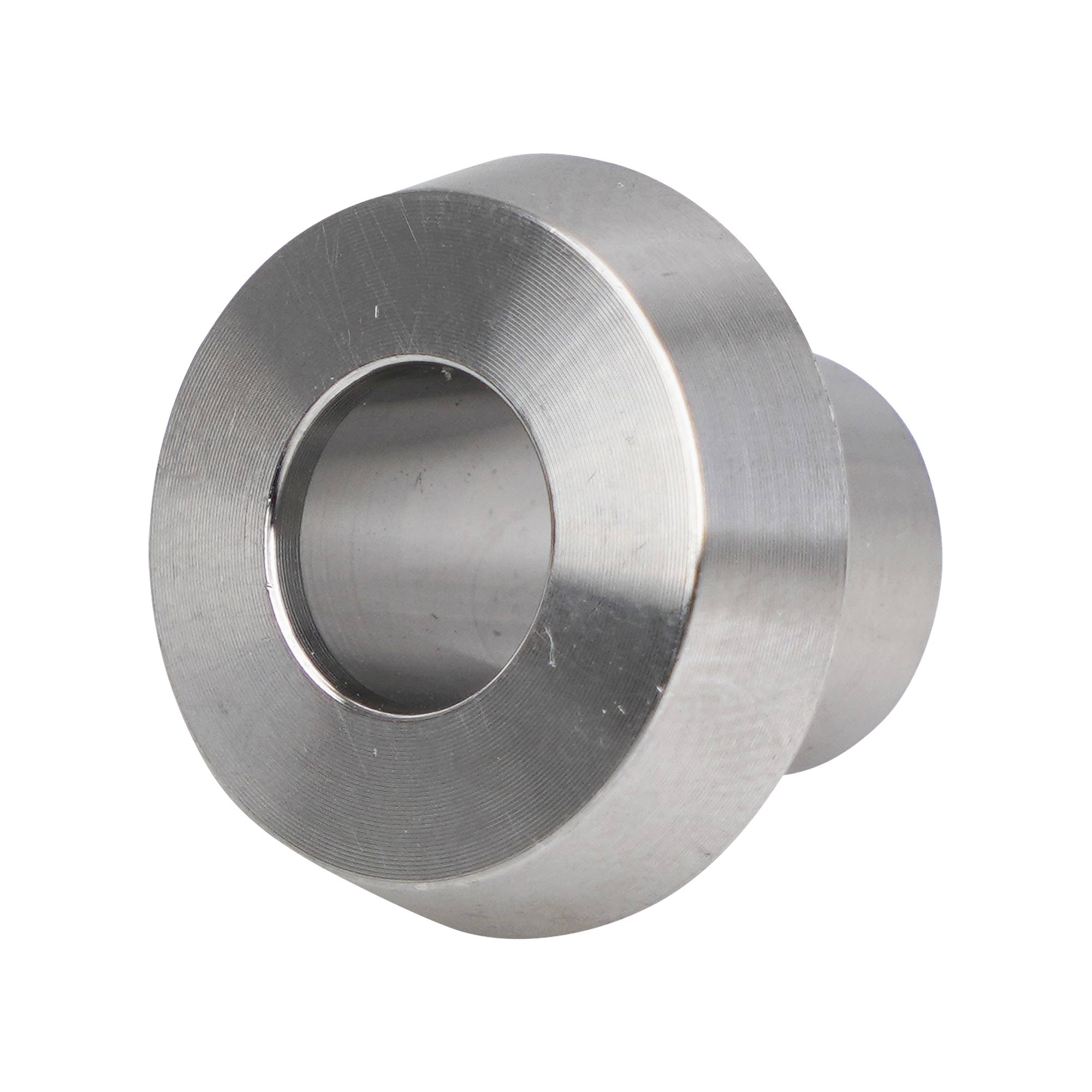

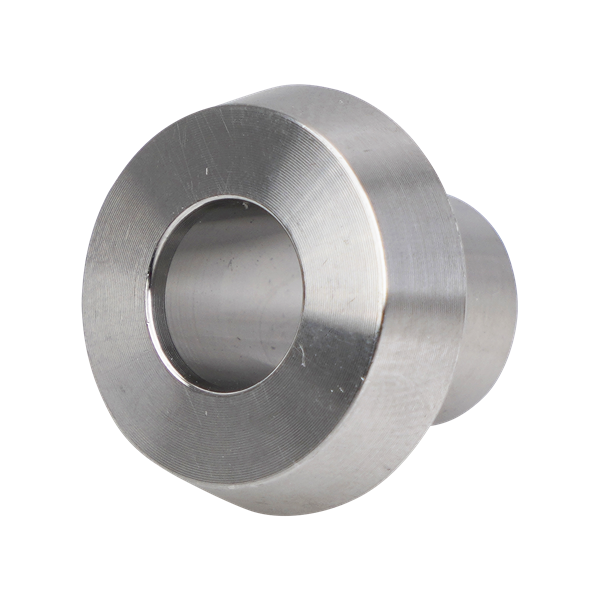

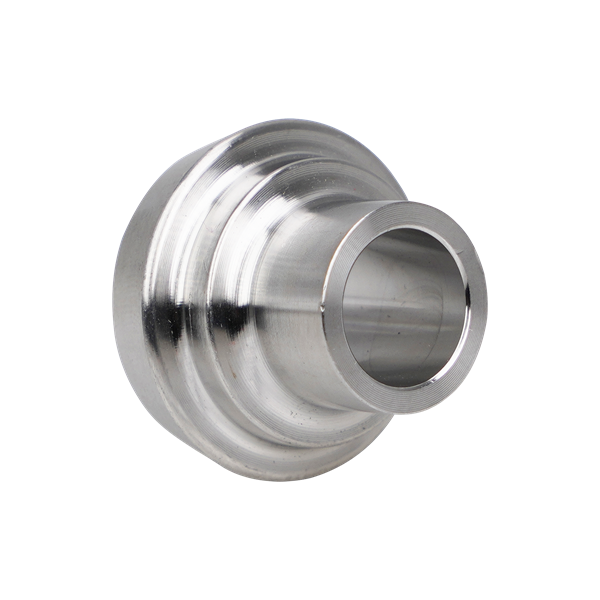

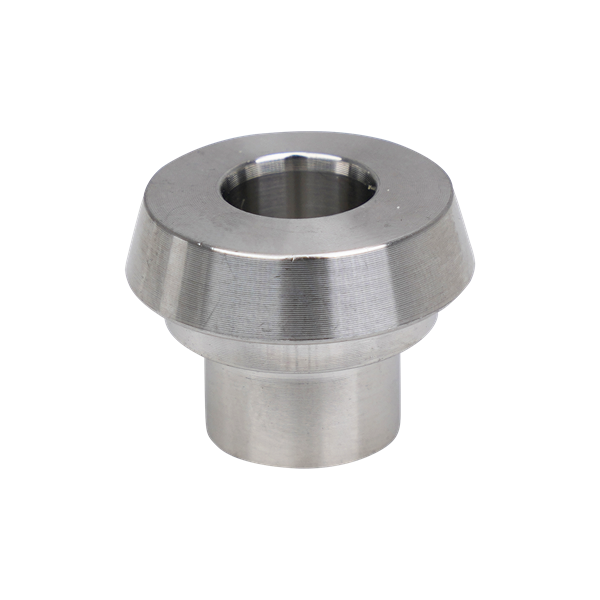

LINER DN15 19MM OD 1.5MM WALL DIN 11851 316L 0.669" OAL 32RA ID 32RA OD FOR USE WITH NUT DIN13R-DN15-S NOT INCLUDED

Product Type	Fittings

Product Subtype	Ferrules

Size	DN15

Connection Type	DIN

Material	316L Stainless Steel

Finish	32Ra ID / 32Ra OD

Specification / Standard	European Fittings

Weight	0.06600

 DIN 11851 Liner

Nominal Size		A		B		C		L		Wall Thickness
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
0.39	10	0.39	10	0.51	13	0.89	22.5	0.67	17	0.06	1.5
0.59	15	0.63	16	0.75	19	1.12	28.5	0.67	17	0.06	1.5
0.79	20	0.79	20	0.91	23	1.44	36.5	0.71	18	0.06	1.5
0.98	25	1.02	26	1.14	29	1.73	44	0.87	22	0.06	1.5
1.26	32	1.26	32	1.38	35	1.97	50	0.98	25	0.06	1.5
1.57	40	1.50	38	1.61	41	2.20	56	1.10	26	0.06	1.5
1.97	50	1.97	50	2.09	53	2.70	68.5	1.18	28	0.06	1.5
2.36	60	2.24	57	2.40	61	2.99	76	1.26	30	0.08	2
2.56	65	2.60	66	2.76	70	3.15	86	1.46	32	0.08	2
3.15	80	3.19	81	3.35	85	3.94	100	1.73	37	0.08	2
3.94	100	3.94	100	4.09	104	4.76	121	1.34	44	0.08	2
4.92	125	4.92	125	5.08	129	5.91	150	1.34	34	0.08	2
5.91	150	5.91	150	6.06	154	6.93	176	1.46	37	0.08	2
