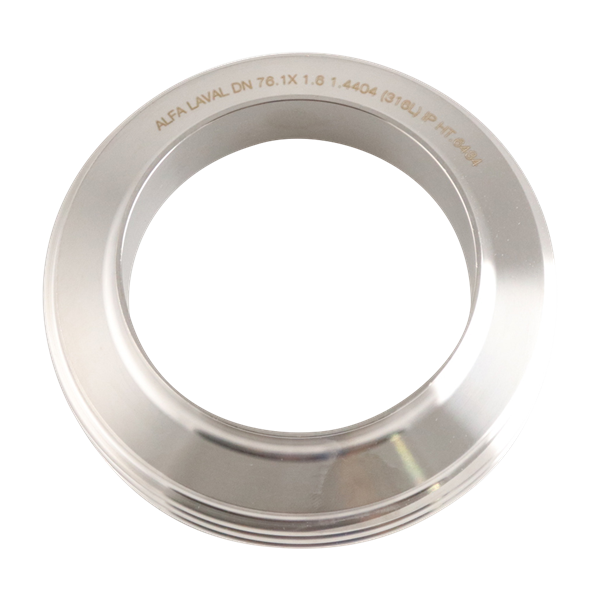

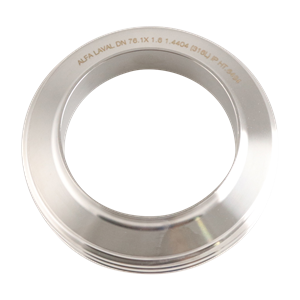

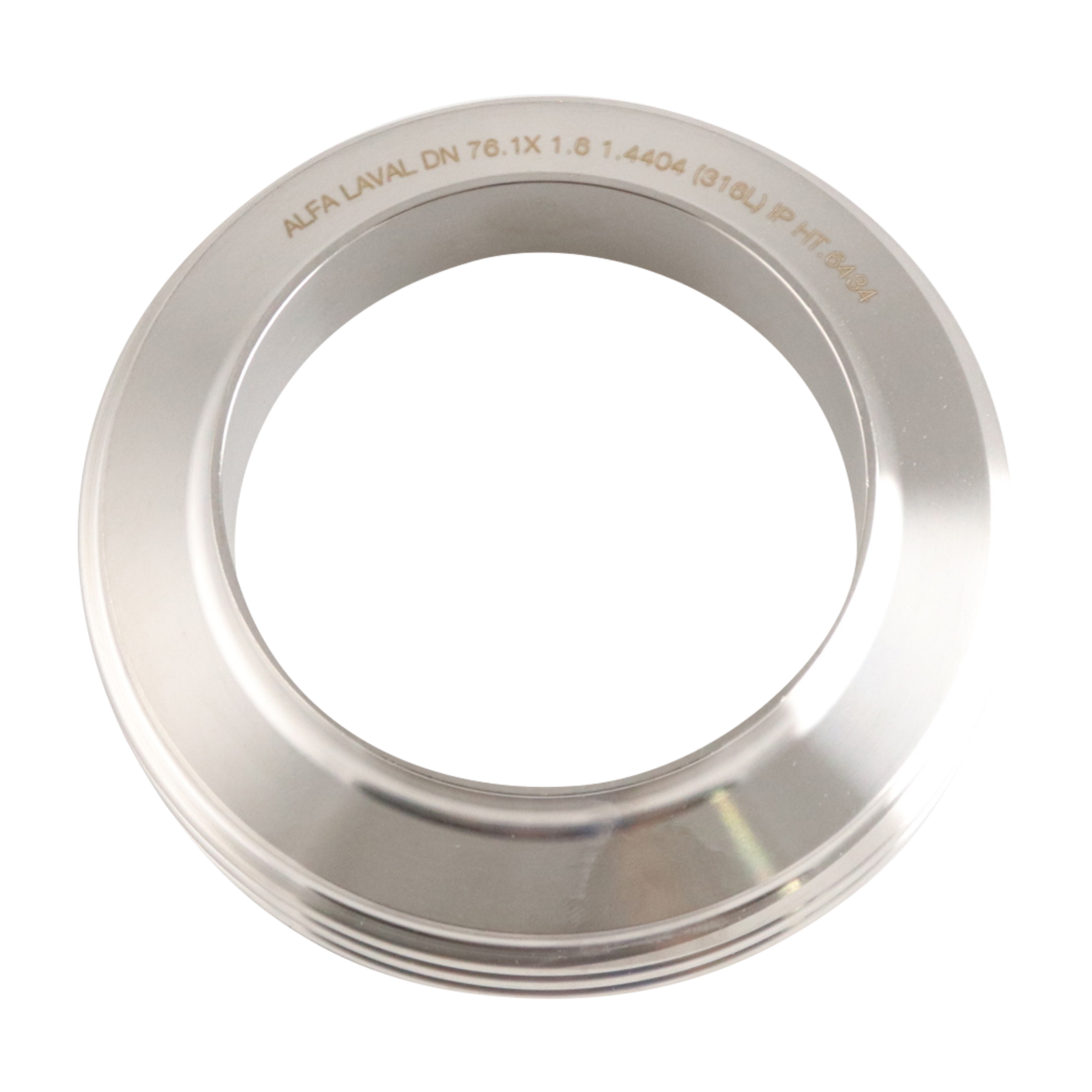

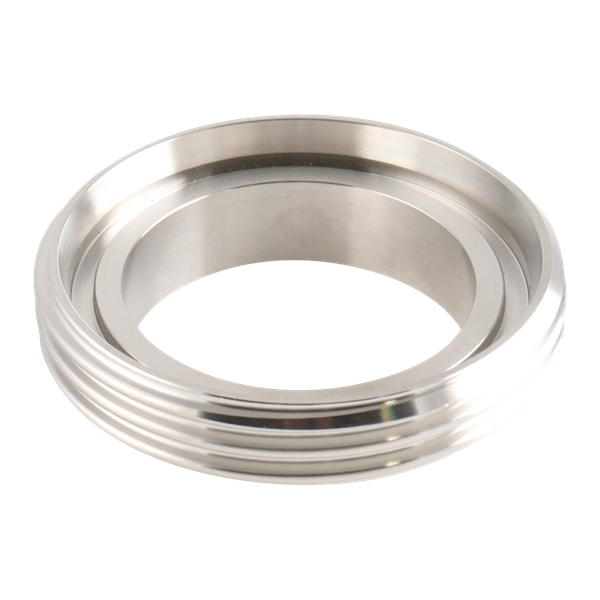

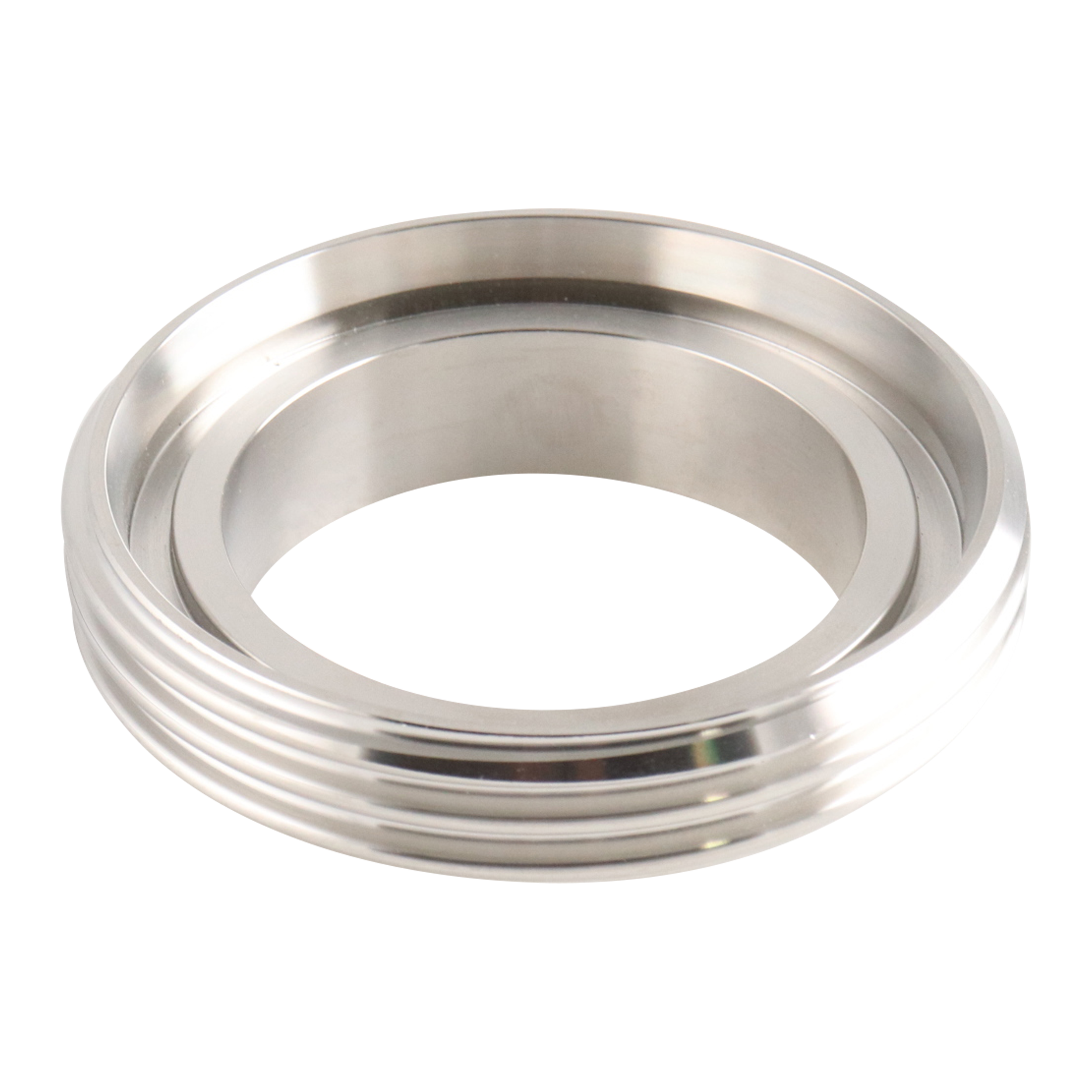

MALE PART THREADED DN80 1.18" OAL 316L / 1.4404 DIN 11851
3131800121
Net Price: $68.95 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Ferrules |
| Material | 316L Stainless Steel |
| Size 1 | DN80 |
| Connection Type 1 | DIN |
| Length | 1.18" OAL |
| Specification / Standard | DIN 11851 |
| Weight | 1.30000 |
Dimensional Data
Male Part Threaded DIN 11851 | 3131800121
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.98 | 25.00 | 0.87 | 22.00 | 2.05 | 52.00 |
| 1.57 | 40.00 | 0.87 | 22.00 | 3.00 | 65.00 |
| 1.97 | 50.00 | 0.87 | 22.00 | 3.07 | 78.00 |
| 2.56 | 65.00 | 0.98 | 25.00 | 3.74 | 95.00 |
| 3.15 | 80.00 | 1.18 | 30.00 | 4.33 | 110.00 |
