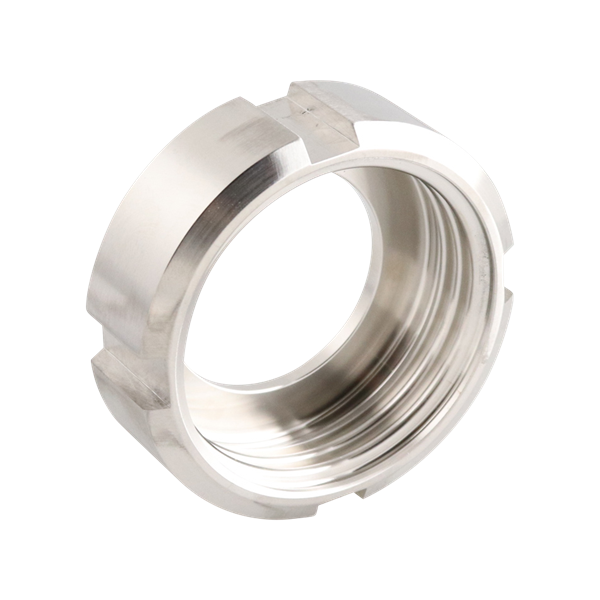

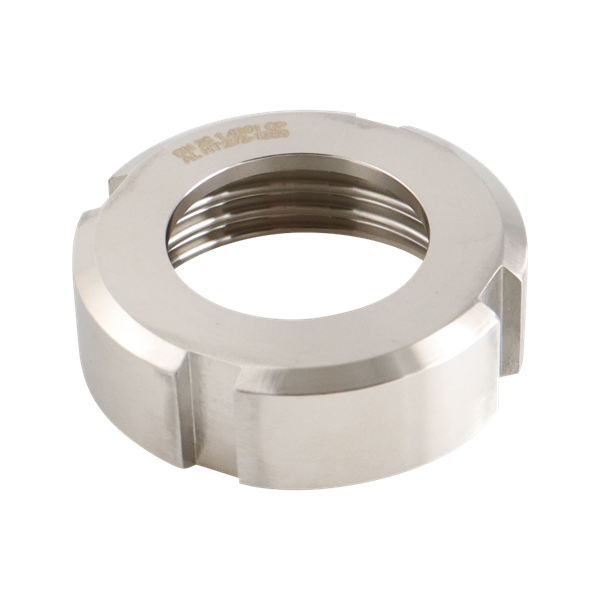

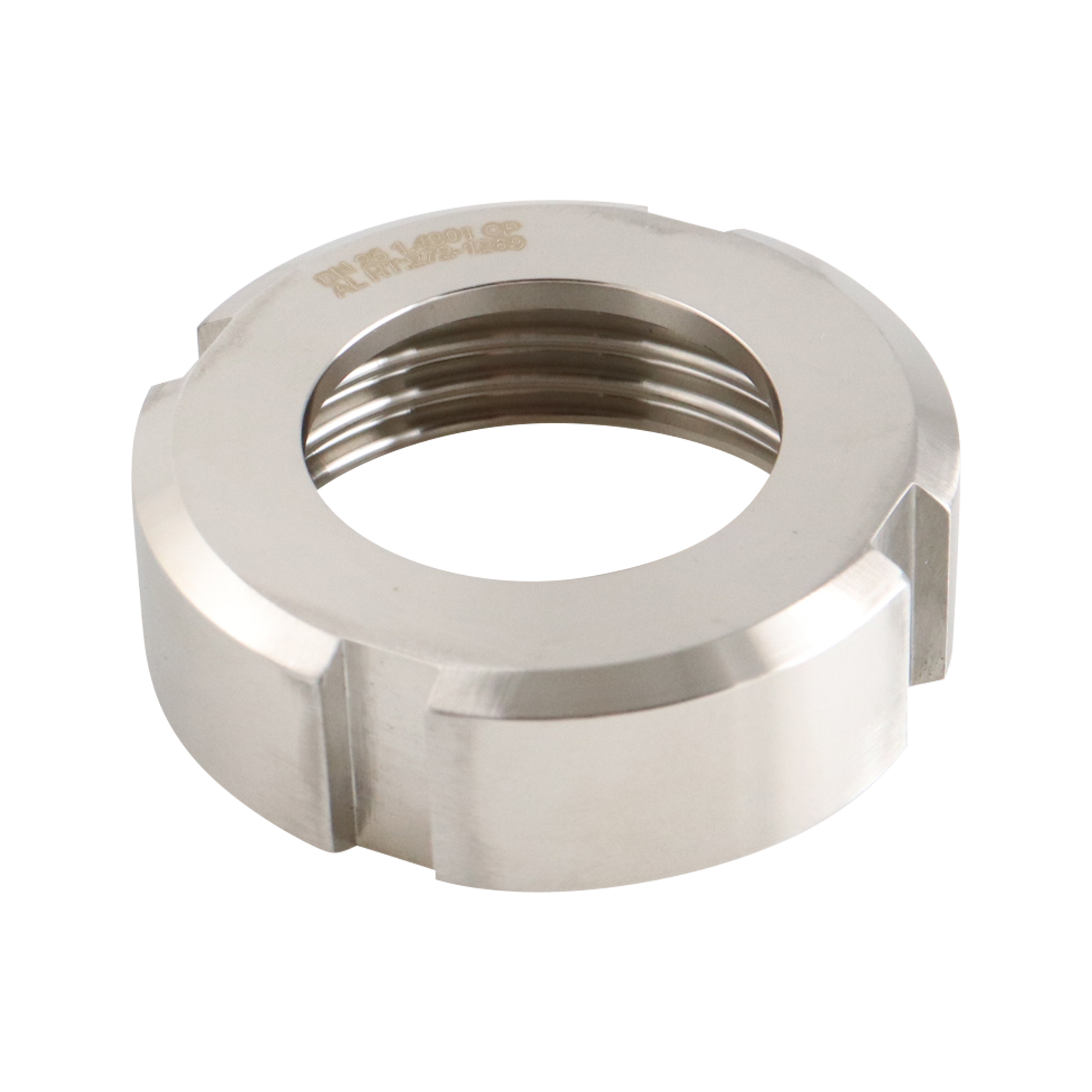

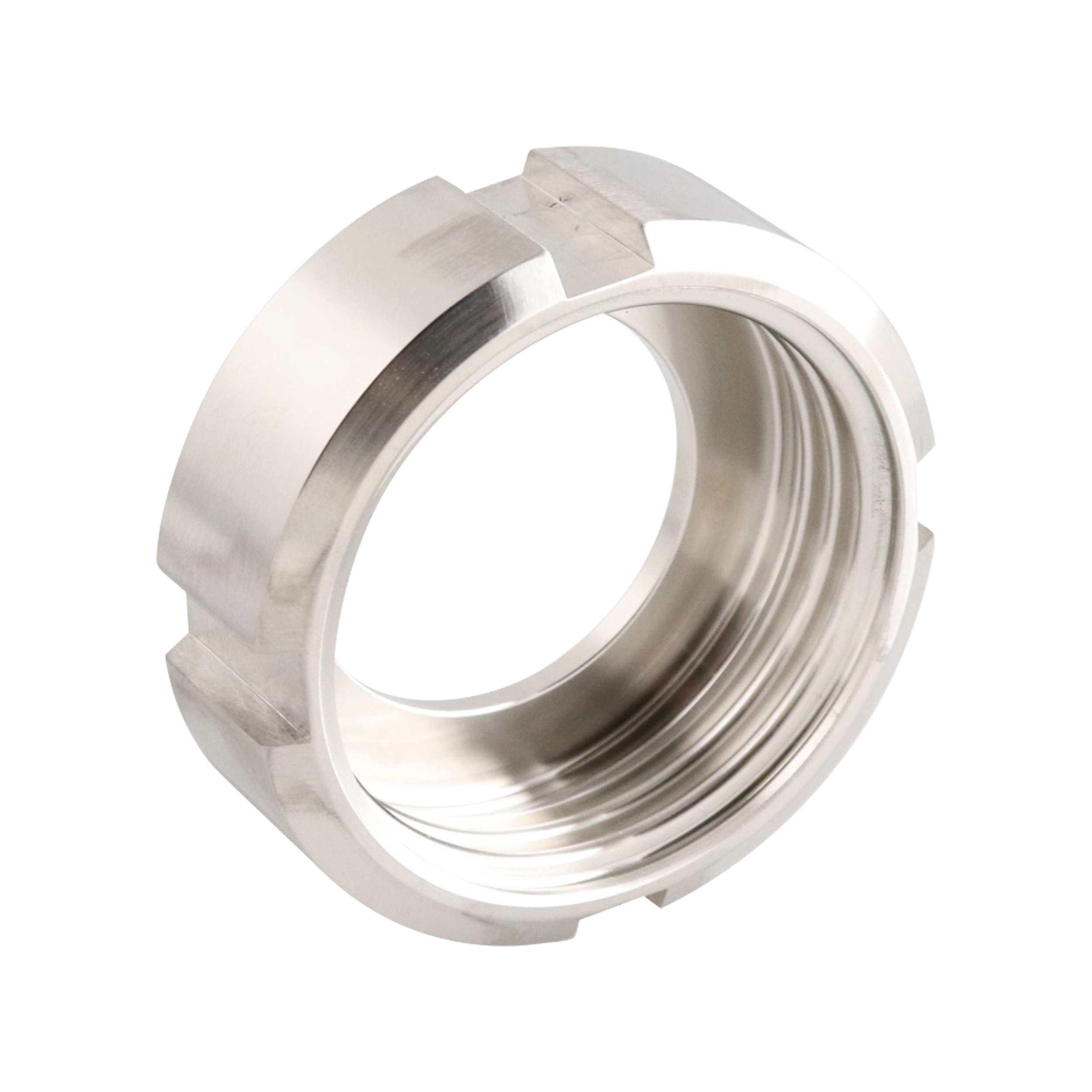

NUT DN25 DIN 11851 DIN 11864-1A 304
DIN13R-DN25-S
$9.20 / EA
- Availability:
-
Springfield, MO 9 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
Suggested products
Attributes
| Product Type | Fittings |
|---|
| Product Subtype | Clamps |
|---|
| Size | DN25 |
|---|
| Connection Type | DIN |
|---|
| Material | 304 Stainless Steel |
|---|
| Specification / Standard | European Fittings |
|---|
| Weight | 0.37000 |
|---|
Dimensional Data
Union Nut DIN 11851 | DIN13R-Size-Material
| Nominal Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.98 | 25.00 | 2.48 | 63.00 | 0.83 | 21.00 | 2.05 | 52.00 | 1.42 | 36.00 |
| 1.26 | 32.00 | 2.76 | 70.00 | 0.83 | 21.00 | 2.28 | 58.00 | 1.65 | 42.00 |
| 1.57 | 40.00 | 3.07 | 78.00 | 0.83 | 21.00 | 2.56 | 65.00 | 1.93 | 49.00 |
| 1.97 | 50.00 | 3.62 | 92.00 | 0.87 | 22.00 | 3.07 | 78.00 | 2.44 | 62.00 |
| 2.56 | 65.00 | 4.40 | 112.00 | 0.98 | 25.00 | 3.74 | 95.00 | 3.15 | 80.00 |
| 3.15 | 80.00 | 5.00 | 127.00 | 1.14 | 29.00 | 4.33 | 110.00 | 3.70 | 94.00 |
| 3.94 | 100.00 | 5.83 | 148.00 | 1.22 | 31.00 | 5.12 | 130.00 | 4.53 | 115.00 |
