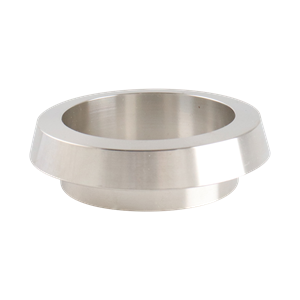

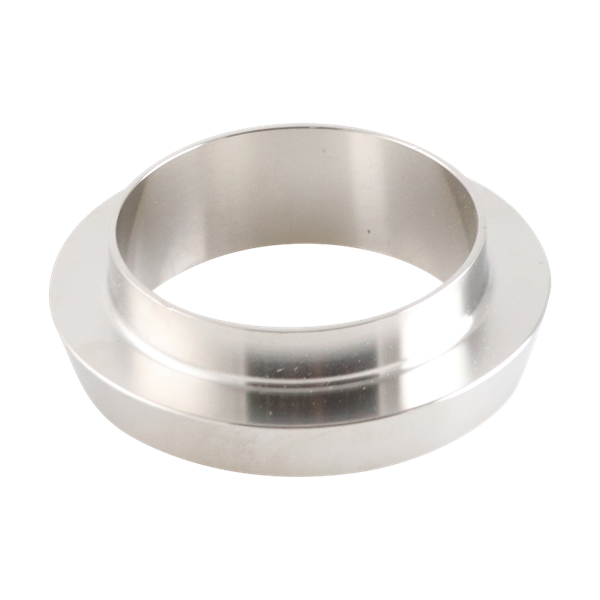

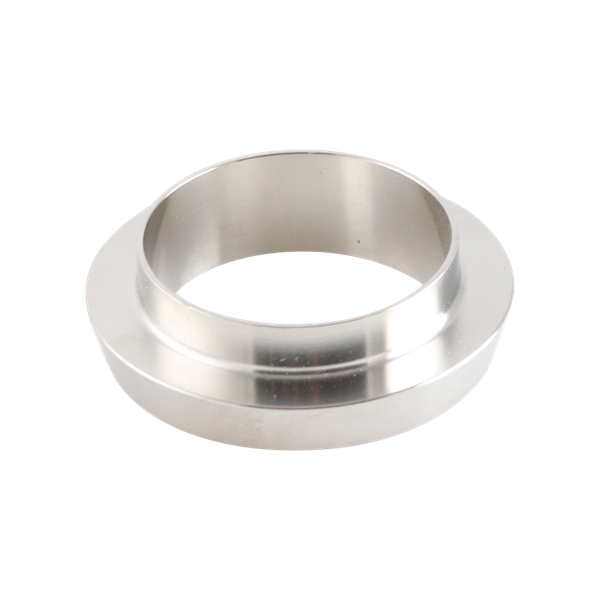

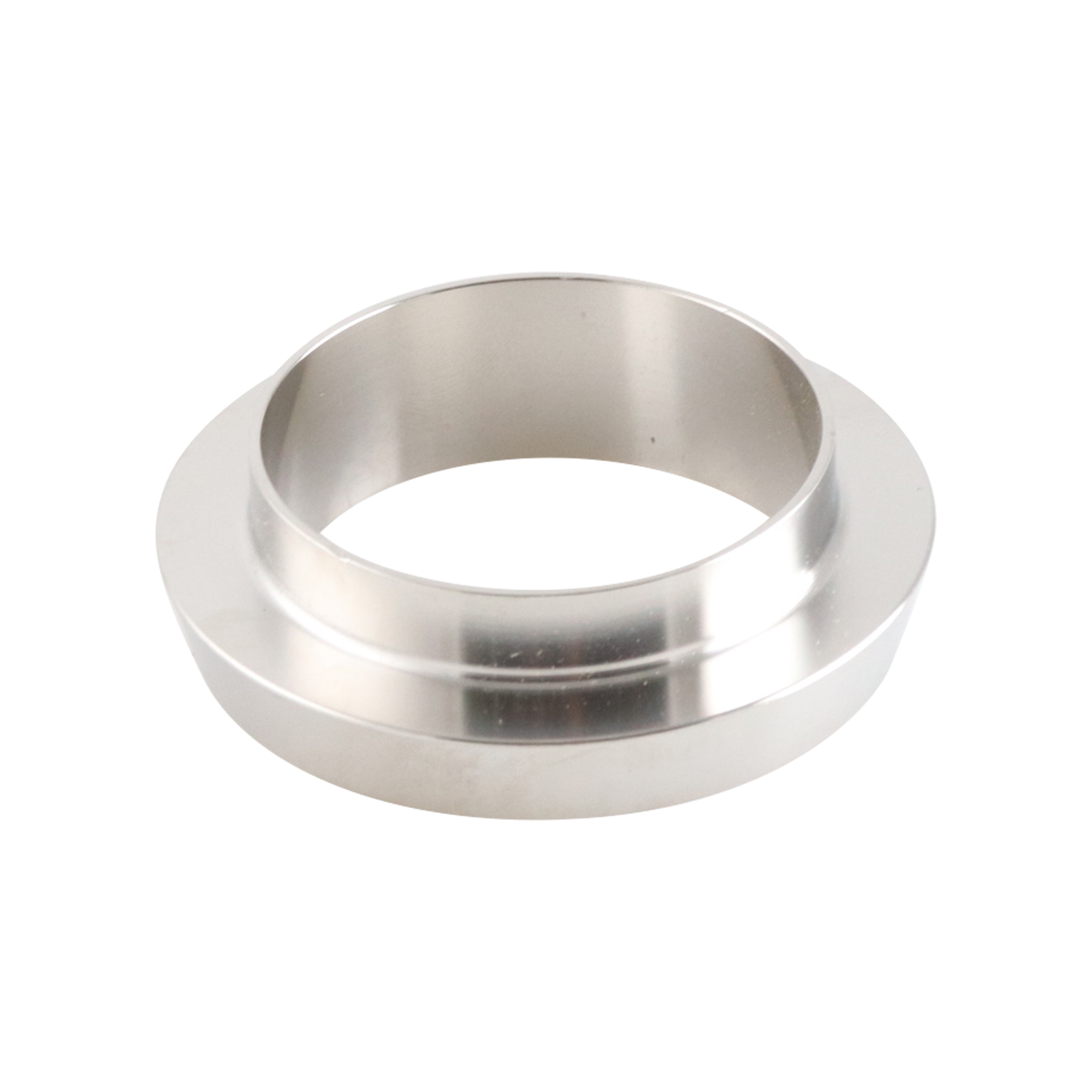

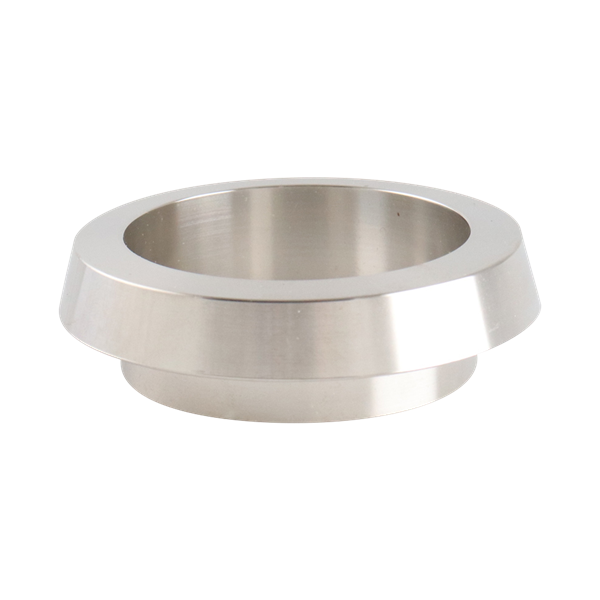

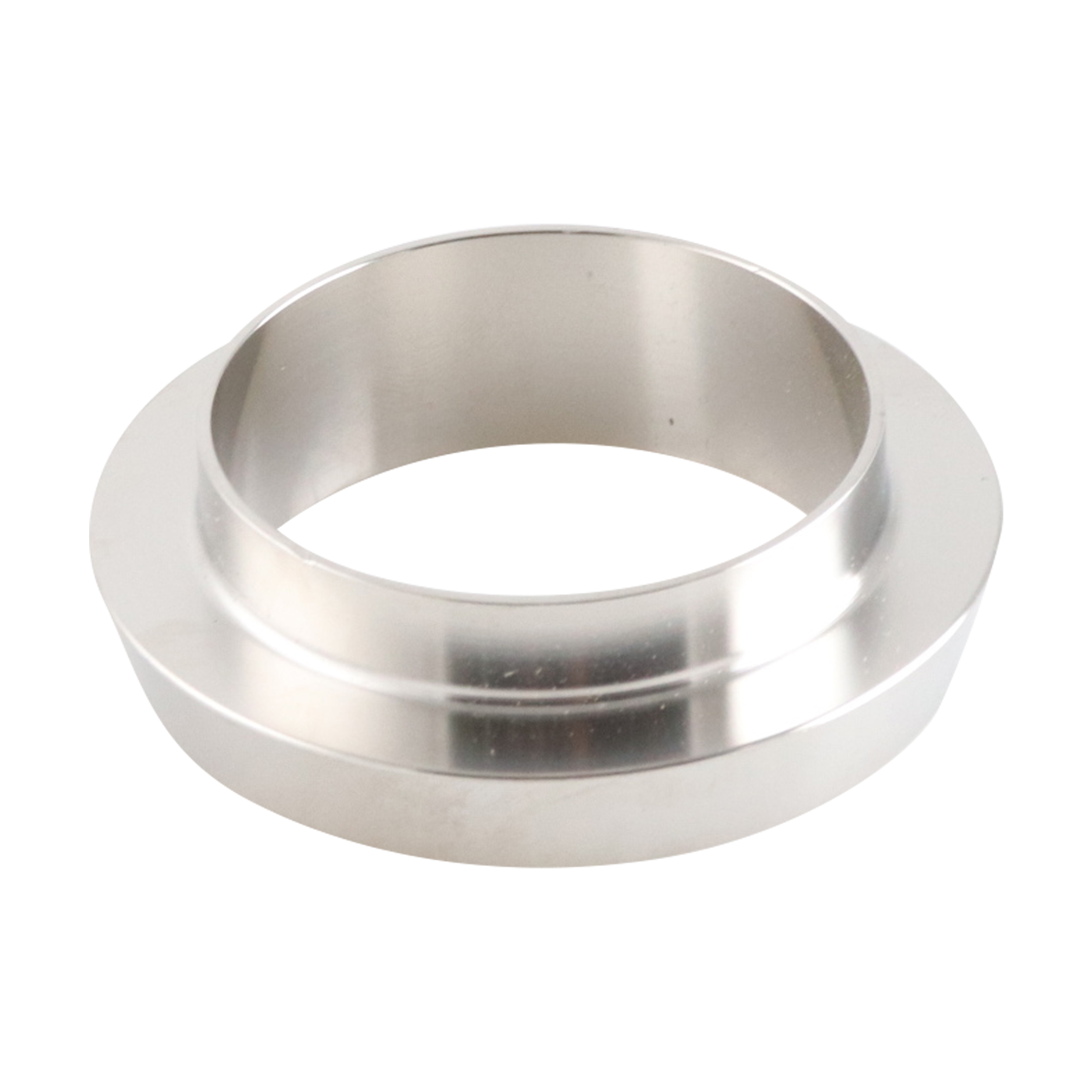

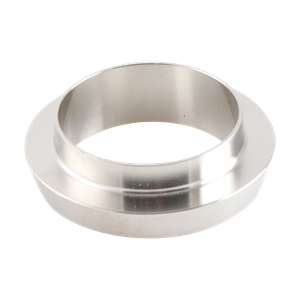

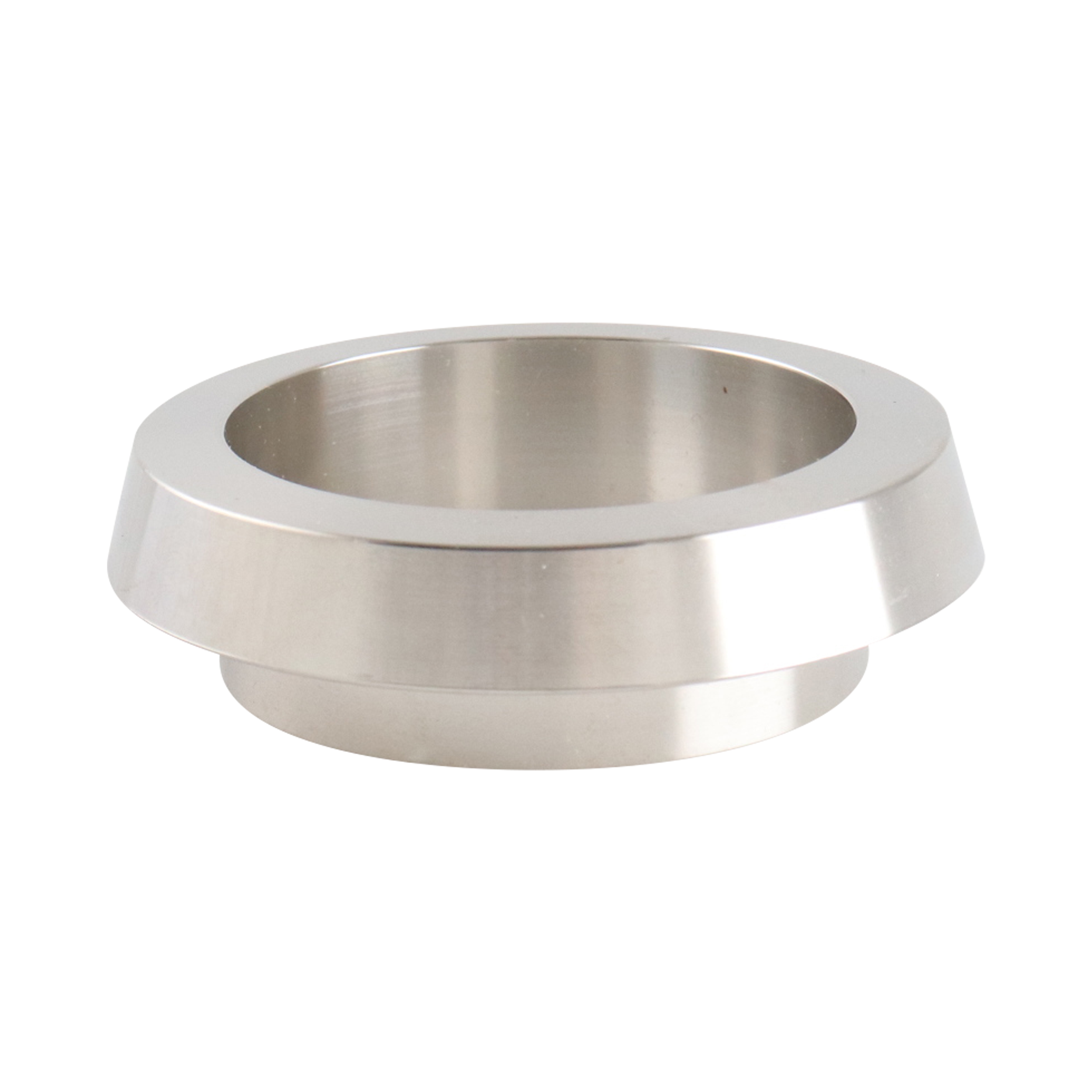

WELD LINER DN50 0.787" OAL 316L / 1.4404 DIN 11851
3131800201
Net Price: $30.89 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Weld Liners |
| Material | 316L Stainless Steel |
| Size 1 | DN50 |
| Connection Type 1 | DIN |
| Length | 0.787" OAL |
| Specification / Standard | DIN 11851 |
| Weight | 0.60000 |
Dimensional Data
Weld Liner DIN 11851 | 3131800201
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.98 | 25.00 | 1.73 | 44.00 | 0.71 | 18.00 |
| 1.57 | 40.00 | 2.20 | 56.00 | 0.71 | 18.00 |
| 1.96 | 50.00 | 2.68 | 68.00 | 0.79 | 20.00 |
| 2.56 | 65.00 | 3.39 | 86.00 | 0.79 | 20.00 |
| 2.95 | 75.00 | 3.74 | 95.00 | 0.79 | 20.00 |
| 3.15 | 80.00 | 3.94 | 100.00 | 0.79 | 20.00 |
