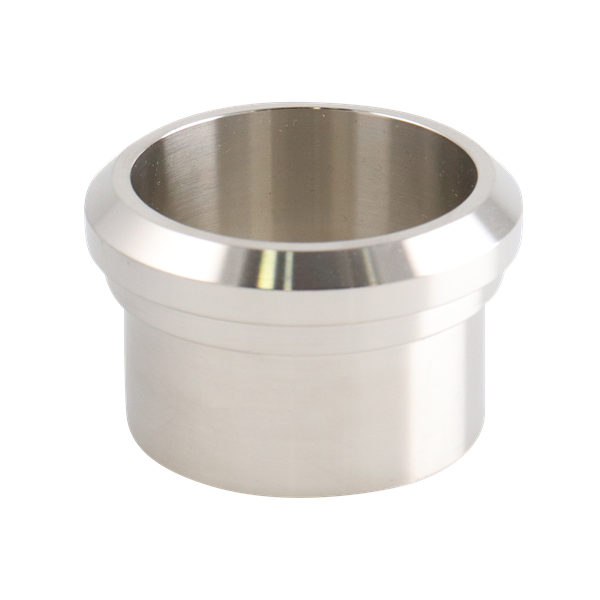

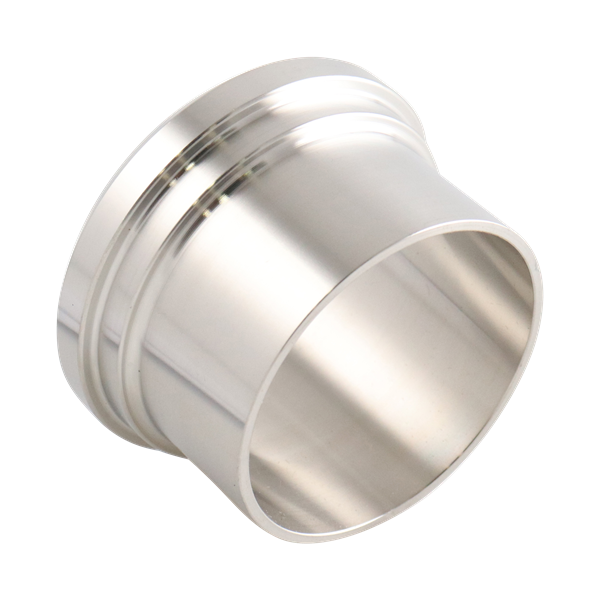

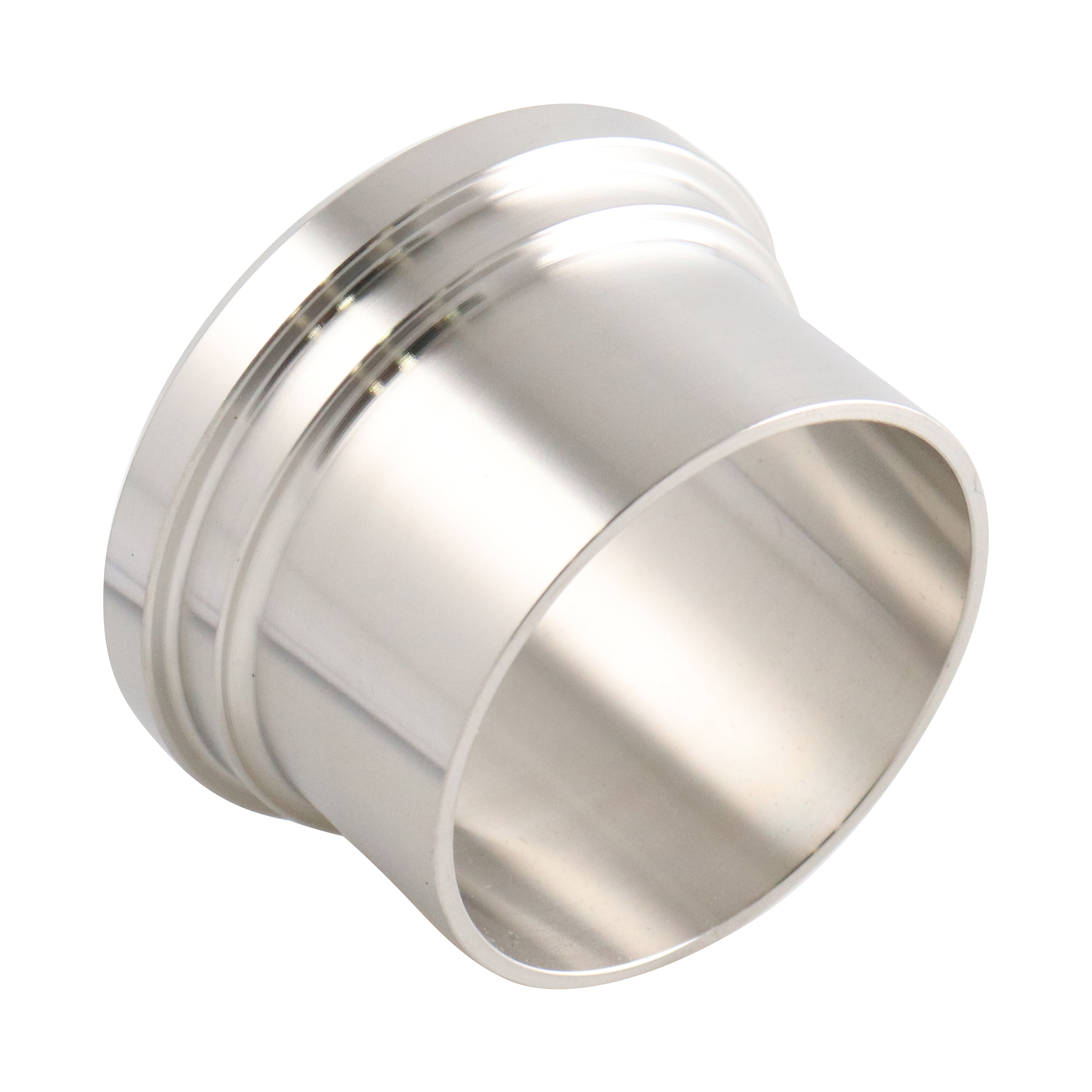

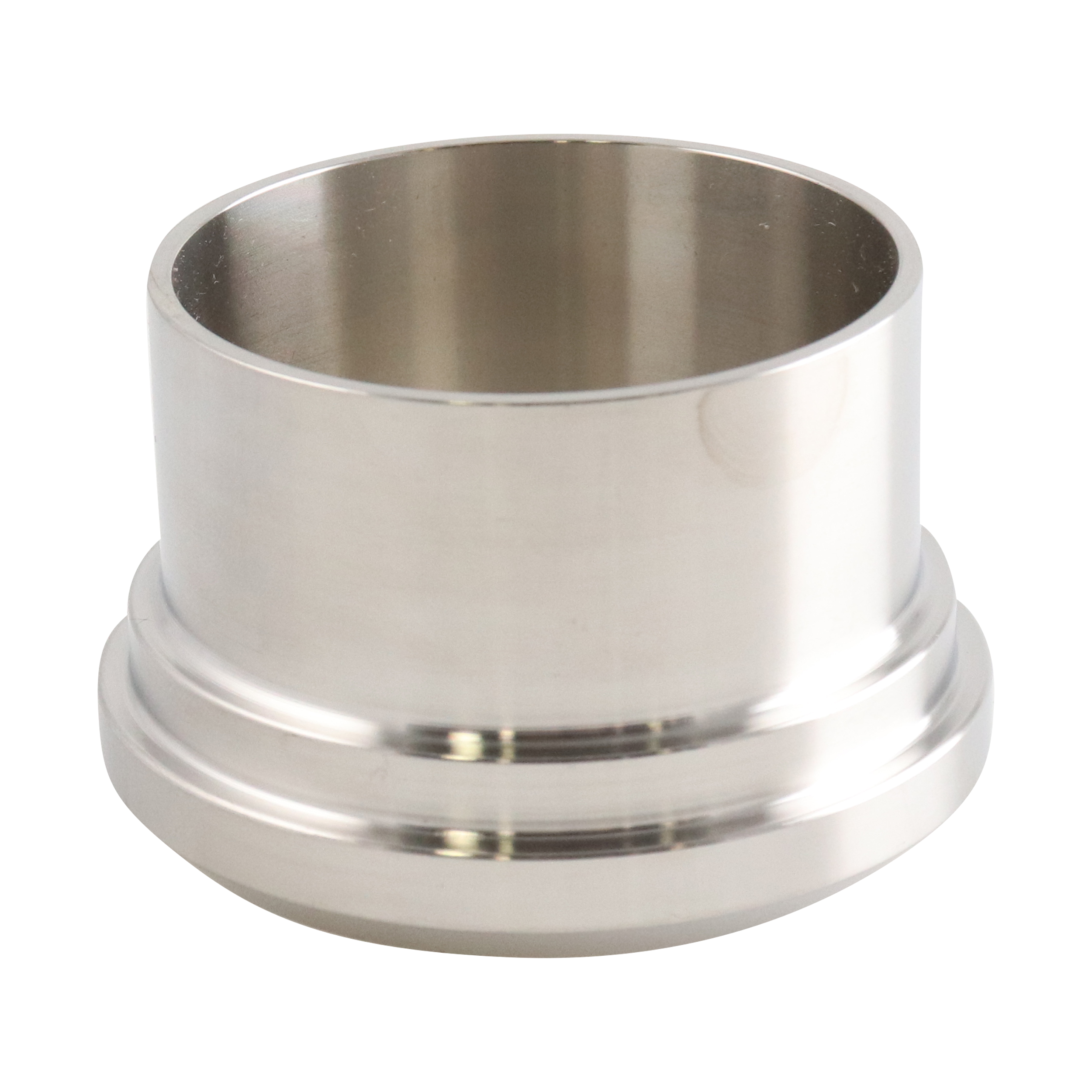

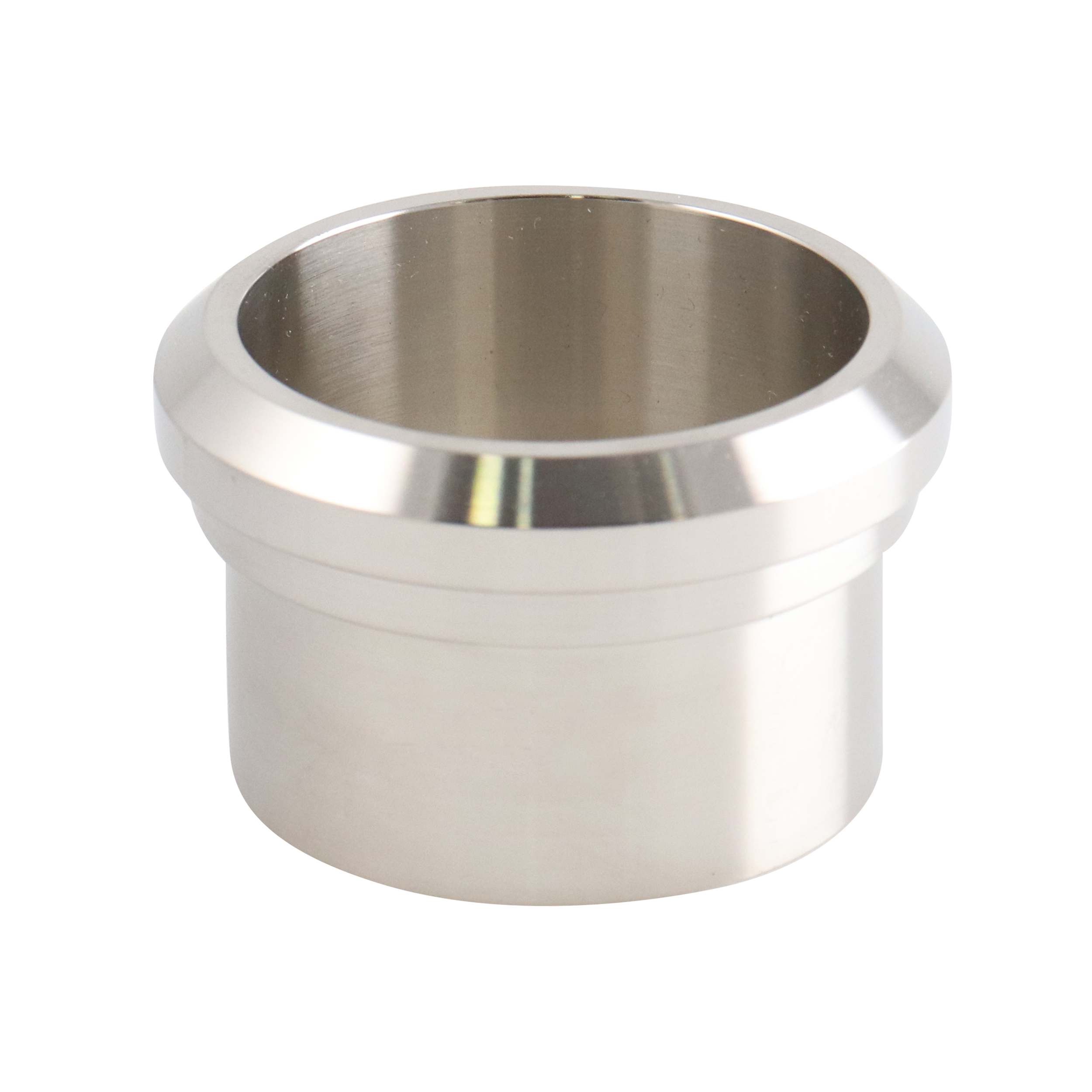

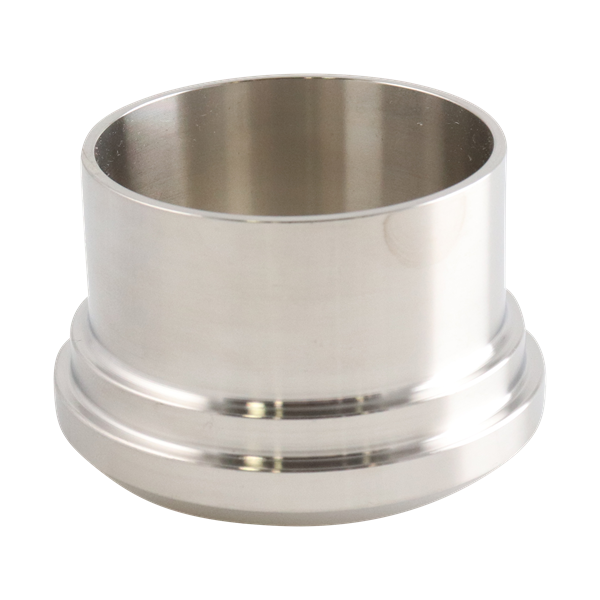

FERRULE 2" PLAIN BS DC 304 1.5" OAL 32RA ID 32RA OD
L14A-2-304-7
Net Price: $10.57 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Ferrules |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Plain Bevel Seat |
| Size 2 | 2" |
| Connection Type 2 | Butt Weld |
| Length | 1.5" OAL |
| Specification / Standard | 3-A |
| Fitting Design | L14A |
| Weight | 0.33000 |
Dimensional Data
Plain Long Weld Bevel Seat Ferrule | L14A-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.38 | 35.05 |
| 1½ | 38.10 | 1.50 | 38.10 |
| 2 | 50.80 | 1.50 | 38.10 |
| 2½ | 63.50 | 1.75 | 44.45 |
| 3 | 76.20 | 1.75 | 44.45 |
| 4 | 101.60 | 1.75 | 44.45 |
