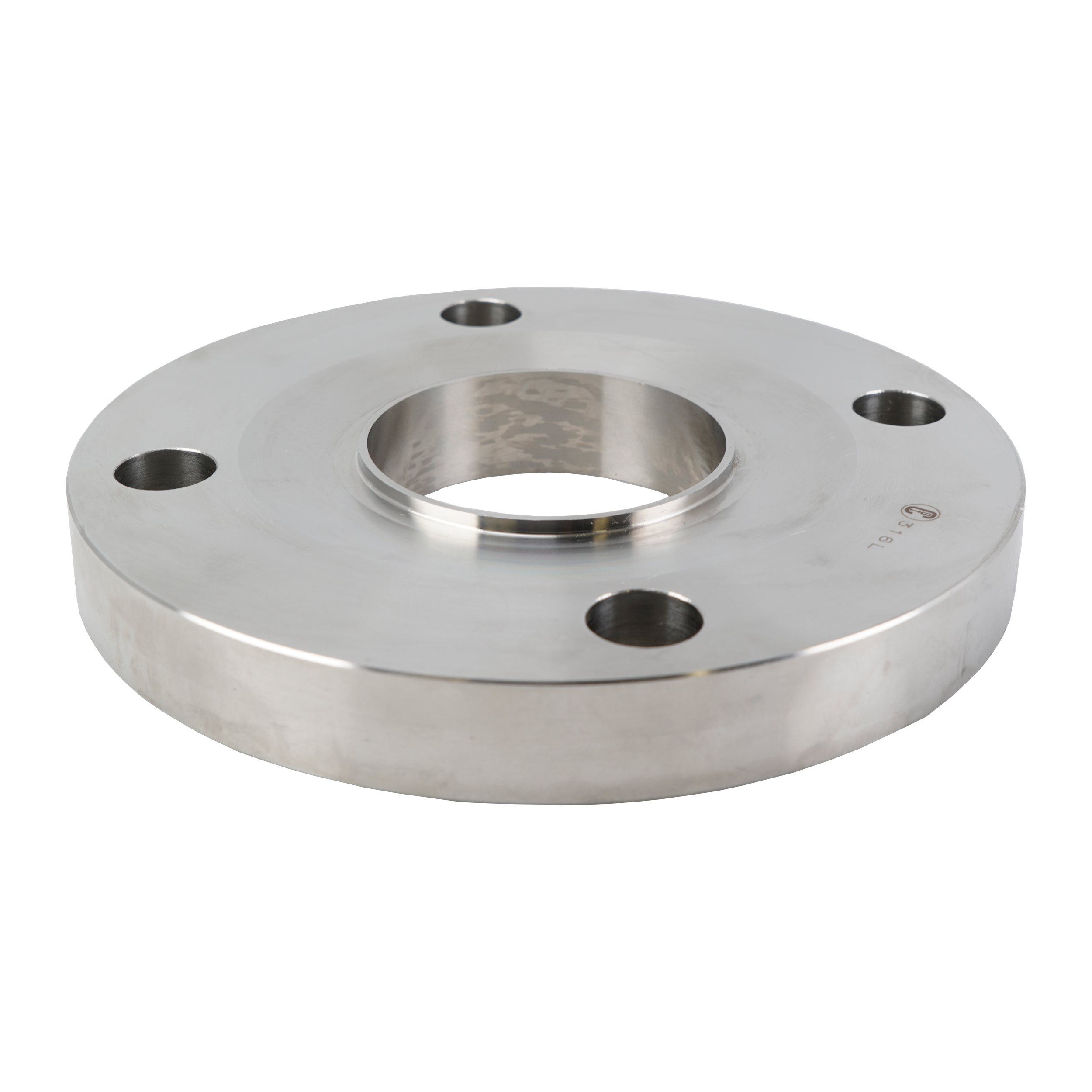

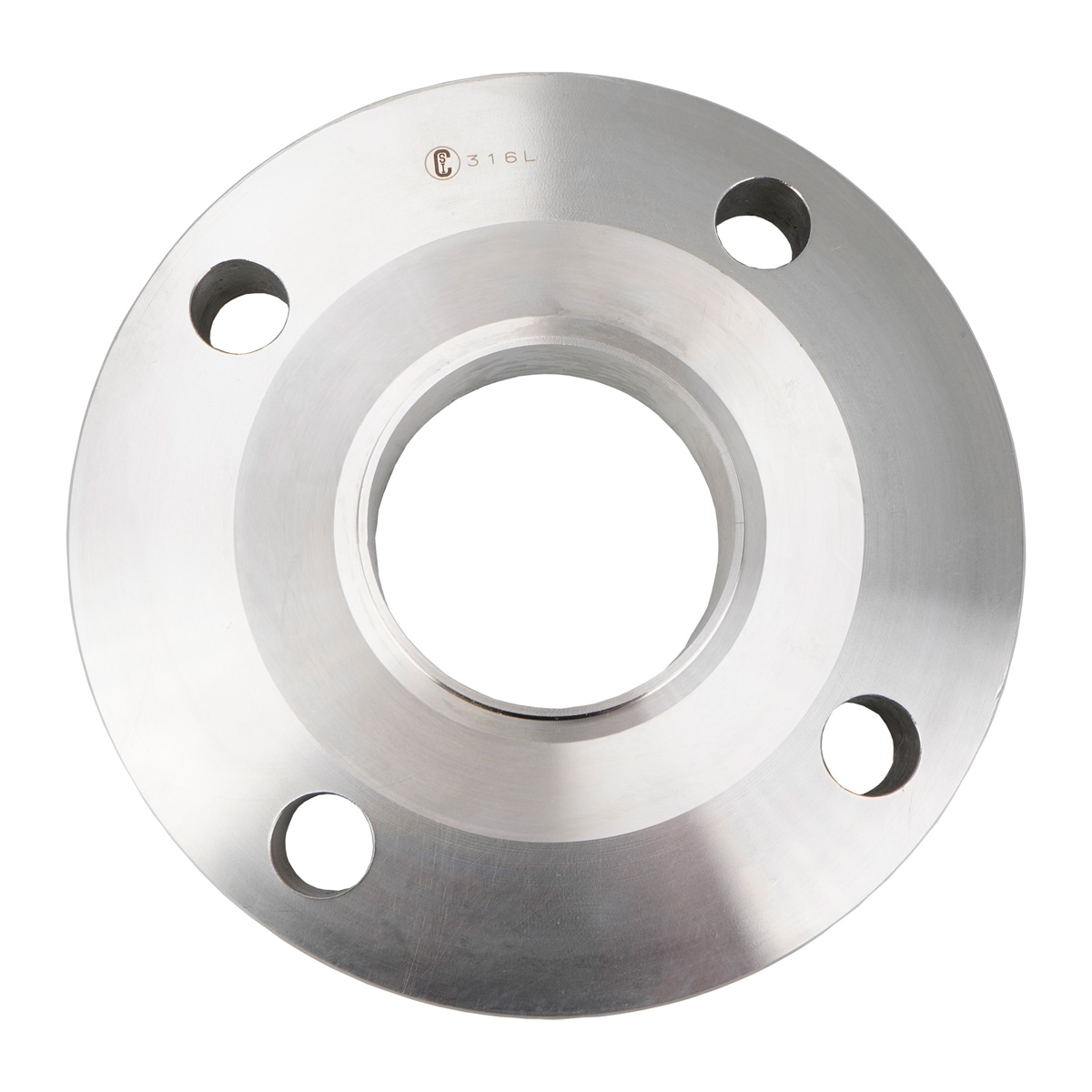

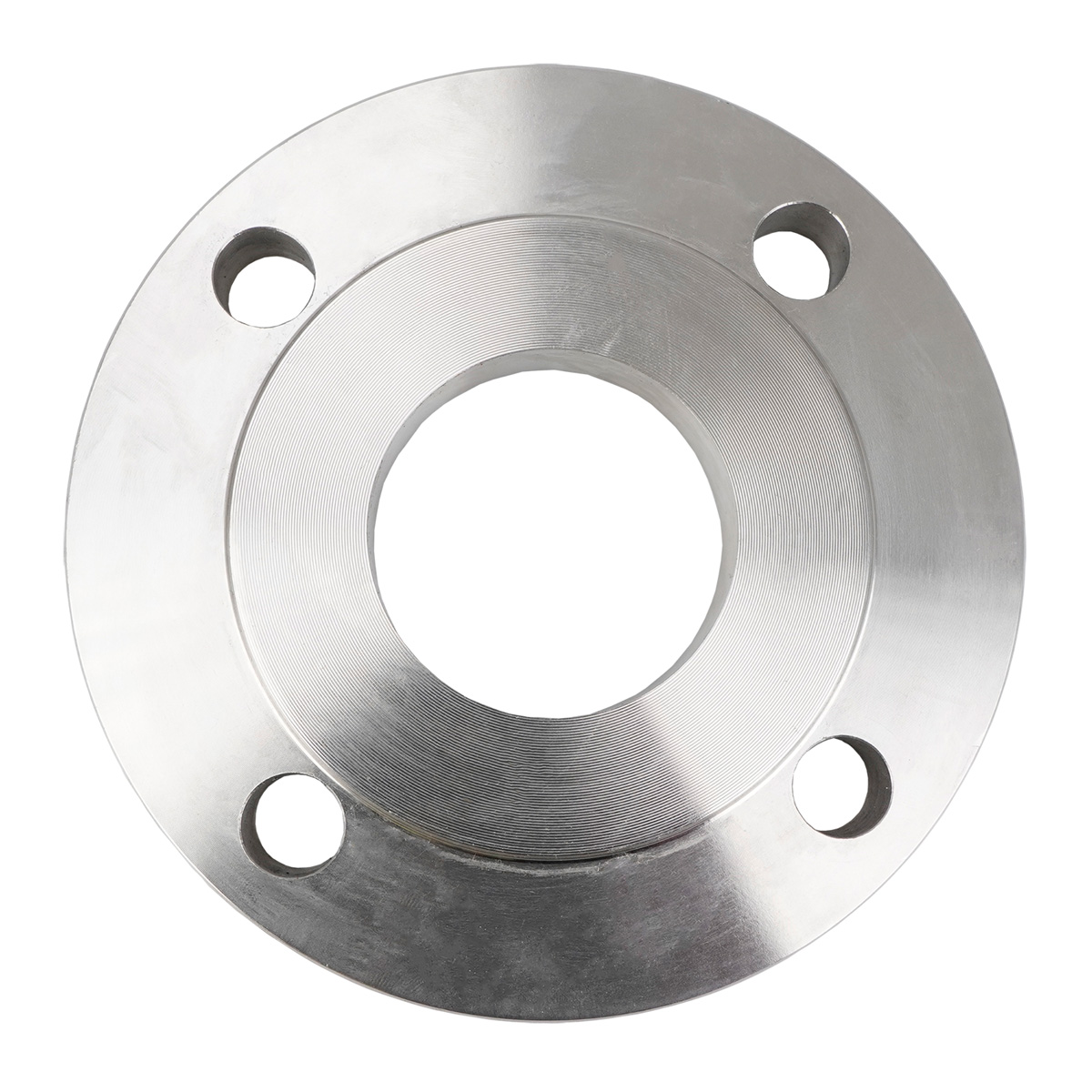

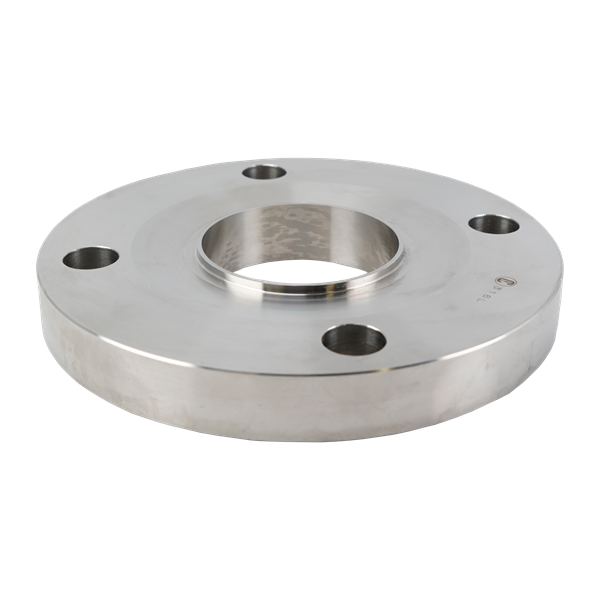

FLANGE 150# TUBE WELD NECK 3" 0.065" WALL 316L NO TANGENT ADAPTER
38W-3-316L
Net Price: $144.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Weld Neck Flanges |
| Material | 316L Stainless Steel |
| Size 1 | 3" |
| Connection Type 1 | Butt Weld |
| Size 2 | 3" |
| Connection Type 2 | Flange |
| Fitting Design | 38W |
| Wall Thickness | 0.065" |
| Number of Bolt Holes | 4 |
| Weight | 10.00000 |
Dimensional Data
Tube Weld Neck Flange Adapter | 38W-Size-Material-Finish
| Nominal Size | A | B | # of Bolt Holes | |||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| ½ | 12.70 | 0.50 | 12.70 | 0.44 | 11.18 | 4 |
| ¾ | 19.05 | 0.56 | 14.27 | 0.50 | 12.70 | 4 |
| 1 | 25.40 | 0.63 | 15.88 | 0.56 | 14.22 | 4 |
| 1½ | 38.10 | 0.75 | 19.05 | 0.69 | 17.53 | 4 |
| 2 | 50.80 | 0.81 | 20.62 | 0.75 | 19.05 | 4 |
| 2½ | 63.50 | 0.94 | 23.80 | 0.88 | 22.35 | 4 |
| 3 | 76.20 | 1.00 | 25.40 | 0.94 | 23.88 | 4 |
| 4 | 101.60 | 1.00 | 25.40 | 0.94 | 23.88 | 8 |
| 6 | 152.40 | 1.06 | 26.92 | 1.00 | 25.40 | 8 |
| 8 | 203.20 | 1.12 | 28.45 | 1.06 | 26.92 | 8 |
| 10 | 254.00 | 1.18 | 29.97 | 1.12 | 28.45 | 12 |
