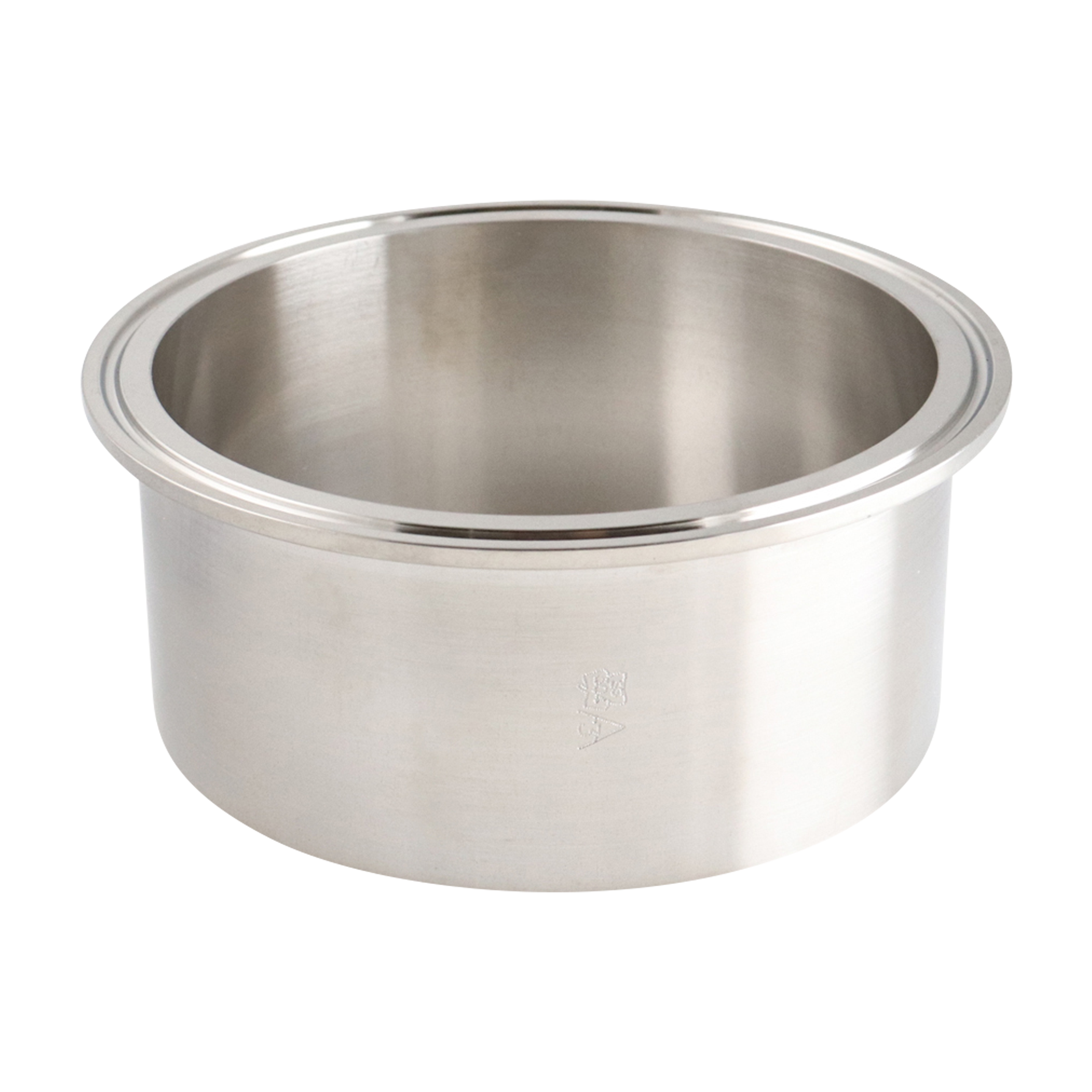

HEAVY WALL FERRULE 3" SCH 5 304 1.81" OAL 32RA ID 32RA OD
14MVW-3-304-7
Net Price: $49.52 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tank Ferrules |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 3" |
| Connection Type 2 | Butt Weld Pipe |
| Length | 1.81" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 14MVW |
| Wall Thickness | Sch 5 |
| Weight | 0.80000 |
Dimensional Data
IPS Sch. 5 Tri-Clamp Tank Weld Ferrule | 14MVW-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.63 | 41.40 |
| 1½ | 38.10 | 1.63 | 41.40 |
| 2 | 50.80 | 1.75 | 44.45 |
| 2½ | 63.50 | 1.75 | 44.45 |
| 3 | 76.20 | 1.81 | 45.97 |
| 4 | 101.60 | 2.13 | 54.10 |
