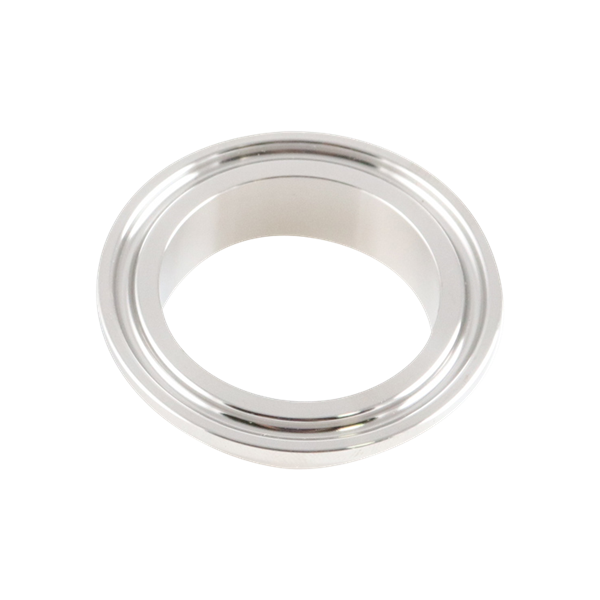

FERRULE 1.5" TC 316L 0.5" OAL 32RA ID 32RA OD
14WMPS-1.5-316L-7
$2.50 / EA
- Availability:
-
Springfield, MO 376 EA Durham, NC 0 EA Modesto, CA 335 EA Grand Prairie, TX 4,577 EA Dodge City Will Call 100 EA
Spare Parts
Suggested products
Attributes
- Alloy/Material:
- 316 / 316L
- Connection Type:
- Tri-Clamp
- Finish:
- 32Ra ID / 32Ra OD
- Size 1:
- 1.5"
- Specification/Standard:
- Sanitary Fittings
- Weight:
- 0.11000
Dimensional Data
Tri-Clamp Ferrule, Short | 14WMPS-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 0.500 | 12.70 | 0.984 | 25.00 |
| ¾ | 19.05 | 0.500 | 12.70 | 0.984 | 25.00 |
| 1 | 25.40 | 0.500 | 12.70 | 1.984 | 50.39 |
| 1½ | 38.10 | 0.500 | 12.70 | 1.984 | 50.39 |
| 2 | 50.80 | 0.500 | 12.70 | 2.516 | 63.91 |
| 2½ | 63.50 | 0.500 | 12.70 | 3.047 | 77.39 |
| 3 | 76.20 | 0.500 | 12.70 | 3.579 | 90.91 |
| 4 | 101.60 | 0.625 | 15.88 | 4.682 | 118.92 |
| 6 | 152.40 | 0.750 | 19.05 | 6.575 | 167.01 |
| 8 | 203.20 | 0.750 | 19.05 | 8.570 | 217.68 |
| 10 | 254.00 | 0.875 | 22.23 | 10.570 | 268.48 |
| 12 | 304.80 | 1.000 | 25.40 | 12.570 | 319.28 |
