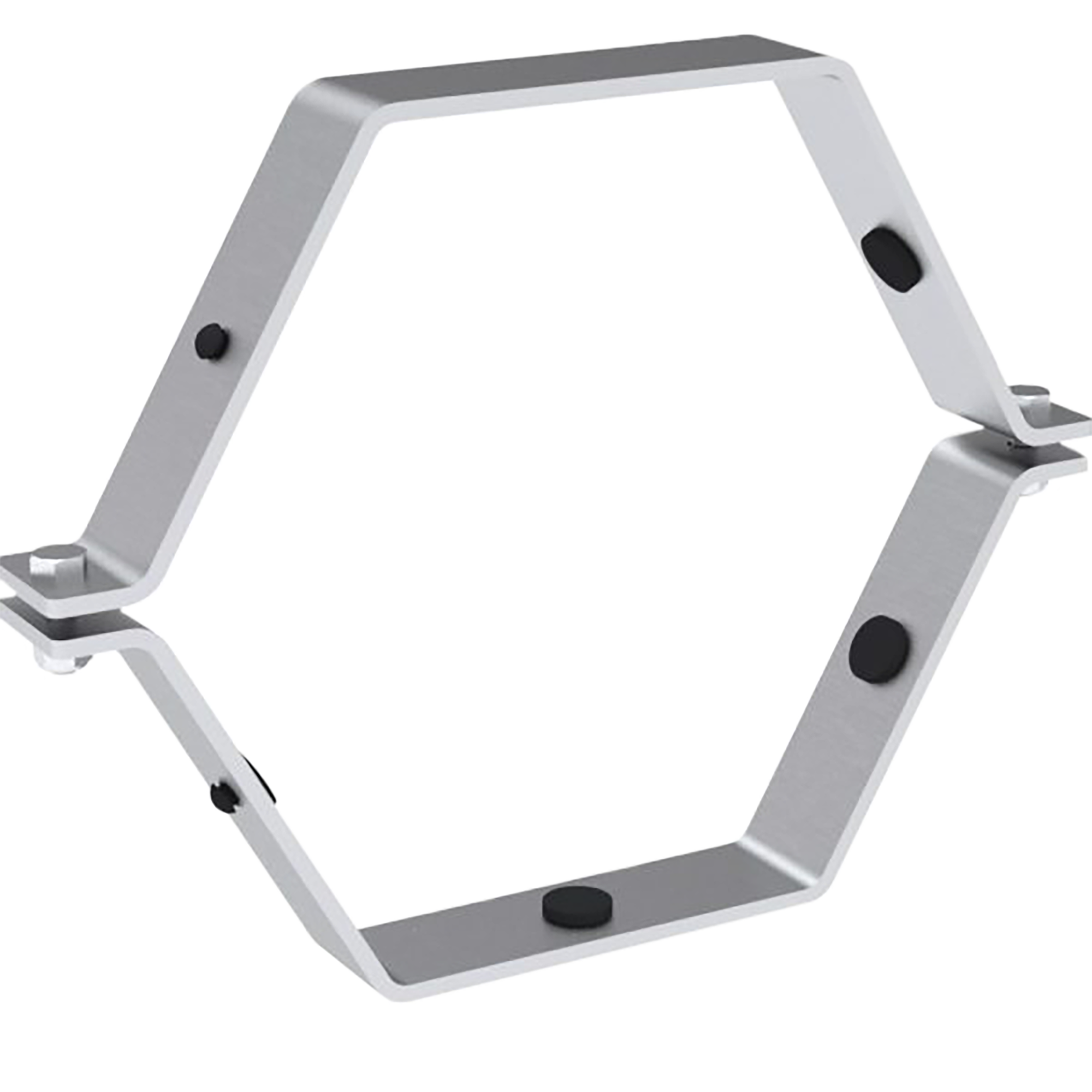

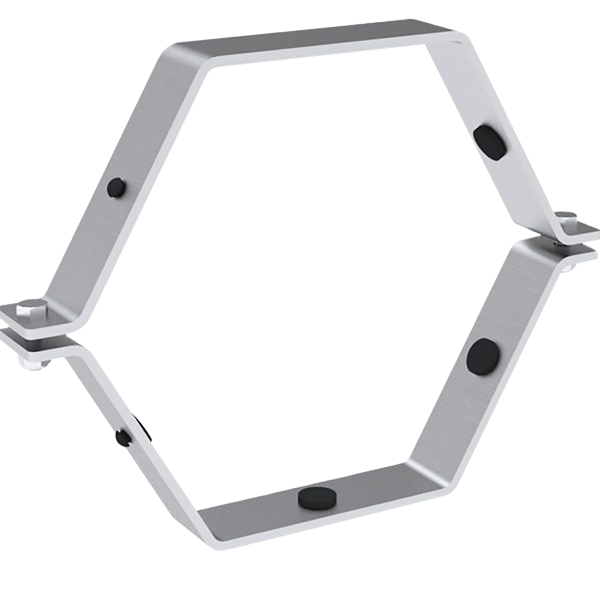

HEX HANGER ASSEMBLY 8" PIPE WITH ALCRYN GROMMET USA MADE
B24FCFV-8-S
$55.88 / EA
- Availability:
-
Springfield, MO 0 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
Suggested products
Attributes
Product Type | Hangers |
---|
Product Subtype | Hex Hangers |
---|
Series | B24 Series |
---|
Size | 8" |
---|
Weight | 0.00000 |
---|
Dimensional Data
Rubber Grommet Pipe Hex Hangers
Nominal Size | A | B | |||
---|---|---|---|---|---|
(in) | (mm) | (in) | (mm) | (in) | (mm) |
½ | 12.70 | 3.38 | 85.85 | 2.25 | 57.15 |
¾ | 19.05 | 3.38 | 85.85 | 2.19 | 55.63 |
1 | 25.40 | 3.75 | 95.25 | 2.13 | 54.10 |
1½ | 38.10 | 4.44 | 112.78 | 2.81 | 71.37 |
2 | 50.80 | 4.94 | 125.48 | 3.25 | 82.55 |
2½ | 63.50 | 5.56 | 141.22 | 3.86 | 98.04 |
3 | 76.20 | 6.06 | 153.92 | 4.31 | 109.47 |
4 | 101.60 | 7.50 | 190.50 | 5.13 | 130.30 |
5 | 127.00 | 8.50 | 215.90 | 6.38 | 162.05 |
6 | 152.40 | 9.88 | 250.95 | 7.13 | 181.10 |
8 | 203.20 | 12.25 | 311.15 | 9.38 | 238.25 |
10 | 254.00 | 15.38 | 390.65 | 11.38 | 289.05 |
12 | 304.80 | 17.50 | 444.50 | 13.69 | 347.73 |
