Attributes
| Product Type | Installation Supplies |
|---|
| Product Subtype | Saw Guides |
|---|
| Size | 6" |
|---|
| Weight | 6.00000 |
|---|
- Manufacturer:
- Shanghai Lefon Mechanical & Electrical Equipment
- Manufacturer part number:
- SG662
Dimensional Data

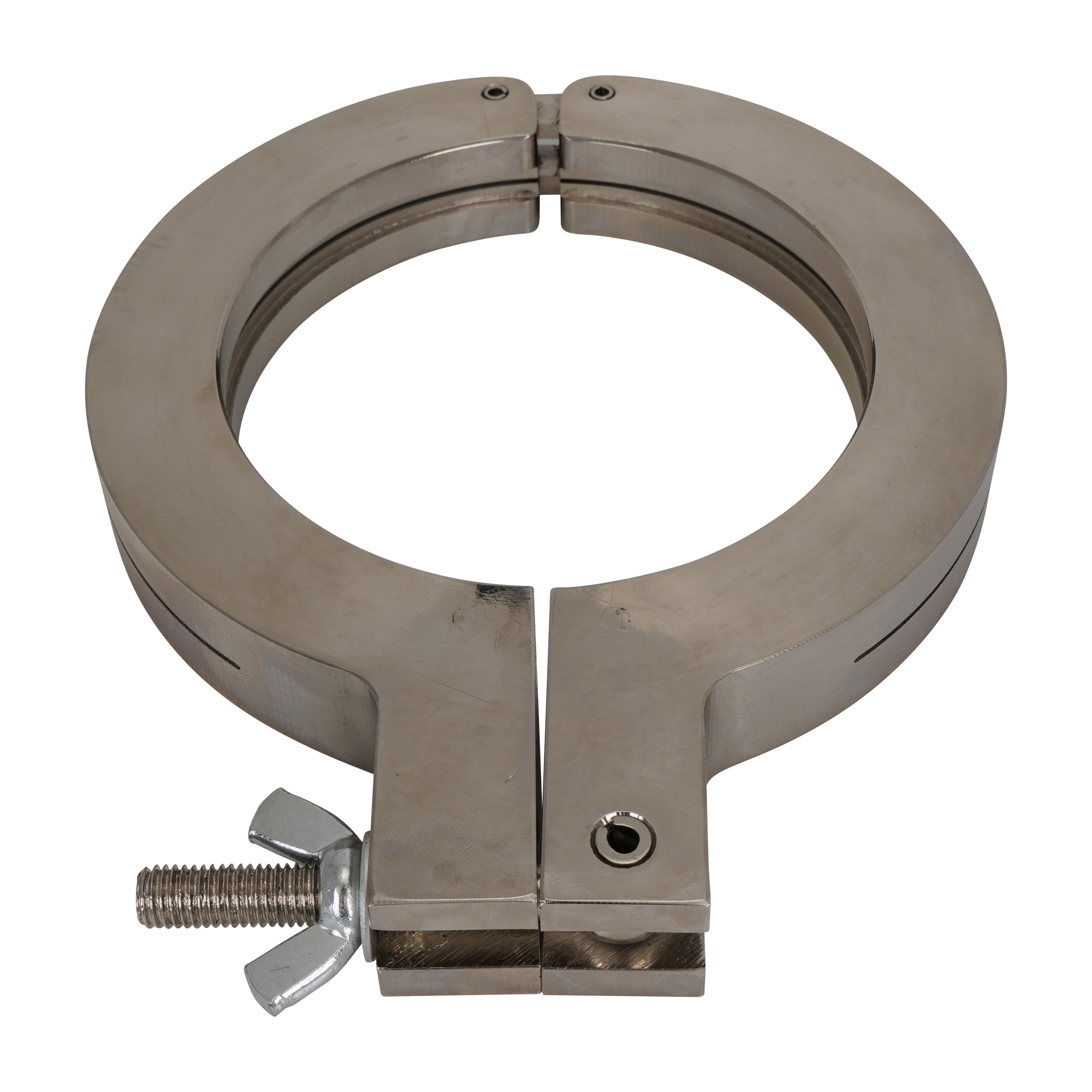

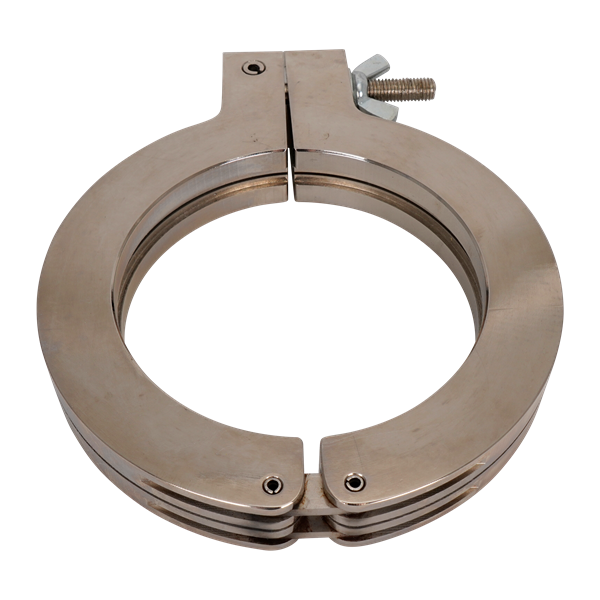

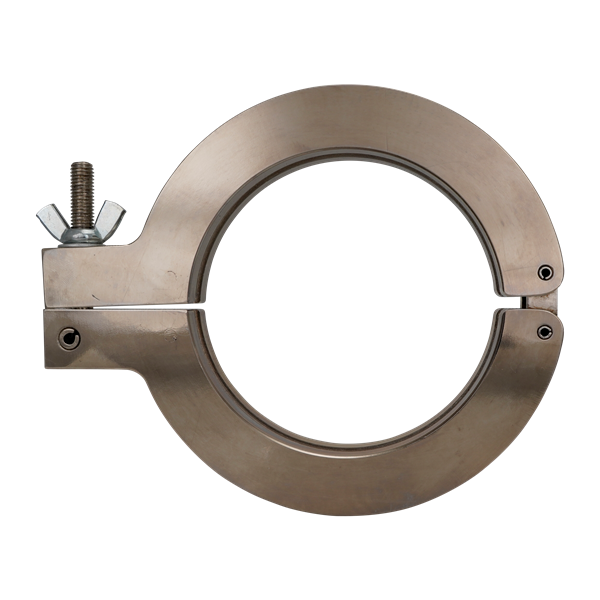

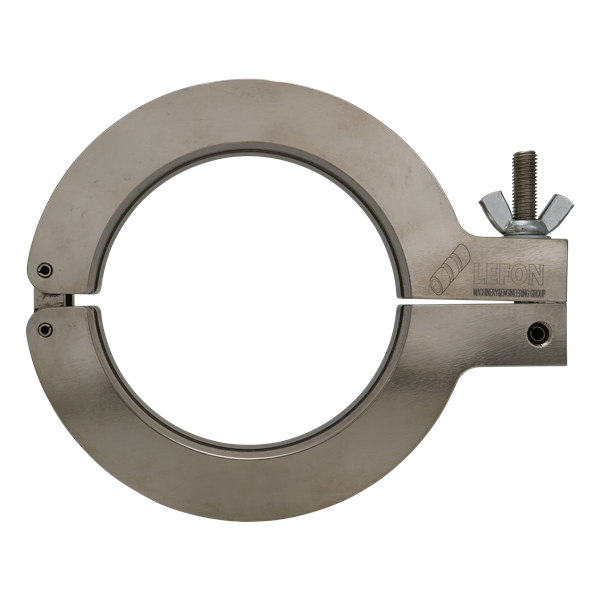

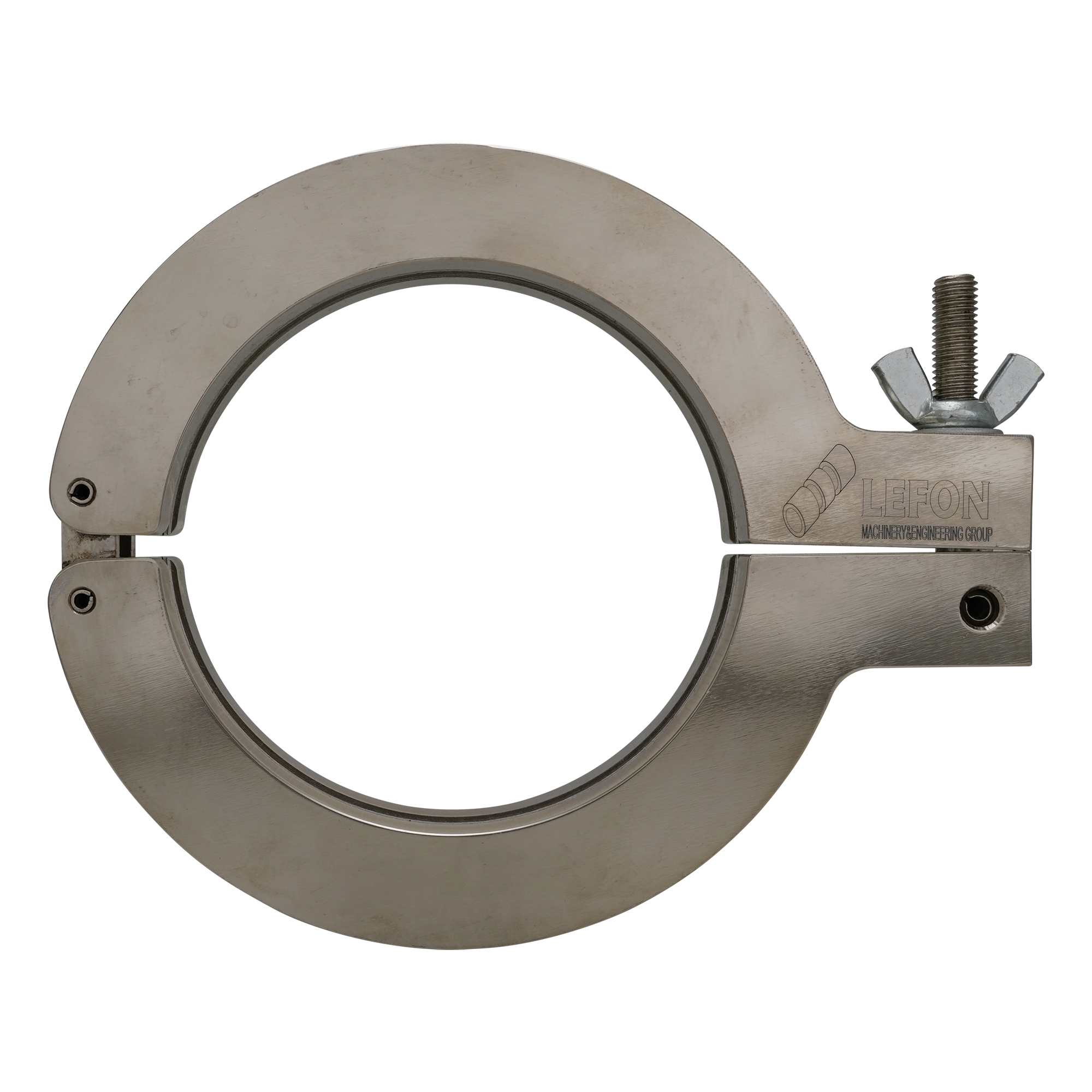

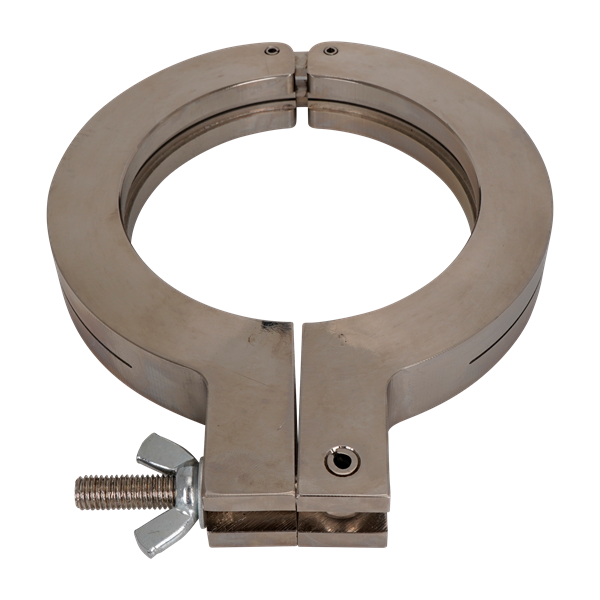

Wing Nut Style Saw Guides
| Nominal Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.42 | 36.07 | 0.79 | 20.07 | 2.00 | 50.80 | 0.36 | 9.14 |
| ¾ | 19.05 | 1.69 | 42.93 | 0.79 | 20.07 | 2.43 | 61.72 | 0.36 | 9.14 |
| 1 | 25.40 | 1.97 | 50.04 | 1.18 | 29.97 | 2.83 | 71.88 | 0.56 | 14.22 |
| 1¼ | 31.75 | 2.37 | 60.20 | 1.25 | 31.75 | 3.31 | 84.07 | 0.59 | 14.99 |
| 1½ | 38.10 | 2.64 | 67.06 | 1.25 | 31.75 | 3.62 | 91.95 | 0.04 | 1.02 |
| 2 | 50.80 | 3.14 | 79.76 | 1.25 | 31.75 | 4.22 | 107.19 | 0.59 | 14.99 |
| 2½ | 63.50 | 3.90 | 99.06 | 1.25 | 31.75 | 5.13 | 130.30 | 0.59 | 14.99 |
| 3 | 76.20 | 4.43 | 112.52 | 1.25 | 31.75 | 5.71 | 145.03 | 0.59 | 14.99 |
| 4 | 101.60 | 5.48 | 139.19 | 1.25 | 31.75 | 6.83 | 173.48 | 0.59 | 14.99 |
| 6 | 152.40 | 8.19 | 208.03 | 1.25 | 31.75 | 10.08 | 256.00 | 0.59 | 14.99 |
