Chicago Stainless

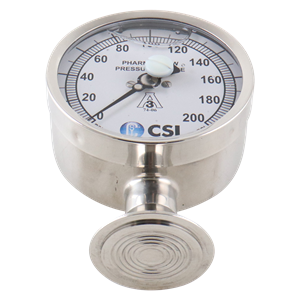

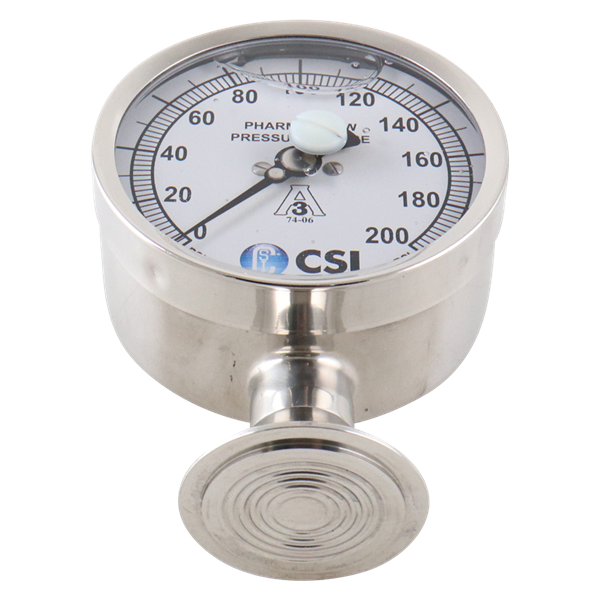

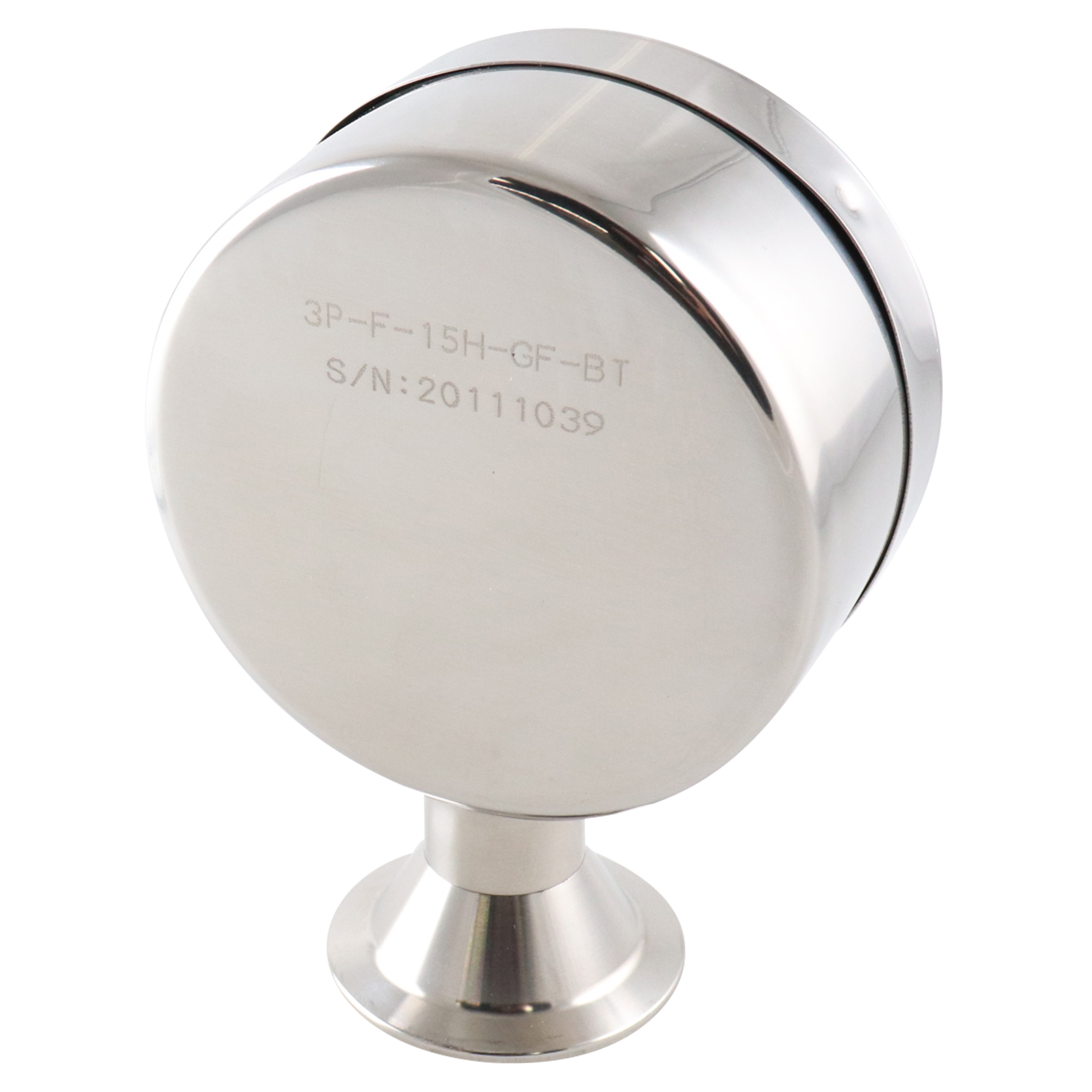

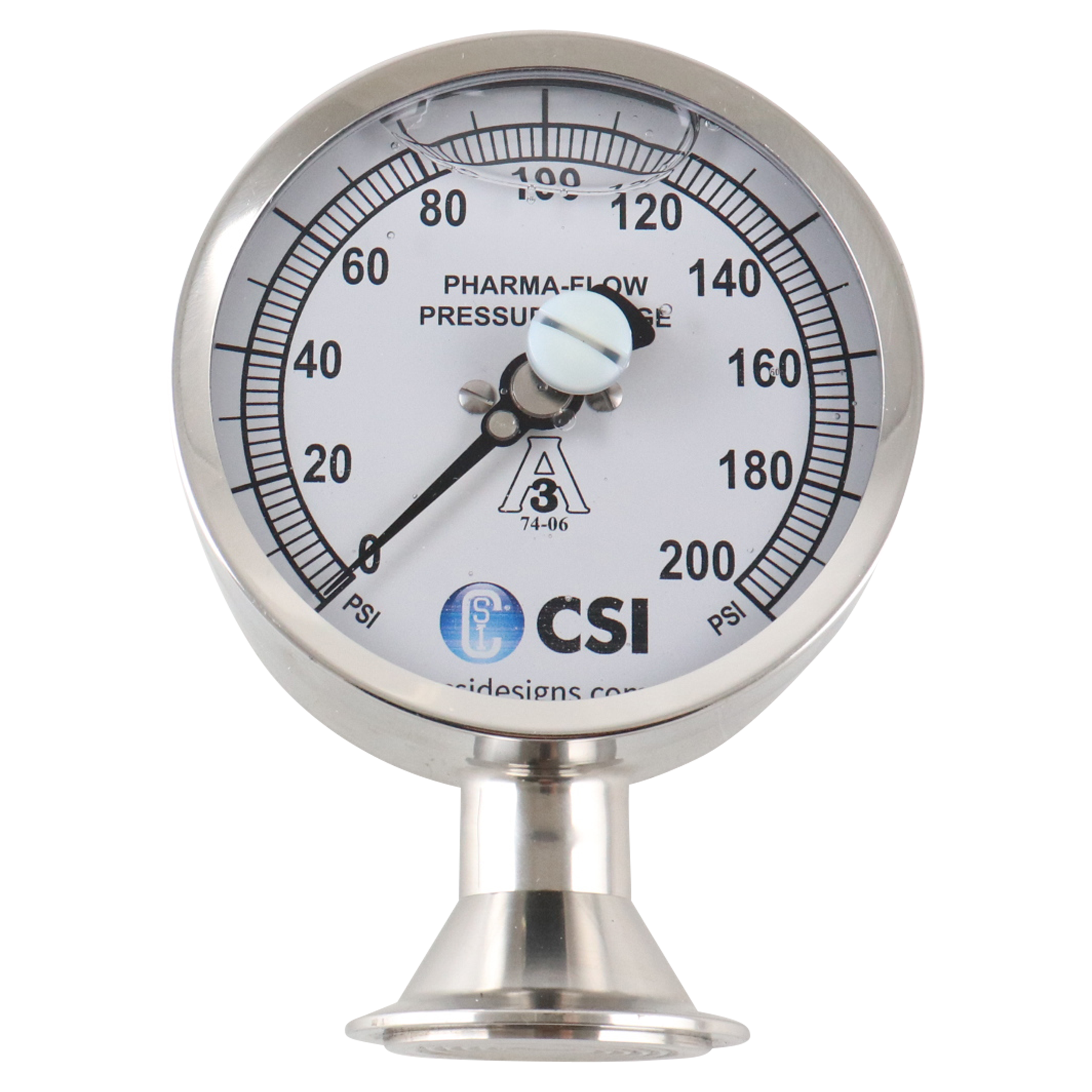

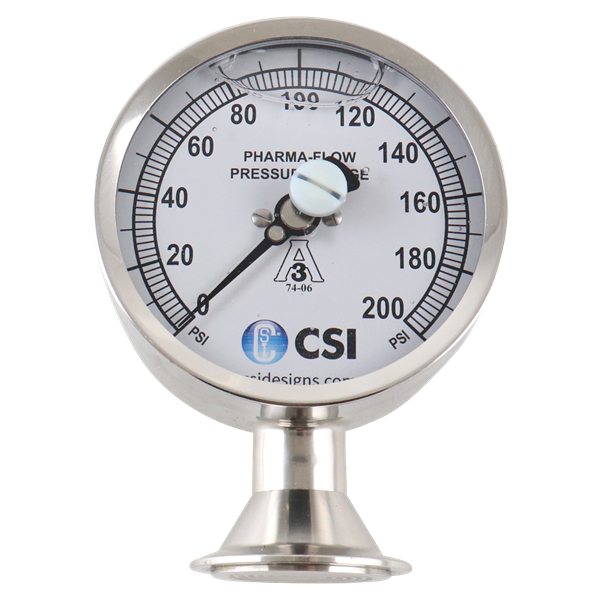

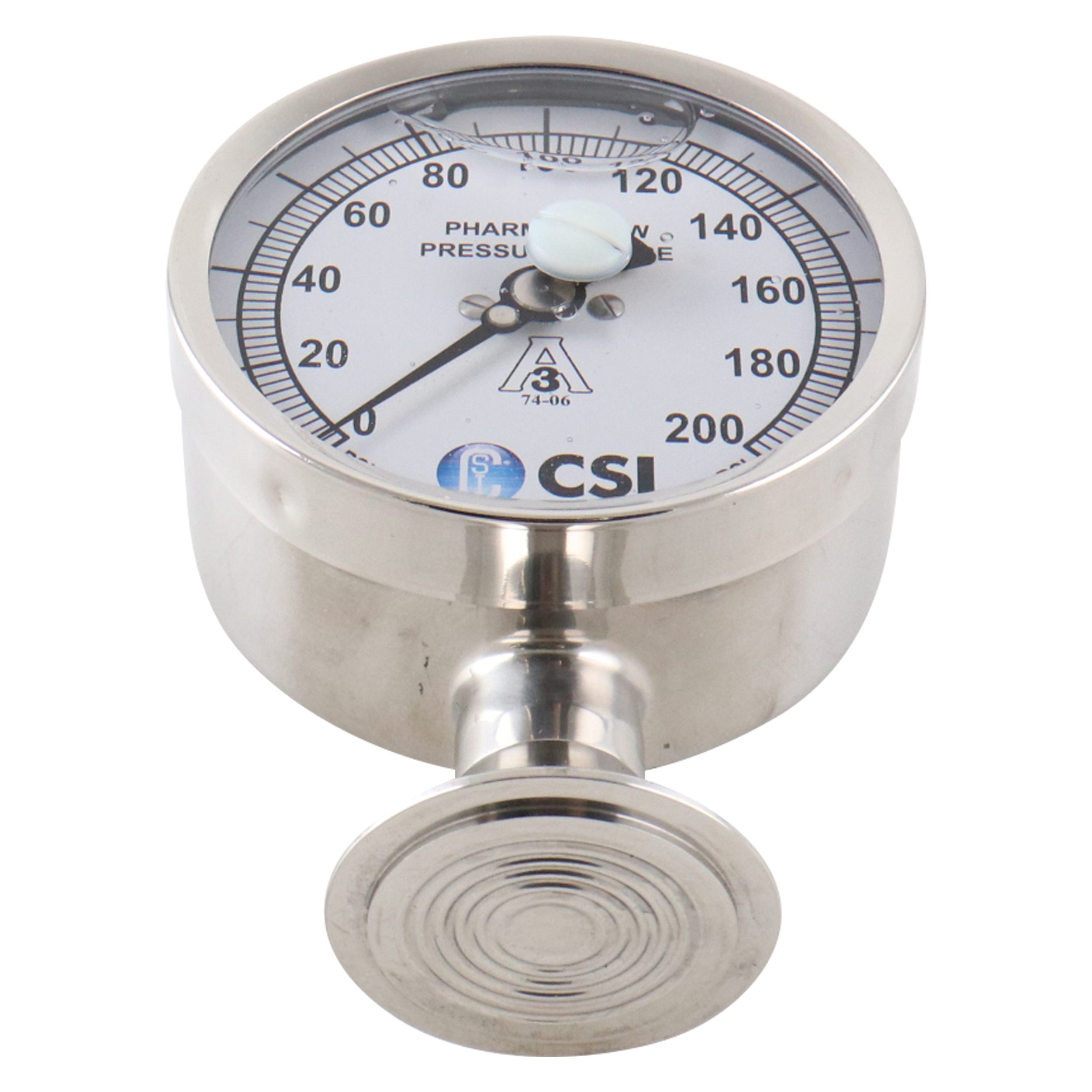

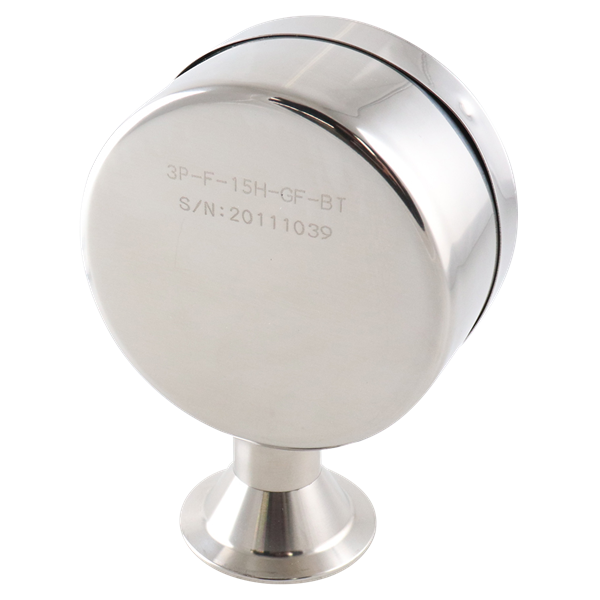

PHARMA GAUGE 1.5" 0-200 PSI G&H MALE H-LINE BOTTOM MOUNT GLYCERIN FILLED SS DIAPHRAGM 3.5" DIAL POLYCARBONATE LENS CSI LOGO
3P-F-15H-GF-BT-SS
- MPN:
- 3P-F-15H-GF-BT-SS
Net Price: $533.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Chicago Stainless |
|---|---|
| Product Type | Instrumentation |
| Product Subtype | Pressure Gauges |
| Series | Pharma-Flow Series |
| Material | 316L Stainless Steel |
| Size 1 | 1.5" |
| Connection Type 1 | H-Line |
| Specification / Standard | 3-A |
| Range | 0 to 200 PSI |
| Scale | PSI |
| Dial Size | 3.5" Dial |
| Orientation / Mount | Bottom |
| Weight | 0.00000 |
- Manufacturer:
- Chicago Stainless Equipment
- MPN:
- 3P-F-15H-GF-BT-SS
Dimensional Data
Pharma-Flow Pressure Gauge H-Line Bottom Mount
| Gauge Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2½ | 63.50 | 1.25 | 31.75 | 2.50 | 63.50 | 0.38 | 9.65 | 3.94 | 100.08 |
| 3½ | 88.90 | 1.88 | 47.75 | 3.69 | 93.73 | 0.63 | 16.00 | 5.13 | 130.30 |
| 4 | 101.60 | 1.88 | 47.75 | 4.00 | 101.60 | 0.63 | 16.00 | 5.44 | 138.18 |
| 5 | 127.00 | 2.31 | 58.67 | 5.06 | 128.52 | 0.63 | 16.00 | 6.50 | 165.10 |
Chicago Stainless Pharma-Flow Pressure Gauge Data Sheet
