Anderson-Negele

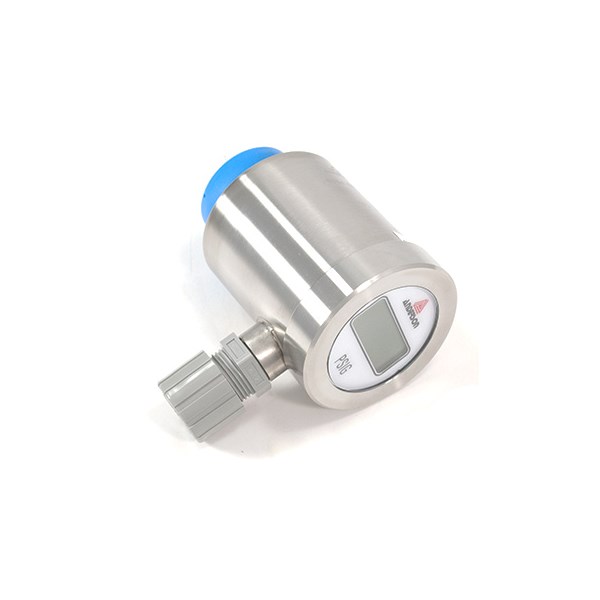

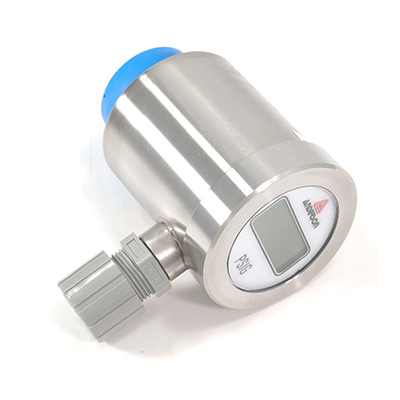

PRESSURE TRANSMITTER 1.5" TC 0-100 PSIG 316L EP NO CABLE ANDERSON
SV071G004G1200
- MPN:
- SV071G004G1200
Net Price: $5,105.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Anderson-Negele |
|---|---|
| Product Type | Instrumentation |
| Product Subtype | Pressure Transmitters |
| Series | SV Series |
| Material | 316L Stainless Steel |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Range | 0 to 100 PSI |
| Scale | PSI |
| Weight | 0.00000 |
- Manufacturer:
- Anderson Instrument
- MPN:
- SV071G004G1200
Dimensional Data
SV Pressure Transmitter TC
| Nominal Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¾ | 19.05 | 4.21 | 108.00 | 3.56 | 90.00 | 3.14 | 80.00 | 1.75 | 44.00 |
| 1½ | 38.10 | 4.12 | 105.00 | 3.56 | 90.00 | 3.14 | 80.00 | 1.75 | 44.00 |
| 2 | 50.80 | 4.12 | 105.00 | 3.56 | 90.00 | 3.14 | 80.00 | 1.75 | 44.00 |
Anderson-Negele SV Pressure Transmitter Data Sheet
