ITT / Envizion

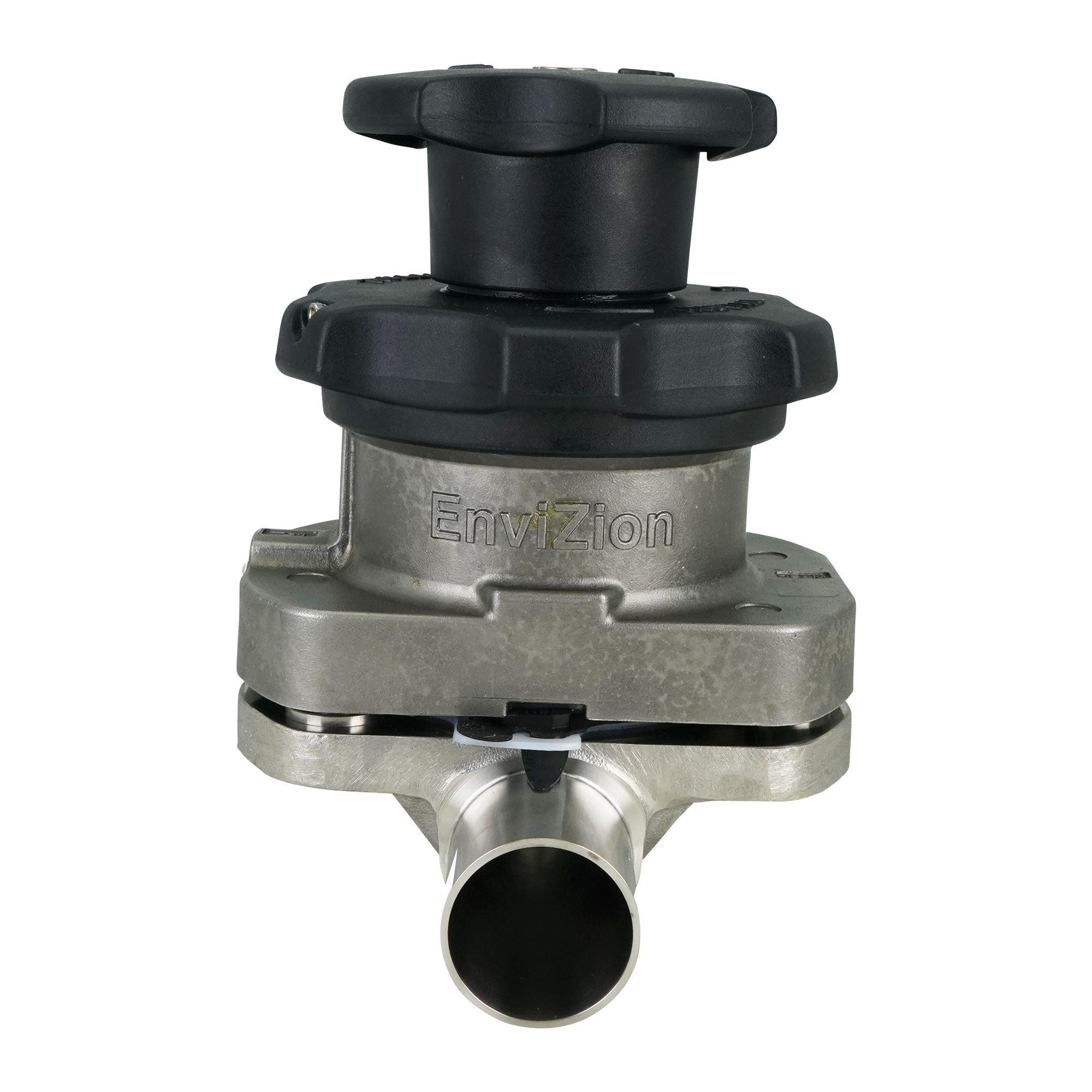

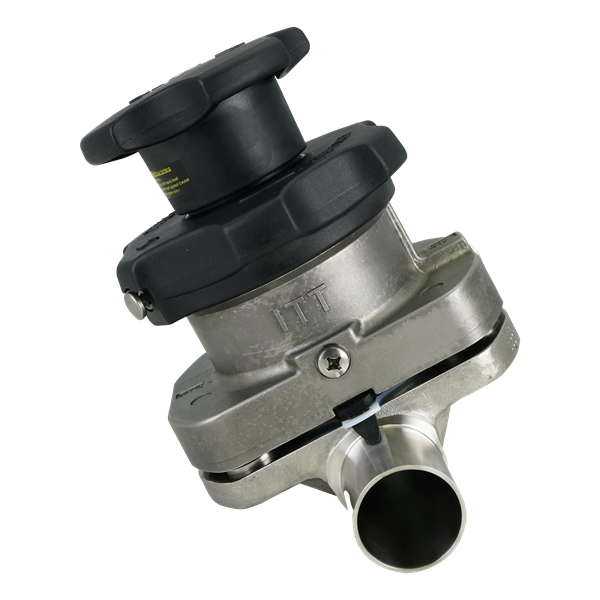

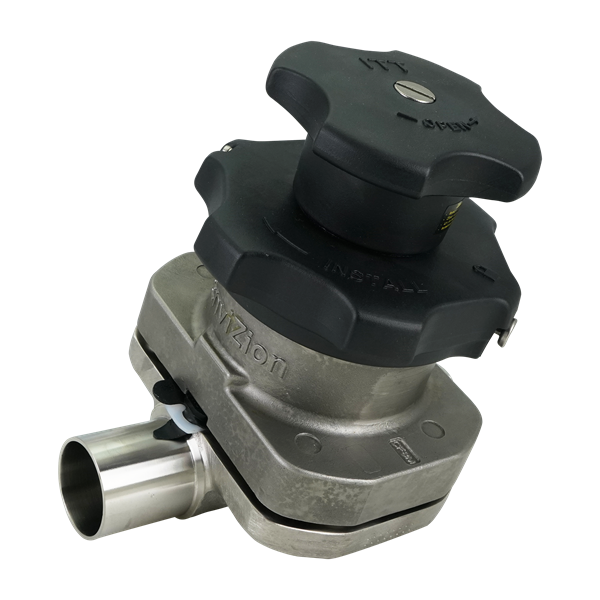

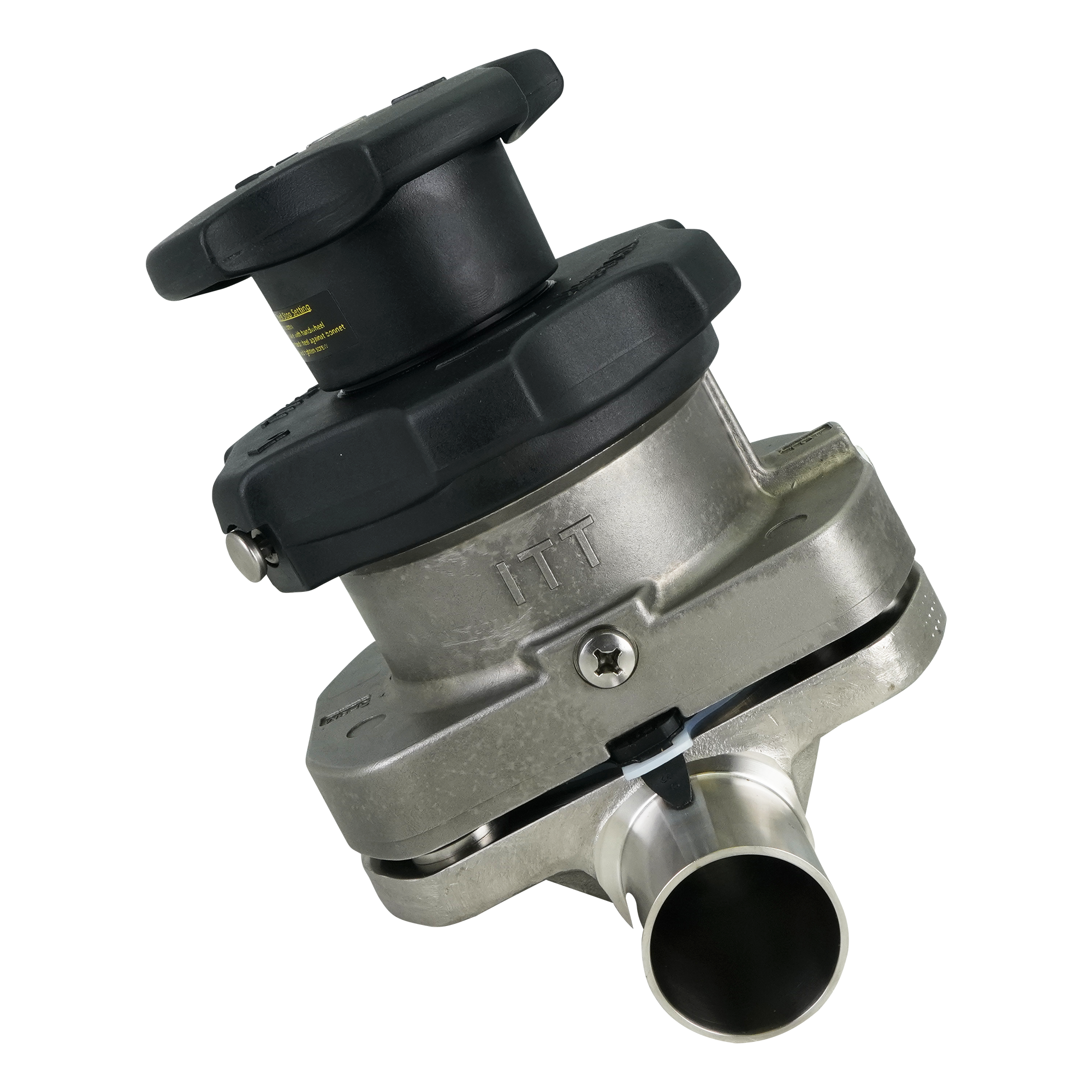

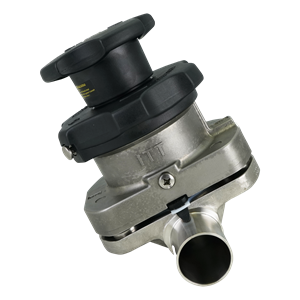

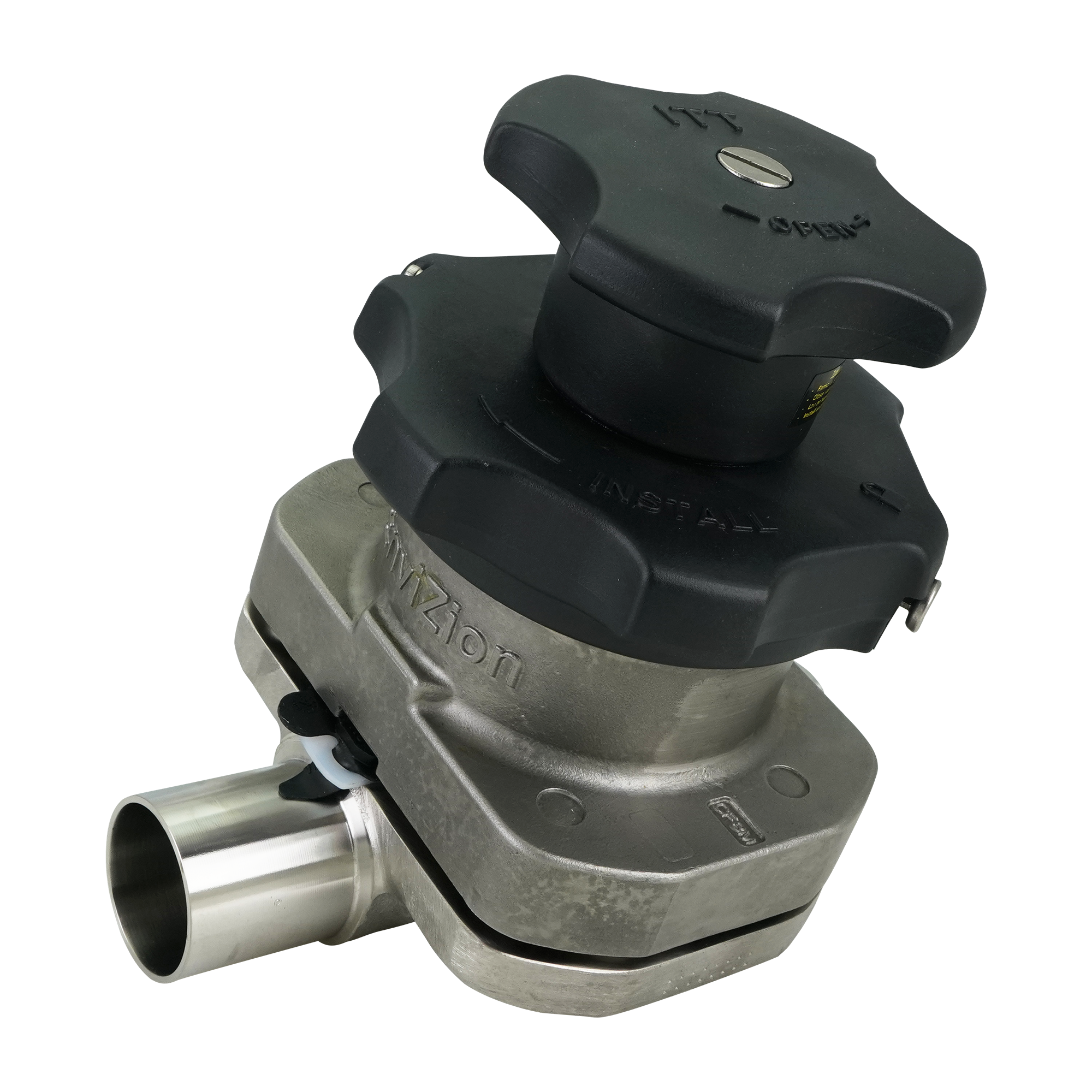

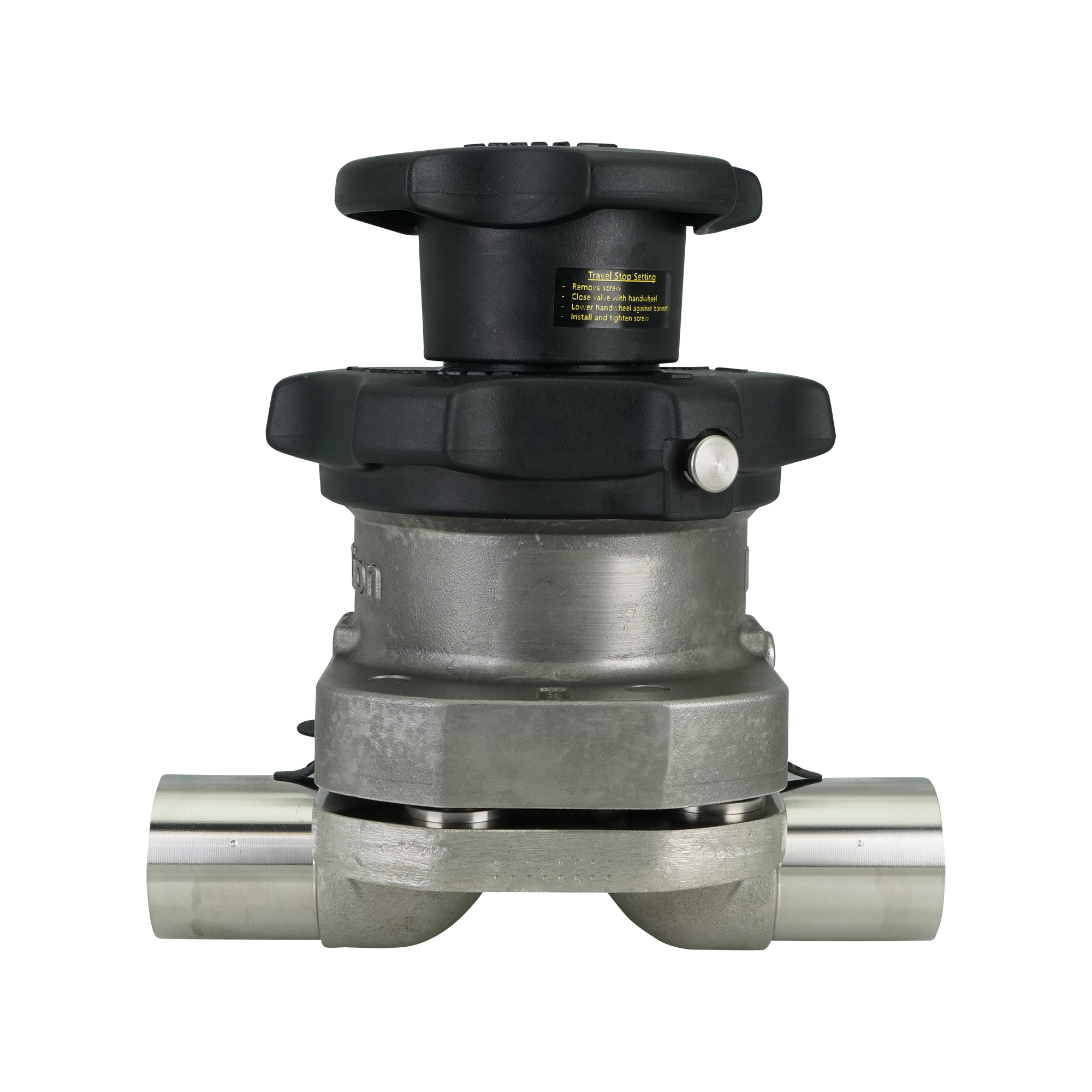

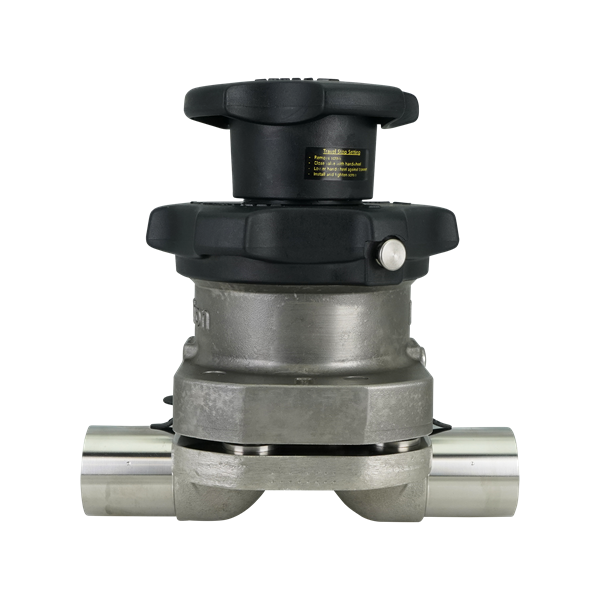

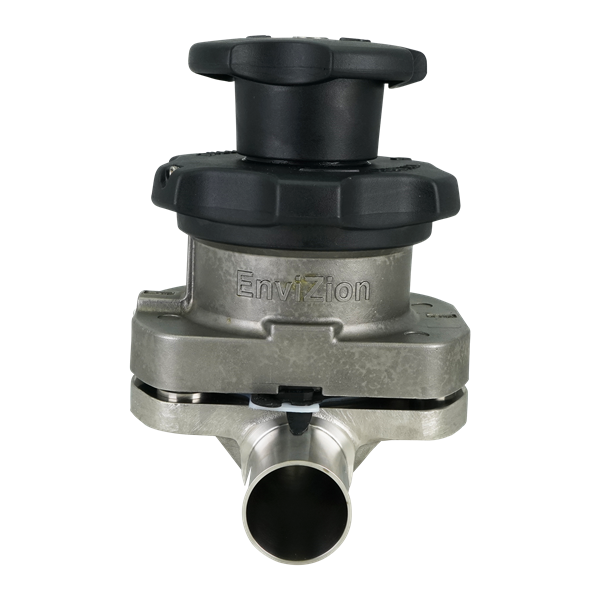

ENV-1.5-F-428L-8-0-0-TMZ-ZH DIAPHRAGM VALVE 1.5" WELD X WELD FORGED 316L SS ZERO TORQUE MANUAL ENVIZION ITT
PF-V-702104
- MPN:
- ENV-1.5-F-428L-8-0-0-TMZ-ZH
Net Price: $3,872.80 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | ITT / Envizion |
|---|---|
| Product Type | Valves |
| Product Subtype | Diaphragm Valves |
| Material | 316L Stainless Steel |
| Size 1 | 1.5" |
| Connection Type 1 | Butt Weld |
| Weight | 37.60000 |
- Manufacturer:
- Williams Carver Company
- MPN:
- ENV-1.5-F-428L-8-0-0-TMZ-ZH
Dimensional Data
EnviZion Diaphragm Value BW Manual
| Valve Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.50 | 12.7 | 2.05 | 52.1 | 4.04 | 102.5 |
| 0.75 | 19.05 | 2.95 | 74.9 | 5.30 | 134.6 |
| 0.75R | 19.05 | 2.05 | 52.1 | 4.04 | 102.5 |
| 1.00 | 25.4 | 2.95 | 74.9 | 5.30 | 134.6 |
| 1.50 | 38.1 | 3.89 | 98.8 | 7.09 | 180.1 |
| 2.00 | 50.8 | 3.89 | 98.8 | 7.69 | 195.4 |
