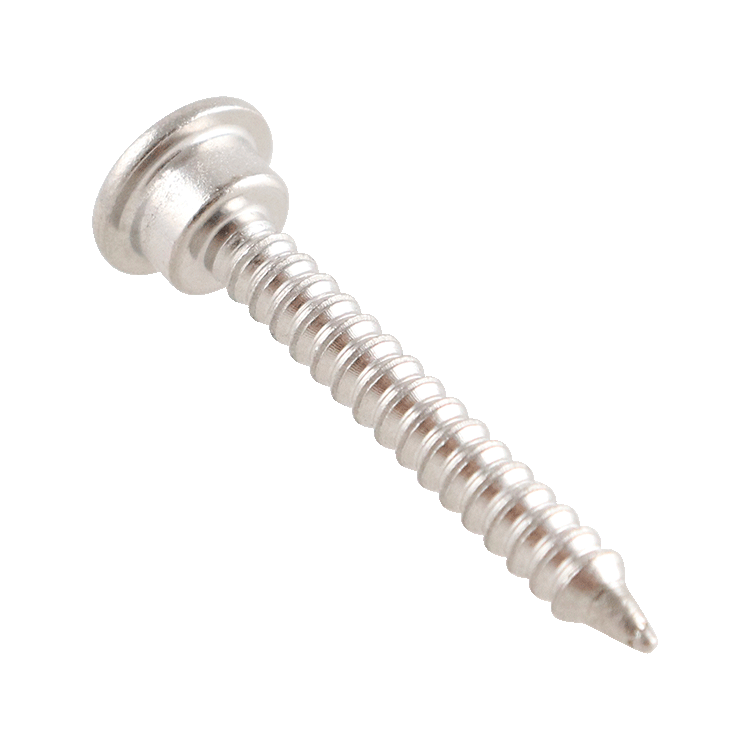

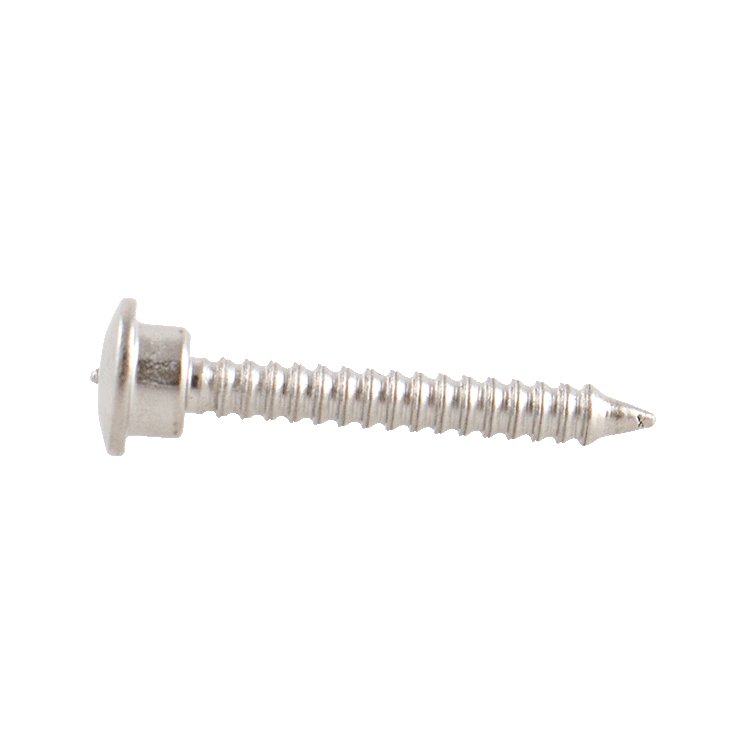

PIPETITE ANCHOR DRIVE TYPE BARBED WITH INSERT 316 1" OAL
PTA-2
Pipetite Anchors are specifically designed for mounting Pipetite Standard, Flat, and ReBoot. These drive-style fasteners feature a clean, recess-free surface. Since the anchors are self-sufficient, they do not require any additional bonding agents.

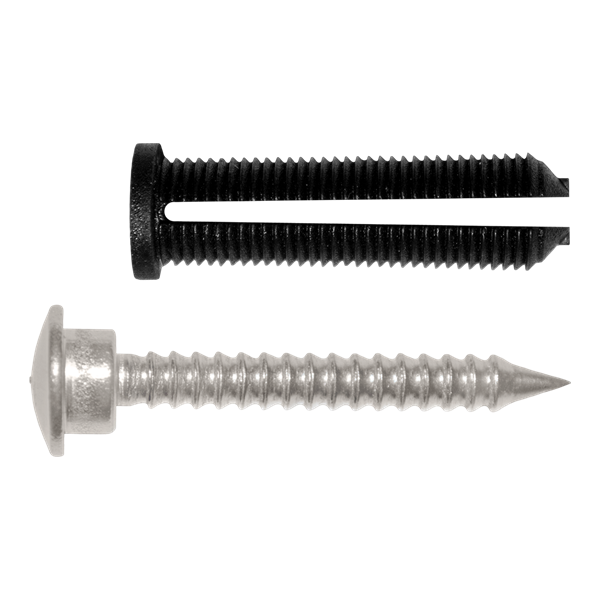

PTA-2 comes in two pieces. It is perfect for panel walls, thin wall structures, and concrete or brick surfaces.
USUALLY SHIPS IN 1-2 DAYS
$0.90 / EA
Spare Parts
Suggested products
Attributes
| Brand | Pipetite® |
|---|
| Product Type | Pipetite |
|---|
| Product Subtype | Anchors |
|---|
| Material | 316 Stainless Steel |
|---|
| Length | 1" |
|---|
| Weight | 0.01000 |
|---|
- Manufacturer:
- Lake Products LTD
- Manufacturer part number:
- 317 159
Dimensional Data
Resources
Data Sheets
Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
Other Literature
Documentos Españoles
Anchor 2 comes in two pieces. It is perfect for panel walls, thin wall structures, and concrete or brick surfaces.
To install a PTA-2, drill a ¼-inch hole into the surface, and place the plastic insert in the hole. Position the Pipetite in place and hammer the anchor into the insert. The plastic insert expands in the hole, firmly anchoring the Pipetite in place.

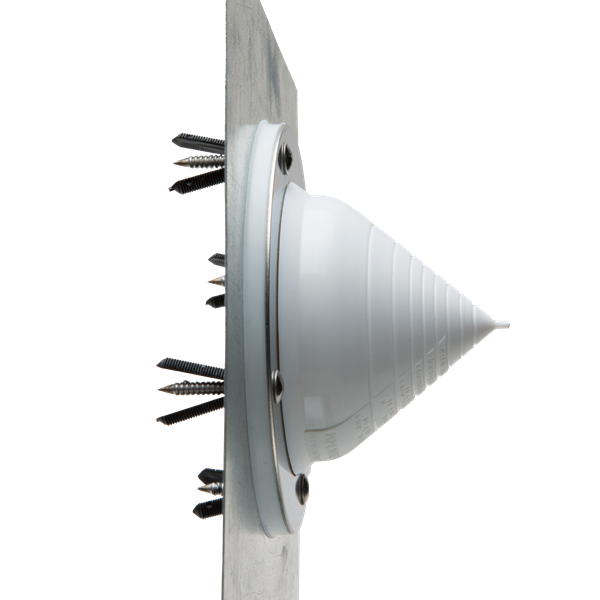

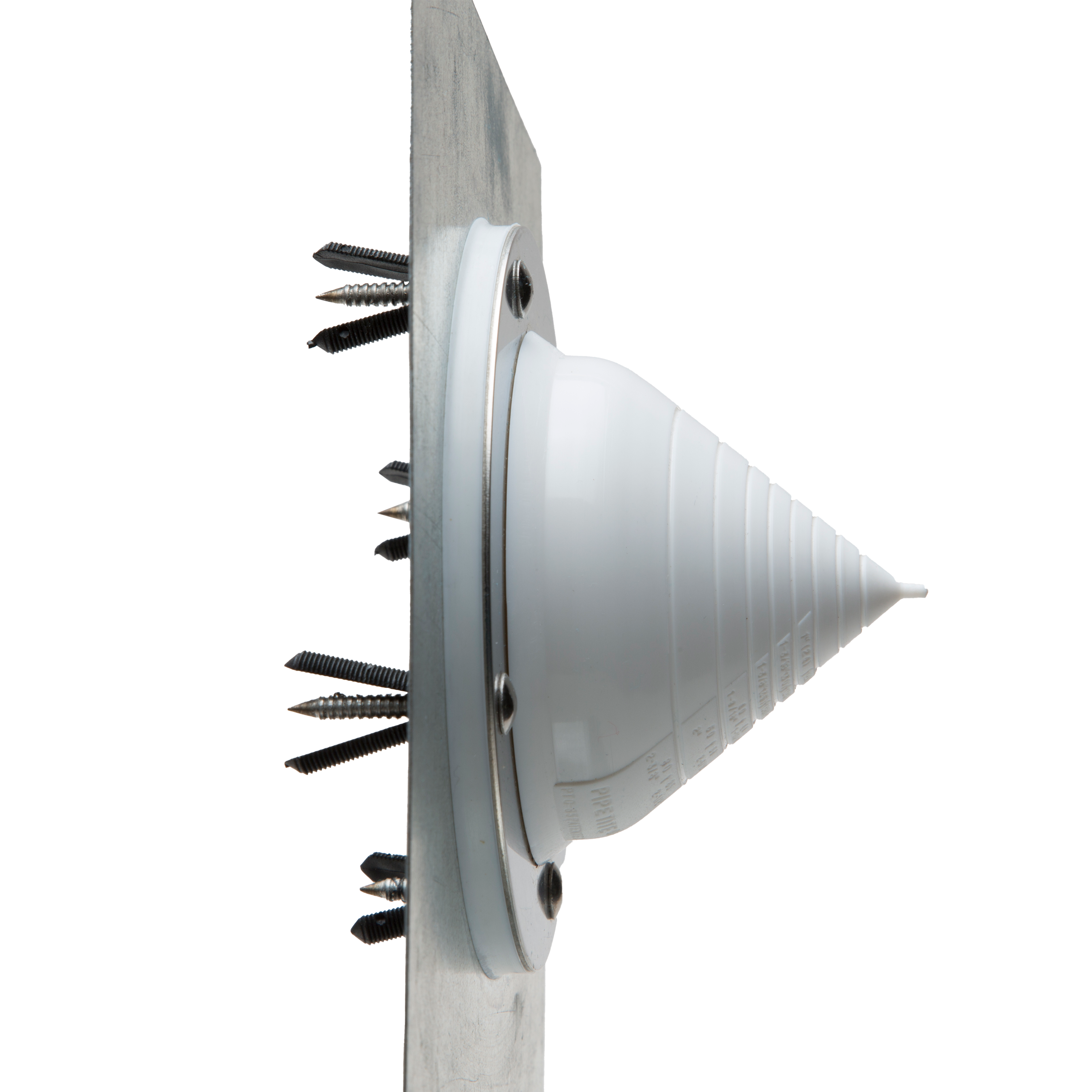

The shoulders of the anchor sit flat to the head of the plastic insert. This design allows for an evenly compressed Pipetite seal and prevents accidental deformation of the stainless steel ring due to too much force.
