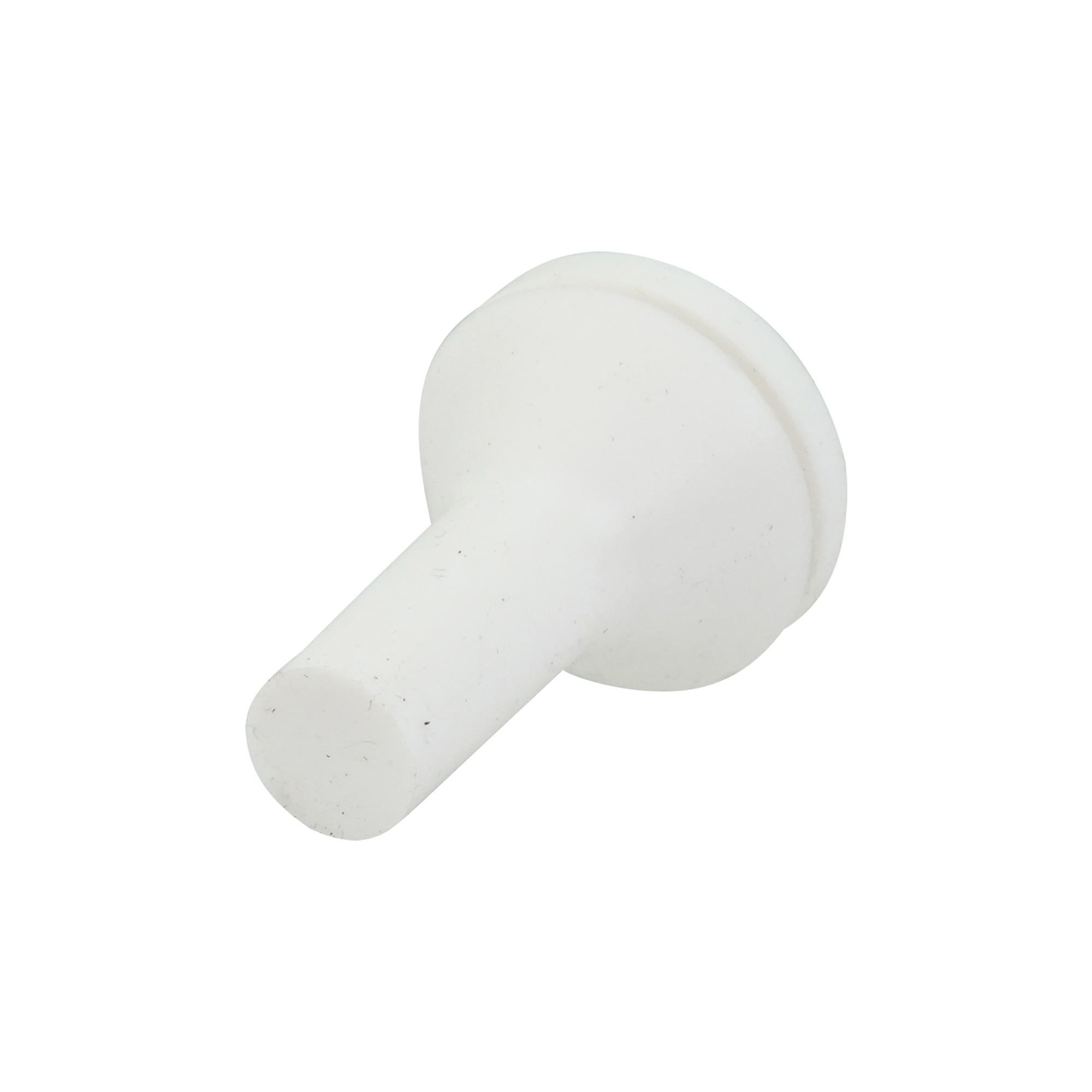

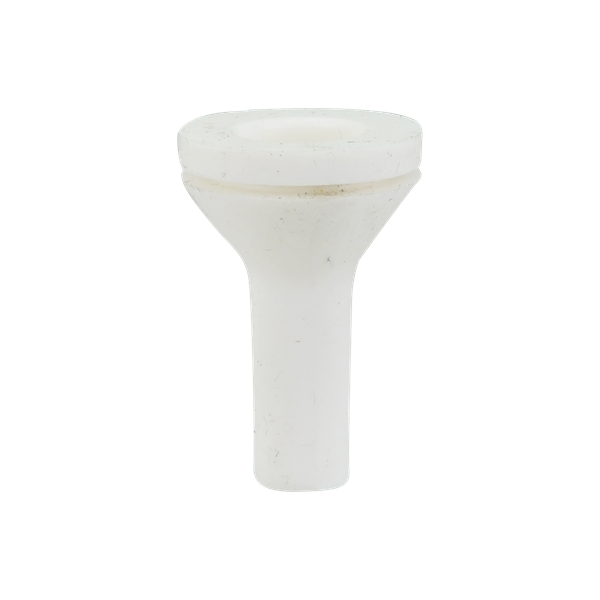

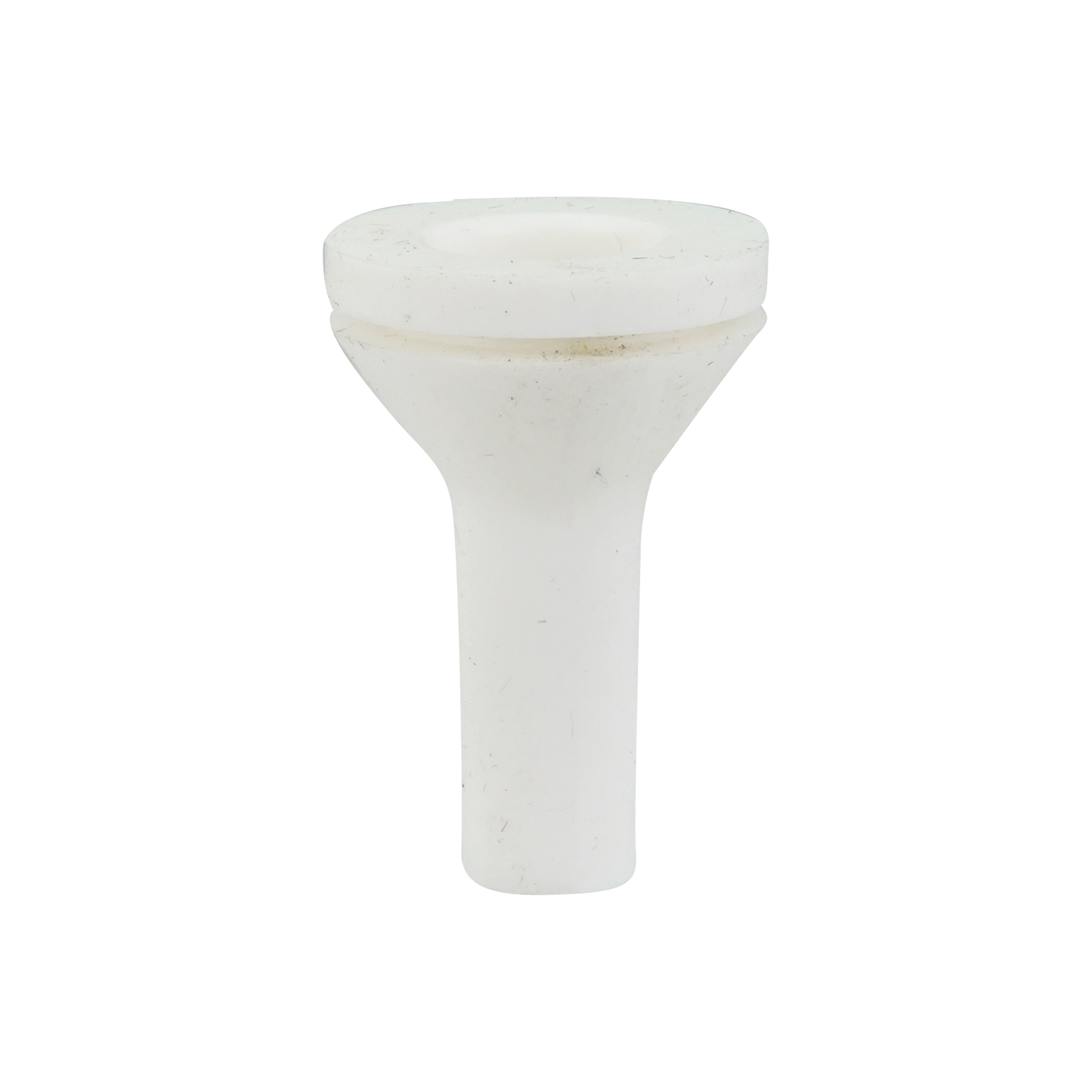

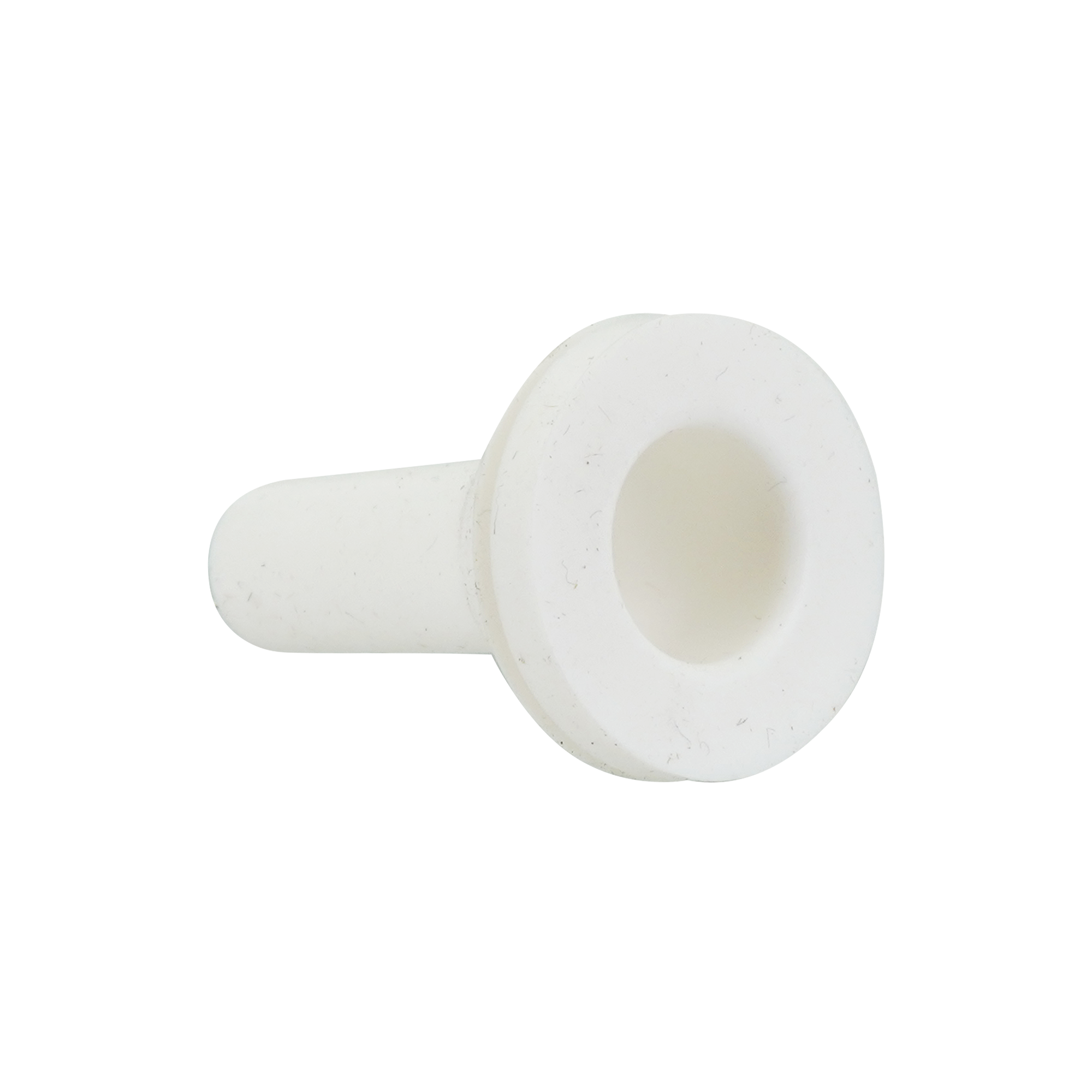

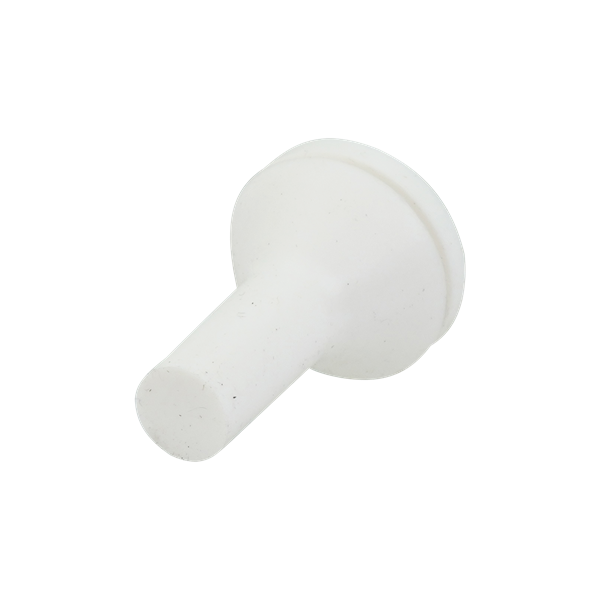

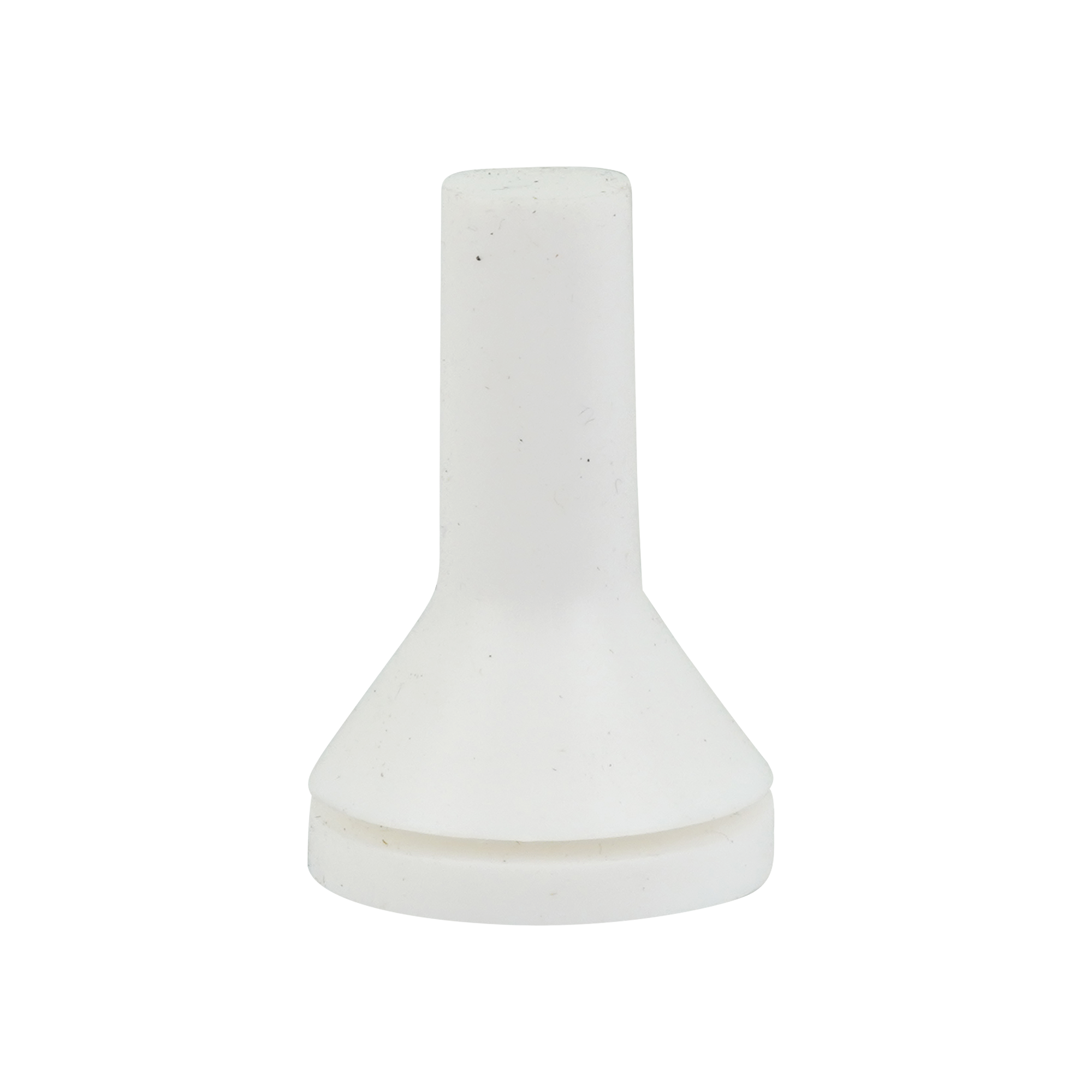

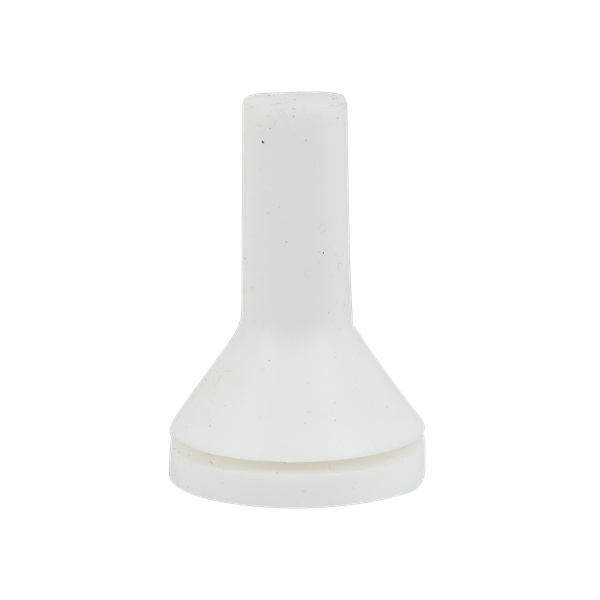

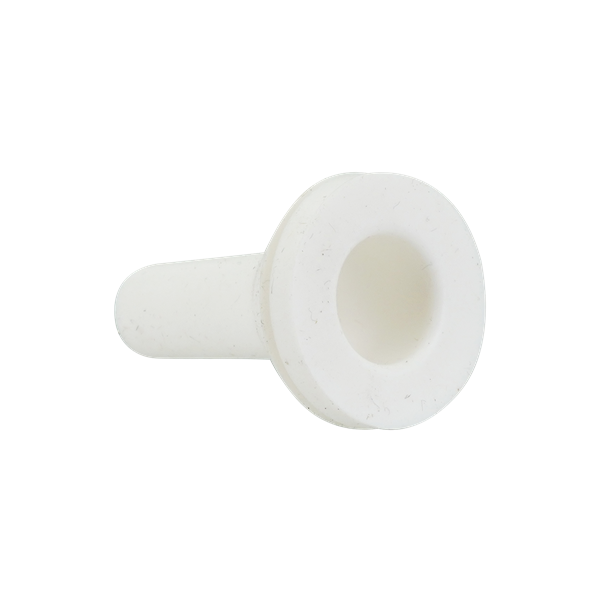

PIPETITE MINI GROMMET SIZE 1 0.25" FOR 0.625" HOLE

PTMG-1

PIPETITE MINI GROMMET SIZE 1 0.25" FOR 0.625" HOLE

Pipetite® Mini Grommet is ideal for creating watertight seals around wires and tubing as they enter cabinets, panels, and enclosures. Perfect for electrical contractors, they provide a tight, reliable seal for penetrations in cabinets, panels, and enclosures. The flexible lip seal makes installation fast and easy.

Mini Grommets are NEMA rated for Type 4, Type 4X, and Type 6 enclosures.

$1.50 / EA

Availability:
698 EA
Height:
1
Length:
1
Size (Tube OD):
1
Weight:
0.01
Country of Origin:
Not yet decided / registered
Manufacturer:
Lake Products Ltd
Manufacturer part number:
317 135

Features

  • Mini Grommets NEMA rated for Type 4, Type 4X, and Type 6 enclosures
  • Flexible lip seal fits wall thickness from 18 gauge to 11 gauge (0.048 - 0.120 inches)
  • Constructed of hygienic white silicone
  • Totally self-sealing—no sealant required
  • Flexible seal allows movement without damage or loss of seal
  • Materials compatible with cleaning solution



Technical Data

Material Hygienic white silicone
Tube OD size range 0 – 7 inch
Temperature (min) -40°F
Temperature (max) 500°F
Patents 9255412, 10000934, 9581271
Registered Designs 699328

Dimensional Data

Size Tube OD

(in)

A

(in)

B

(in)

C

(in)*

Item #
1 0.25 0.87 0.63 1.31 PTMG-1
2 0.31 0.87 0.63 1.25 PTMG-2
3 0.38 0.87 0.63 1.25 PTMG-3
4 0.50 0.87 0.63 1.12 PTMG-4

*Max height
