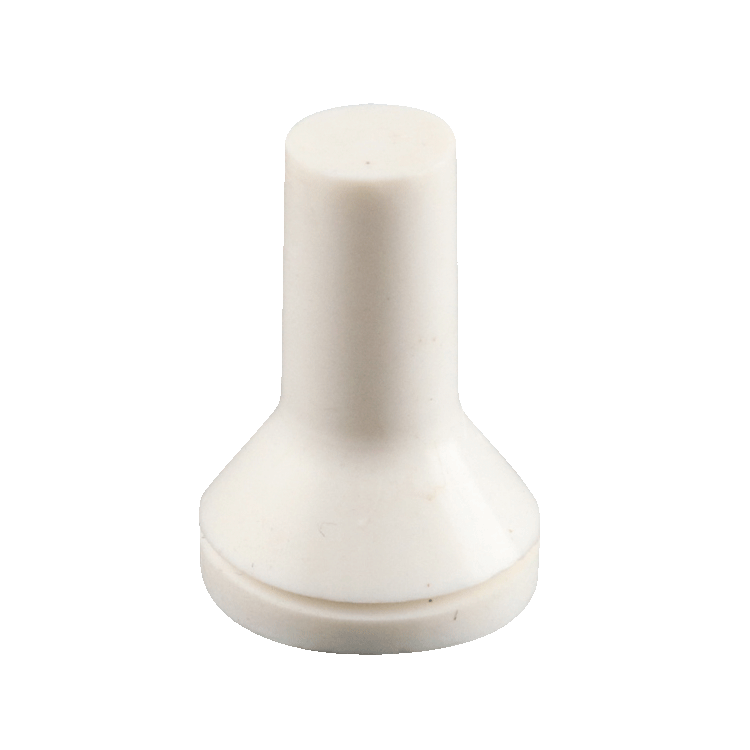

PIPETITE MINI GROMMET SIZE 2 0.312" FOR 0.625" HOLE
PTMG-2
$1.75 / EA
- Availability:
-
Springfield, MO 0 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 401 EA
Spare Parts
Suggested products
Attributes
Brand | Pipetite® |
---|
Product Type | Pipetite |
---|
Product Subtype | Mini Grommets |
---|
Size | 2 |
---|
Material | Silicone |
---|
Color | White |
---|
Specification / Standard | FDA 21 CFR 177.2600 |
---|
Weight | 0.01000 |
---|
- Manufacturer:
- Lake Products LTD
- Manufacturer part number:
- 317 136
Dimensional Data
Resources
Literature
Pipetite BfR Recommendation XV CoC
Pipetite Declaration Of Compliance Of BfR Section XV
Pipetite Declaration Of Compliance On Food Contact Materials
Pipetite® Letter of Conformity 21-01-21
Pipetite® rings stainless steel certification 21-01-21
Pipetite FDA Signed Letter 26-5-14
Pipetite ISO 14001 Environmental Certification
Pipetite MSDS Stainless Steel Rings
Pipetite SGS Institut Fresenius Compliance Of BfR Section XV
Features
- Mini Grommets NEMA rated for Type 4, Type 4X, and Type 6 enclosures
- Flexible lip seal fits wall thickness from 18 gauge to 11 gauge (0.048 - 0.120 inches)
- Constructed of hygienic white silicone
- Totally self-sealing—no sealant required
- Flexible seal allows movement without damage or loss of seal
- Materials compatible with cleaning solution
Technical Data
Material | Hygienic white silicone |
Tube OD size range | 0 – 7 inch |
Temperature (min) | -40°F |
Temperature (max) | 500°F |
Patents | 9255412, 10000934, 9581271 |
Registered Designs | 699328 |
