All-Flo

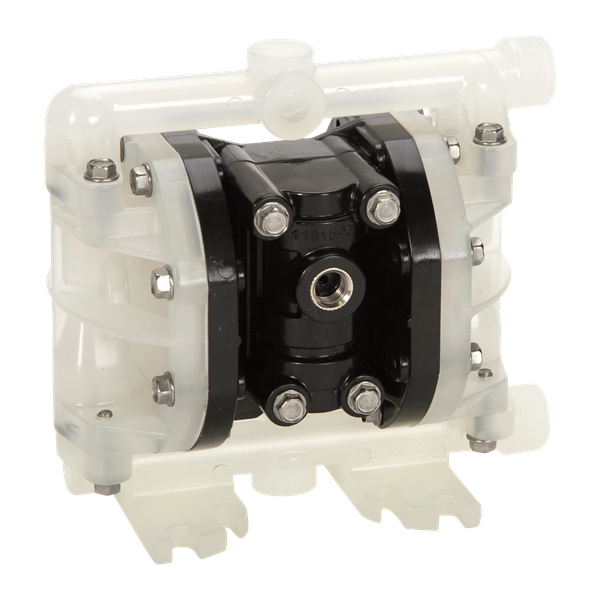

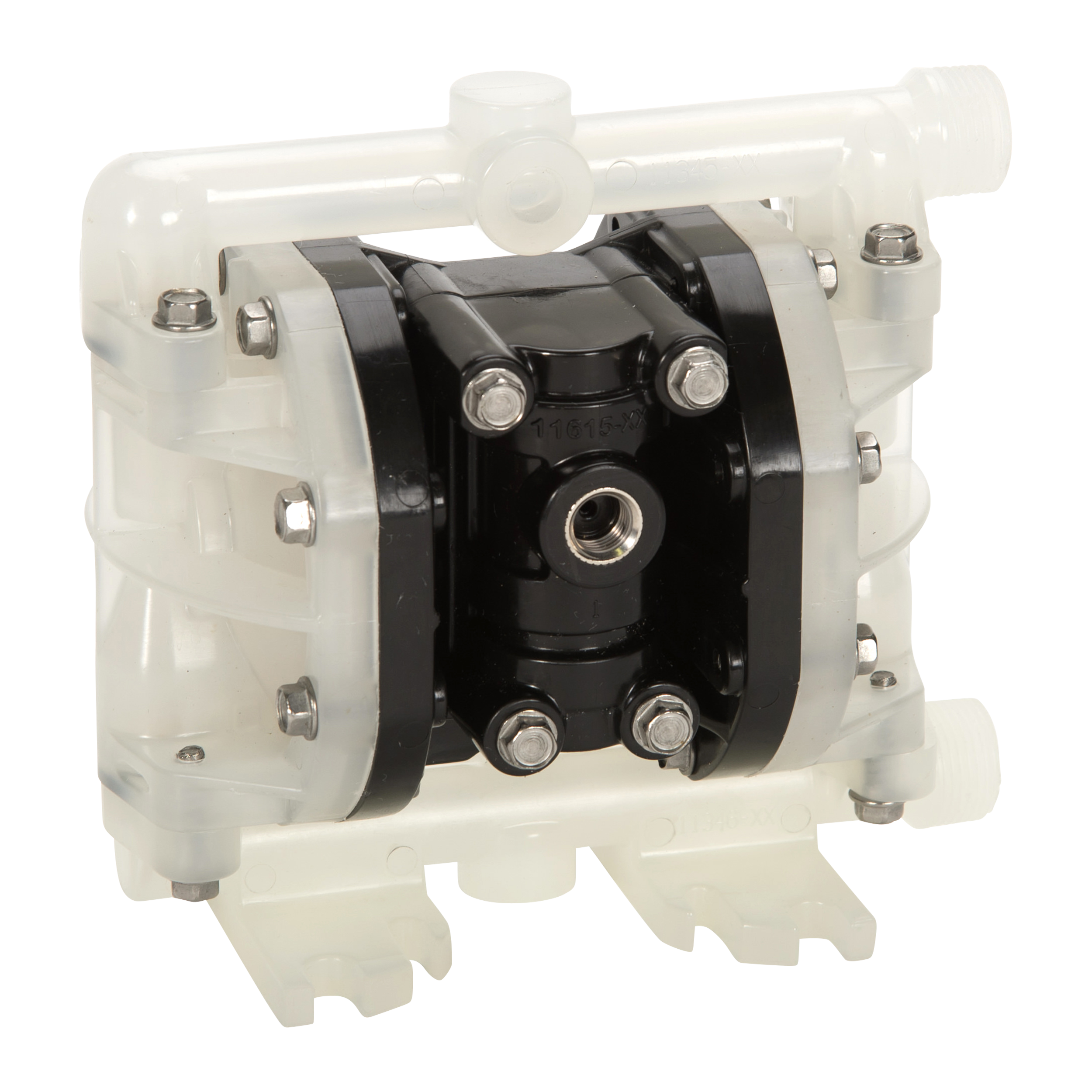

ALL-FLO A025 DIAPHRAGM PUMP 0.25" FNPS BOLTED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE PTFE DIAPHRAGM PTFE VALVE BALL POLYPROPYLENE SEATS VITON O-RINGS A SERIES AODD
A025-SPP-TTPV-S70
- MPN:
- A025-SPP-TTPV-S70
Net Price: $558.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | A Series |
| Model | A025 |
| Material | Polypropylene |
| Size 1 | 0.25" |
| Connection Type 1 | FNPS |
| Diaphragm Material | PTFE (Teflon) |
| Weight | 4.00000 |
- Manufacturer:
- All-Flo
- MPN:
- A025-SPP-TTPV-S70
Dimensional Data

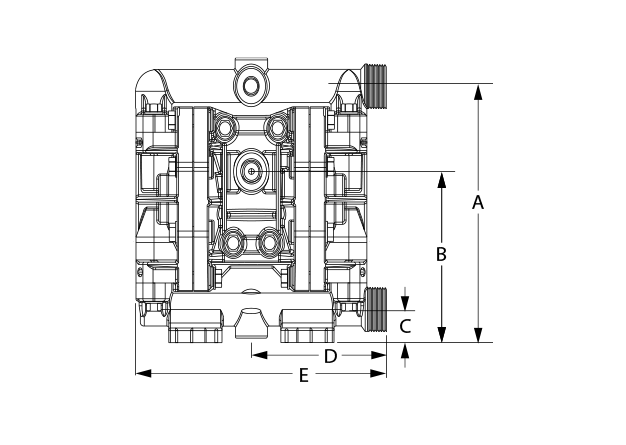

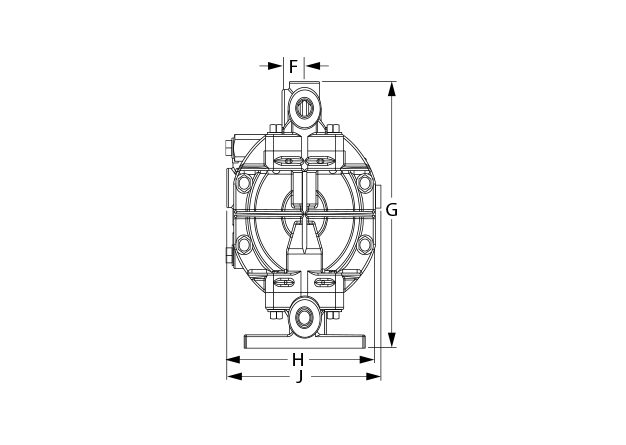

A025 Dimensional Diagram
| A | B | C | D | E | F | G | H | J | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 6.1 | 156 | 4.1 | 104 | 0.8 | 20 | 3.9 | 100 | 7.3 | 186 | 0.7 | 17 | 6.8 | 173 | 4.6 | 118 | 4.8 | 123 |
Resources
0Data Sheets
All-Flo A025 Plastic Data Sheet
1Manuals
22D Drawings
All-Flo A025 Plastic 2D Drawing
33D Models
4Performance Curves
8Other Literature
