All-Flo

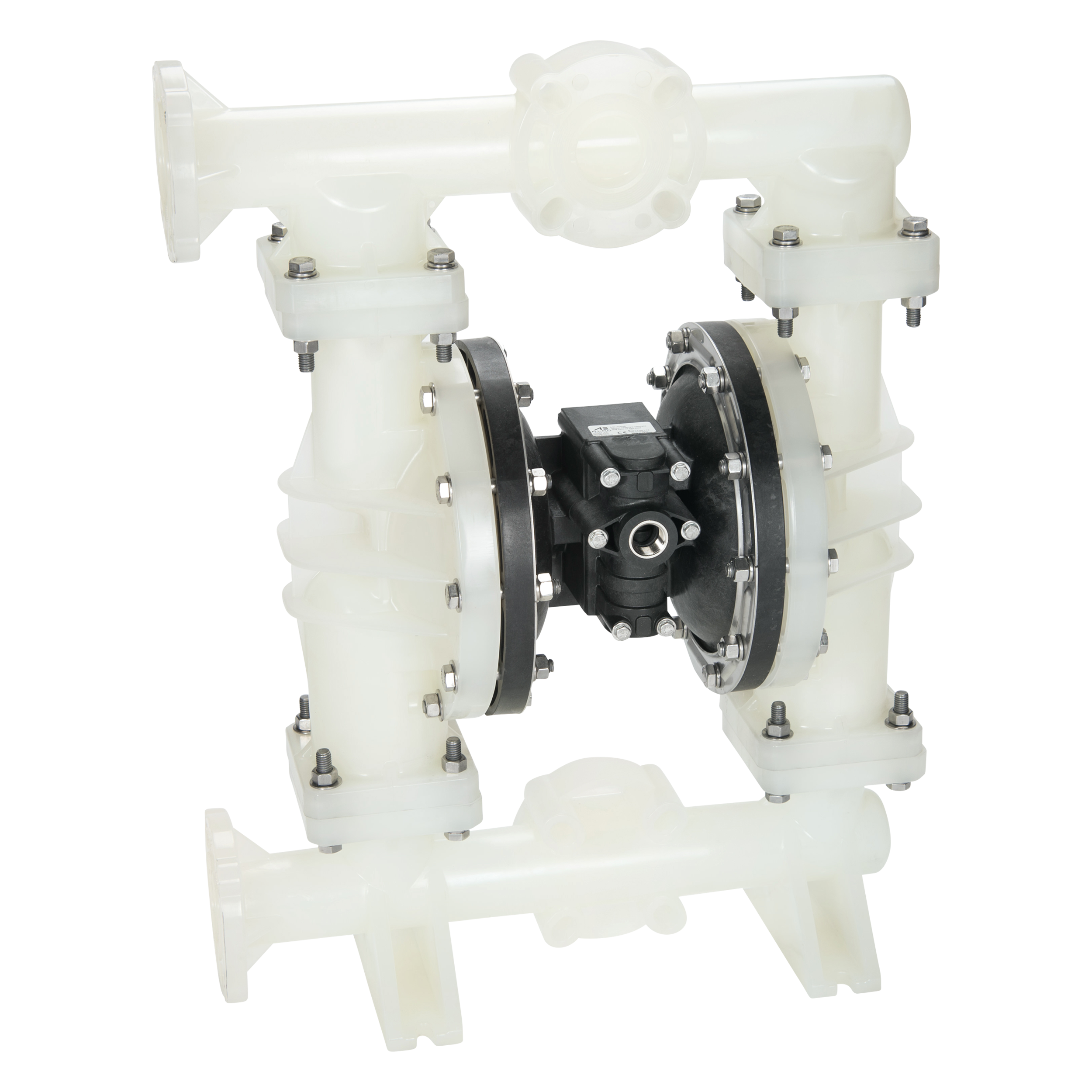

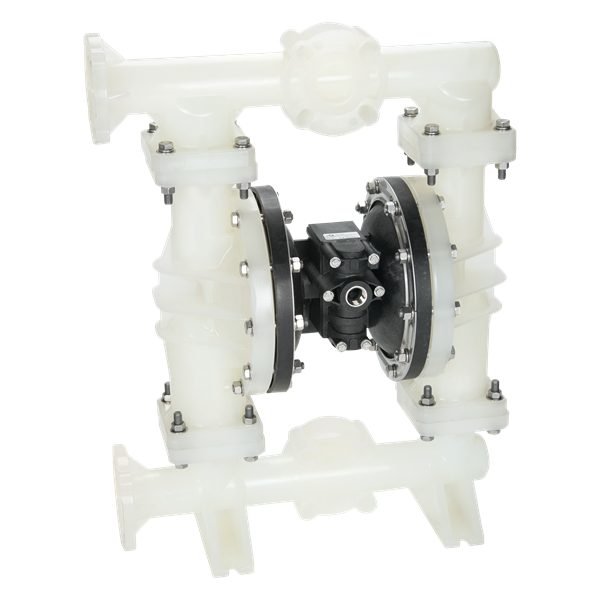

ALL-FLO A200 DIAPHRAGM PUMP 2" ANSI/DIN FLANGE BOLTED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE SANTOPRENE DIAPHRAGM SANTOPRENE VALVE BALL POLYPROPYLENE SEATS EPDM O-RINGS A SERIES AODD

A200-FPP-SSPE-S70

USUALLY SHIPS IN 1-3 DAYS

Net Price: $4,930.00 / EA

Page size:

	Product	Item Number	Availability		Price
	ALL-FLO REPAIR KIT AIR 2" BOLTED POLYPROPYLENE	AAK-200-P		$401.40 / EA	Quantity
	ALL-FLO REPAIR KIT WET 2" BOLTED PLASTIC SANTOPRENE	AWE-200-SSPE-P		$424.60 / EA	Quantity

A200 Dimensional Diagram (Flanged, Dimensions A, B, C, and D)

Size		A		B		C		D		E		F		G		H		I		J		K		L		M		N		O
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
2.00	50.80	26.50	673.10	16.10	408.94	3.50	88.90	19.20	487.68	4.60	116.84	29.50	749.30	13.50	342.90	0.70	17.78	14.90	378.46	12.80	325.12	4.00	101.60	1.80	45.72	5.40	137.16	10.00	254.00	12.30	312.42
