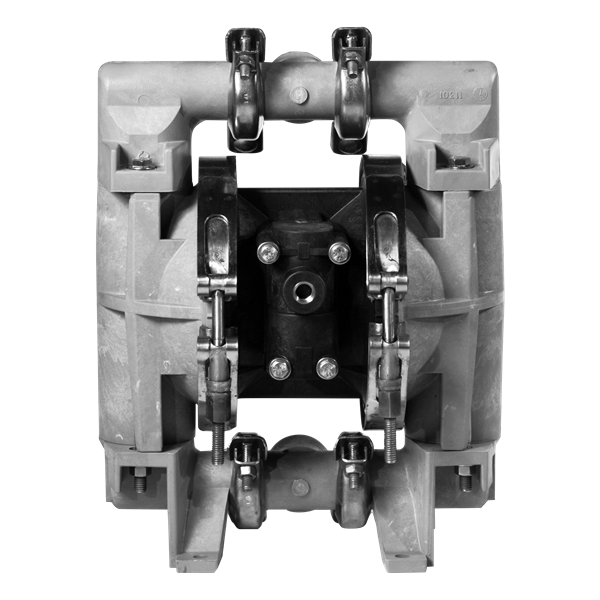

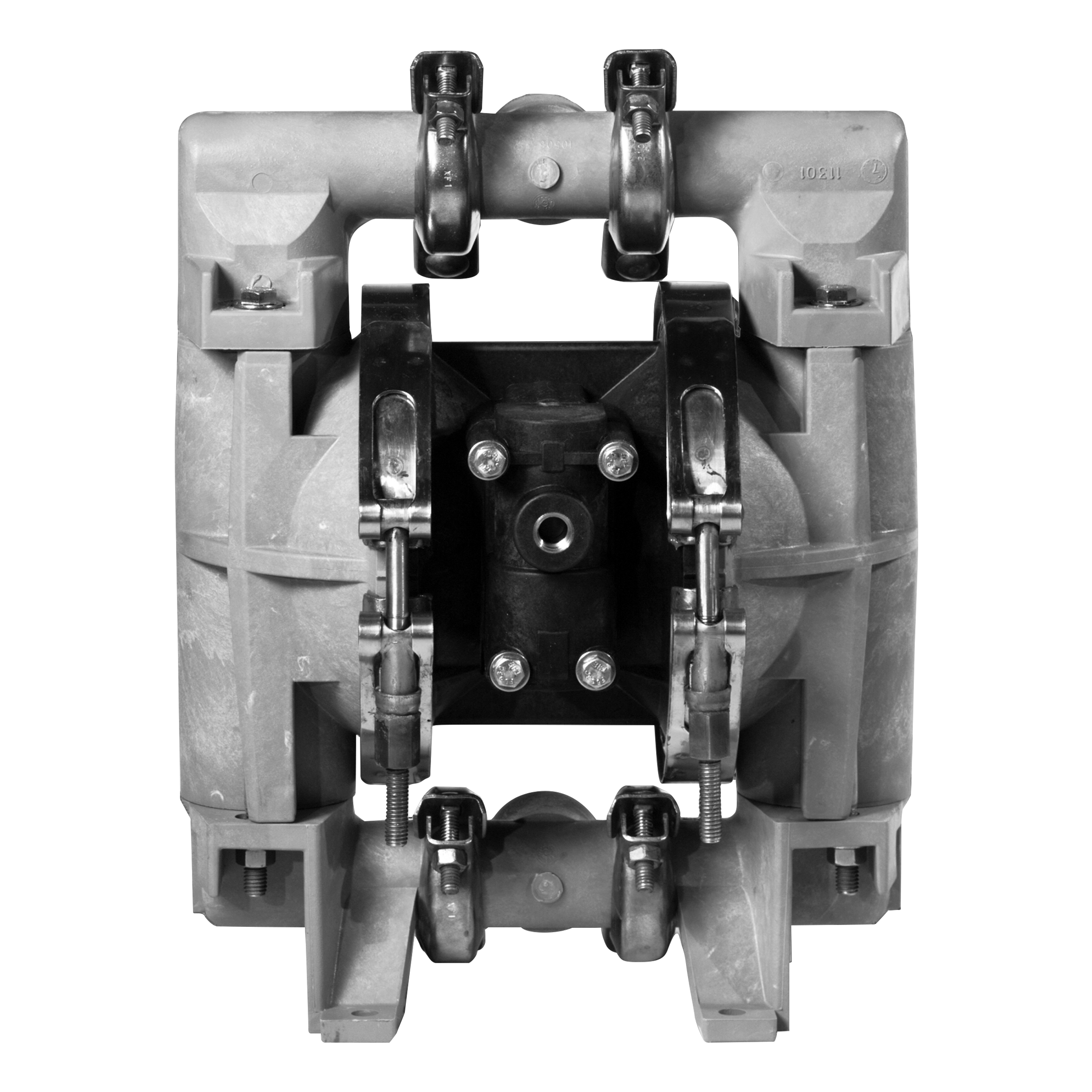

ALL-FLO C100 DIAPHRAGM PUMP 1" NPT CLAMPED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE PTFE DIAPHRAGM PTFE VALVE BALL POLYPROPYLENE SEATS PTFE O-RINGS C SERIES AODD

C100-NPP-TTPT-G70

MPN:
C100-NPP-TTPT-G70

USUALLY SHIPS IN 1-3 DAYS

Net Price: $1,935.00 / EA

Have an account? Login now.

Availability:
  • Total: 2
Product Availability
Price
ALL-FLO REPAIR KIT AIR 1" CLAMPED POLYPROPYLENE

$235.20 / EA

ALL-FLO REPAIR KIT WET 1" CLAMPED PLASTIC PTFE

$806.80 / EA

  • Total: 2
Brand All-Flo
Product Type Pumps
Product Subtype Diaphragm Pumps
Series C Series
Model C100
Material Polypropylene
Size 1 1"
Connection Type 1 NPT
Diaphragm Material PTFE (Teflon)
Weight 26.00000
Manufacturer:
All-Flo
MPN:
C100-NPP-TTPT-G70

C100 Dimensional Diagram (Dimensions A, B, C, D, E, F, G, and H)C100 Dimensional Diagram (Dimensions I, J, K, and L)

Air-Operated Double-Diaphragm Pump | C100
Size A B C D E F G H I J K L
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
1.00 25.40 12.00 304.80 15.50 393.70 13.50 342.90 8.30 210.82 2.00 50.80 0.44 11.18 5.74 145.80 7.62 193.55 9.90 251.46 8.30 210.82 5.12 130.05 6.00 152.40
