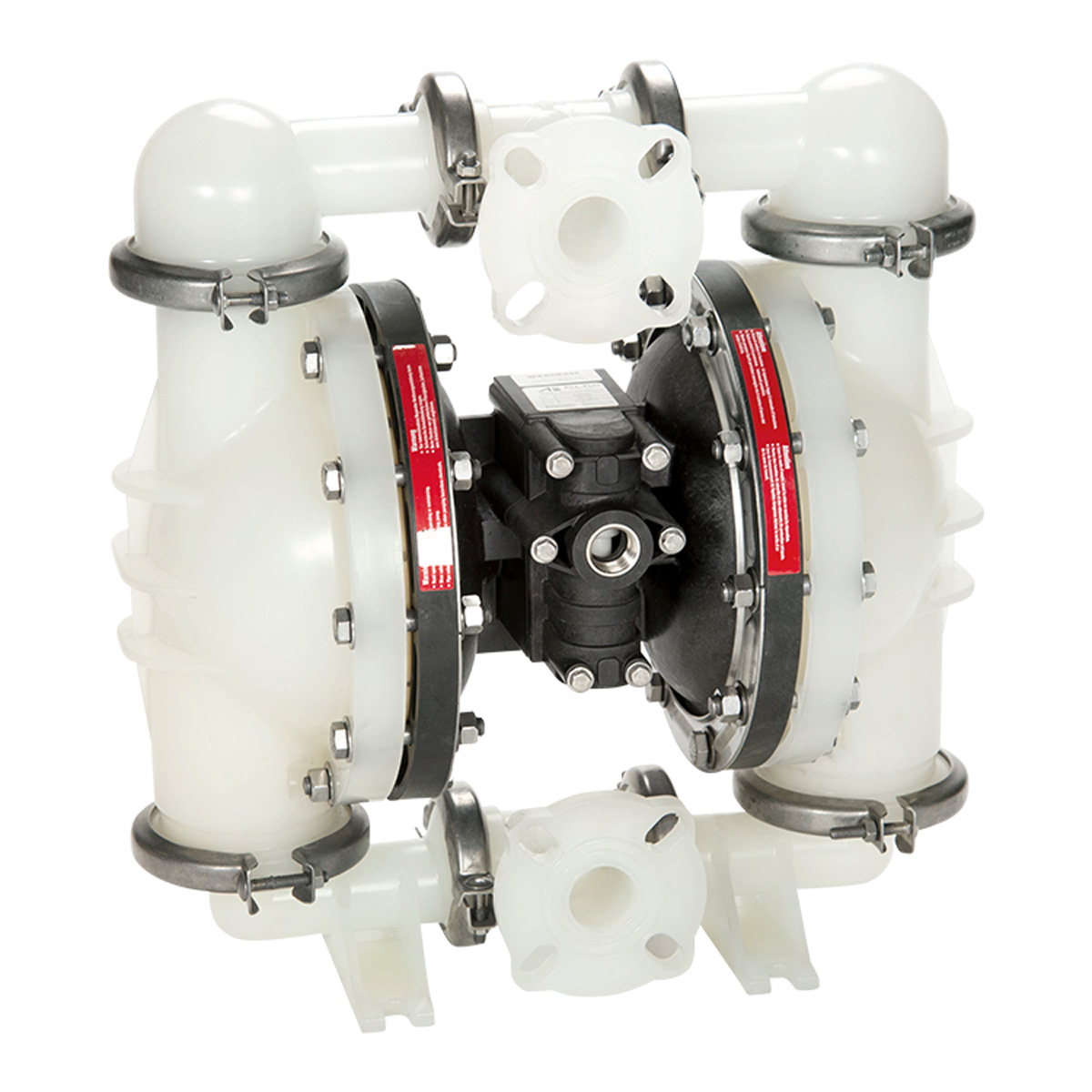

ALL-FLO C150 DIAPHRAGM PUMP 1.5" ANSI/DIN FLANGE CLAMPED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE SANTOPRENE DIAPHRAGM SANTOPRENE VALVE BALL POLYPROPYLENE SEATS EPDM O-RINGS C SERIES AODD
C150-FPP-SSPE-B70
- MPN:
- C150-FPP-SSPE-B70
Net Price: $3,191.00 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| ALL-FLO REPAIR KIT AIR 1.5" CLAMPED POLYPROPYLENE |
$401.40 / EA |
|
||
| ALL-FLO REPAIR KIT WET 1.5" CLAMPED PLASTIC SANTOPRENE |
$499.20 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | C Series |
| Model | C150 |
| Material | Polypropylene |
| Size 1 | 1.5" |
| Connection Type 1 | Flange |
| Diaphragm Material | Santoprene |
| Weight | 59.00000 |
- Manufacturer:
- All-Flo
- MPN:
- C150-FPP-SSPE-B70
Dimensional Data
Air-Operated Double-Diaphragm Pump | C150
| Size | A | B | C | D | E | F | G | H | I | J | K | L | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1.50 | 38.10 | 20.58 | 522.73 | 21.77 | 552.96 | 18.90 | 480.06 | 12.30 | 312.42 | 3.12 | 79.25 | 0.56 | 14.22 | 9.34 | 237.24 | 11.18 | 283.97 | 12.20 | 309.88 | 11.37 | 288.80 | 7.00 | 177.80 | 8.00 | 203.20 |
Resources
0Data Sheets
All-Flo C150 Plastic Data Sheet
1Manuals
22D Drawings
All-Flo C150 Plastic 2D Drawing
33D Models
4Performance Curves
5Spare Part Lists
8Other Literature
