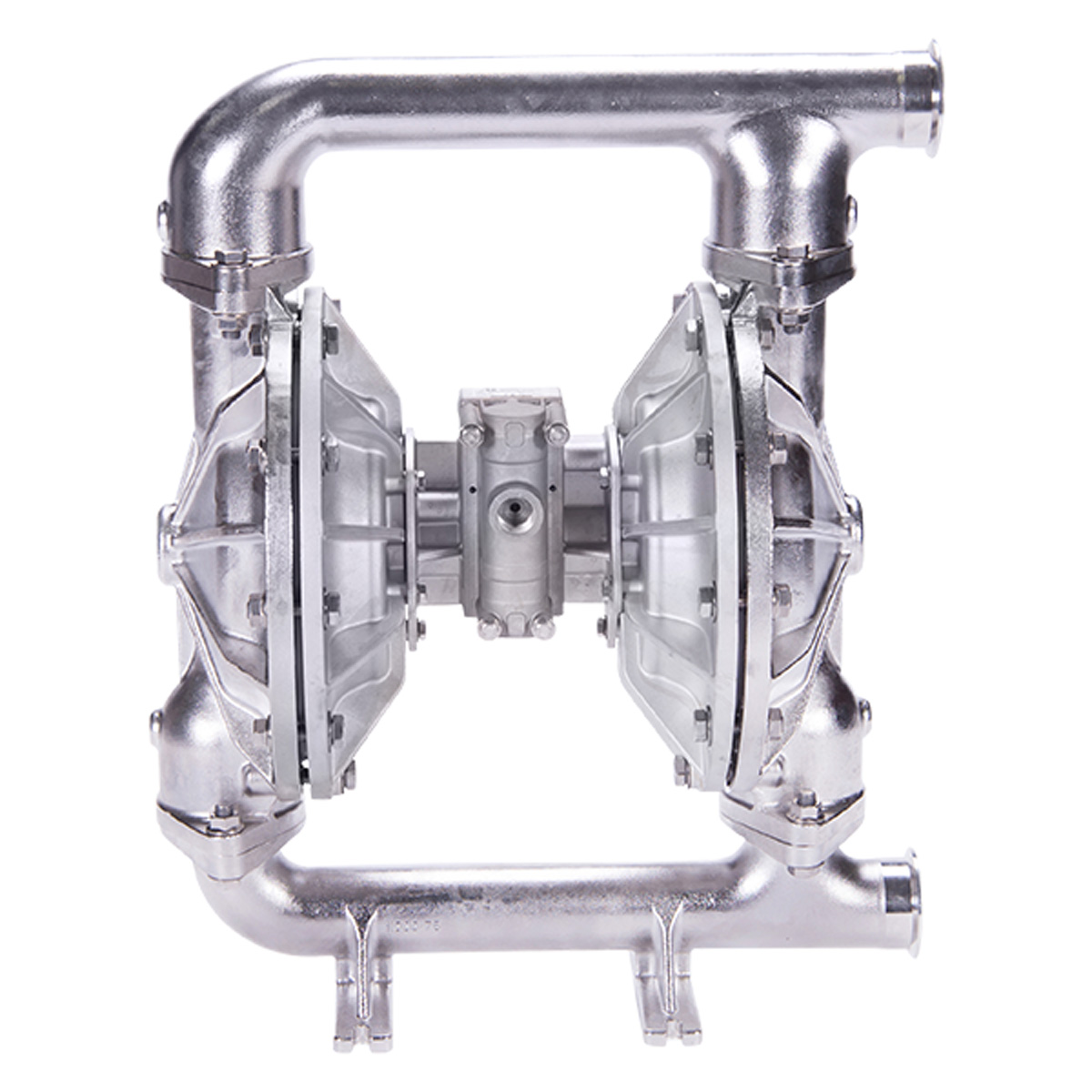

ALL-FLO F200 DIAPHRAGM PUMP 2" TC BOLTED METAL ELECTROPOLISHED 316 SS WET SIDE ALUMINUM AIR SIDE PTFE DIAPHRAGM PTFE VALVE BALL 316 STAINLESS STEEL SEATS PTFE O-RINGS F SERIES AODD
F200-TAE-TT3T-S70
- MPN:
- F200-TAE-TT3T-S70
Net Price: $8,320.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | F Series |
| Model | F200 |
| Material | 316 Stainless Steel |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Diaphragm Material | PTFE (Teflon) |
| Weight | 150.00000 |
- Manufacturer:
- All-Flo
- MPN:
- F200-TAE-TT3T-S70
Dimensional Data
Air-Operated Double-Diaphragm Pump | F200
| Size | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2.50 | 63.50 | 24.40 | 619.76 | 14.60 | 370.84 | 2.50 | 63.50 | 10.90 | 276.86 | 20.50 | 520.70 | 25.90 | 657.86 | 13.50 | 342.90 | 0.50 | 12.70 | 7.30 | 185.42 | 6.30 | 160.02 | 4.00 | 101.60 | 1.80 | 45.72 | 5.40 | 137.16 | 8.20 | 208.28 | 9.80 | 248.92 |
