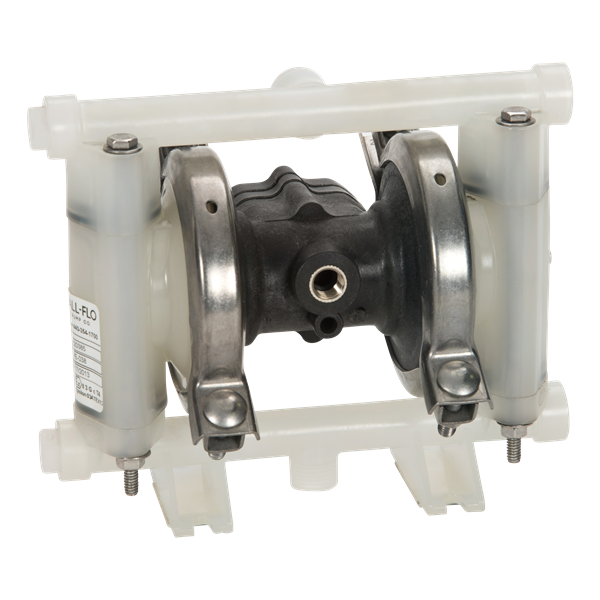

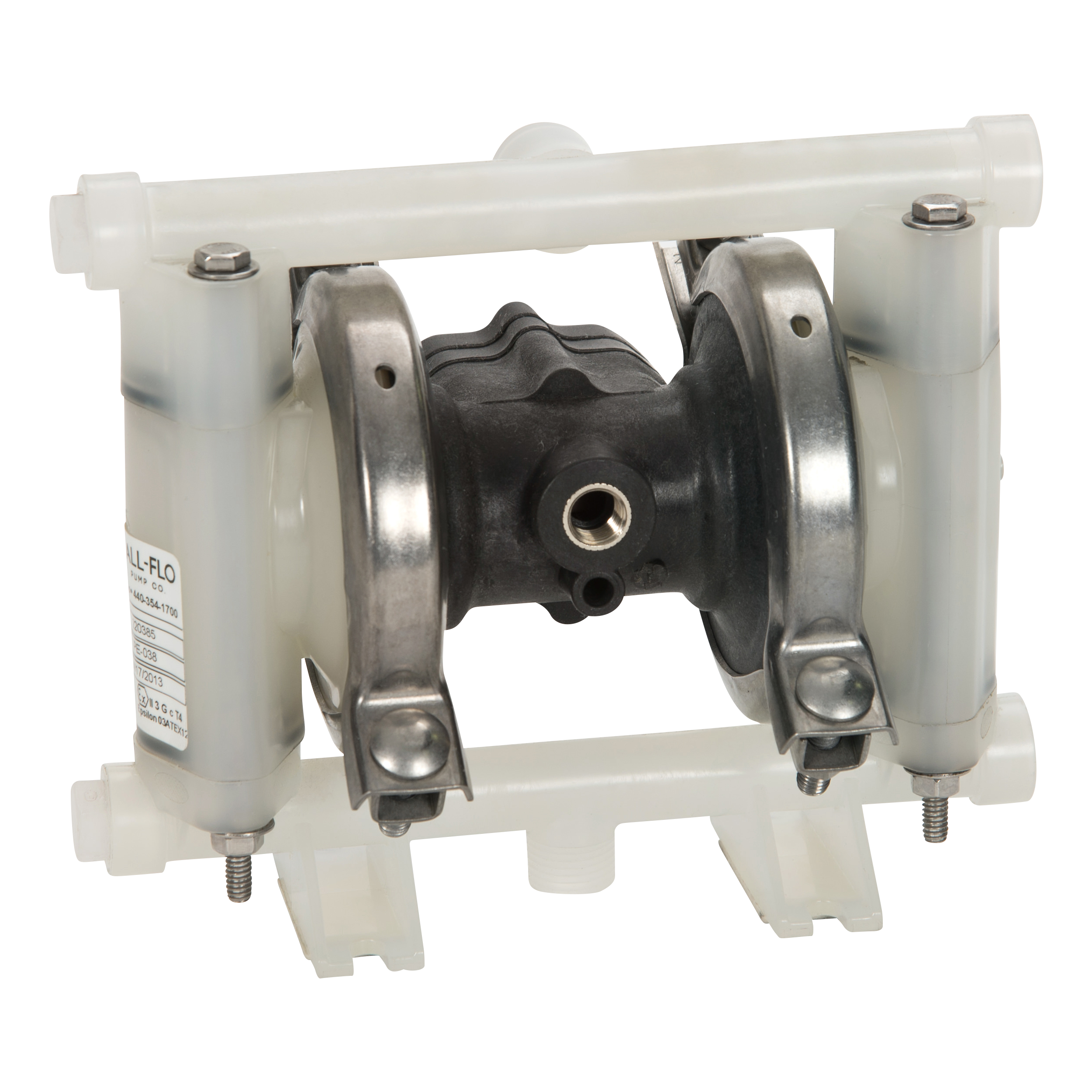

ALL-FLO S038 DIAPHRAGM PUMP 0.38" NPT(BSP) CLAMPED PLASTIC POLYPROPYLENE WET SIDE POLYPROPYLENE AIR SIDE SANTOPRENE DIAPHRAGM EPDM MAX-PASS VALVE BALL POLYPROPYLENE SEATS EPDM O-RINGS S SERIES AODD
S038-SQP-SEPE-S70
- MPN:
- S038-SQP-SEPE-S70
Net Price: $584.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| ALL-FLO REPAIR KIT WET 0.375" CLAMPED PLASTIC SANTOPRENE |
$111.40 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | S Series |
| Model | S038 |
| Material | Polypropylene |
| Size 1 | 0.375" |
| Connection Type 1 | NPT |
| Diaphragm Material | Santoprene |
| Weight | 5.00000 |
- Manufacturer:
- All-Flo
- MPN:
- S038-SQP-SEPE-S70
Dimensional Data
Air-Operated Double-Diaphragm Pump | S038
| Size | A | B | C | D | E | F | G | H | I | J | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.38 | 9.53 | 8.55 | 217.17 | 6.63 | 168.40 | 4.06 | 103.12 | 4.21 | 106.93 | 0.15 | 3.81 | 4.82 | 122.43 | 7.19 | 182.63 | 3.86 | 98.04 | 1.06 | 26.92 | 2.40 | 60.96 |
Resources
1Manuals
All-Flo S038 Plastic Manual
22D Drawings
All-Flo S038 Plastic 2D Drawing
33D Models
4Performance Curves
5Spare Part Lists
8Other Literature
