Alfa Laval
SX2 ROTARY LOBE PUMP ULTRAPURE NARROW 1.5" TC DUPLEX SHAFT SC/SC SINGLE MECHANICAL R00 USP CLASS VI EPDM SEAL 70 PSI VERTICAL PORT LEFT SIDE DRIVE BI-DIRECTIONAL 15RA EP HEAT TRACEABLE 3.1 PERFORMANCE TEST ALFA LAVAL
SX2UPNLD15MDE405CH1
- MPN:
- 9630126361
Net Price: $16,394.20 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|

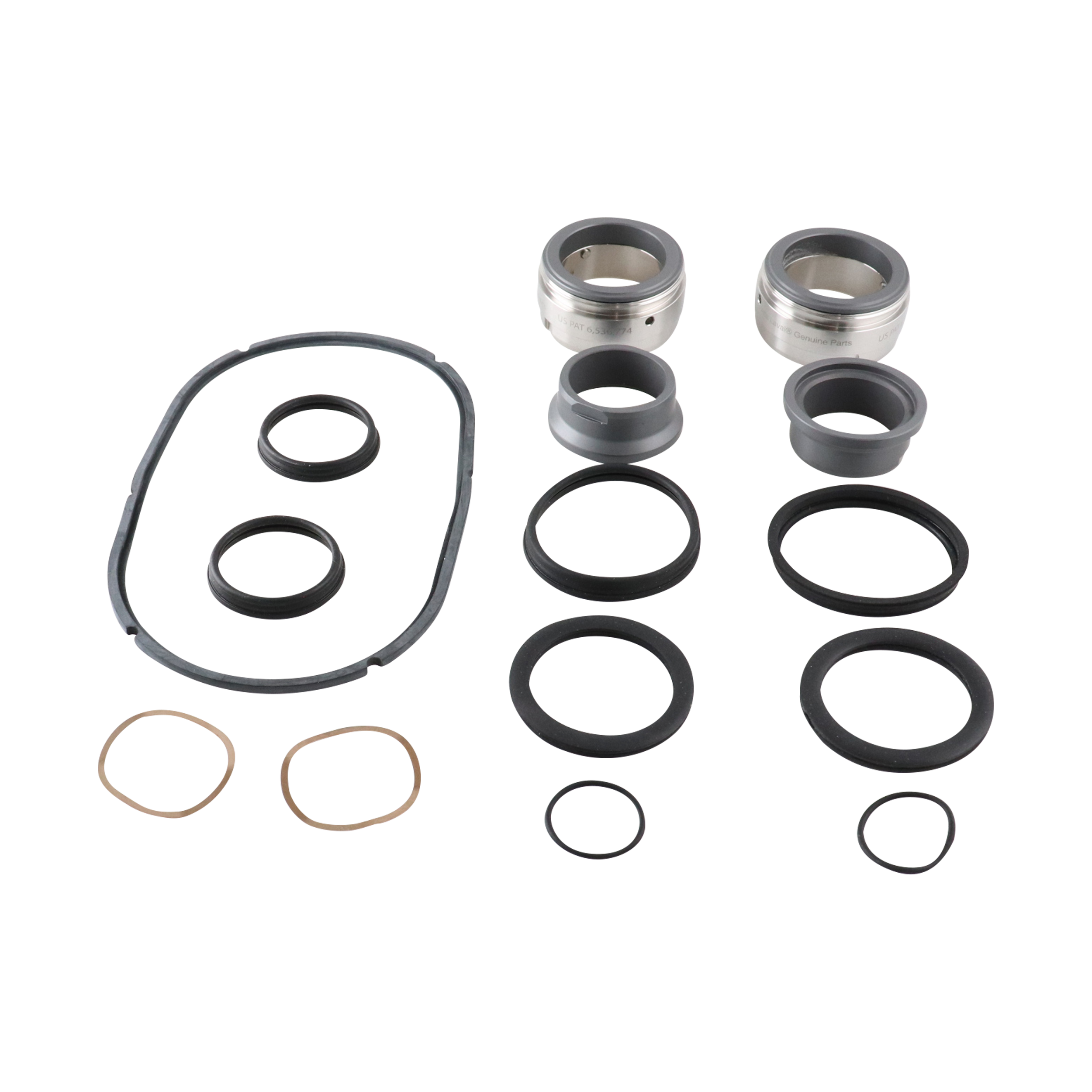

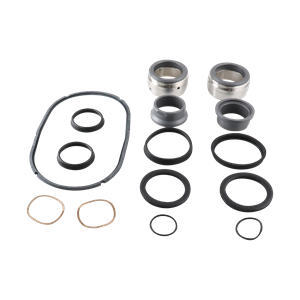

| SERVICE KIT SC/SC EPDM CLASS VI SX2 CERTS REQUIRED ALFA LAVAL |
$5,885.81 / EA |
|
||
| Alfa Laval Condition Monitor with Adapter for SRU2 SRU3 SX2 SX3 |
$308.27 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Pumps |
| Product Subtype | Rotary Lobe Pumps |
| Series | SX Series Ultrapure |
| Model | SXUP2 |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP |
| Elastomer | EPDM |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | 3-A / FDA |
| Orientation / Mount | Vertical / Left |
| Seal Type | Single Mechanical |
| Seal Material | Silicon Carbide / Silicon Carbide |
| Weight | 0.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9630126361
Dimensional Data
