Wilden

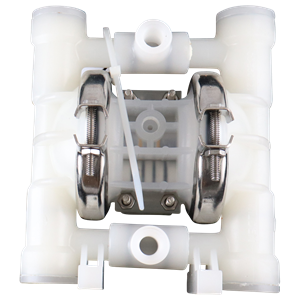

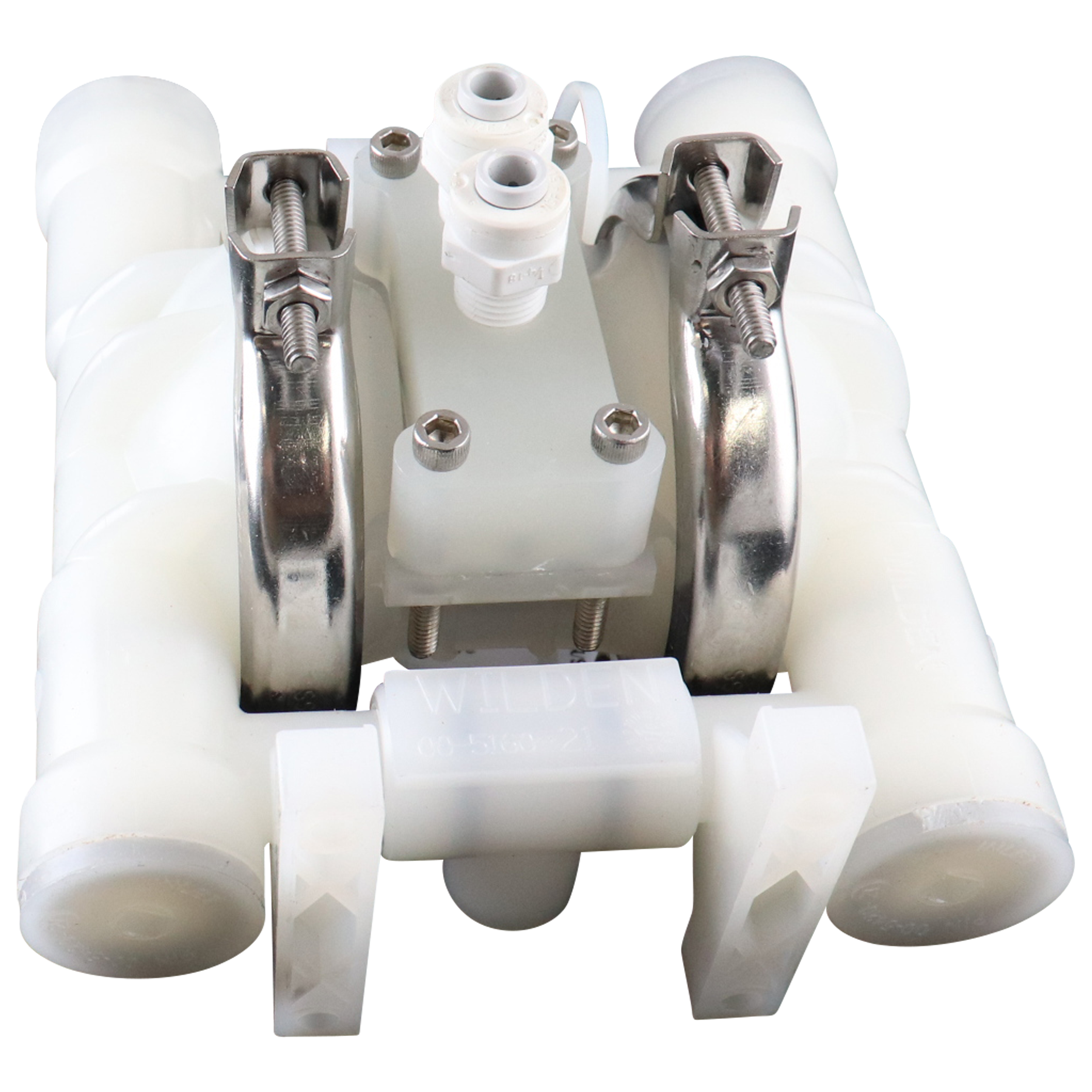

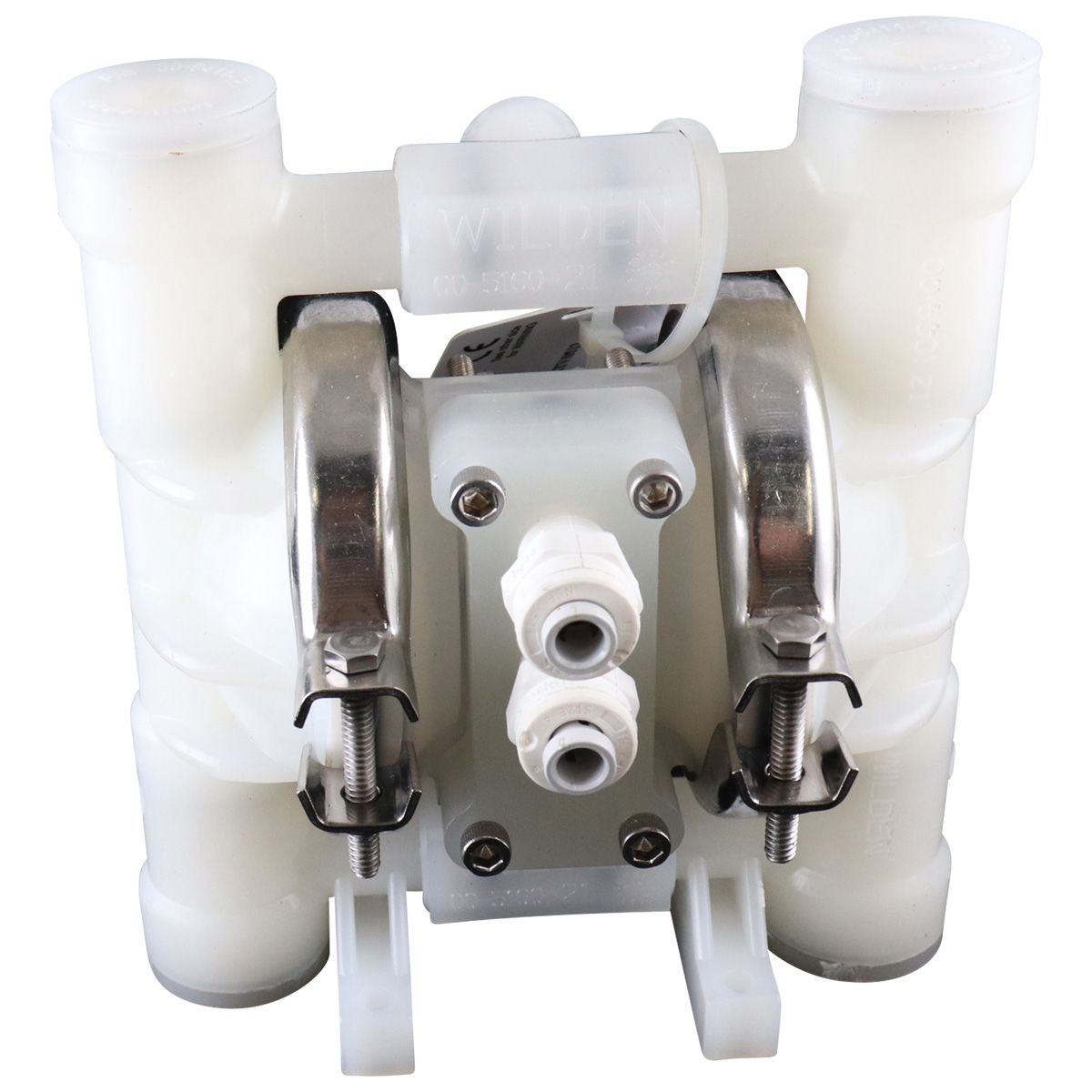

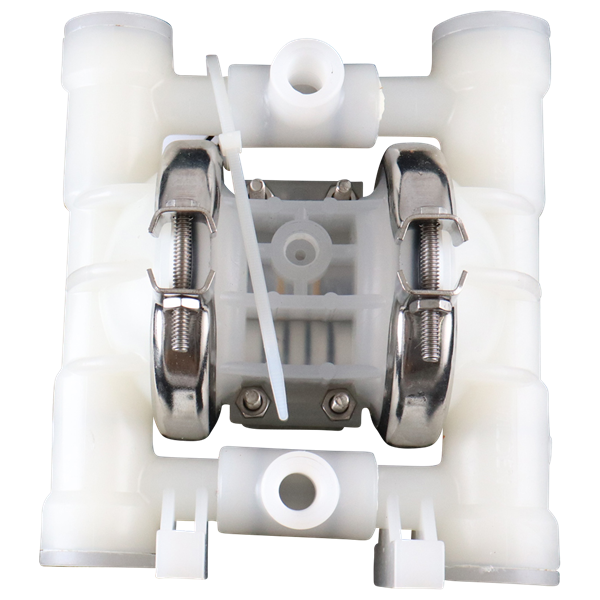

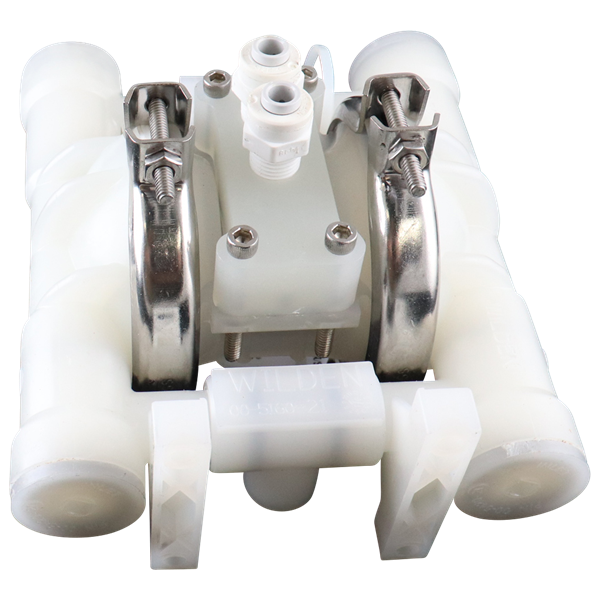

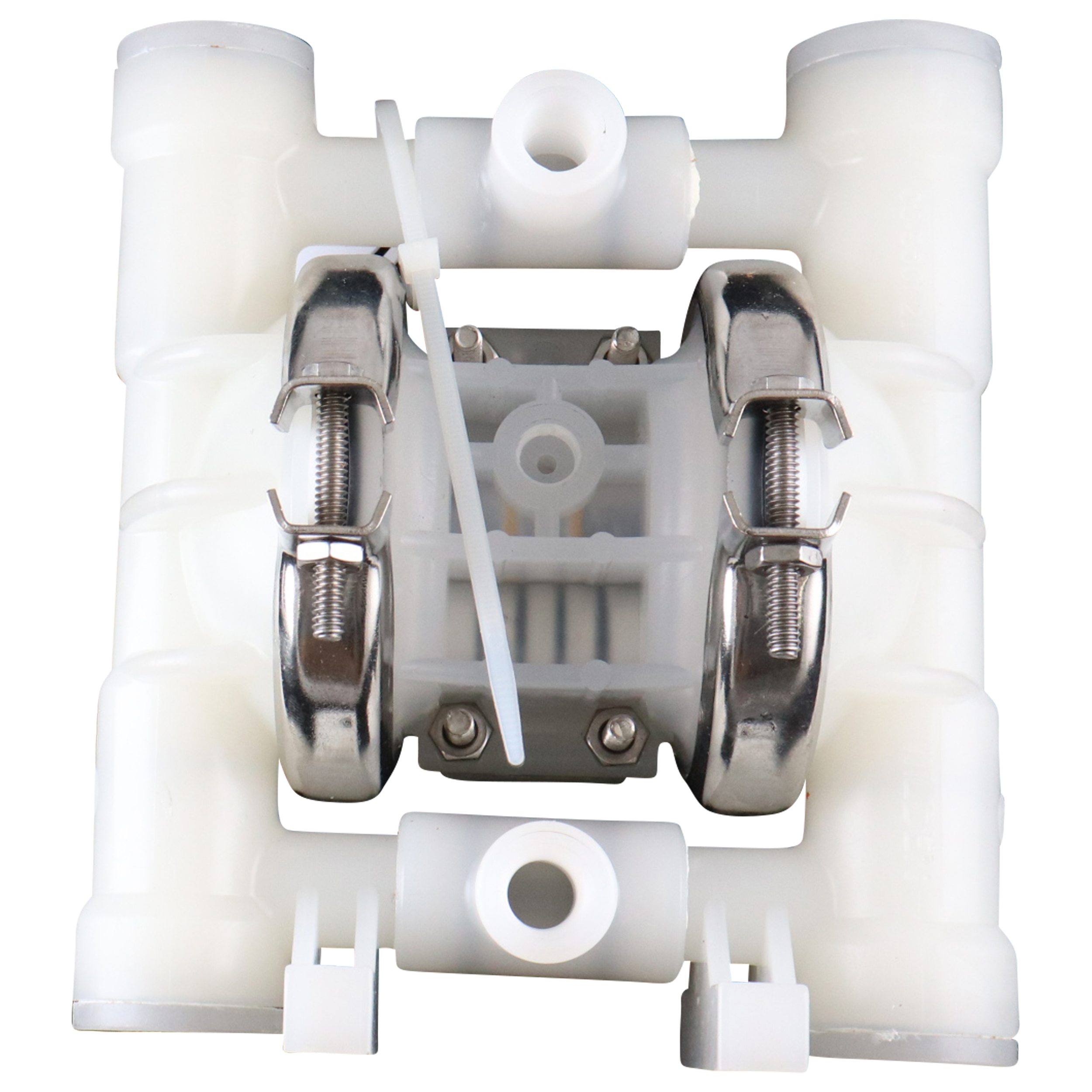

WILDEN A025 DIAPHRAGM PUMP 0.25" FPT CLAMPED PLASTIC ADAPTER BLOCK BASE POLY WET SIDE NO PISTON POLY CENTER POLY AIR PTFE WITH NEOPRENE BACKUP IPD DIAPHRAGM PTFE VALVE BALL POLY SEATS PTFE O-RINGS ADAPTER BLOCK NO MUFFLER PRO-FLO CENTER SECTION AODD
A025BPZPPPTNLTFPTV0512
- MPN:
- 00-9821
Net Price: $701.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Accu-Flo Series |
| Model | A.025 |
| Material | Polypropylene |
| Size 1 | 0.25" |
| Connection Type 1 | FNPT |
| Diaphragm Material | Teflon |
| Weight | 2.10000 |
- Manufacturer:
- PSG California LLC
- MPN:
- 00-9821
Dimensional Data
A025P Plastic AODD Pump
| A | B | C | D | E | F | G | H | J | K | L | M | N | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 5.70 | 145 | 1.0 | 25 | 2.90 | 74 | 5.50 | 140 | 7.10 | 180 | 0.30 | 8 | 6.40 | 163 | 1.20 | 30 | 1.10 | 28 | 2.60 | 66 | 4.80 | 122 | 1.20 | 30 | 5.20 | 132 |
Resources
0Data Sheets
Wilden Accu-Flo A.025 Clamped Plastic Data Sheet
1Manuals
22D Drawings
Wilden Accu-Flo A.025 Clamped Plastic 2D Drawing
33D Models
