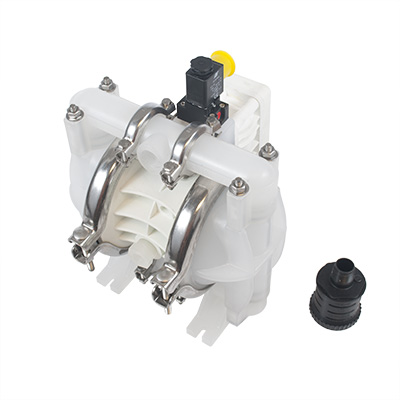

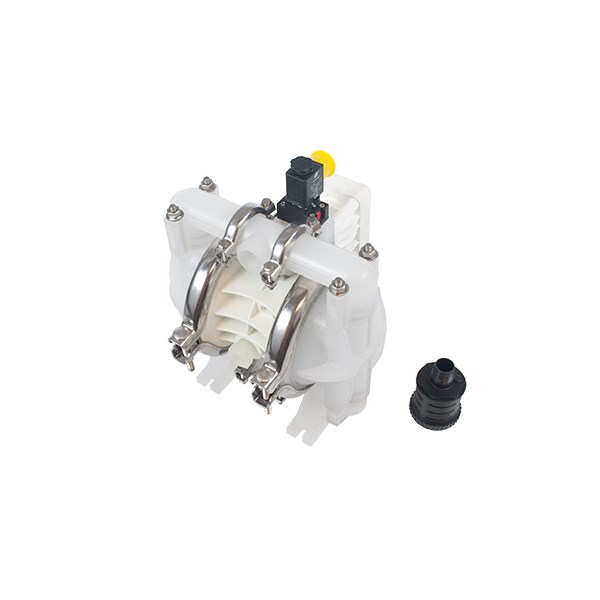

WILDEN A1 DIAPHRAGM PUMP 0.5" FPT CLAMPED PLASTIC ADAPTER BLOCK BASE POLY WET SIDE POLY PISTON POLY CENTER POLY AIR PTFE WITH NEOPRENE BACKUP DIAPHRAGM PTFE VALVE BALL PVDF SEATS PTFE ENCAPSULATED VITON O-RINGS ADAPTER BLOCK NO MUFFLER PRO-FLO CENTER SECTION AODD

A1BPPPPPTNUTFKTV0512

MPN:
01-10187

USUALLY SHIPS IN 1-3 DAYS

Net Price: $1,182.00 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
  • Total: 1
Product Availability
Price
WILDEN REPAIR KIT WET 0.5" ORIGINAL PLASTIC PTFE W/ NEOPRENE

$779.00 / EA

  • Total: 1
Brand Wilden
Product Type Pumps
Product Subtype Diaphragm Pumps
Series Accu-Flo Series
Model A1
Material Polypropylene
Size 1 0.5"
Connection Type 1 FNPT
Diaphragm Material Teflon / Neoprene
Weight 9.00000
Manufacturer:
PSG California LLC
MPN:
01-10187

A1B Plastic Clamp Dimensional DiagramA1B Plastic.2 Clamp Dimensional Diagram

A1B Plastic Clamp
A B C D E F G H
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
1.16 30.00 4.59 117.00 5.50 140.00 7.69 196.00 8.19 208.00 8.63 218.00 2.53 64.00 6.88 118.00
