Wilden

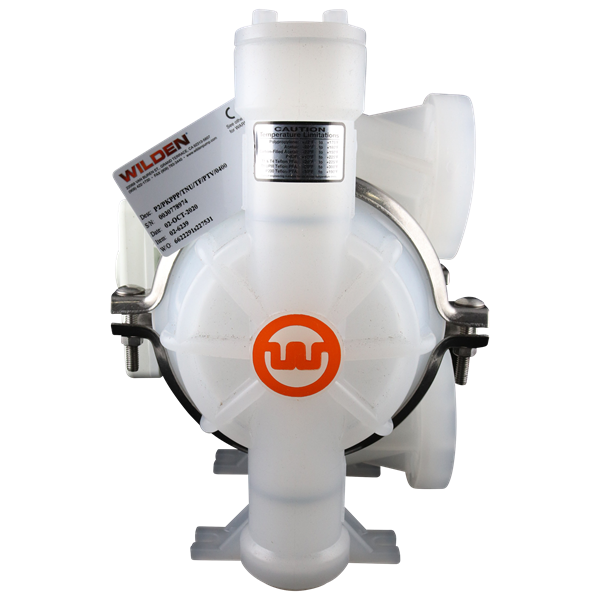

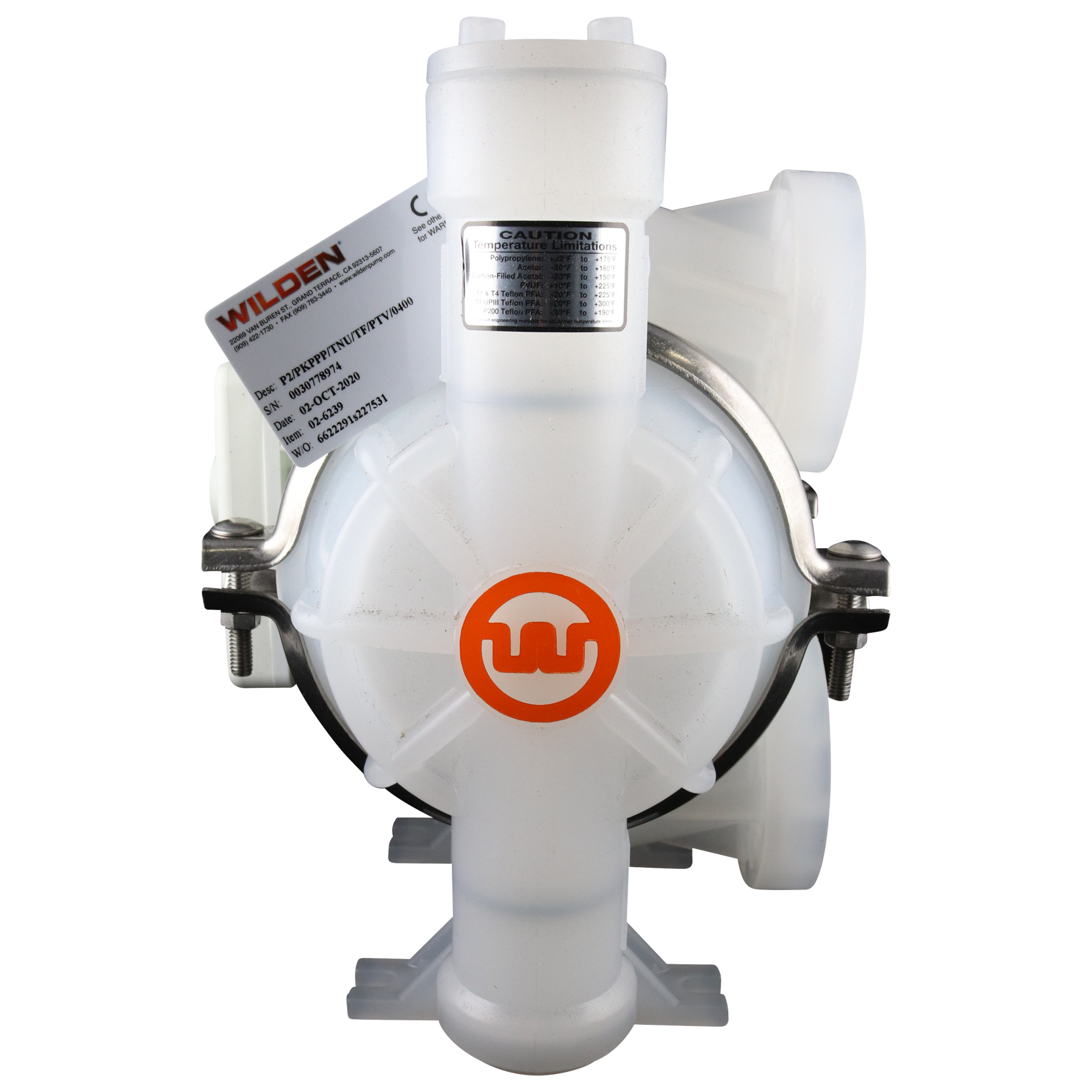

WILDEN P2 DIAPHRAGM PUMP 1" ANSI FLANGED CLAMPED PLASTIC POLY WET SIDE PVDF PISTON POLY CENTER POLY AIR PTFE WITH NEOPRENE BACKUP DIAPHRAGM PTFE VALVE BALL POLY SEATS PTFE ENCAPSULATED VITON O-RINGS AODD
P2PKPPPTNUTFPTV0400
- MPN:
- 02-6239
Net Price: $1,988.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| WILDEN REPAIR KIT AIR 1" COMBO PLASTIC |
$440.00 / EA |
|
||
| WILDEN REPAIR KIT WET 1" ORIGINAL PLASTIC PTFE W/ NEOPRENE |
$1,078.10 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Pro-Flo Series |
| Model | P2 |
| Material | Polypropylene |
| Size 1 | 1" |
| Connection Type 1 | Flange |
| Diaphragm Material | Teflon / Neoprene |
| Weight | 17.90000 |
- Manufacturer:
- PSG California LLC
- MPN:
- 02-6239
Dimensional Data
P2 Clamped Plastic Pump
| A | B | C | D | E | F | G | H | J | K | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 10.90 | 277.00 | 3.00 | 76.00 | 7.10 | 180.00 | 9.80 | 249.00 | 13.10 | 333.00 | 3.20 | 81.00 | 4.20 | 107.00 | 4.90 | 124.00 | 11.50 | 292.00 | 7.10 | 180.00 |
