Wilden

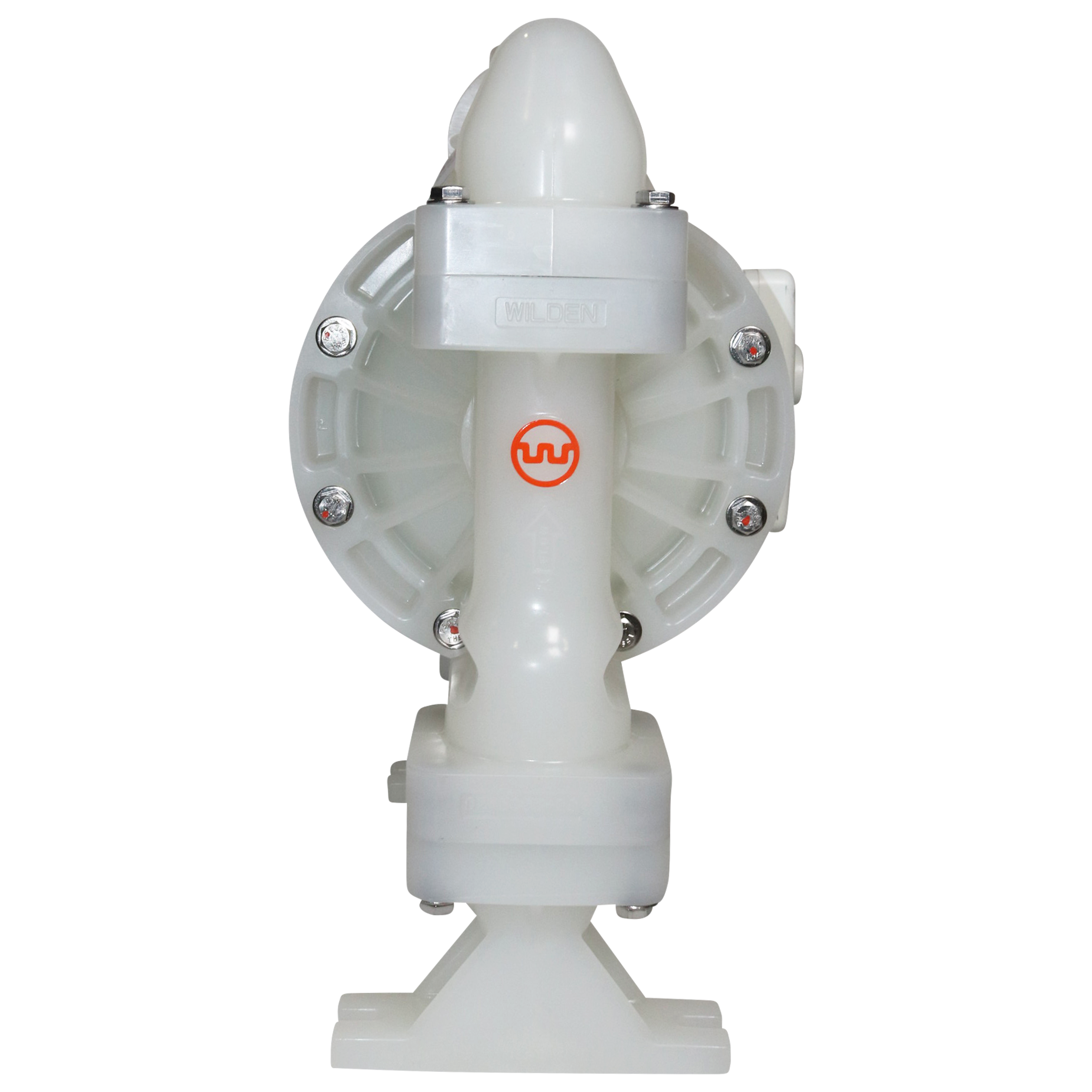

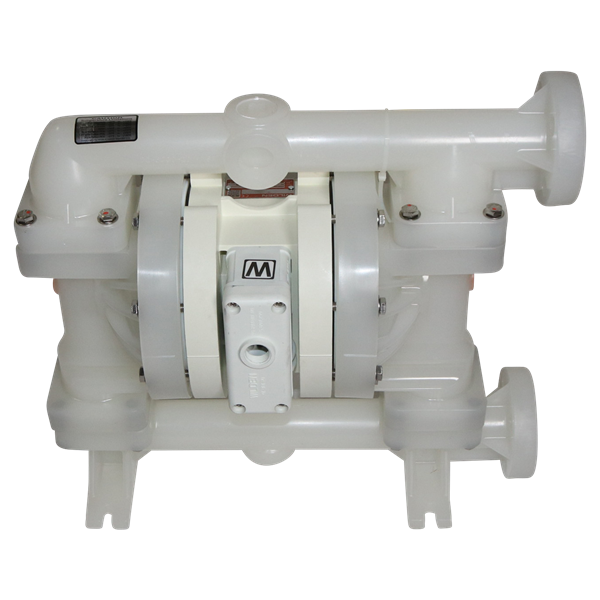

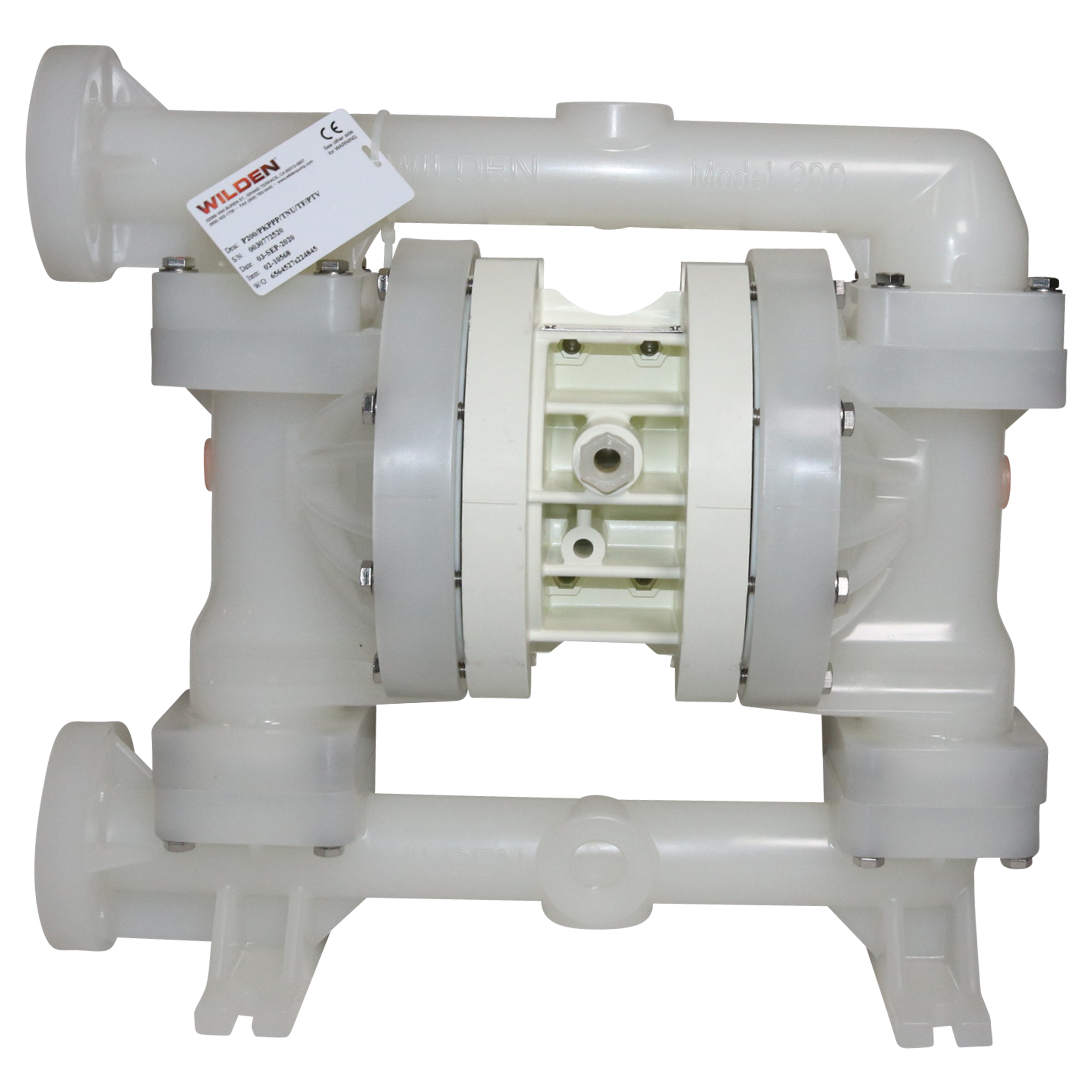

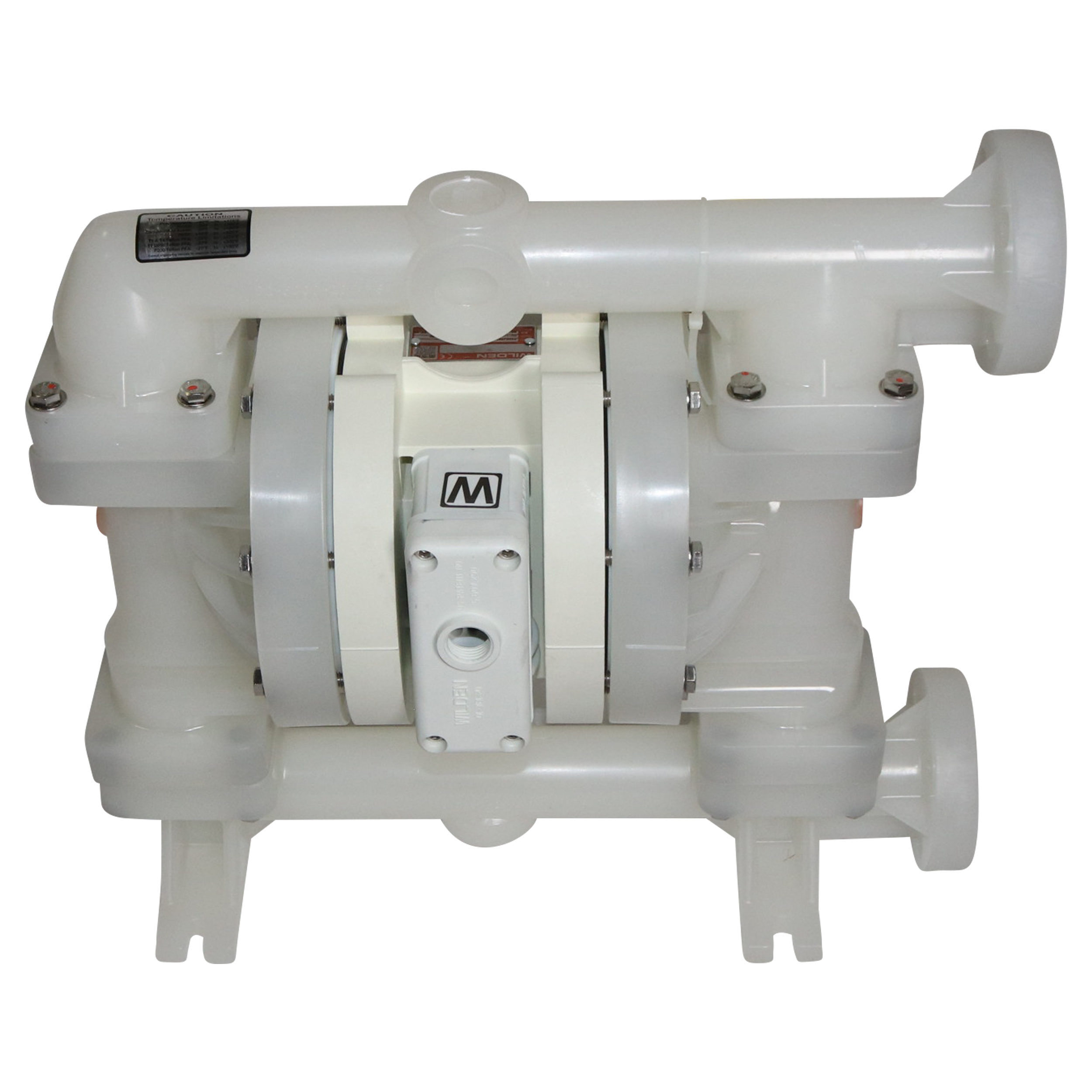

WILDEN P200 DIAPHRAGM PUMP 1" ANSI FLANGED BOLTED PLASTIC PRO-FLO POLY WET SIDE PVDF PISTON POLY CENTER POLY AIR PTFE WITH NEOPRENE BACKUP DIAPHRAGM PTFE VALVE BALL POLY SEATS PTFE ENCAPSULATED VITON O-RINGS AODD
P200PKPPPTNUTFPTV
- MPN:
- 02-10568
Net Price: $2,026.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| WILDEN REPAIR KIT AIR 1" COMBO PLASTIC |
$440.00 / EA |
|
||
| WILDEN REPAIR KIT WET 1" ADVANCED PLASTIC PTFE W/ NEOPRENE |
$913.70 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Pro-Flo Series |
| Model | P200 |
| Material | Polypropylene |
| Size 1 | 1" |
| Connection Type 1 | Flange |
| Size 2 | 1" |
| Diaphragm Material | Teflon / Neoprene |
| Weight | 27.00000 |
- Manufacturer:
- PSG California LLC
- MPN:
- 02-10568
Dimensional Data
P200 Bolted Plastic Dimensional Diagram
| A | B | C | D | E | F | G | H | J | K | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 18.0 | 457 | 2.6 | 66 | 10.2 | 259 | 15.0 | 381 | 17.1 | 434 | 3.9 | 99 | 4.1 | 104 | 4.8 | 122 | 10.2 | 259 | 9.1 | 231 |
