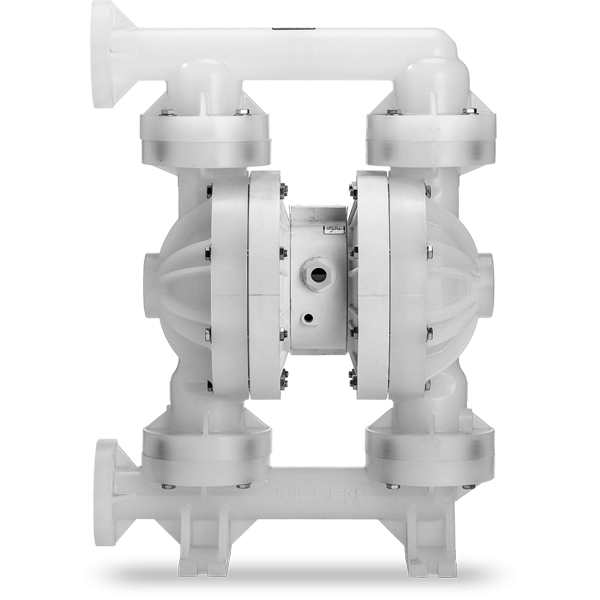

WILDEN P400 DIAPHRAGM PUMP 1.5" ANSI FLANGED BOLTED PLASTIC PRO-FLO PVDF WET SIDE PVDF PISTON POLY CENTER POLY AIR PTFE WITH NEOPRENE BACKUP DIAPHRAGM PTFE VALVE BALL PVDF SEATS PTFE ENCAPSULATED VITON O-RINGS AODD

P400KKPPPTNUTFKTV

MPN:
04-10856

USUALLY SHIPS IN 1-3 DAYS

Net Price: $9,059.00 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
  • Total: 2
Product Availability
Price
WILDEN REPAIR KIT AIR 1.5" 2" ADVANCED PLASTIC

$581.60 / EA

WILDEN REPAIR KIT WET 1.5" ADVANCED PLASTIC PTFE W/ NEOPRENE

$1,220.60 / EA

  • Total: 2
Brand Wilden
Product Type Pumps
Product Subtype Diaphragm Pumps
Series Pro-Flo Series
Model P400
Material PVDF
Size 1 1.5"
Connection Type 1 Flange
Diaphragm Material Teflon / Neoprene
Weight 59.00000
Manufacturer:
PSG California LLC
MPN:
04-10856

P400 Plastic Poly

P400 Plastic Poly

P400 Plastic PVDF
A B C D E G H J K
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
18.5 471 3.2 83 13.6 345 23.4 596 25.9 659 5.1 130 5.4 137 11.8 300 13.7 348
