Superlok

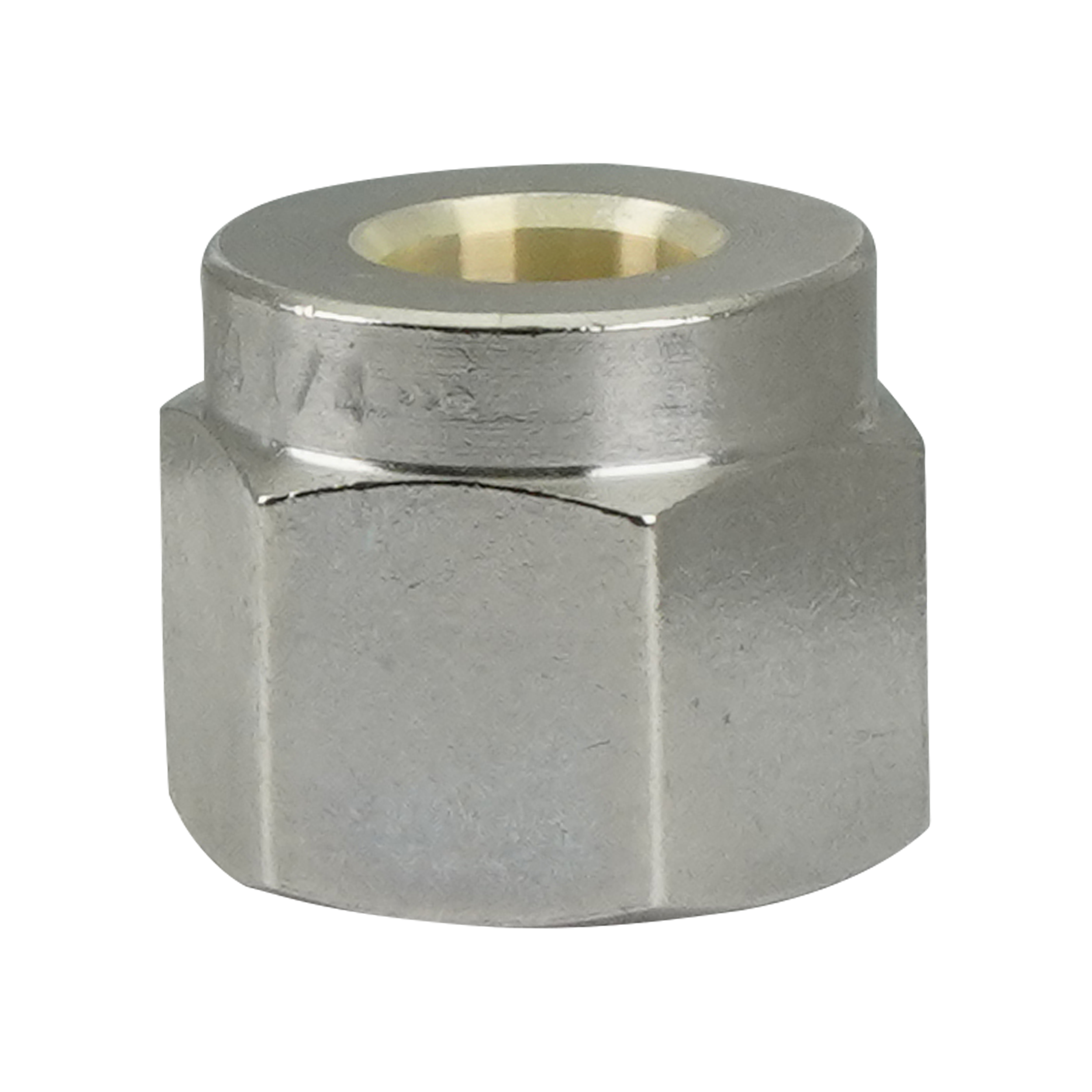

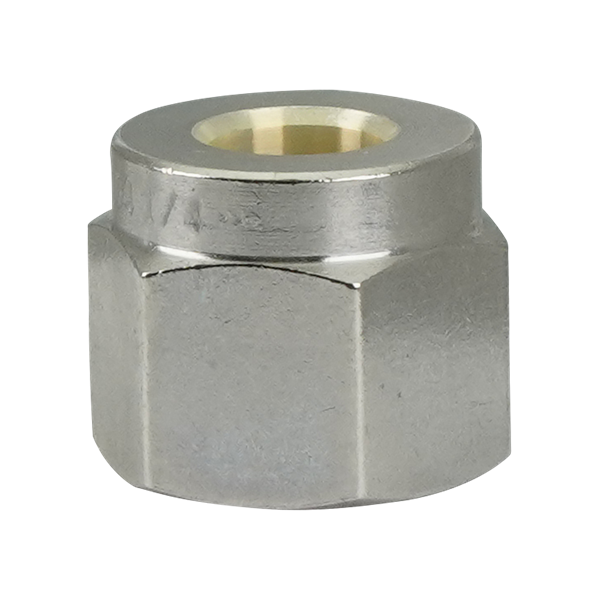

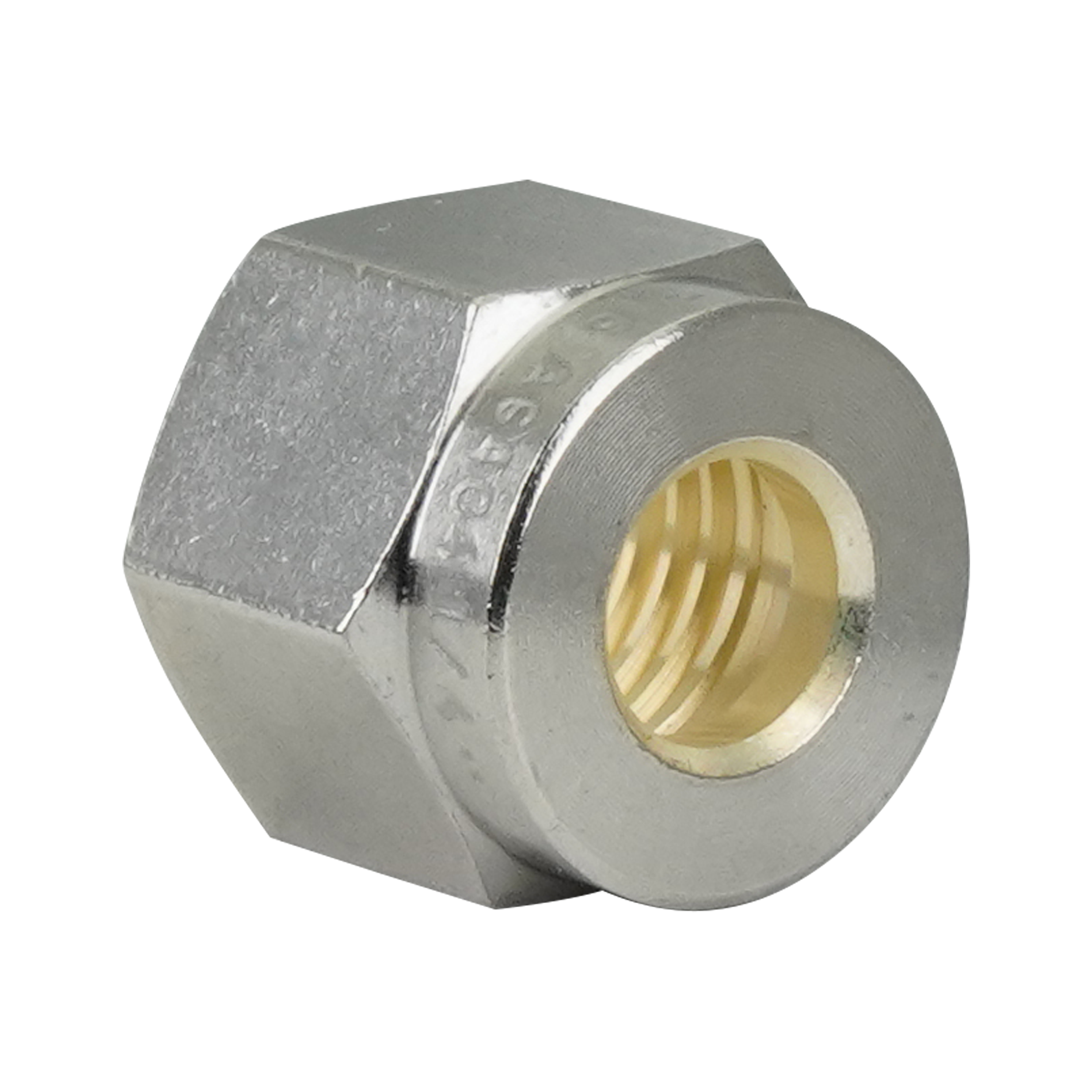

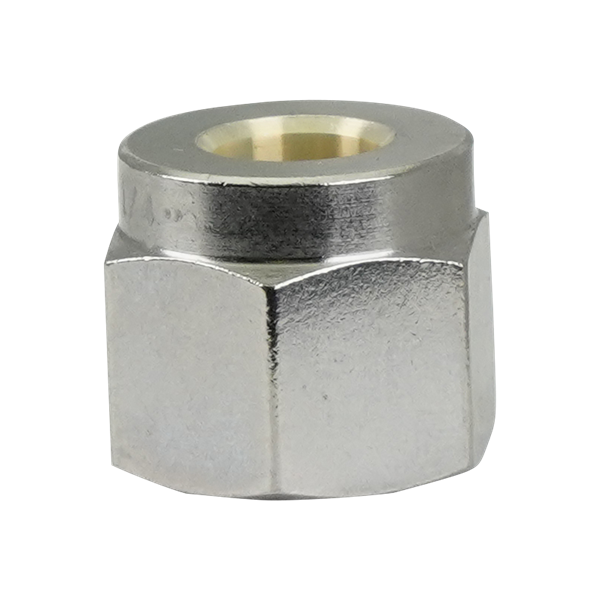

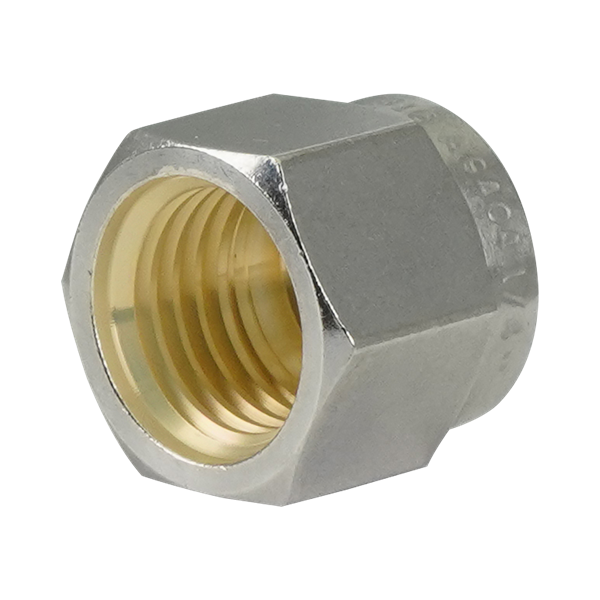

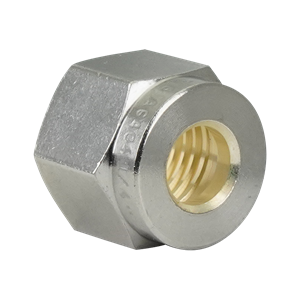

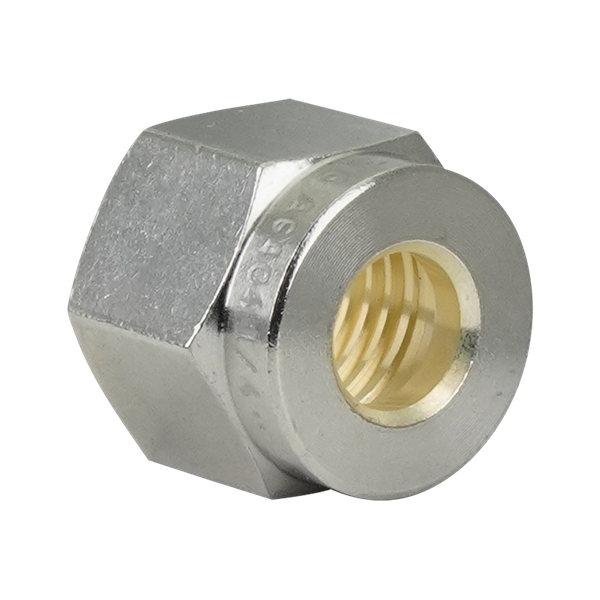

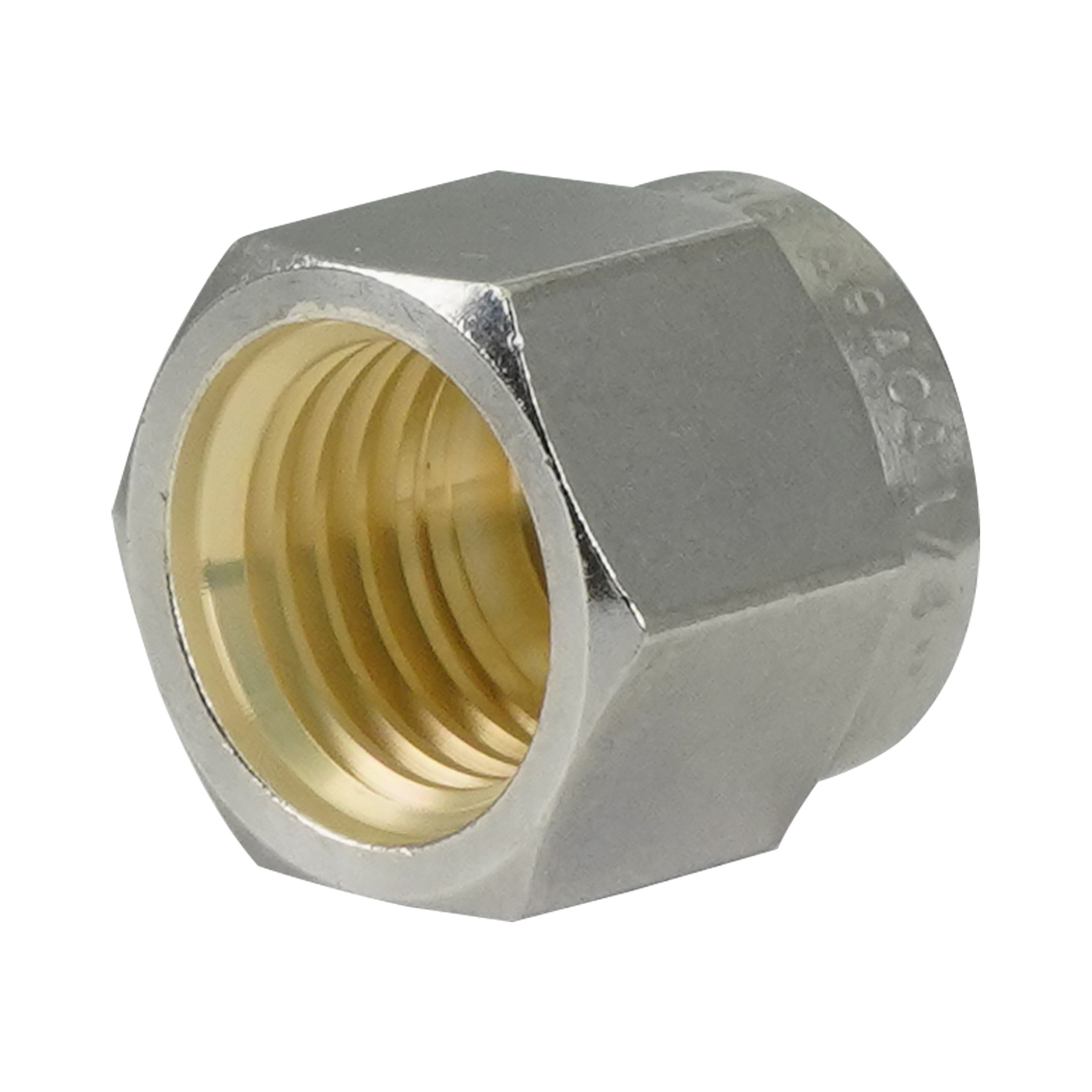

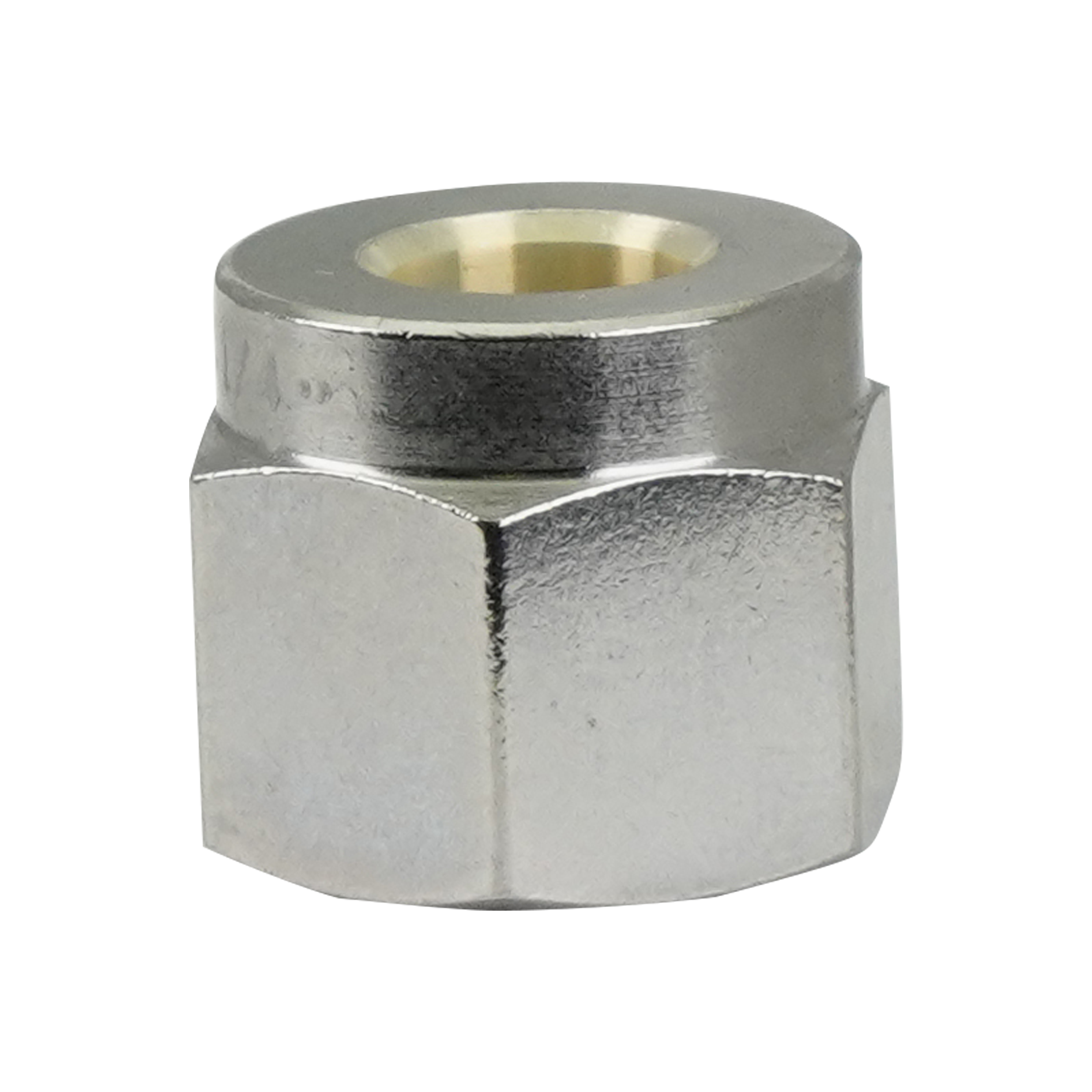

Superlok Nut 1/4" 316 Equal to SS-402-1
SN-4
Net Price: $2.42 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Superlok |
|---|---|
| Product Type | Compression Fittings |
| Product Subtype | Nuts |
| Material | 316 Stainless Steel |
| Size 1 | 0.25" |
| Fitting Design | SN |
| Weight | 0.10000 |
Dimensional Data
SN Dimensional Diagram
| Tube Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¹⁄₁₆ | 1.59 | 0.31 | 7.90 |
| ⅛ | 3.175 | 0.47 | 11.93 |
| ³⁄₁₆ | 4.76 | 0.47 | 11.93 |
| ¼ | 6.35 | 0.50 | 12.70 |
| ⁵⁄₁₆ | 7.938 | 0.53 | 13.50 |
| ⅜ | 9.525 | 0.56 | 14.22 |
| ½ | 12.70 | 0.68 | 17.30 |
| ⅝ | 15.88 | 0.69 | 17.52 |
| ¾ | 19.05 | 0.69 | 17.52 |
| ⅞ | 0.875 | 0.69 | 17.52 |
| 1 | 25.40 | 0.81 | 20.60 |
