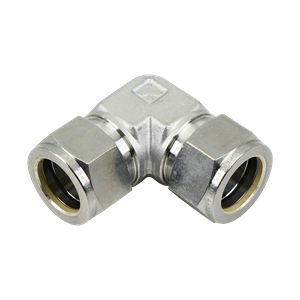

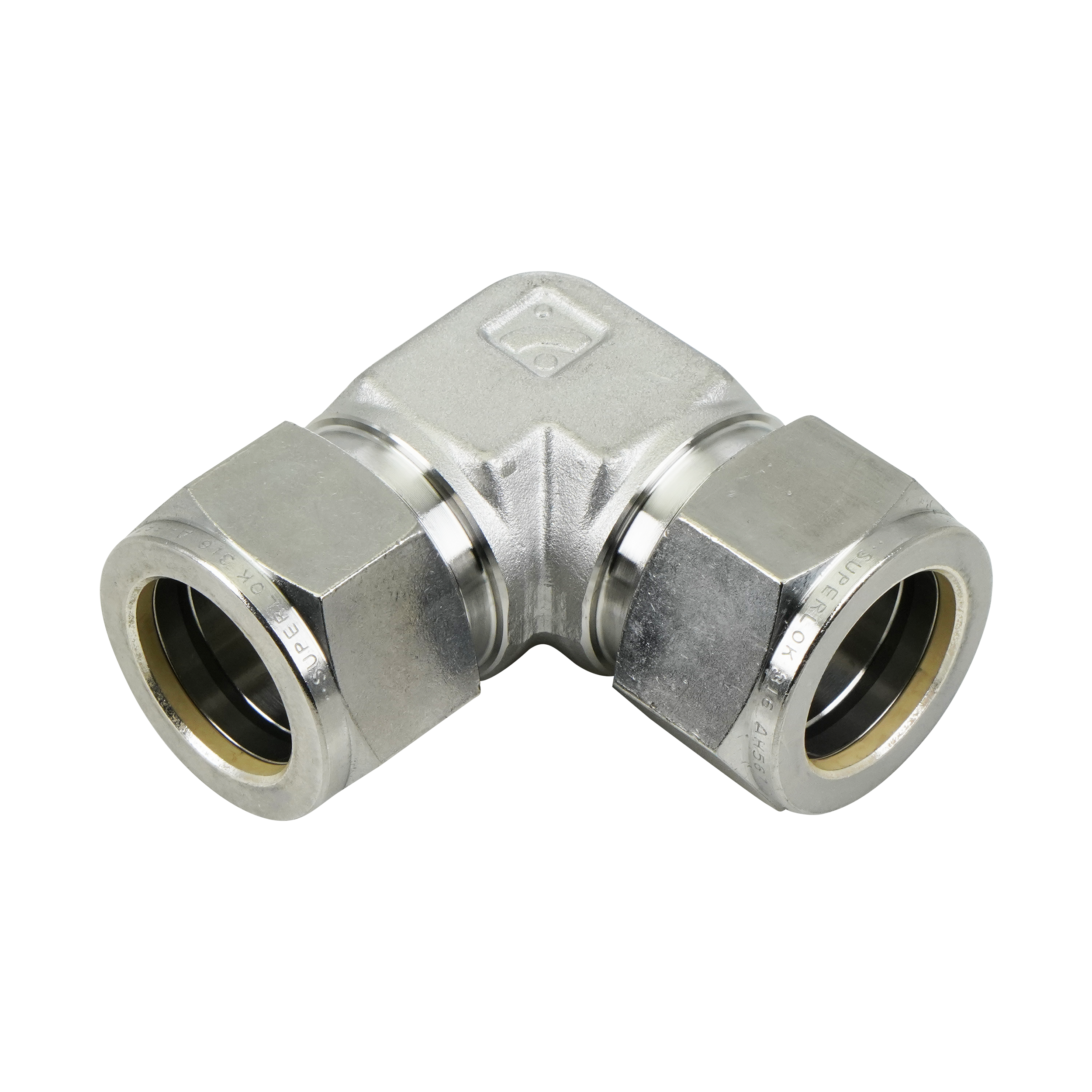

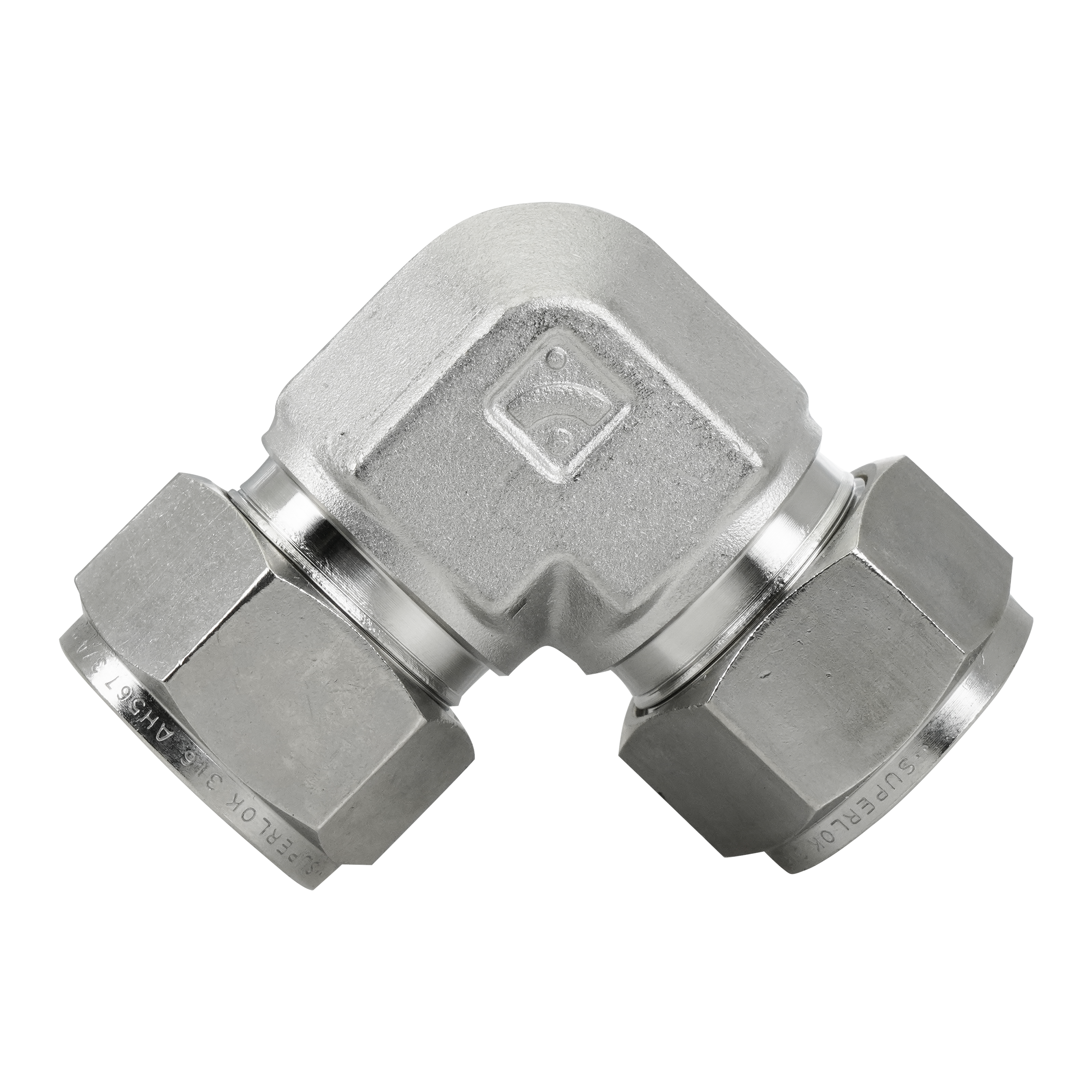

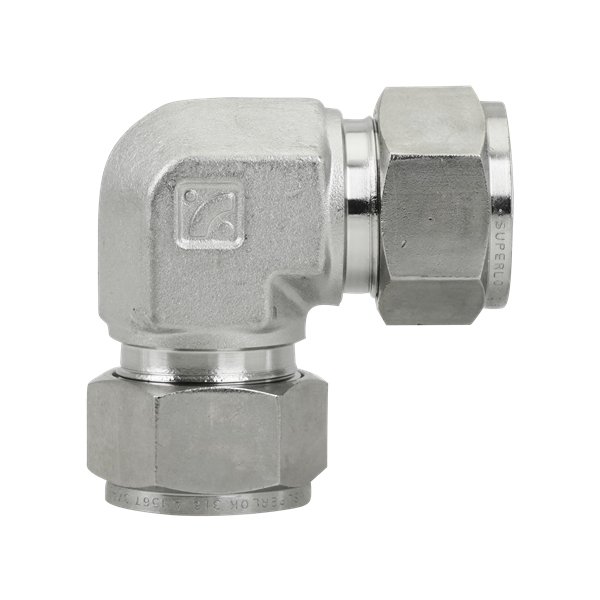

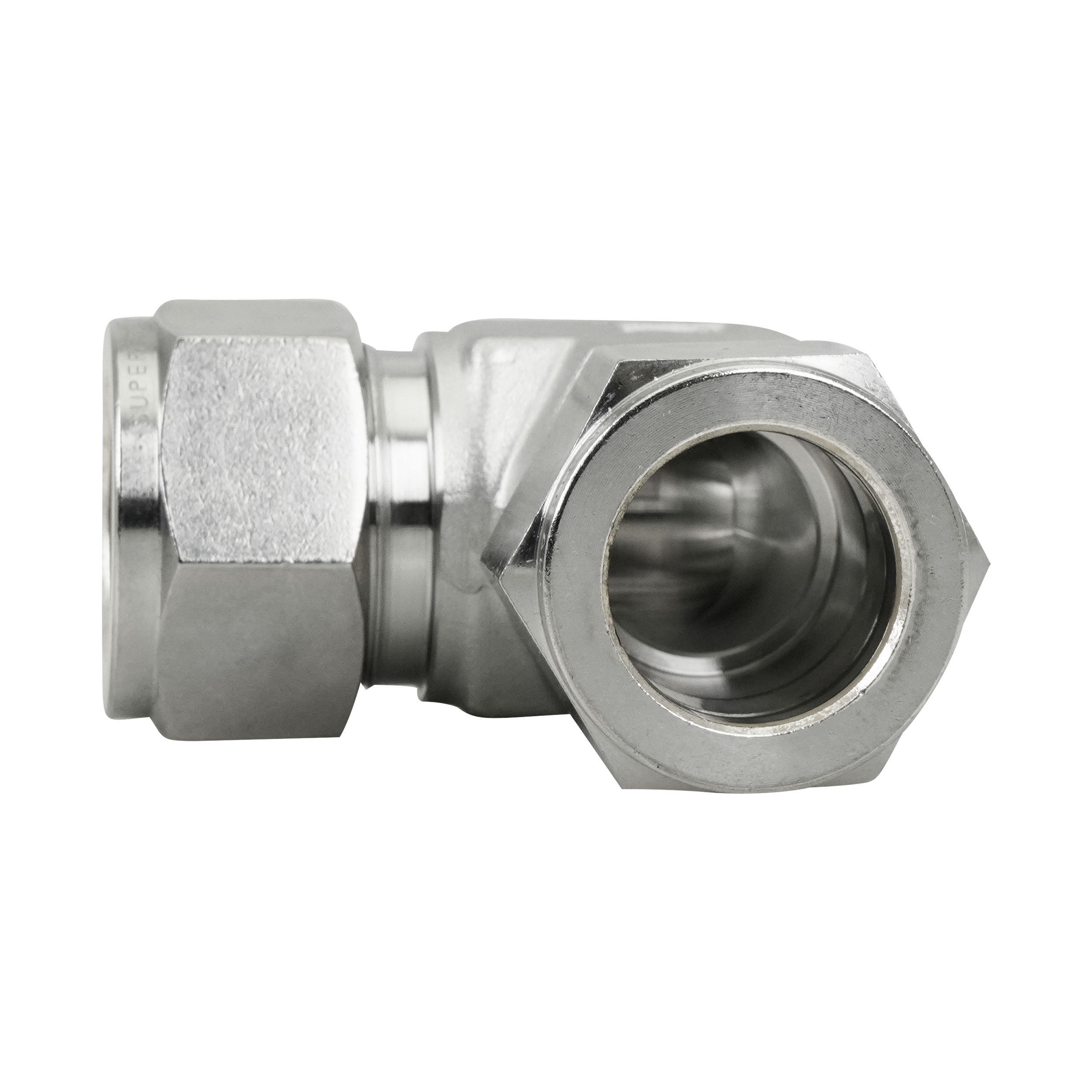

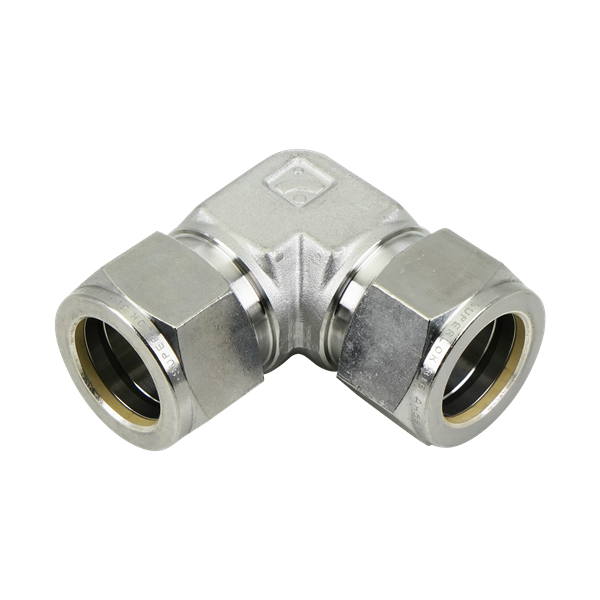

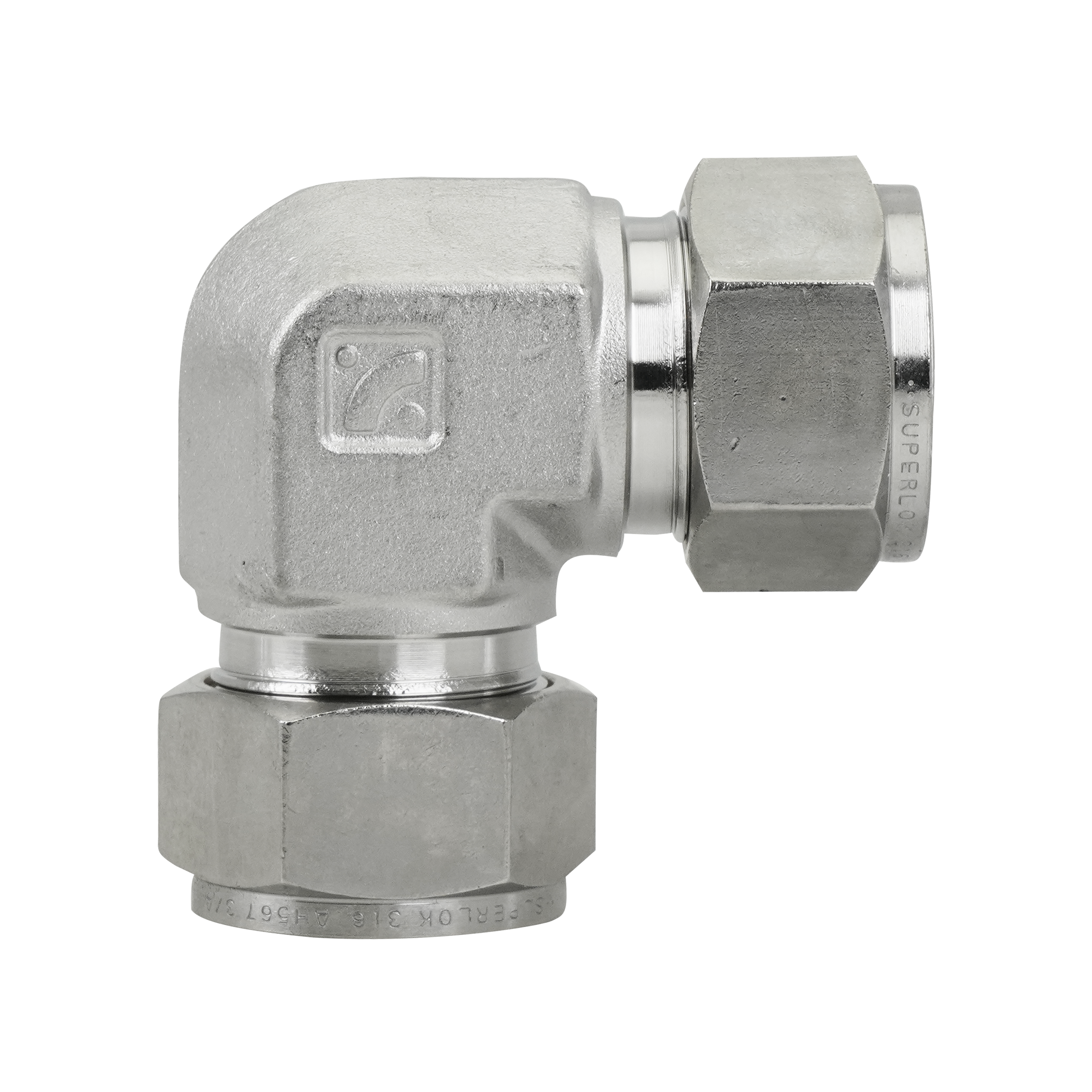

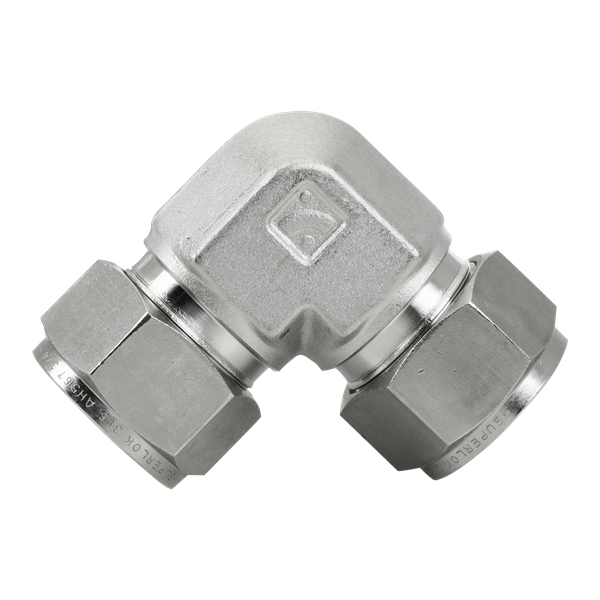

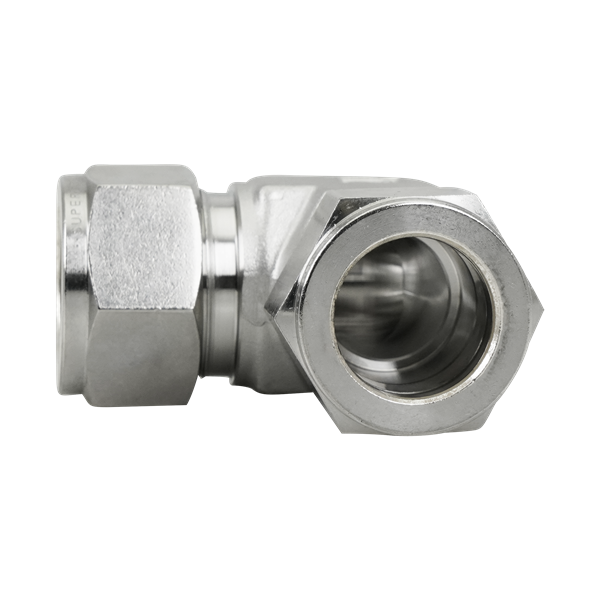

Superlok 90 Degree Union Elbow 3/4" Compression Tube 316 Equal to SS-1210-9

SUE-12

Net Price: $49.80 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Elbows
Material 316 Stainless Steel
Size 1 0.75"
Connection Type 1 Compression Tube
Fitting Design SUE
Weight 0.10000

SUE Dimensional Diagram

90° Compression Tube Union Elbow | SUE
Nominal Size A B C
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
¹⁄₁₆ 1.59 0.71 18.03 0.06 1.59 0.05 1.27
⅛ 3.17 0.88 22.35 0.13 3.17 0.09 2.29
³⁄₁₆ 4.76 0.99 25.14 0.19 4.76 0.12 3.05
¼ 6.35 1.10 27.40 0.25 6.35 0.19 4.83
⁵⁄₁₆ 7.94 1.17 29.71 0.31 7.94 0.25 6.35
⅜ 9.52  1.20 30.48 0.38 9.52 0.28 7.11
½ 12.70 1.42 36.06 0.50 12.70 0.41 10.41
⅝ 15.88  1.50 38.10 0.63 15.88 0.50 12.70
¾ 19.05 1.57 39.87  0.75 19.05 0.62 15.75
⅞ 22.22 1.76  44.70 0.88 22.22 0.72 18.29
1 25.40 1.93 49.02 1.00 25.40 0.88 22.35
1¼ 31.75  2.62 66.55  1.25 31.75 1.09 27.69
1½ 38.10 3.07 77.98  1.50 38.10 1.34 34.04
2 50.80 4.22  107.19  2.00 50.80 1.81 45.97
