Superlok Cap 3/8" Compression Tube 316 Equal to SS-600-C

SC-6

Net Price: $8.50 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Caps
Material 316 Stainless Steel
Size 1 0.375"
Connection Type 1 Compression Tube
Fitting Design SC
Weight 0.10000

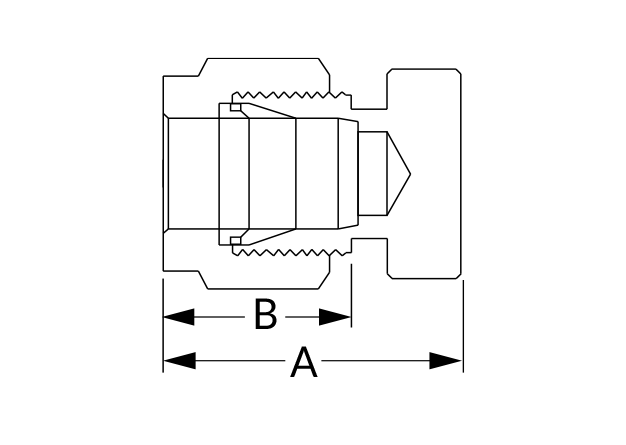

Superlok SC Dimensional Diagram

SC Dimensional Diagram
Tube Size A B
(in) (mm) (in) (mm) (in) (mm)
¹⁄₁₆ 1.588 0.59 14.98 0.34 8.63
⅛ 3.175 0.79 20.06 0.50 12.70
³⁄₁₆ 4.76 0.84 21.33 0.54 13.71
¼ 6.35 0.92 23.36 0.60 15.24
⁵⁄₁₆ 7.938 0.96 24.38 0.64 16.25
⅜ 9.525 1.01 25.65 0.66 16.76
½ 12.70 1.15 29.21 0.90 22.86
⅝ 15.88 1.18 29.97 0.96 24.38
¾ 19.05 1.32 33.49 0.96 24.38
⅞ 0.875 1.34 34.03 1.02 25.90
1 25.40 1.51 38.35 1.23 31.24
