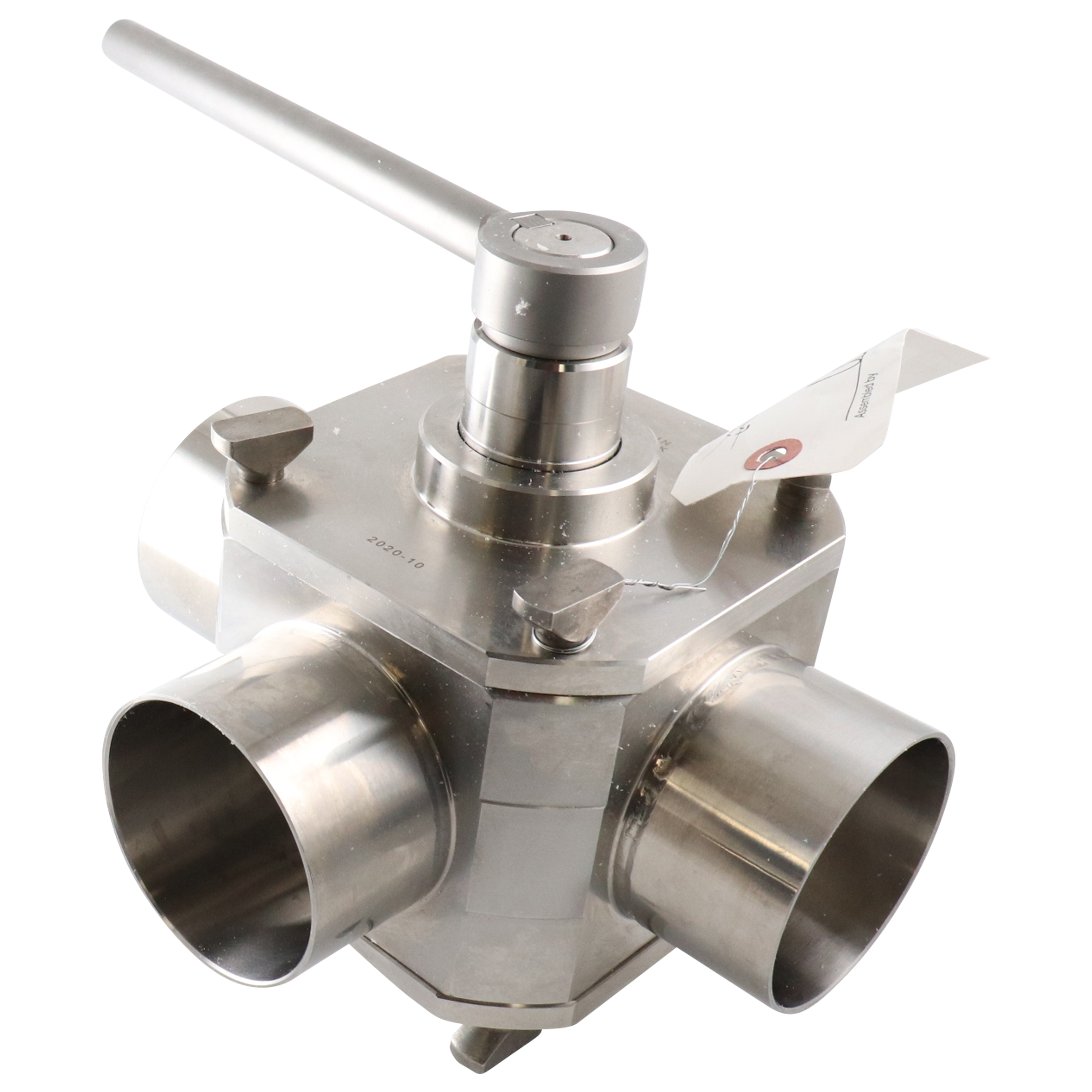

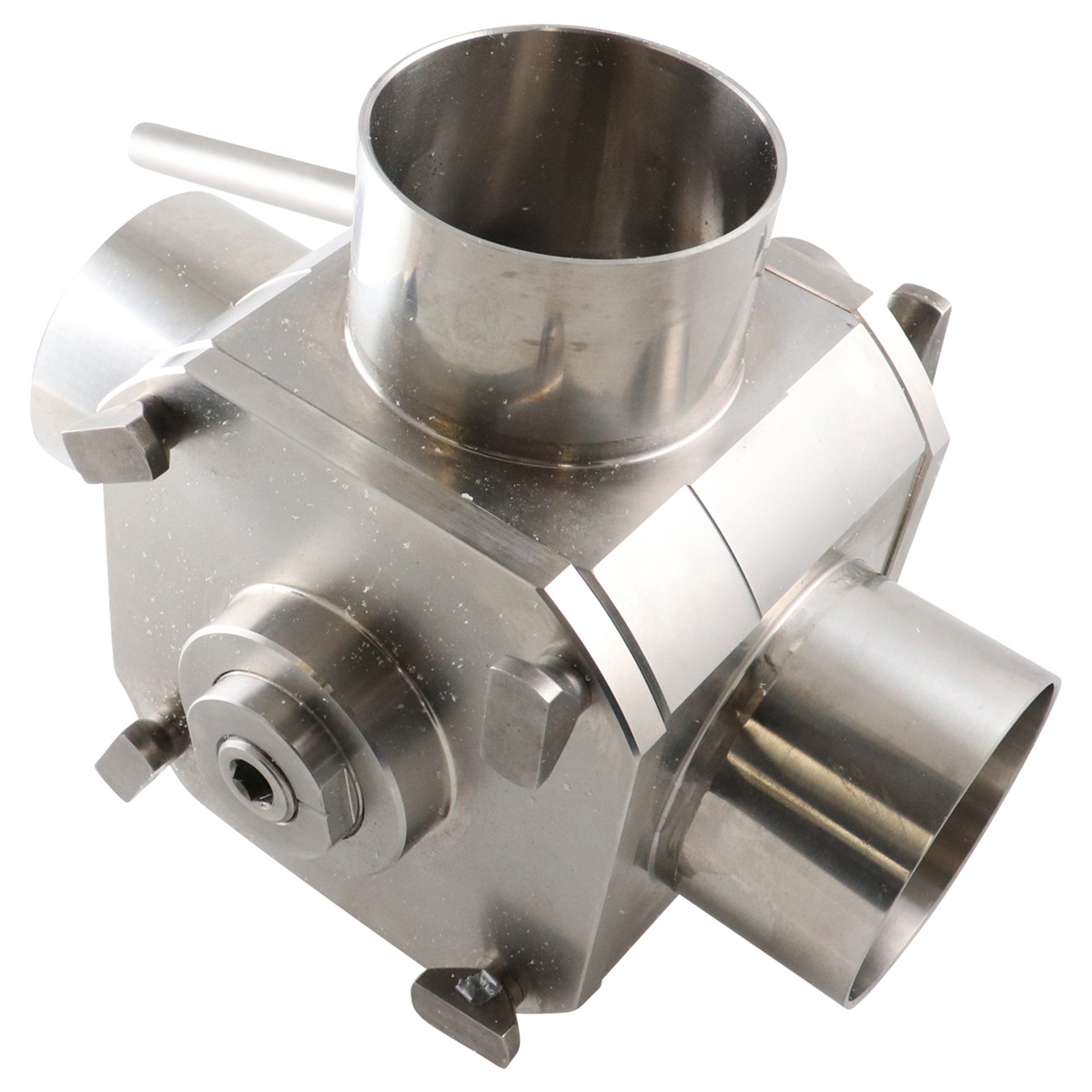

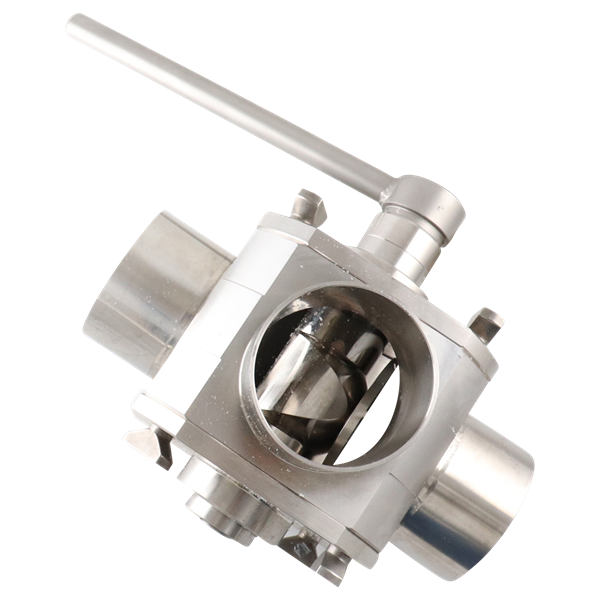

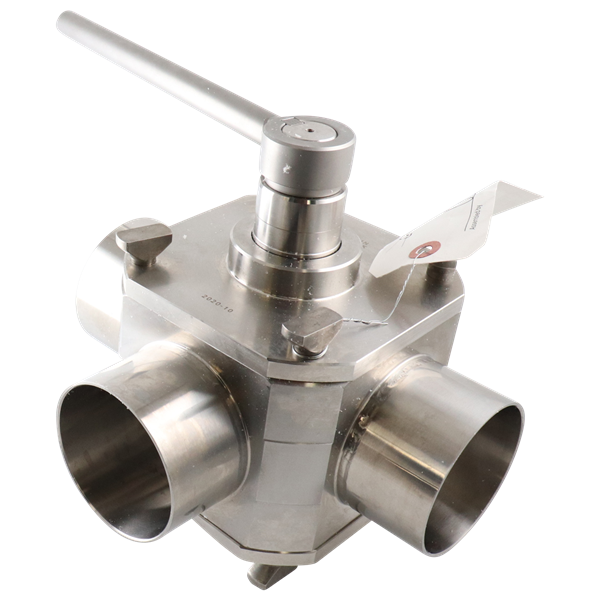

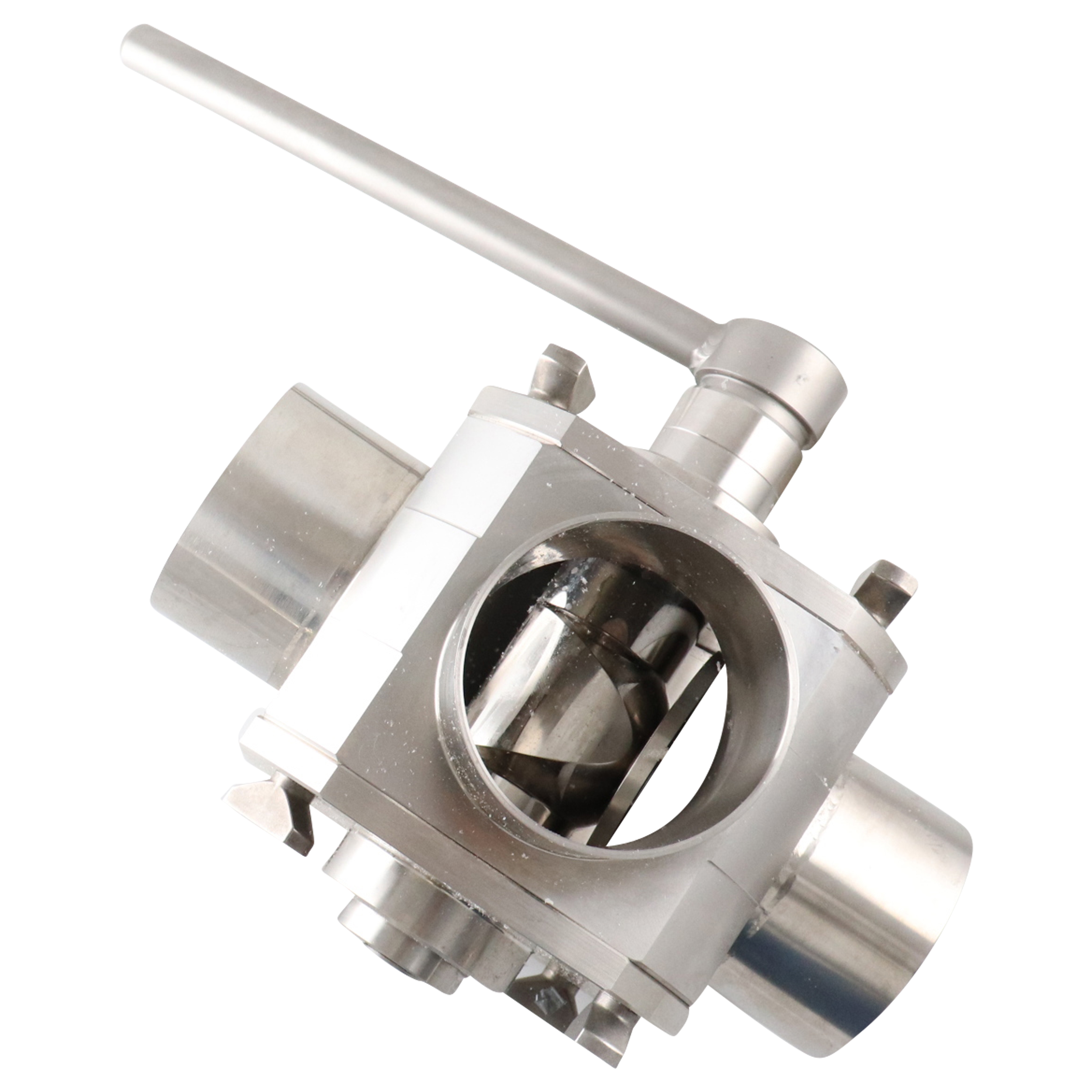

Alfa Laval Koltek Shutter Valve 3" Butt Weld 316L 32Ra EPDM Seals PTFE (Teflon) Shutter 3-Way with Handle
AH11-W-E-3-T316
- MPN:
- 9634078082
Net Price: $5,358.02 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Alfa Laval O-Ring Kit 3" EPDM for Koltek Shutter Valve |
$98.01 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Shutter Valves |
| Series | Koltek Series |
| Material | 316L Stainless Steel |
| Elastomer | EPDM |
| Size 1 | 3" |
| Connection Type 1 | Butt Weld |
| Specification / Standard | 3-A |
| Weight | 25.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9634078082
Dimensional Data
A11 Butt Weld Koltek Shutter Valve
| Nominal Size | A | B | E | G | K | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 4.57 | 116.08 | 2.56 | 65.02 | 1.65 | 41.91 | 2.17 | 55.12 | 5.12 | 130.05 |
| 1½ | 38.10 | 5.87 | 149.10 | 3.54 | 89.92 | 2.20 | 55.88 | 2.76 | 70.10 | 5.12 | 130.05 |
| 2 | 50.80 | 6.34 | 161.04 | 4.02 | 102.11 | 2.44 | 61.98 | 3.23 | 82.04 | 7.09 | 180.09 |
| 2½ | 63.50 | 7.05 | 179.07 | 4.65 | 118.11 | 2.76 | 70.10 | 4.13 | 104.90 | 7.09 | 180.09 |
| 3 | 76.20 | 8.03 | 203.96 | 5.39 | 136.91 | 3.15 | 80.01 | 4.33 | 109.98 | 9.25 | 234.95 |
| 4 | 101.60 | 11.50 | 292.10 | 7.68 | 195.07 | 4.61 | 117.09 | 6.10 | 154.94 | 12.99 | 329.95 |
