Alfa Laval

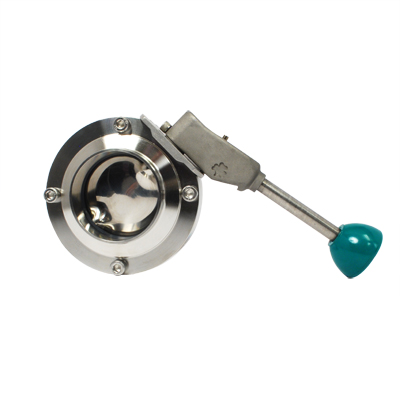

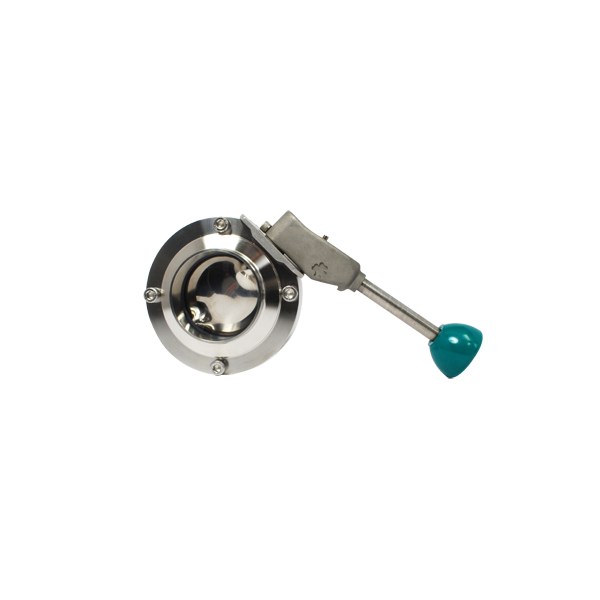

Alfa Laval LKB Butterfly Valve 4" Butt Weld 304 EPDM Seat Green Handle
LKB51W-4-E-S-G
- MPN:
- 330067
Net Price: $249.12 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Butterfly Valves |
| Series | LKB Series |
| Model | LKB51 |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Actuator / Handle | 9-Position Handle Green |
| Weight | 1.45000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 330067
Dimensional Data
LKB Butt Weld Butterfly Valve, Green Handle
| Nominal Size | A | B | C | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.85 | 47.00 | 4.00 | 101.60 | 6.31 | 160.27 |
| 1½ | 38.10 | 1.85 | 47.00 | 4.00 | 101.60 | 6.31 | 160.27 |
| 2 | 50.80 | 2.05 | 52.00 | 4.38 | 111.25 | 6.31 | 160.27 |
| 2½ | 63.50 | 2.13 | 54.00 | 4.78 | 121.41 | 6.31 | 160.27 |
| 3 | 76.20 | 2.44 | 62.00 | 4.97 | 126.24 | 6.31 | 160.27 |
| 4 | 101.60 | 3.15 | 80.00 | 5.75 | 146.05 | 6.31 | 160.27 |
Resources
0Data Sheets
Alfa Laval LKB LKB-F Data Sheet
1Manuals
5Spare Part Lists
6Part Configuration
Videos
