Alfa Laval

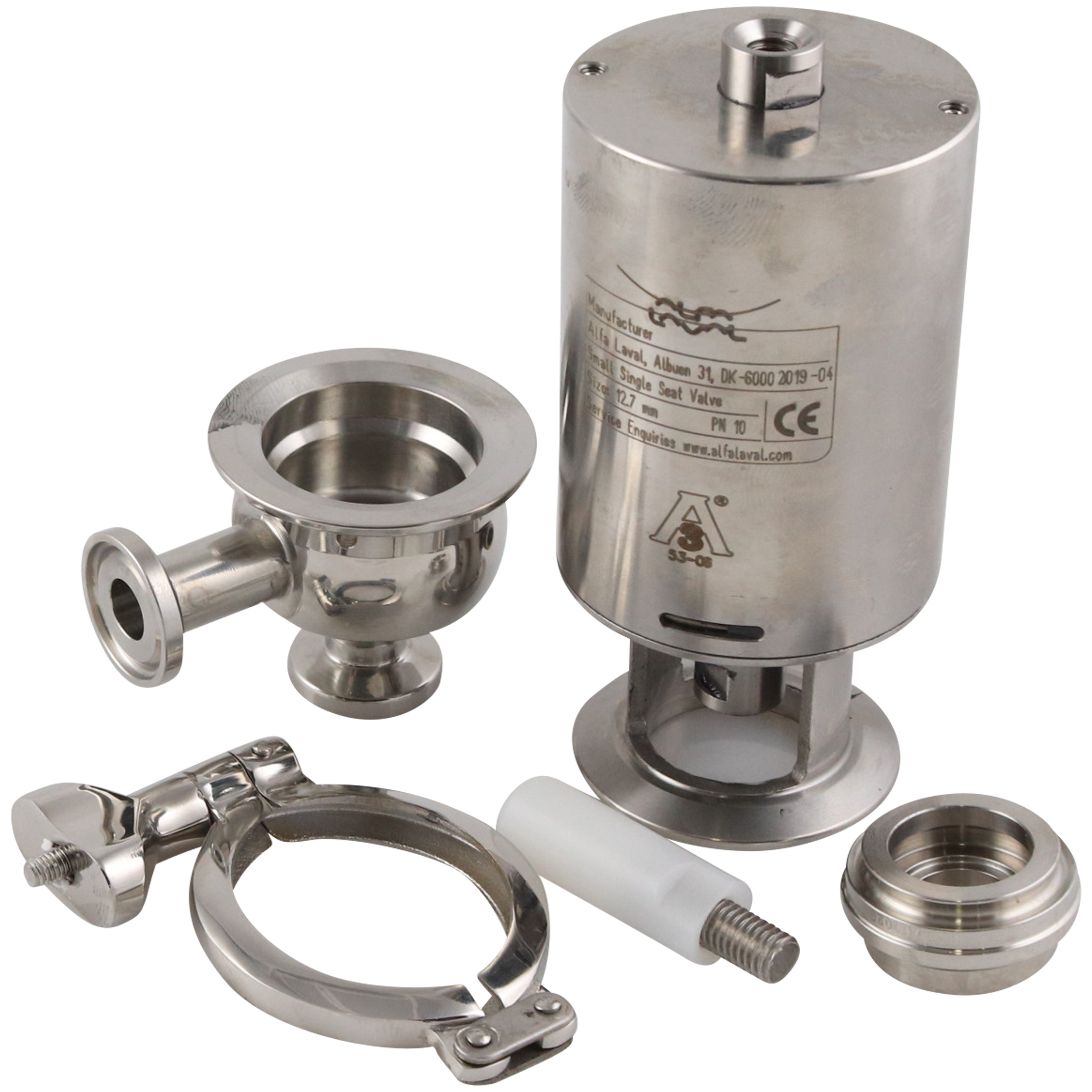

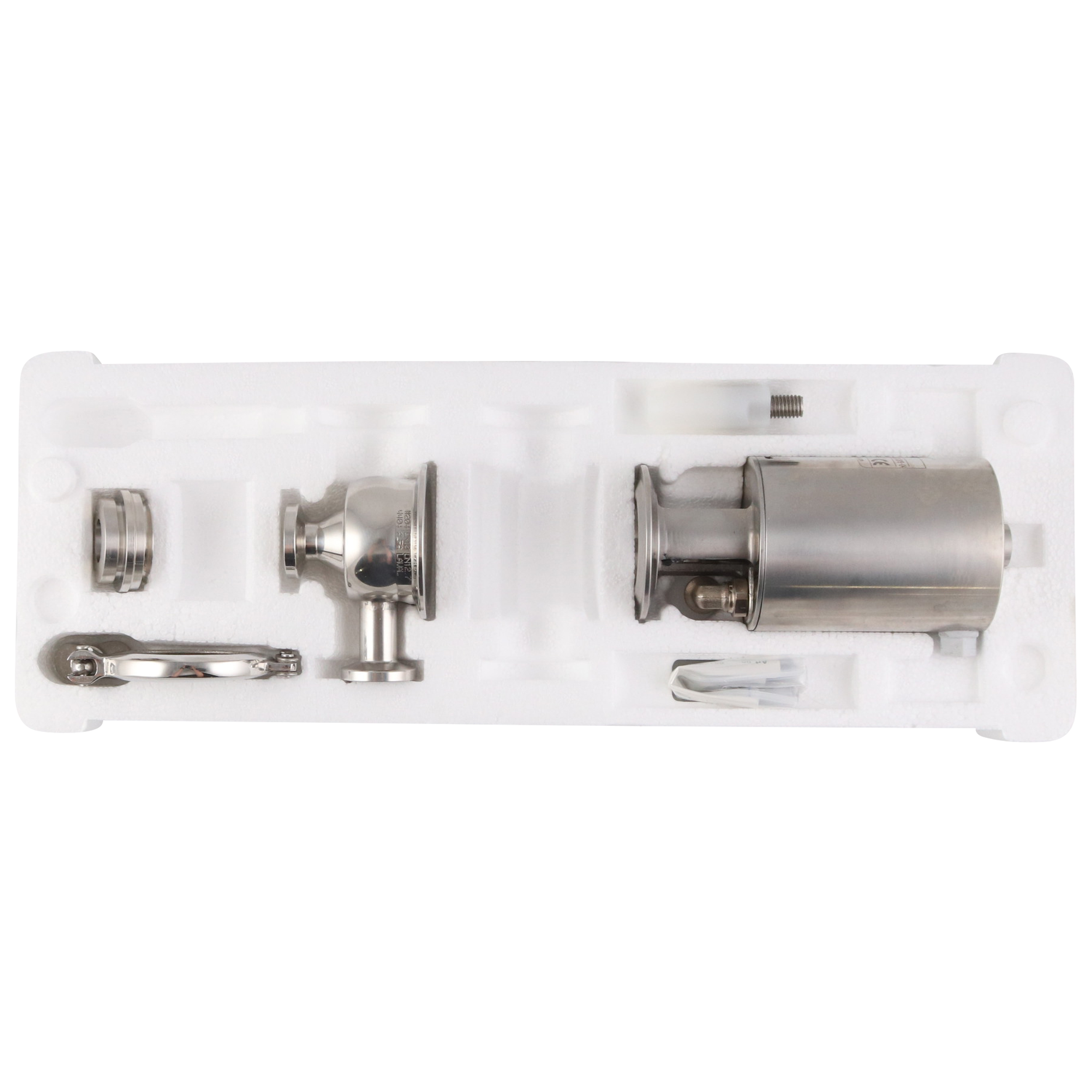

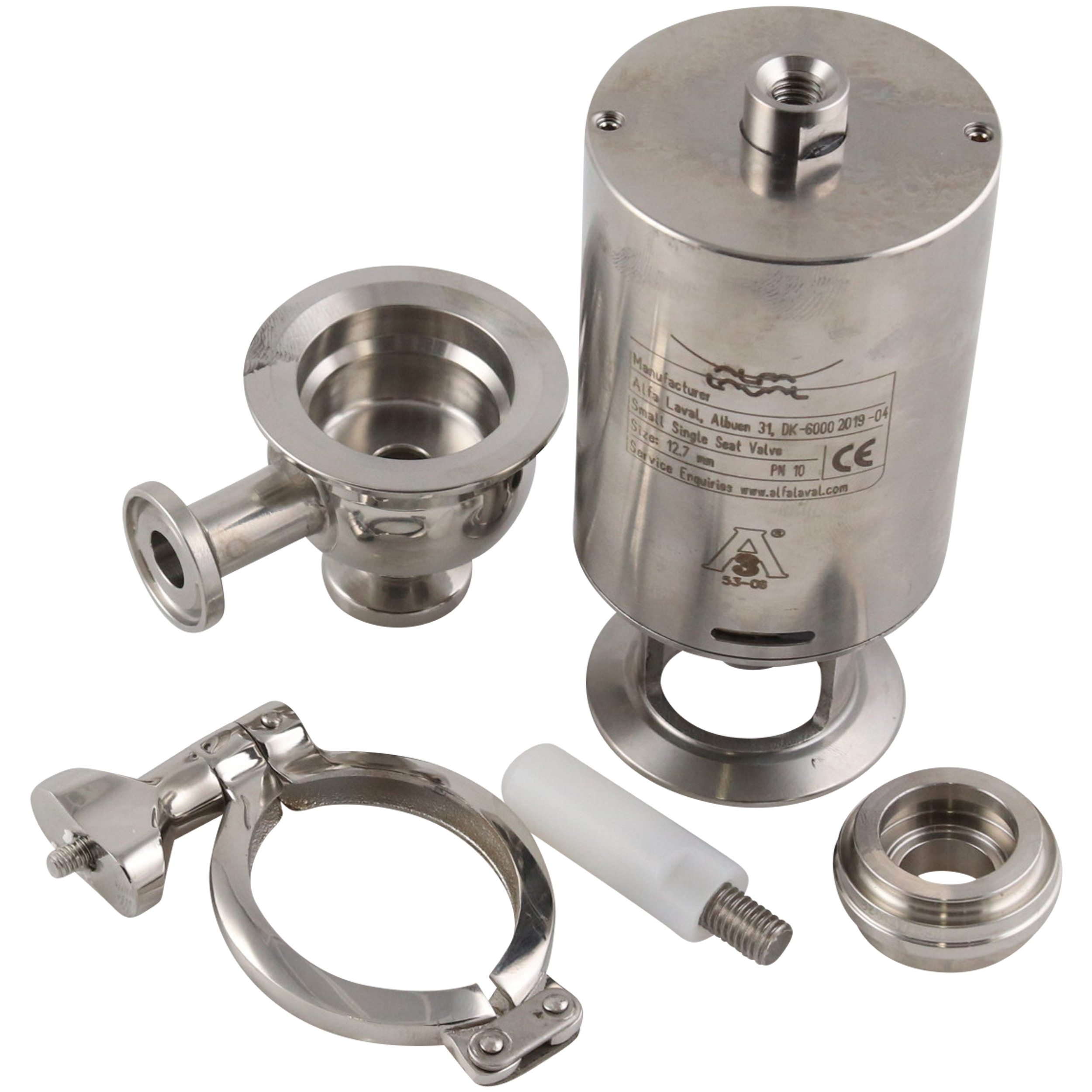

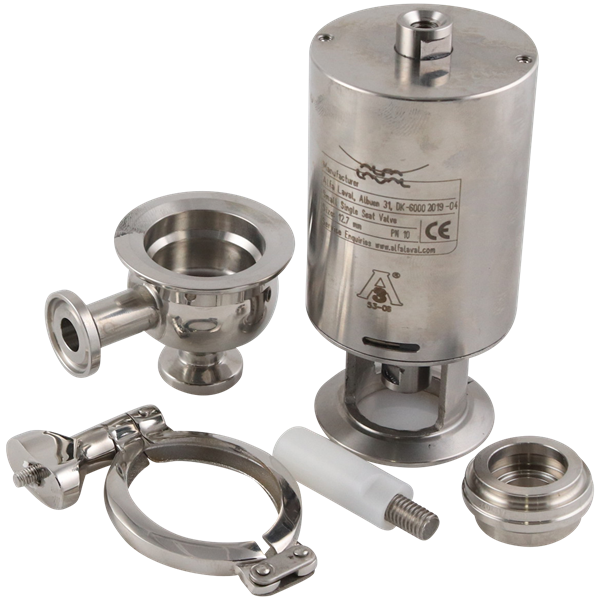

Alfa Laval Shutoff Valve 0.5" Tri-Clamp 316L 20Ra ID TR2 Plug EPDM Seal N/C Actuator
7610-200SM4H052SRSTES
- MPN:
- 9634089860
Net Price: $2,597.78 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

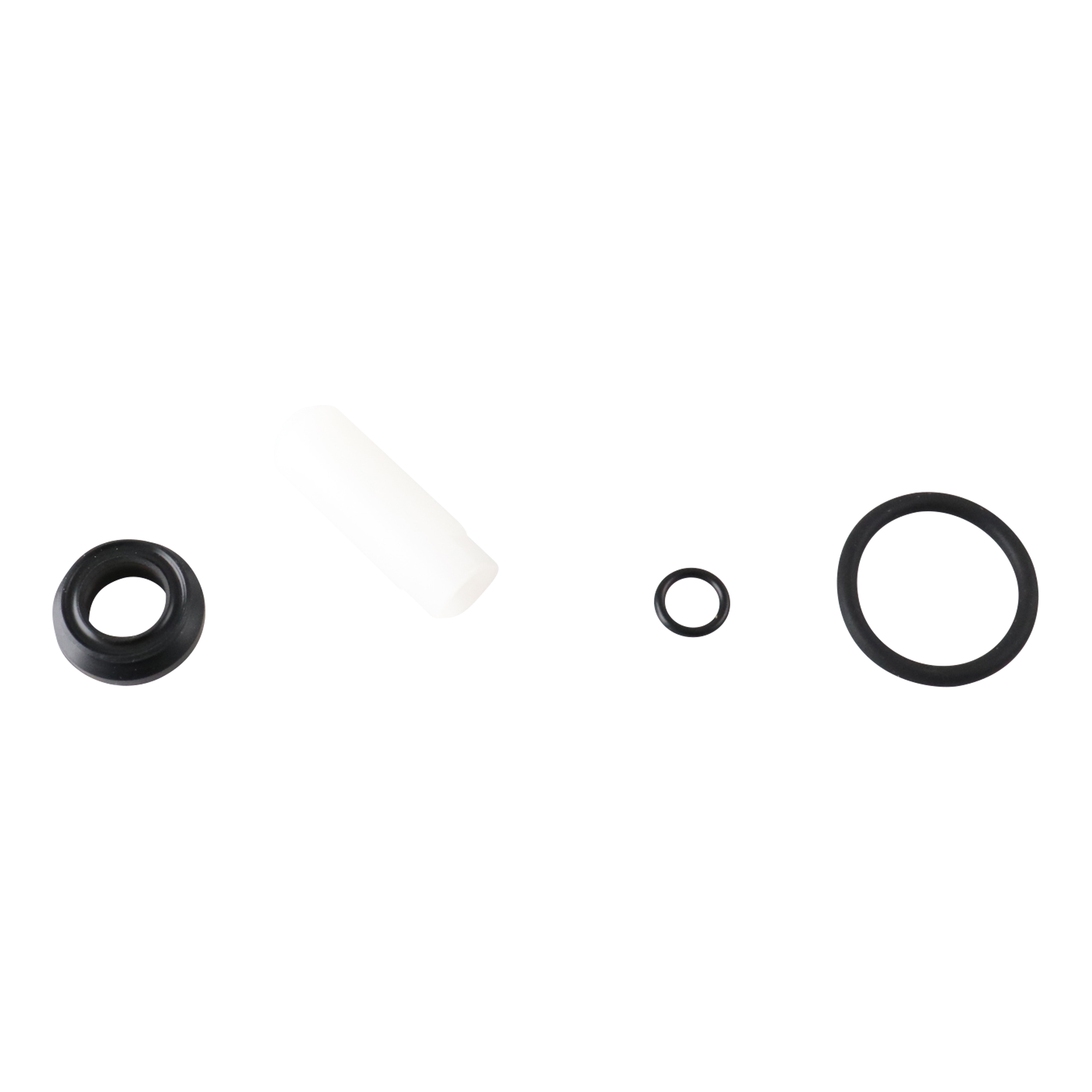

| SERVICE KIT 0.5" EPDM UNIQUE SSSV SHUTOFF VALVE |
$208.44 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSSV Series |
| Model | Standard |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 0.5" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 3.80000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9634089860
Dimensional Data
Unique SSV Shutoff 2 Port Tri-Clamp Single Seat Valve
| Nominal Size | A | B | E | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 12.89 | 327.41 | 12.30 | 312.42 | 1.97 | 50.04 | 3.35 | 85.09 |
| 1½ | 38.10 | 13.13 | 333.50 | 12.34 | 313.44 | 1.95 | 49.53 | 3.35 | 85.09 |
| 2 | 50.80 | 15.30 | 388.62 | 14.27 | 362.46 | 2.40 | 60.96 | 4.53 | 115.06 |
| 2½ | 63.50 | 16.29 | 413.77 | 15.31 | 388.87 | 3.19 | 81.03 | 4.53 | 115.06 |
| 3 | 76.20 | 17.80 | 452.12 | 16.62 | 422.15 | 3.39 | 86.11 | 6.20 | 157.48 |
| 4 | 101.60 | 19.58 | 497.33 | 18.40 | 467.36 | 4.69 | 119.13 | 6.20 | 157.48 |
Alfa Laval Unique SSSV Data Sheet
