Alfa Laval

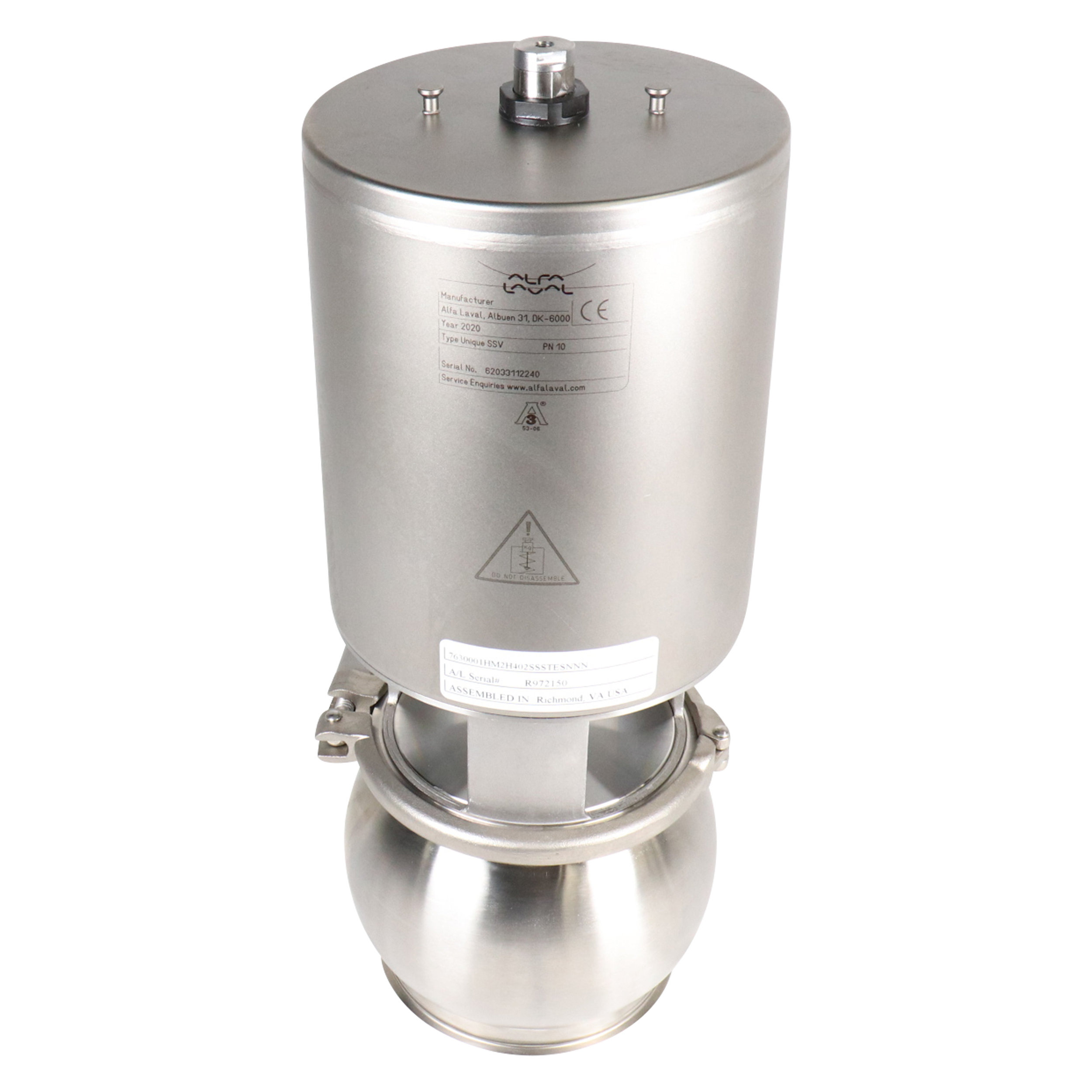

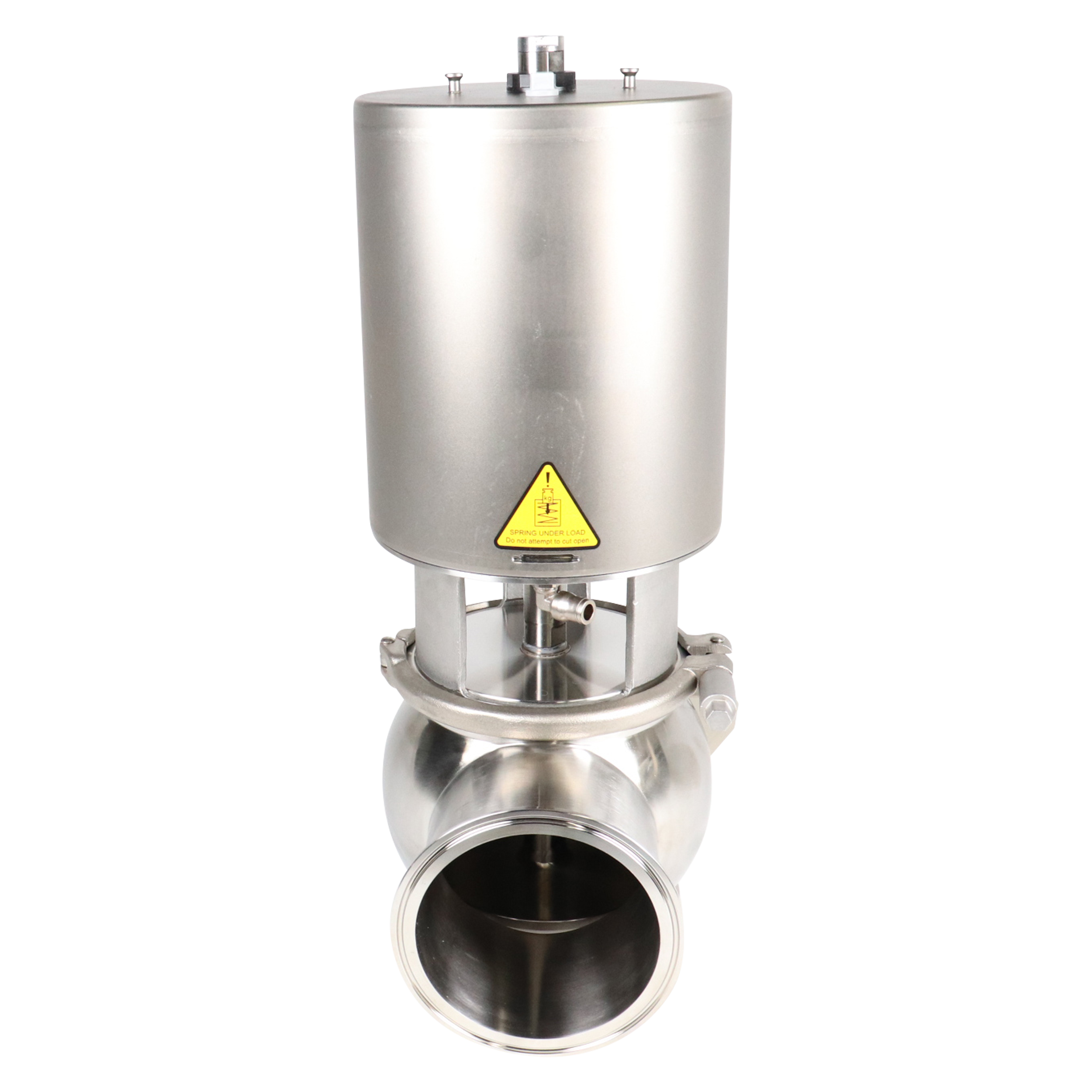

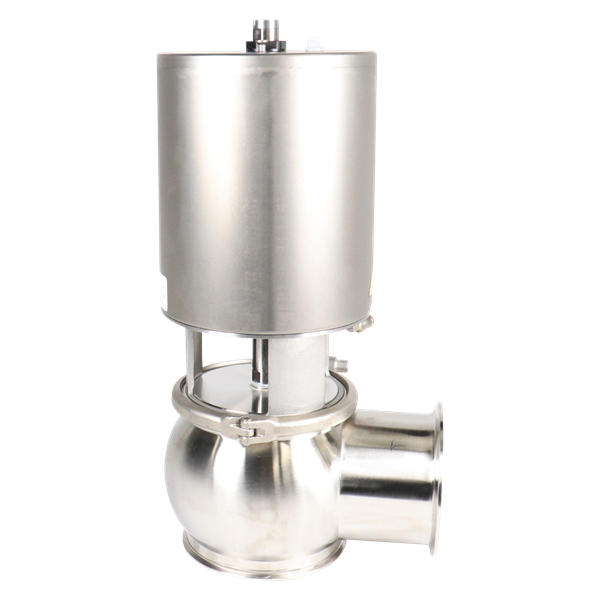

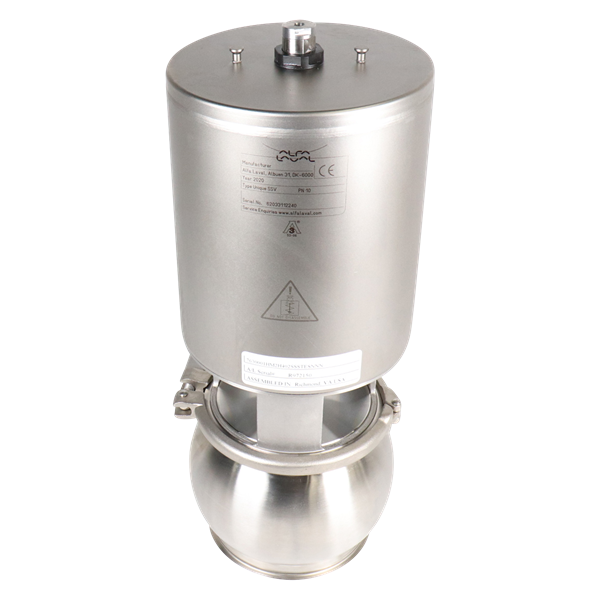

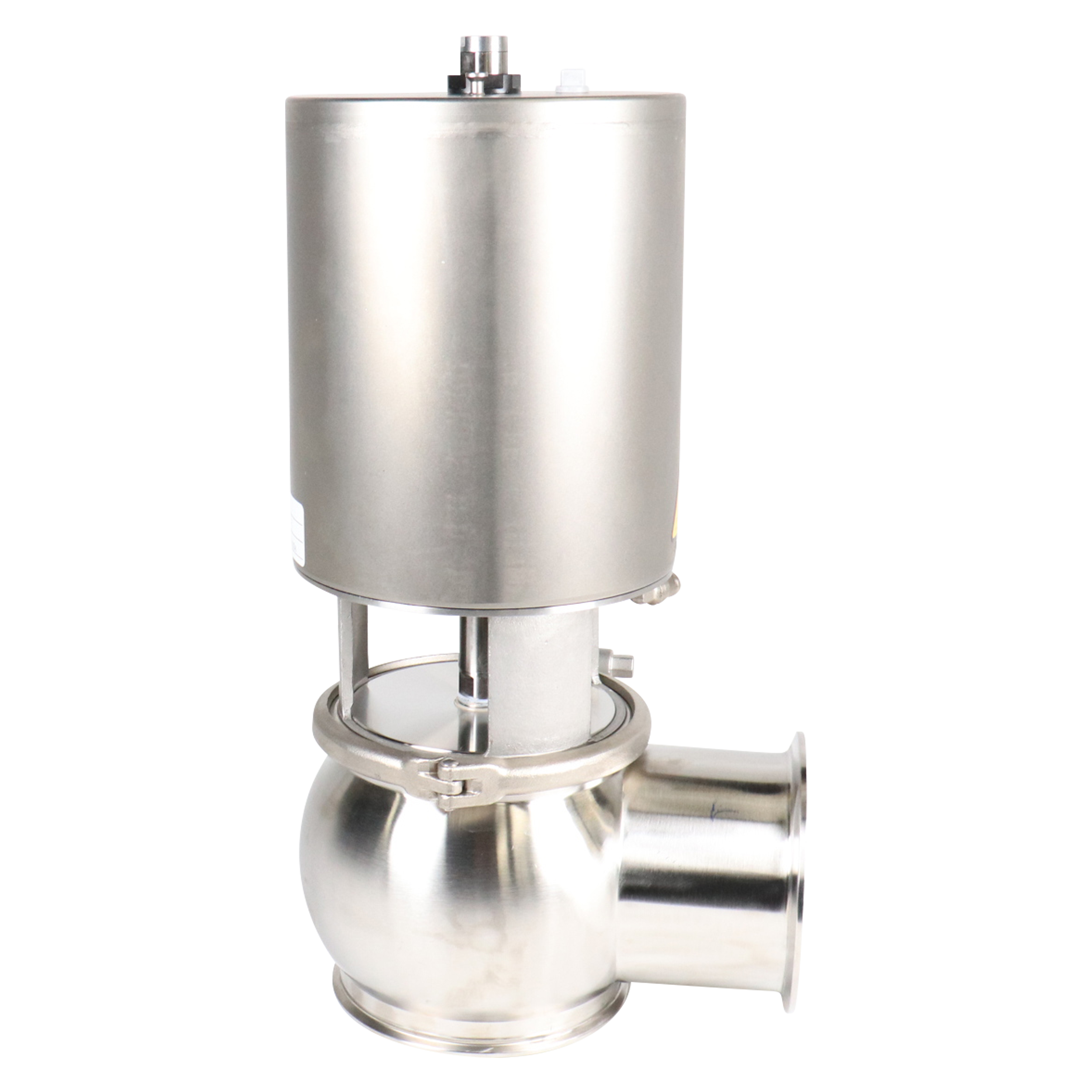

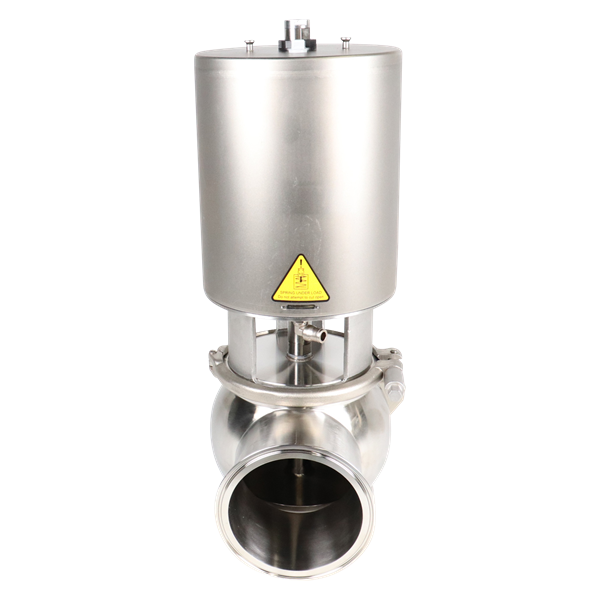

Alfa Laval Tank Outlet Valve 4" Tri-Clamp 316L TR2 Plug EPDM Seal N/C Actuator Vertical Mount
7630-001SM2H402SSSTES
- MPN:
- 9613361153
Net Price: $6,039.60 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT ACTUATOR 3" 4" DN80 DN100 UNIQUE SSV MAINTAINABLE N/O N/C ALFA LAVAL |
$63.50 / EA |
|
||
| SERVICE KIT 4" EPDM UNIQUE SSV TR2 REVERSE ACTING TANK OUTLET VALVE |
$662.79 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSV Series |
| Model | Tank Outlet |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 4" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 35.02000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9613361153
Dimensional Data
Unique SSV 7630-001 Tank Outlet Tri-Clamp Single Seat Valve
| Nominal Size | A | B | E | F | H | J | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2 | 50.80 | 15.49 | 393.45 | 14.50 | 368.30 | 2.63 | 66.80 | 2.90 | 73.66 | 4.52 | 114.81 | 5.83 | 148.08 |
| 2½ | 63.50 | 15.98 | 405.89 | 15.00 | 381.00 | 2.88 | 73.15 | 3.69 | 93.73 | 4.52 | 114.81 | 6.42 | 163.07 |
| 3 | 76.20 | 17.50 | 444.50 | 16.36 | 415.54 | 3.13 | 79.50 | 3.89 | 98.81 | 6.07 | 154.18 | 7.01 | 178.05 |
| 4 | 101.60 | 18.51 | 470.15 | 17.33 | 440.18 | 3.61 | 91.69 | 5.32 | 135.13 | 6.07 | 154.18 | 7.80 | 198.12 |
Alfa Laval Unique SSV Tank Outlet Data Sheet
