Alfa Laval
DIAPHRAGM VALVE DV-ST ULTRAPURE 0.5" TC DN15 SHORT 2-WAY FORGED ASME/BPE EPDM MANUAL HANDLE SF1 20RA W/ Q-DOC CERT
DVSTSOFM15XXA1MASSEEN1
- MPN:
- 9615034743
Net Price: $695.39 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

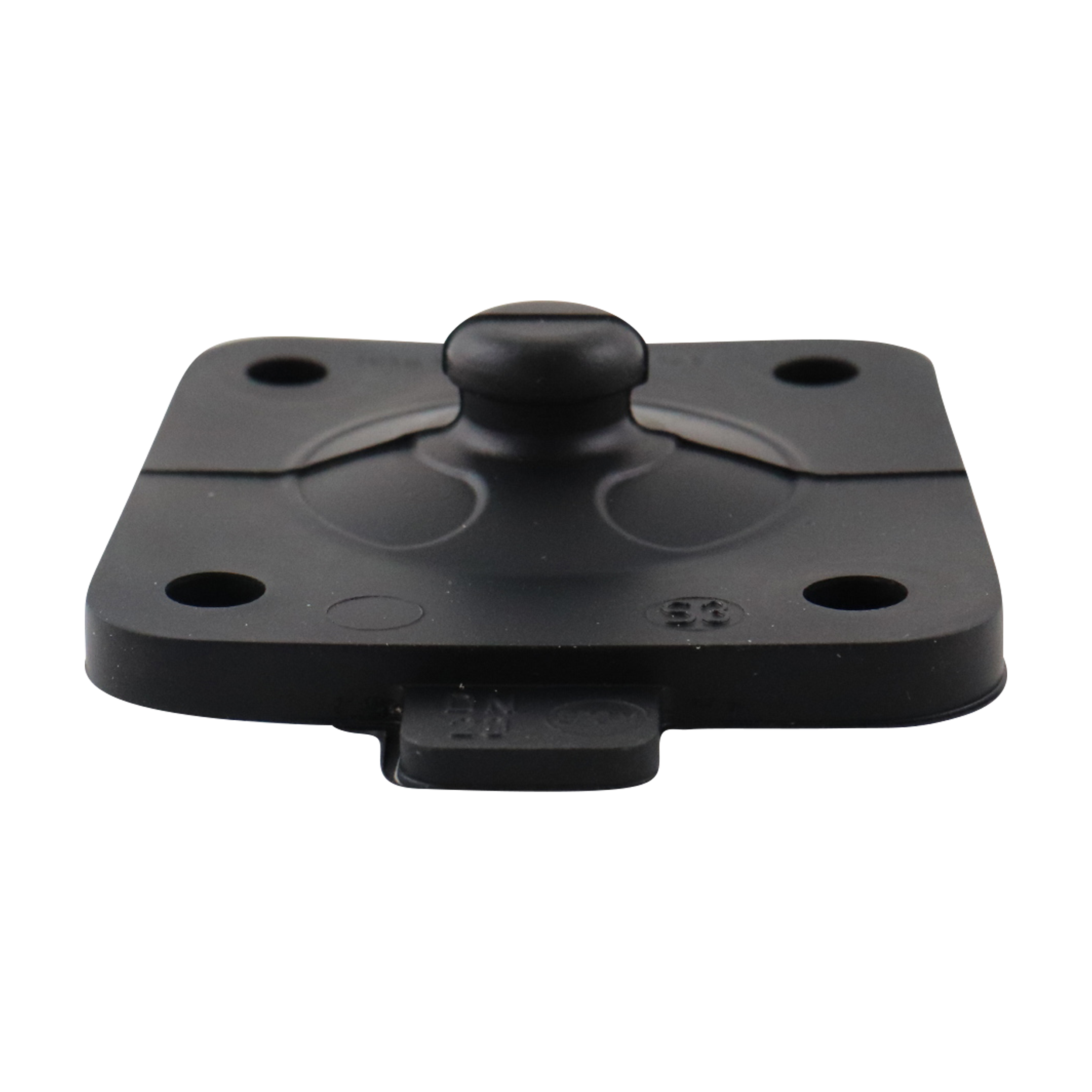

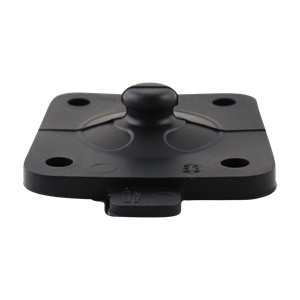

| Alfa Laval Diaphragm 0.5" DN15 Button Connection EPDM for DV-ST Valves |
$92.06 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Diaphragm Valves |
| Series | DV-ST UltraPure Series |
| Size 1 | 0.5" |
| Connection Type 1 | Tri-Clamp |
| Diaphragm Material | EPDM |
| Weight | 1.35000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9615034743
Dimensional Data
DVST 2 Way TC Forged Manual Handle Diaphragm Valve
| Nominal Size | D | H | L | ||||
|---|---|---|---|---|---|---|---|
| (in) | (DN) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼-⅜ | 8-10 | 1.57 | 40.00 | 2.83 | 72.00 | 3.50 | 89.00 |
| ½ | 15 | 2.44 | 62.00 | 3.98 | 101.00 | 4.25 | 108.00 |
| ¾ | 20 | 2.44 | 62.00 | 4.45 | 113.00 | 4.65 | 118.00 |
| 1 | 25 | 3.42 | 87.00 | 5.08 | 129.00 | 5.00 | 127.00 |
| 1½ | 40 | 4.25 | 108.00 | 5.87 | 149.00 | 6.26 | 159.00 |
| 2 | 50 | 4.25 | 108.00 | 7.76 | 197.00 | 7.52 | 191.00 |
| 2½ | 65 | 6.78 | 172.00 | 8.94 | 227.00 | 8.50 | 216.00 |
| 3 | 80 | 8.66 | 220.00 | 10.24 | 260.00 | 10.00 | 254.00 |
| 4 | 100 | 8.66 | 220.00 | 10.55 | 268.00 | 11.96 | 305.00 |
Resources
0Data Sheets
Alfa Laval DV-ST UltraPure Data Sheet
