Alfa Laval

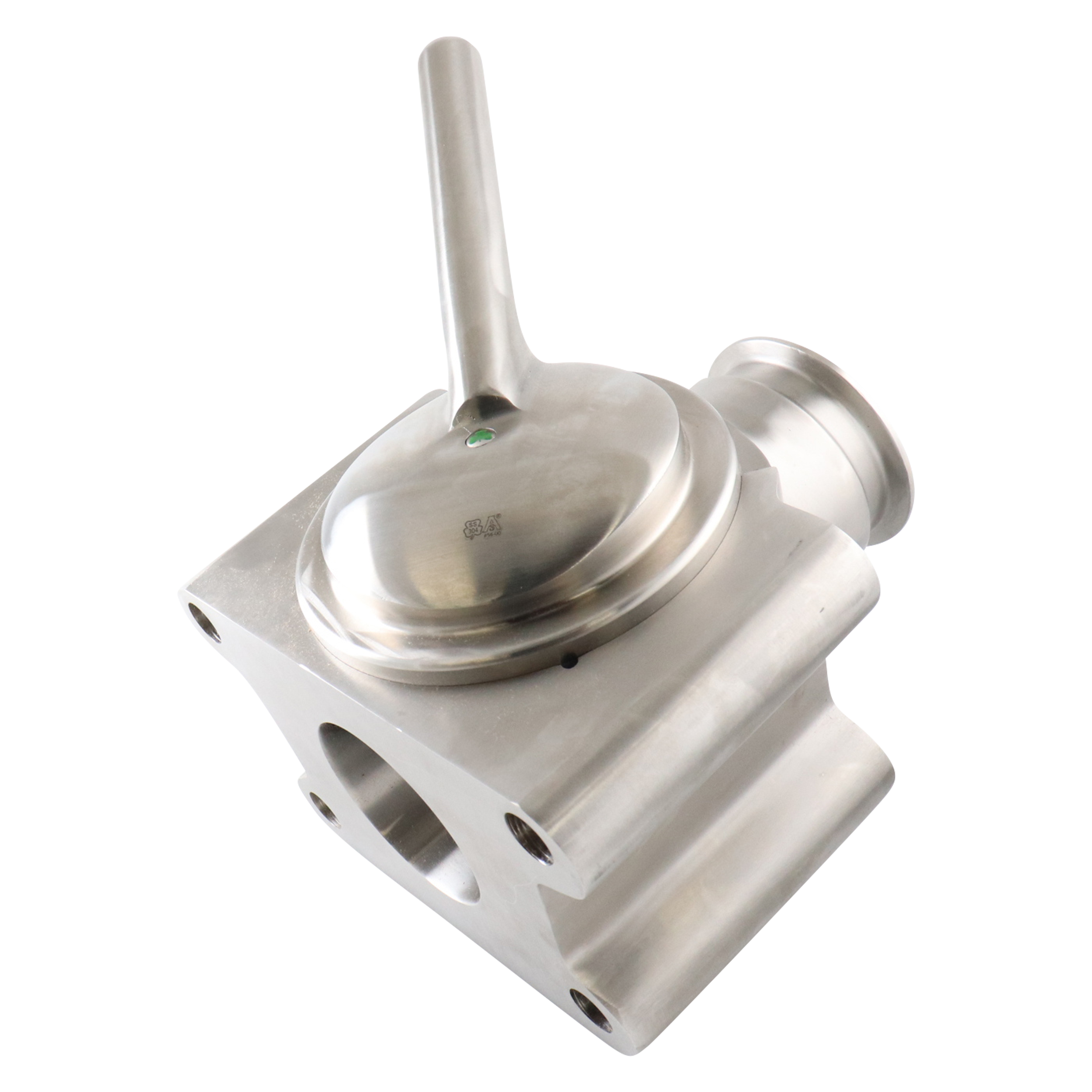

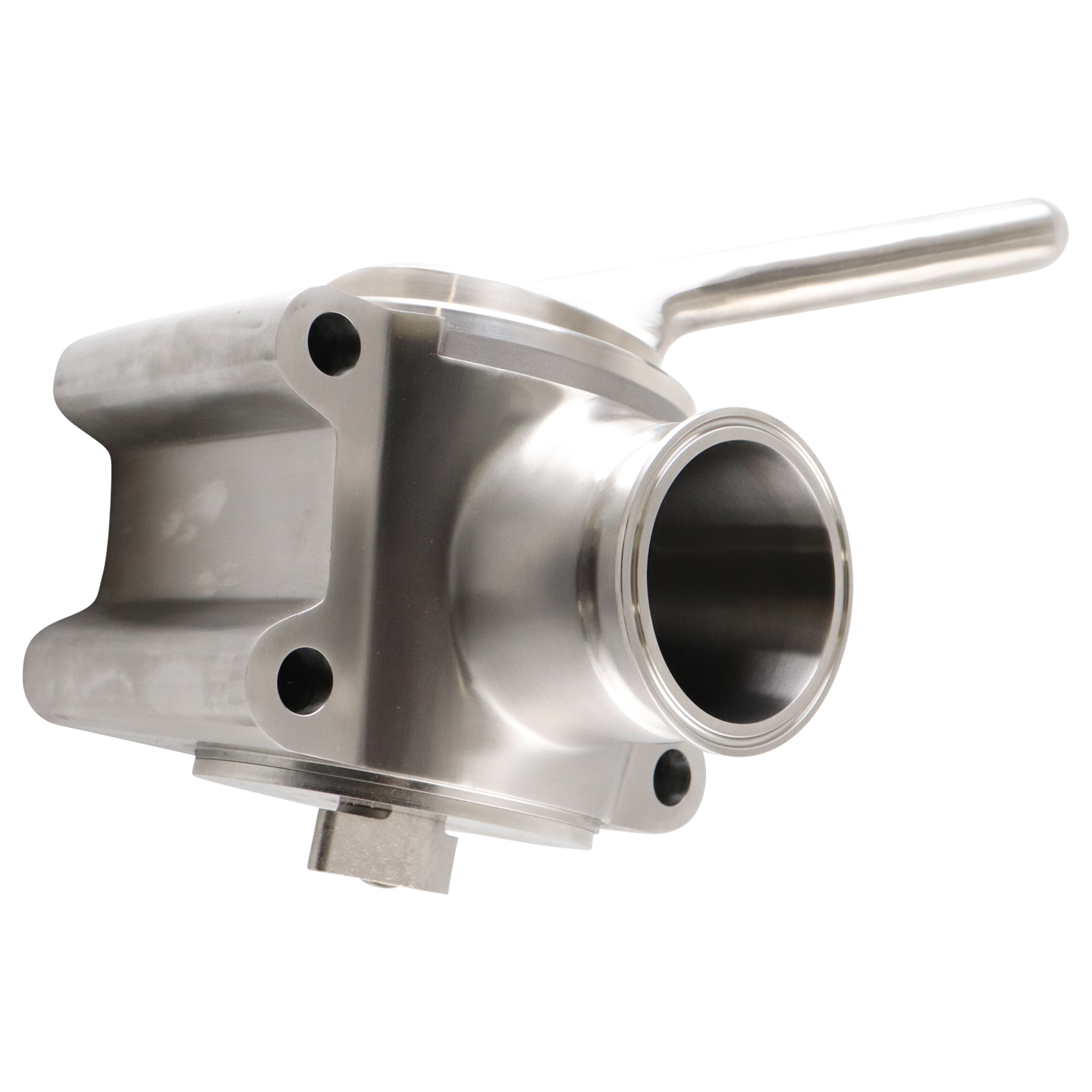

PLUG VALVE SS 2" TC 2-WAY LEAK DETECT 45 DEG HANDLE
D10FLMP-2-S
- MPN:
- 9634050577
Net Price: $6,726.71 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Plug Valves |
| Series | D10 / D11 Series |
| Material | 304 Stainless Steel |
| Elastomer | Buna |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Weight | 20.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9634050577
Dimensional Data
D10FL Tri-Clamp Plug Valve
| Nominal Size | F | G | H | I | J | K | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 1.72 | 43.69 | 3.44 | 87.38 | - | - | - | - | - | - | - | - |
| 2 | 50.80 | 2.13 | 54.10 | 4.25 | 107.95 | - | - | - | - | - | - | - | - |
| 2½ | 63.50 | 2.63 | 66.80 | 5.25 | 133.35 | 1.31 | 33.27 | 1.50 | 38.10 | 2.50 | 63.50 | 5.00 | 127.00 |
| 3 | 76.20 | 3.31 | 84.07 | 6.63 | 168.40 | 1.75 | 44.45 | 1.75 | 44.45 | 2.81 | 71.37 | 5.63 | 143.00 |
