QSM / Tru-Flo

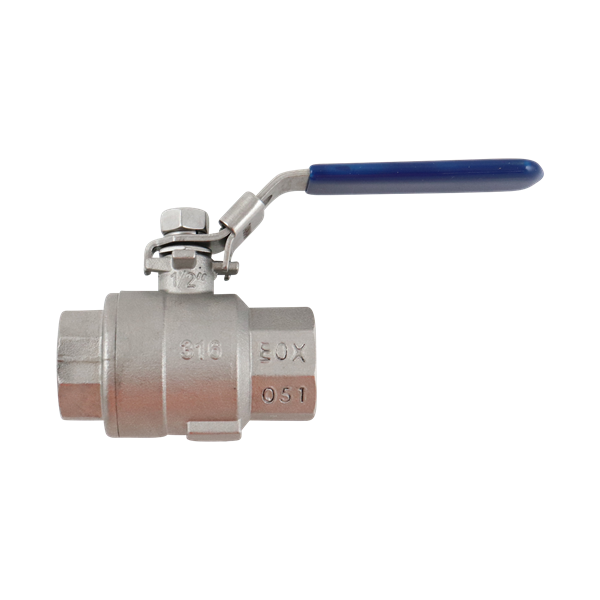

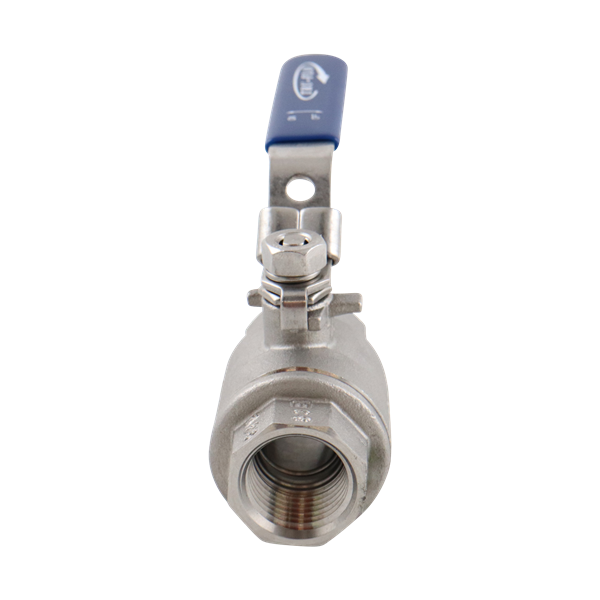

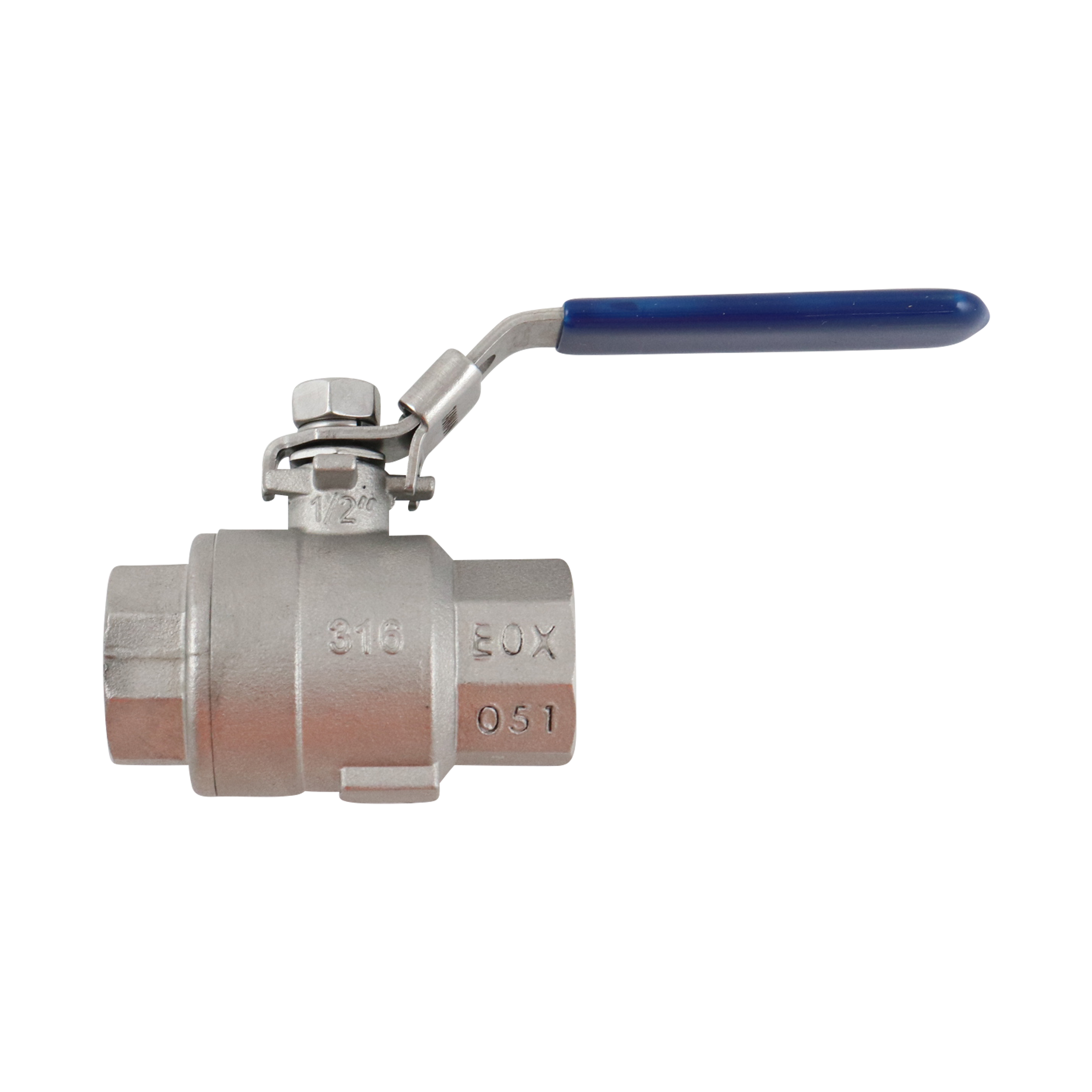

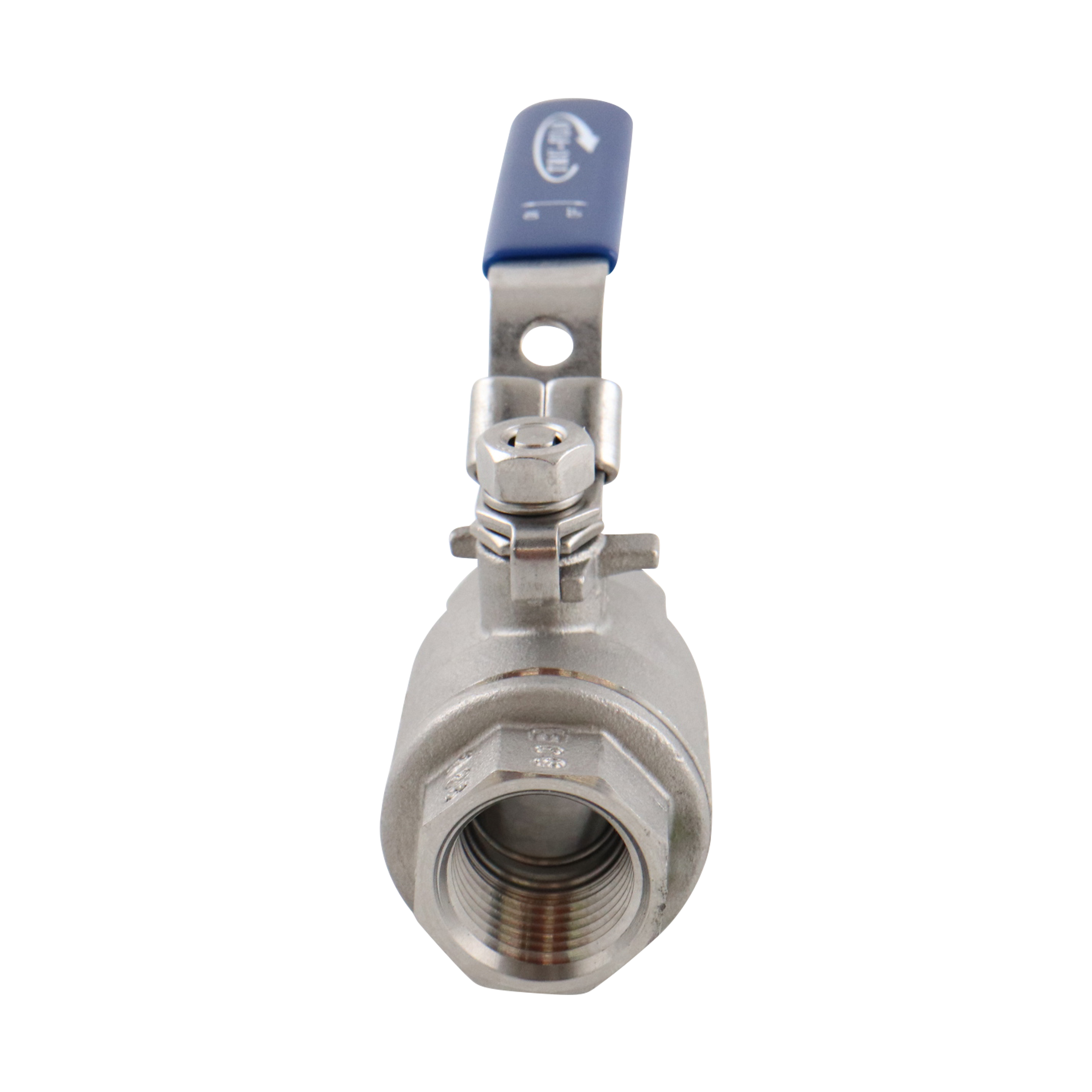

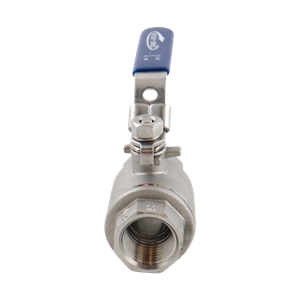

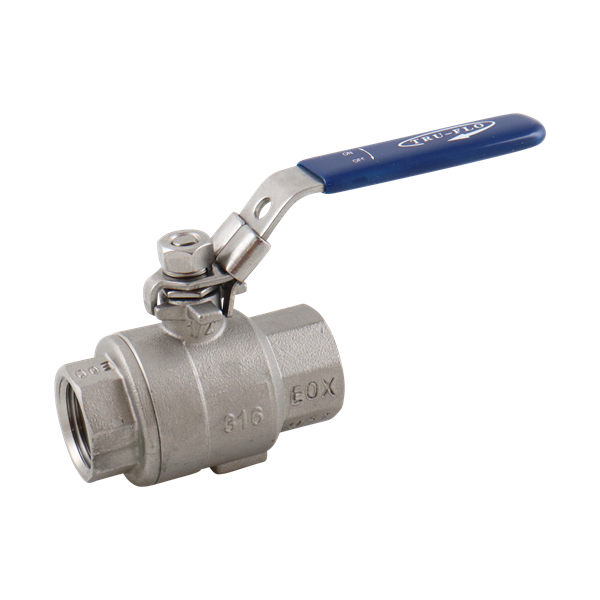

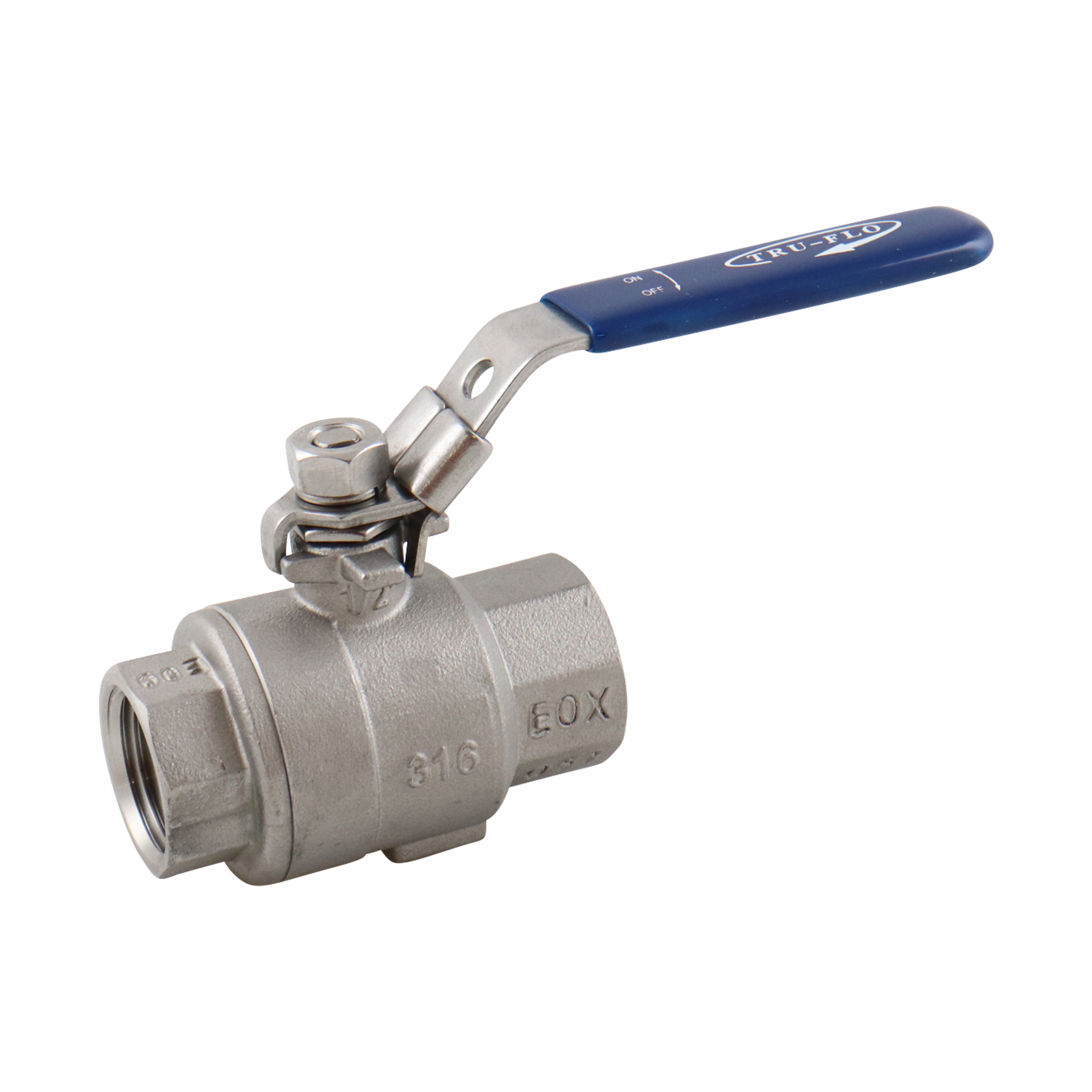

QSM 207A BALL VALVE 0.5" FPT 316L PTFE FULL PORT 2-PIECE
EA-207A-SE-0.5
- MPN:
- EA-207A-SE-0.5
Net Price: $19.51 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | QSM / Tru-Flo |
|---|---|
| Product Type | Valves |
| Product Subtype | Ball Valves |
| Series | 207A Series |
| Material | 316 Stainless Steel |
| Elastomer | PTFE (Teflon) |
| Size 1 | 0.5" |
| Connection Type 1 | FNPT |
| Weight | 0.50000 |
- Manufacturer:
- QSM Inc
- MPN:
- EA-207A-SE-0.5
Dimensional Data
QSM EA-207A NPT Ball Valve
| Nominal Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 0.39 | 9.91 | 3.15 | 80.01 | 1.94 | 49.28 | 1.63 | 41.40 |
| ⅜ | 9.53 | 0.49 | 12.45 | 3.15 | 80.01 | 1.94 | 49.28 | 1.63 | 41.40 |
| ½ | 12.70 | 0.59 | 14.99 | 3.15 | 80.01 | 2.32 | 58.93 | 1.77 | 44.96 |
| ¾ | 19.05 | 0.79 | 20.07 | 3.94 | 100.08 | 2.70 | 68.58 | 2.15 | 54.61 |
| 1 | 25.40 | 0.97 | 24.64 | 4.92 | 124.97 | 3.09 | 78.49 | 2.57 | 65.28 |
| 1¼ | 31.75 | 1.26 | 32.00 | 4.92 | 124.97 | 3.67 | 93.22 | 2.79 | 70.87 |
| 1½ | 38.10 | 1.50 | 38.10 | 6.30 | 160.02 | 4.06 | 103.12 | 3.31 | 84.07 |
| 2 | 50.80 | 1.97 | 50.04 | 6.30 | 160.02 | 4.85 | 123.19 | 3.67 | 93.22 |
QSM 207A Data Sheet
