WILDEN PS430 DIAPHRAGM PUMP 1.5" ANSI FLANGED BOLTED METAL PRO-FLO SHIFT ALUMINUM WET SIDE ALUMINUM PISTON ALUMINUM CHAMBER POLY CENTER POLY AIR BUNA DIAPHRAGM BUNA VALVE BALL BUNA SEATS AODD
PS430AAAPPBNSBNBN
- MPN:
- 04-13959
Net Price: $1,981.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| WILDEN REPAIR KIT AIR |
$700.50 / EA |
|
||

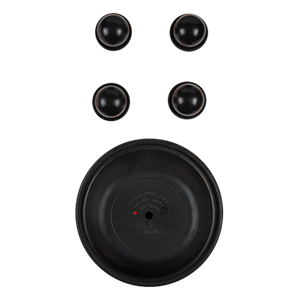

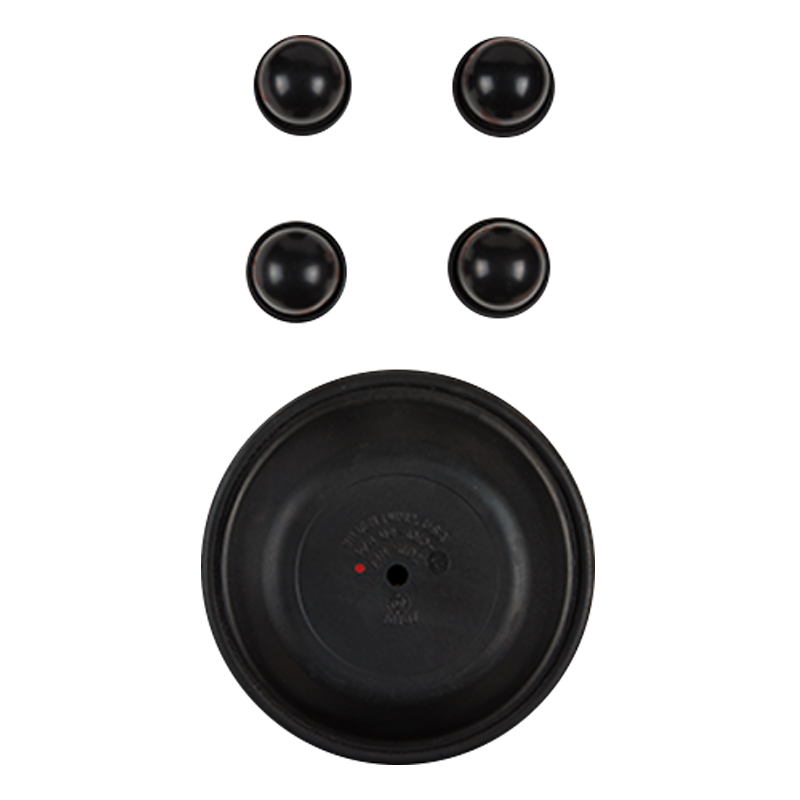

| WILDEN REPAIR KIT WET 1.5" ADVANCED ALUMINUM BUNA |
$370.90 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Wilden |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | Pro-Flo Shift Series |
| Model | PS430 |
| Material | Aluminum |
| Size 1 | 1.5" |
| Connection Type 1 | Flange |
| Diaphragm Material | Buna |
| Weight | 62.00000 |
- Manufacturer:
- PSG California LLC
- MPN:
- 04-13959
Dimensional Data
PS430 Metal Dimensional Diagram
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 17.5 | 443 | 3.5 | 89 | 11.2 | 285 | 20.8 | 528 | 20.9 | 529 | 10.8 | 273 | 1.9 | 49 | 3.3 | 84 | 3.4 | 86 | 5.2 | 132 | 13.1 | 333 | 12.9 | 326 | 20.9 | 531 | 20.7 | 525 |
Resources
0Data Sheets
Wilden Pro-Flo Shift PS420 PS430 Bolted Metal Data Sheet
1Manuals
22D Drawings
Wilden Pro-Flo Shift PS430 Bolted Aluminum 2D Drawing
33D Models
8Other Literature
