WILDEN PS800 DIAPHRAGM PUMP 2" ANSI FLANGED BOLTED PLASTIC PRO-FLO SHIFT POLY WET SIDE PVDF PISTON POLY CHAMBER POLY CENTER POLY AIR VITON DIAPHRAGM VITON VALVE BALL POLY SEATS PTFE ENCAPSULATED VITON O-RINGS AODD

PS800PKPPPVTSVTPTV

MPN:
08-14989

USUALLY SHIPS IN 1-3 DAYS

Net Price: $7,391.00 / EA

Have an account? Login now.

This item is non-returnable.

Availability:
  • Total: 2
Product Availability
Price
WILDEN REPAIR KIT AIR 1.5" 2" PS ADVANCED POLY PTFE

$709.20 / EA

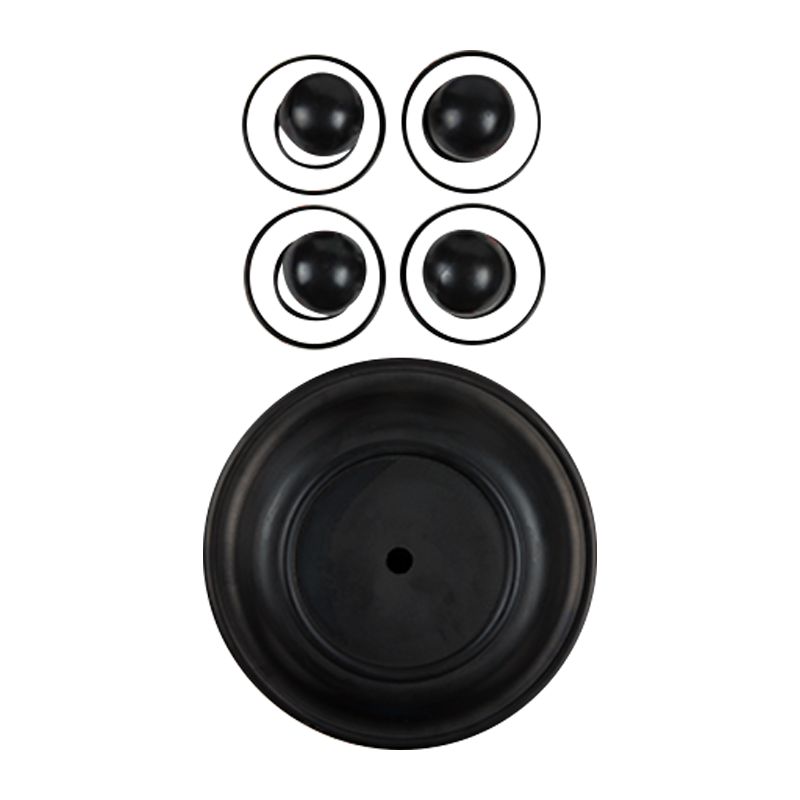

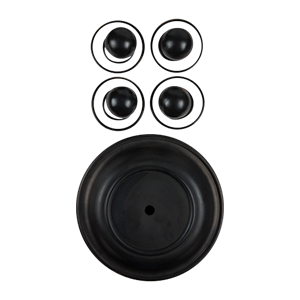

WILDEN REPAIR KIT WET 2" ADVANCED PLASTIC VITON

$1,805.50 / EA

  • Total: 2
Brand Wilden
Product Type Pumps
Product Subtype Diaphragm Pumps
Series Pro-Flo Shift Series
Model PS800
Material Polypropylene
Size 1 2"
Connection Type 1 Flange
Diaphragm Material FKM (Viton)
Weight 89.00000
Manufacturer:
PSG California LLC
MPN:
08-14989

PS800 Clamped Plastic Dimensional DiagramPS800 Clamped Plastic Dimensional Diagram.2

PS800 Plastic Dimensional Diagram
A B C D E F G H J K L M
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
23.8 604 3.6 92 16.4 417 28.5 724 5.9 151 31.5 801 31.8 807 1.9 48 7.0 177 15.3 387 18.9 480 16.0 405
