Alfa Laval

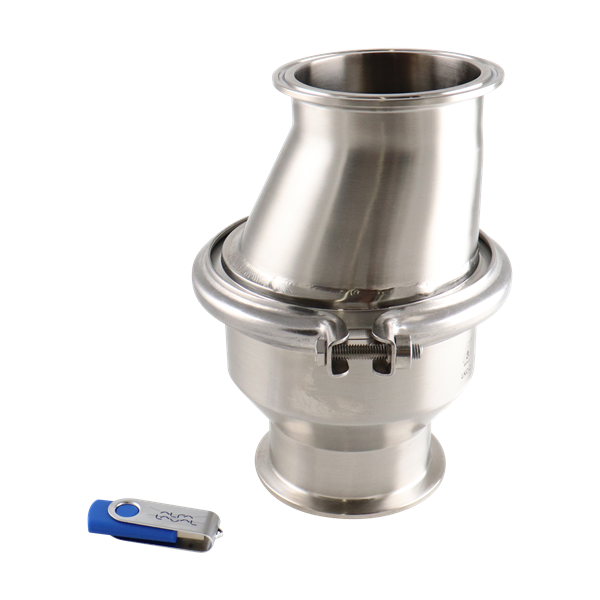

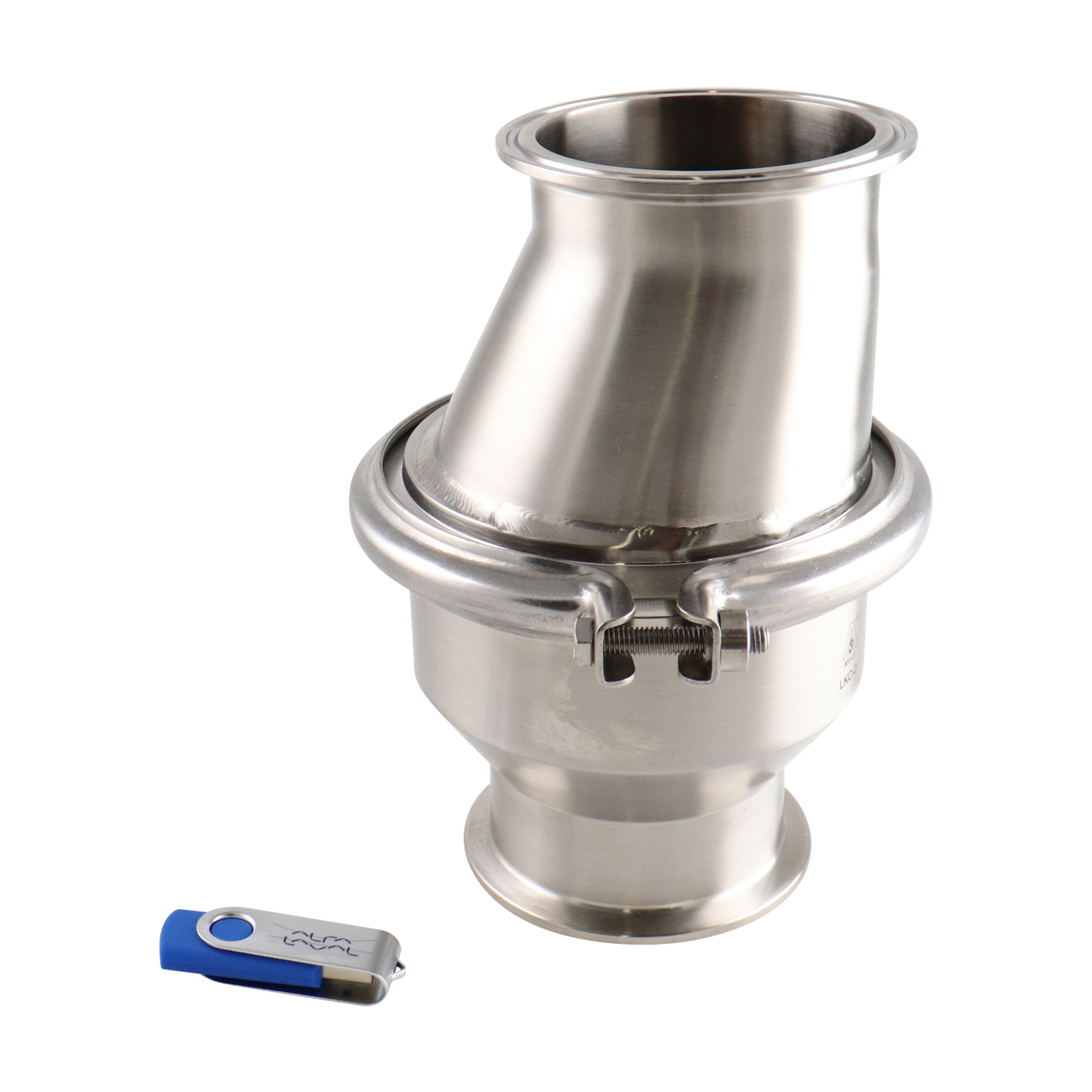

SPRING CHECK VALVE HORIZONTAL 3" TC 316
LKC-DRAIN-GC-3-316
- MPN:
- 88234425
Net Price: $5,522.11 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Check Valves |
| Series | LKC Series |
| Material | 316L Stainless Steel |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Orientation / Mount | Horizontal |
| Weight | 12.60000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 88234425
Dimensional Data
LKC-2 Drainable Tri-Clamp Non-Return Check Valve
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.23 | 82.04 | 5.38 | 1386.65 |
| 1½ | 38.10 | 3.75 | 95.25 | 5.13 | 130.30 |
| 2 | 50.80 | 4.29 | 108.97 | 5.80 | 147.32 |
| 2½ | 63.50 | 5.39 | 136.91 | 6.30 | 160.02 |
| 3 | 76.20 | 5.83 | 148.08 | 7.31 | 185.67 |
