Alfa Laval
Alfa Laval Shutoff Valve 2.5" Tri-Clamp 316L Elastomer Plug EPDM Seal 2-Port Reverse Acting N/C Actuator
7610-011SM2H251SRSSES
- MPN:
- 9613349598
Net Price: $4,517.68 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT ACTUATOR UNIQUE SSV N/O N/C 2" 2.5" MAINTAINABLE |
$53.73 / EA |
|
||

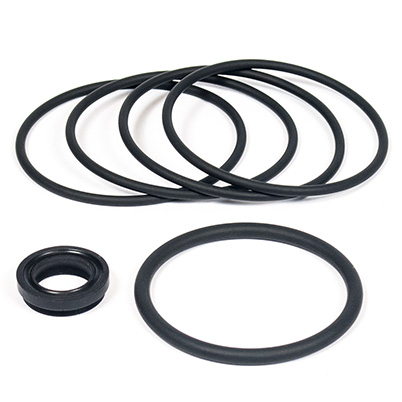

| SERVICE KIT 2.5" EPDM UNIQUE SSV REVERSE ACTING SHUTOFF VALVE |
$234.25 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSV Series |
| Model | Reverse Acting |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 2.5" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 8.77000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9613349598
Dimensional Data
Unique SSV Shutoff Reverse Acting 2 Port Tri-Clamp Single Seat Valve
| Nominal Size | A | B | C | E | G | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 13.77 | 349.76 | 13.30 | 337.82 | 1.88 | 47.75 | 2.47 | 62.74 | 0.94 | 23.88 |
| 1½ | 38.10 | 14.79 | 375.67 | 13.96 | 354.584 | 2.39 | 60.71 | 2.45 | 62.23 | 1.95 | 49.53 |
| 2 | 50.80 | 17.23 | 437.62 | 16.21 | 411.73 | 2.91 | 73.91 | 2.94 | 74.68 | 1.59 | 40.39 |
| 2½ | 63.50 | 18.22 | 462.79 | 17.19 | 436.63 | 3.40 | 86.36 | 3.73 | 94.74 | 3.23 | 82.04 |
| 3 | 76.20 | 20.30 | 515.62 | 19.05 | 483.87 | 3.89 | 98.81 | 3.93 | 99.82 | 3.43 | 87.12 |
| 4 | 101.60 | 22.22 | 564.39 | 21.00 | 533.40 | 4.87 | 123.70 | 5.22 | 132.59 | 4.72 | 119.89 |
| 4 Long Stroke | 101.60 | 32.90 | 835.66 | 32.90 | 835.66 | 4.87 | 123.70 | 5.22 | 132.59 | 4.72 | 119.89 |
Alfa Laval Unique SSV Reverse Acting Data Sheet
