Alfa Laval
Alfa Laval Unique SSV Divert Valve 2" Tri-Clamp 316L Elastomer Plug FKM (Viton) Seal 3-Port Reverse Acting N/C Actuator IndiTop Control Top Digital No Solenoids
7610-111SM2H201SSSSYSITN
- MPN:
- 9618386955
Net Price: $5,164.76 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Alfa Laval Actuator Service Kit for Unique SSV Non-Maintainable All Sizes |
$32.00 / EA |
|
||

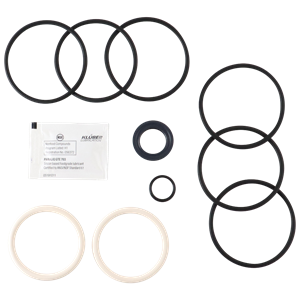

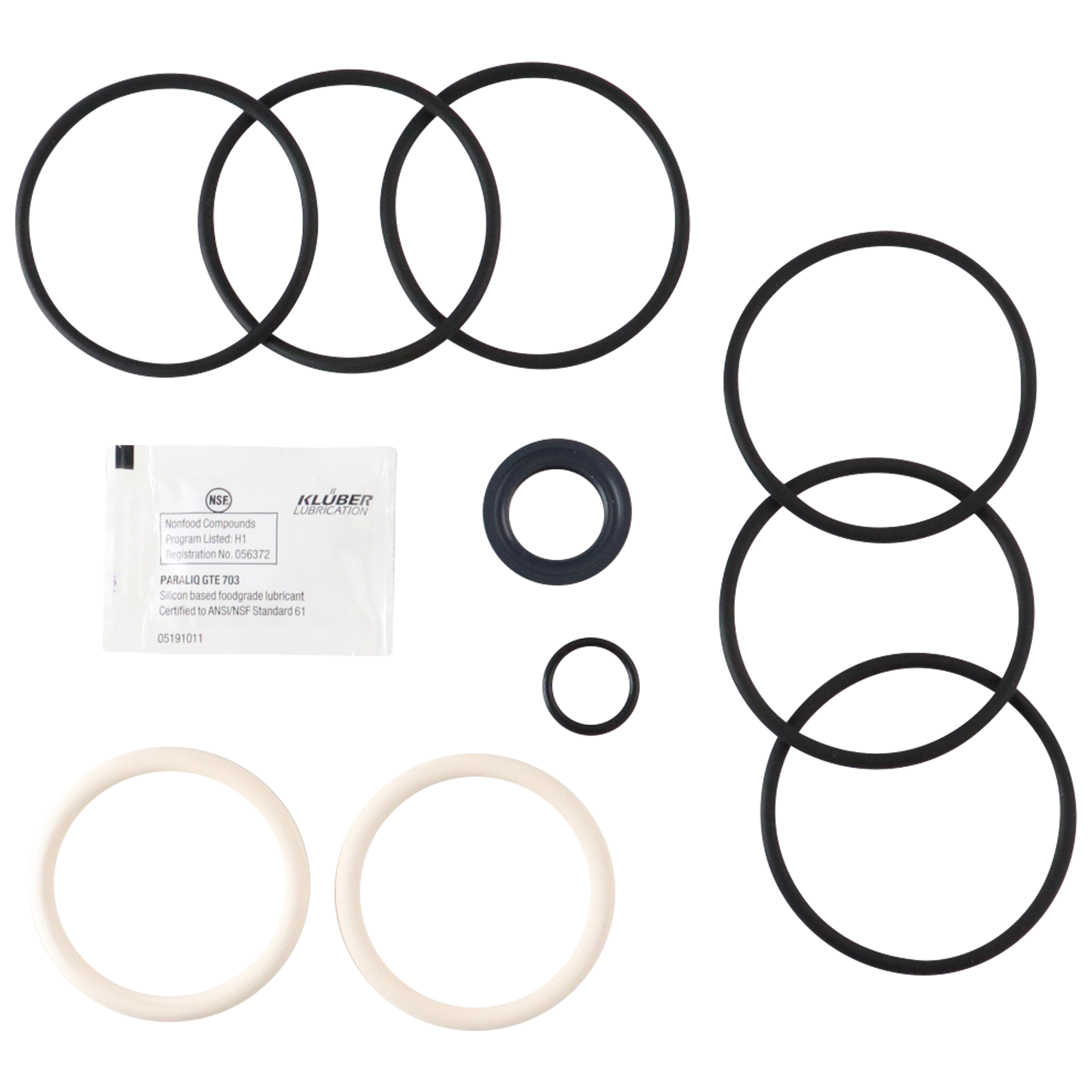

| SERVICE KIT 2" VITON UNIQUE SSV REVERSE ACTING DIVERT VALVE |
$1,135.38 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSV Series |
| Model | Reverse Acting |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | FKM (Viton) |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 9.46000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9618386955
Dimensional Data
Unique SSV Changeover 3 Port Butt Weld Single Seat Valve
| Nominal Size | A | B | C | E | H | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 15.61 | 396.494 | 15.18 | 385.57 | 1.88 | 47.75 | 2.47 | 62.74 | 3.34 | 84.84 |
| 1½ | 38.10 | 17.15 | 435.61 | 16.50 | 419.10 | 2.39 | 60.71 | 2.45 | 62.23 | 3.34 | 84.84 |
| 2 | 50.80 | 20.28 | 515.11 | 19.27 | 489.46 | 2.91 | 73.91 | 2.94 | 74.68 | 4.53 | 115.06 |
| 2½ | 63.50 | 21.61 | 548.89 | 20.75 | 527.05 | 3.40 | 86.36 | 3.73 | 94.74 | 4.53 | 115.06 |
| 3 | 76.20 | 24.17 | 613.92 | 23.10 | 586.74 | 3.89 | 98.81 | 3.93 | 99.82 | 6.18 | 156.97 |
| 4 | 101.60 | 27.08 | 687.83 | 26.02 | 660.91 | 4.87 | 123.70 | 5.22 | 132.59 | 6.18 | 156.97 |
Alfa Laval Unique SSV Reverse Acting Data Sheet
