Alfa Laval

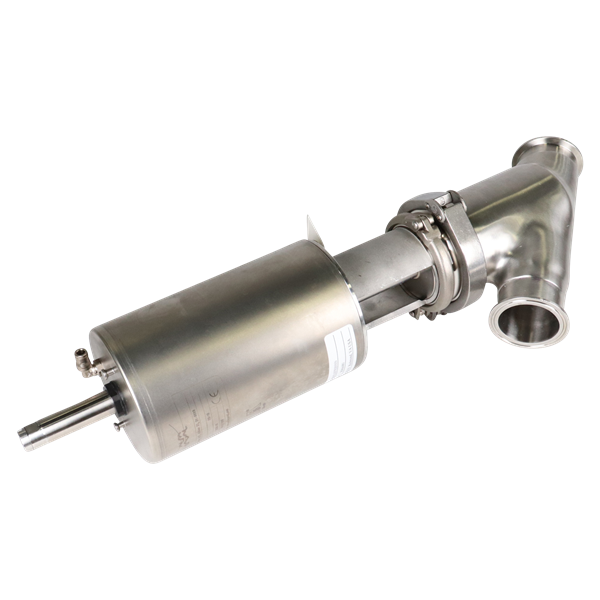

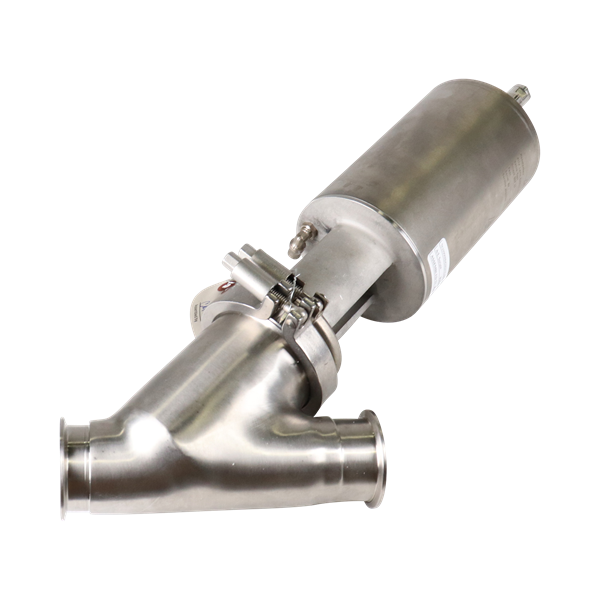

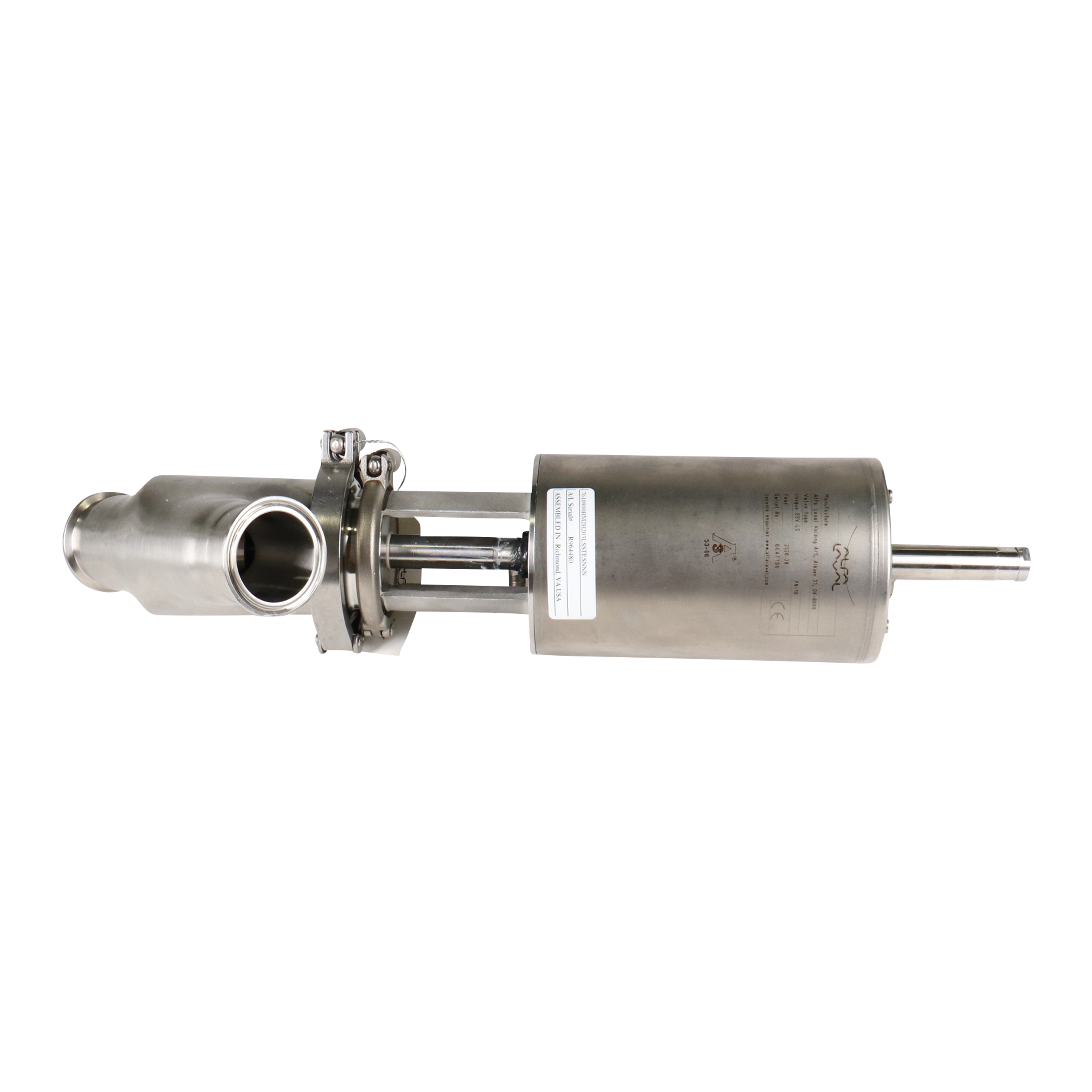

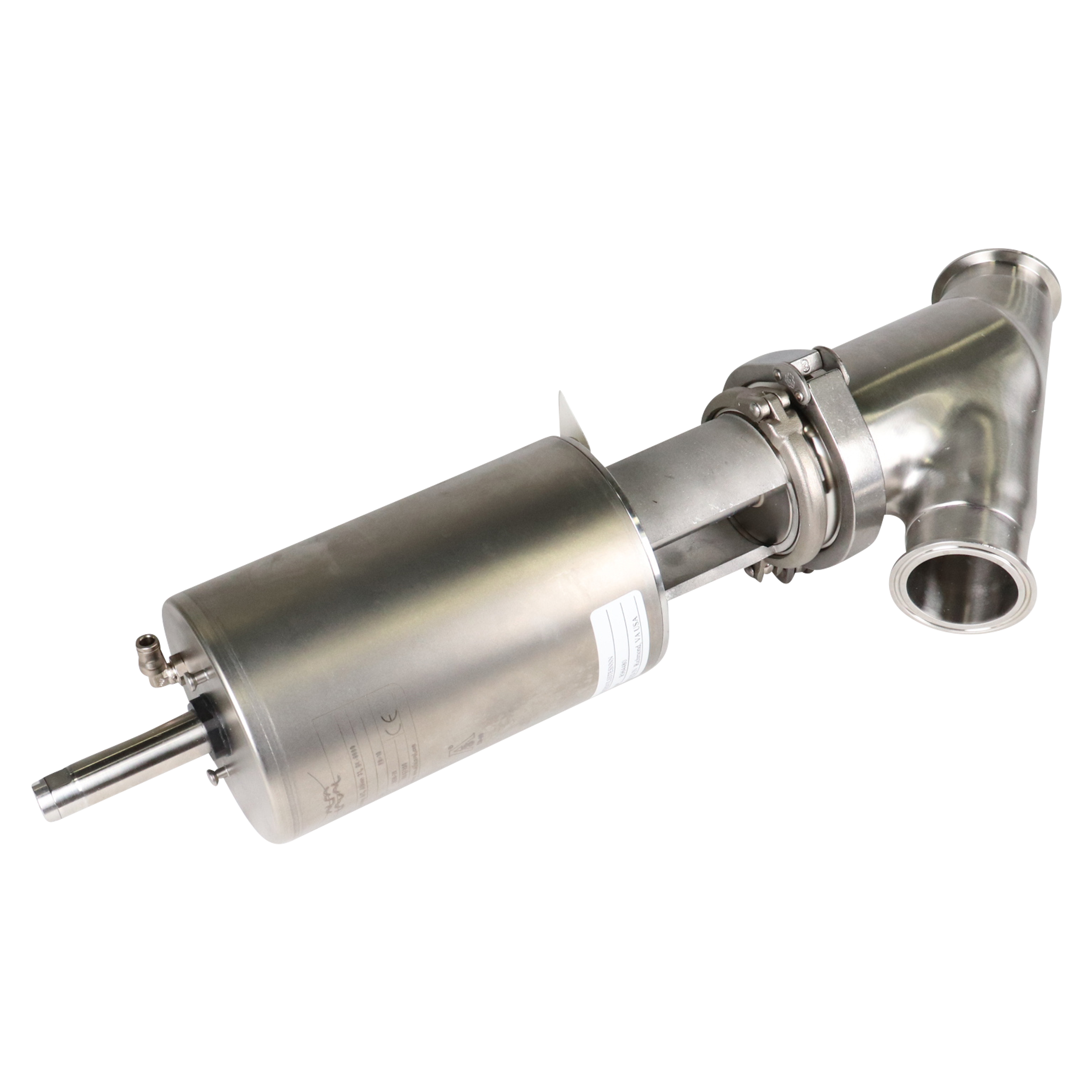

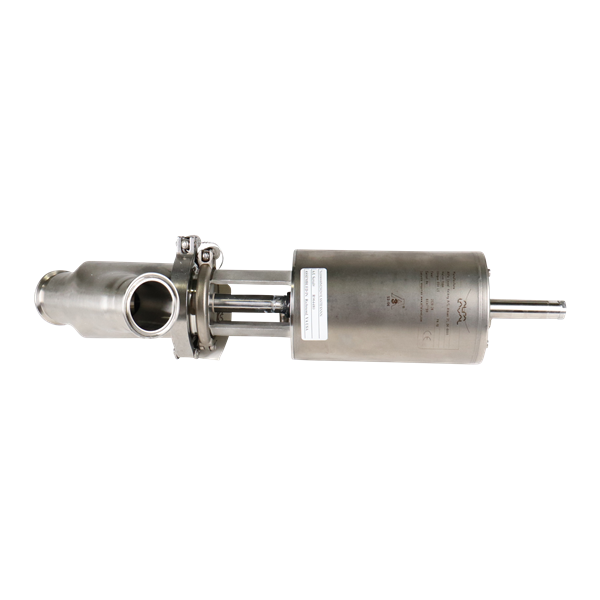

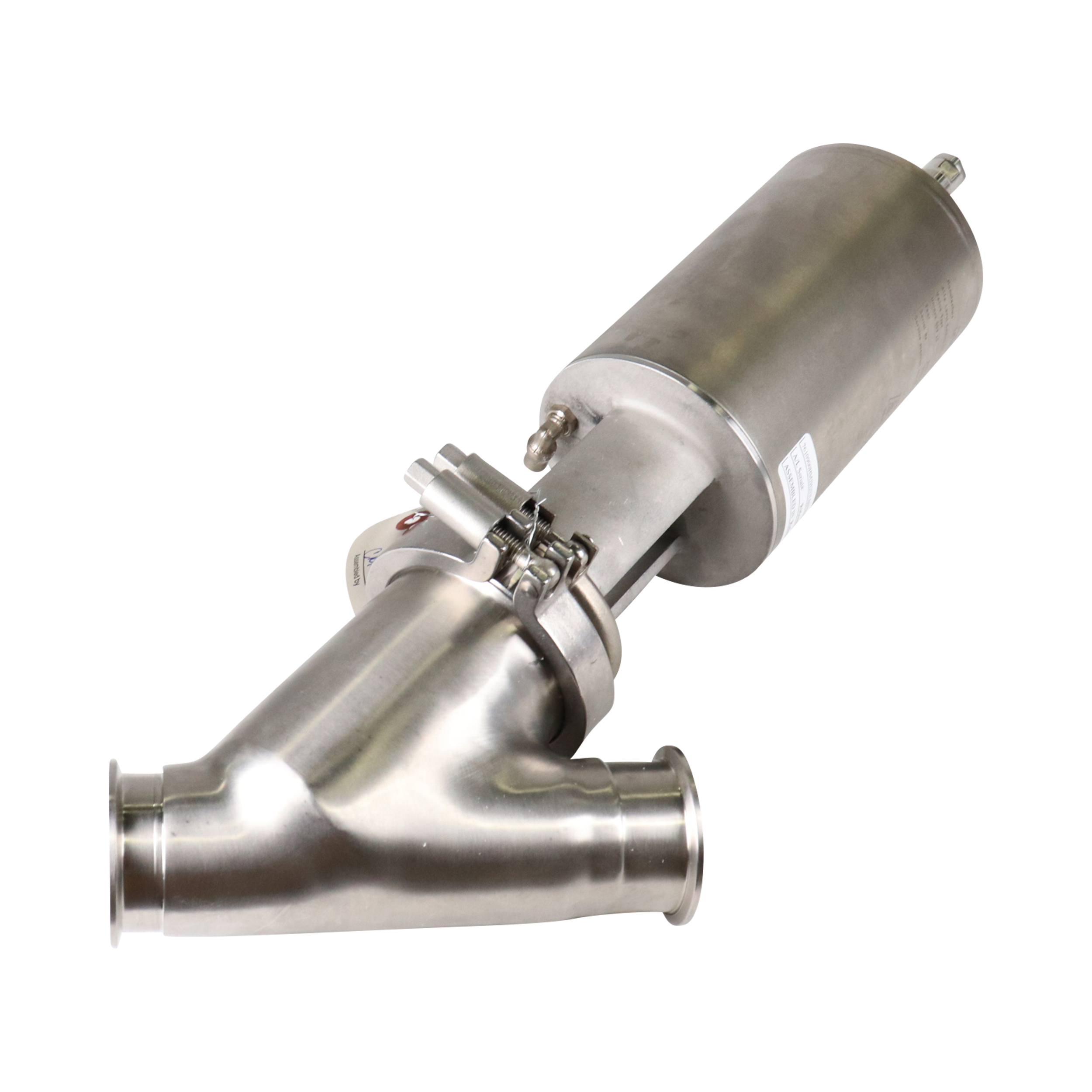

Alfa Laval Unique SSV Y-Body Valve 2" Tri-Clamp 316L TR2 Plug EPDM Seal Air-to-Air Long Stroke
7610-900SM2H203LSSTES
- MPN:
- 9613356958
Net Price: $4,694.61 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Alfa Laval Actuator Service Kit for Unique SSV Non-Maintainable All Sizes |
$32.00 / EA |
|
||
| SERVICE KIT 2" EPDM UNIQUE SSV TR2 SHUTOFF Y-BODY VALVE |
$180.47 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSV Series |
| Model | Y-Body |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 6.64000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9613356958
Dimensional Data
Unique SSV Y-Body Tri-Clamp Single Seat Valve
| Nominal Size | A | C | F | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2 | 50.80 | 17.32 | 439.93 | 7.88 | 200.15 | 1.97 | 50.04 | 4.53 | 115.06 |
| 2½ | 63.50 | 17.95 | 455.93 | 9.25 | 234.95 | 1.97 | 50.04 | 4.53 | 115.06 |
| 3 | 76.20 | 22.05 | 563.88 | 10.38 | 263.65 | 2.64 | 67.06 | 6.14 | 155.96 |
| 4 | 101.60 | 24.41 | 620.01 | 12.63 | 320.80 | 2.64 | 67.06 | 6.14 | 155.96 |
Alfa Laval Unique SSV Y-Body Data Sheet
