Alfa Laval

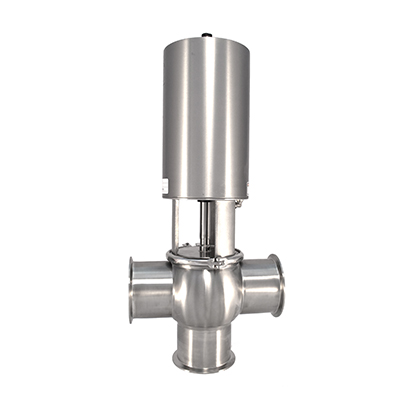

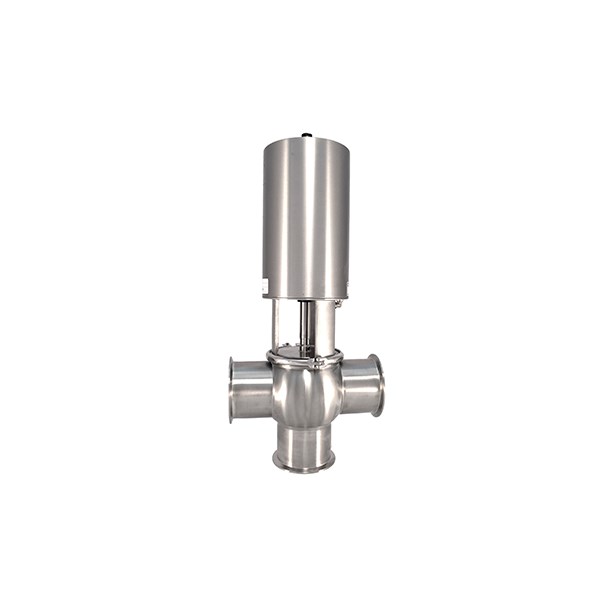

Alfa Laval Cross Body Valve 4" Tri-Clamp 316L Elastomer Plug EPDM Seal N/C Actuator
7610-300SM2H402SSSSES
- MPN:
- 9618385630
Net Price: $6,005.97 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Alfa Laval Actuator Service Kit for Unique SSV Non-Maintainable All Sizes |
$32.00 / EA |
|
||
| SERVICE KIT 4" EPDM UNIQUE SSV SHUTOFF VALVE |
$131.78 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique SSV Series |
| Model | Standard |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 4" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A / EHEDG |
| Weight | 38.80000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9618385630
Dimensional Data
Unique SSV Shutoff 3 Port Tri-Clamp Single Seat Valve
| Nominal Size | A | B | E | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 12.89 | 327.41 | 12.30 | 312.42 | 2.47 | 62.74 | 3.35 | 85.09 |
| 1½ | 38.10 | 13.13 | 333.50 | 12.34 | 313.44 | 2.45 | 62.23 | 3.35 | 85.09 |
| 2 | 50.80 | 15.30 | 388.62 | 14.27 | 362.46 | 2.90 | 73.66 | 4.53 | 115.06 |
| 2½ | 63.50 | 16.29 | 413.77 | 15.31 | 388.87 | 3.69 | 93.73 | 4.53 | 115.06 |
| 3 | 76.20 | 17.80 | 452.12 | 16.62 | 422.15 | 3.89 | 98.81 | 6.20 | 157.48 |
| 4 | 101.60 | 19.58 | 497.33 | 18.40 | 467.36 | 5.19 | 131.83 | 6.20 | 157.48 |
Alfa Laval Unique SSV Standard Data Sheet
