All-Flo

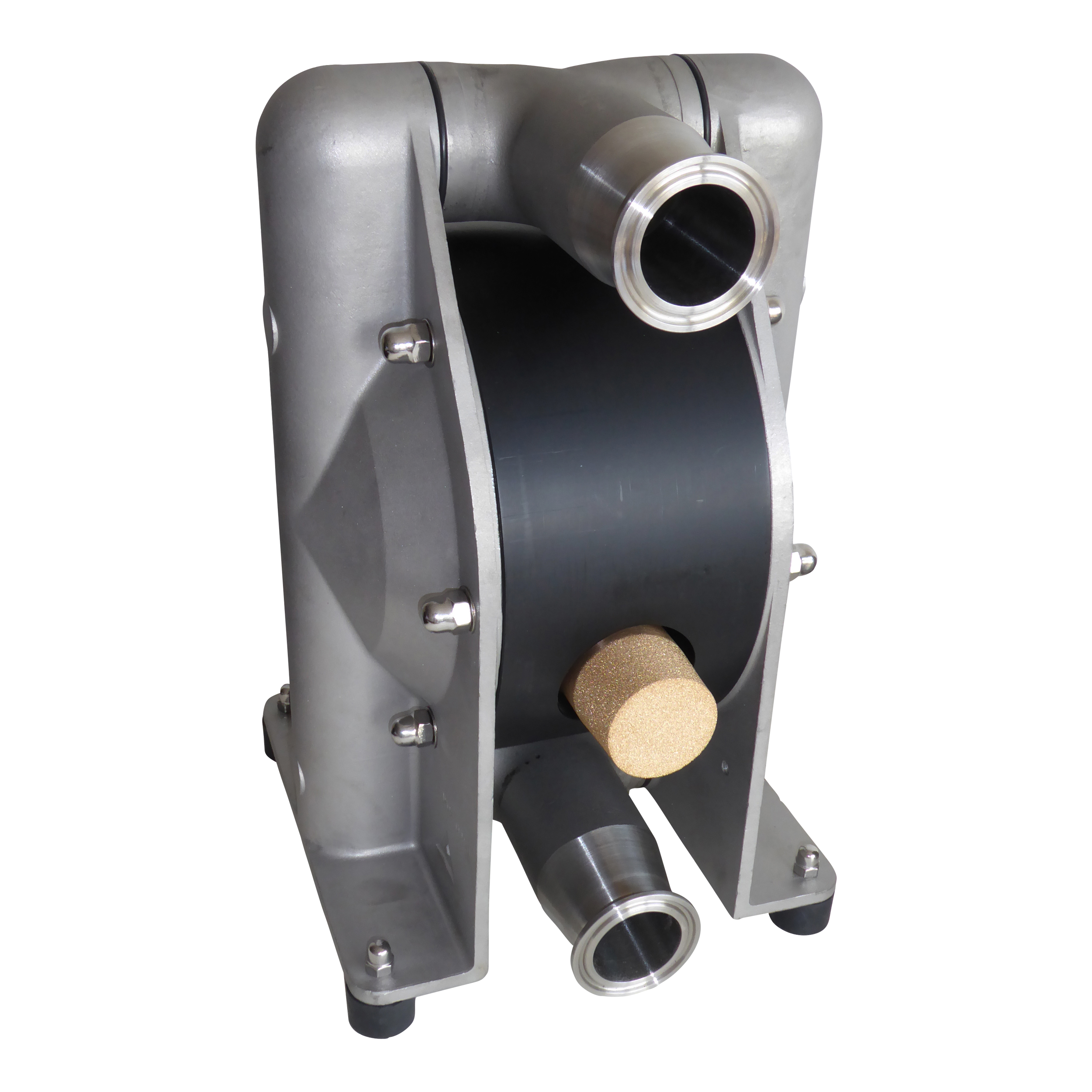

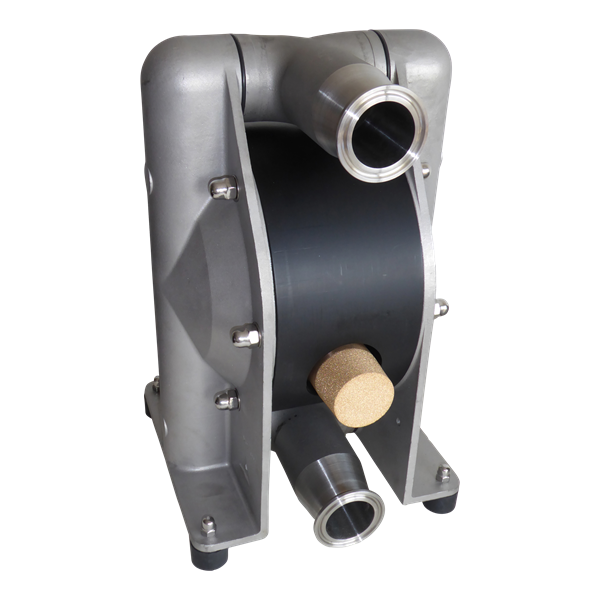

ALL-FLO G200 DIAPHRAGM PUMP 2" TC BOLTED METAL CAST 316 SS WET SIDE CONDUCTIVE PE AIR SIDE EPDM FDA DIAPHRAGM EPDM FDA VALVE BALL N/A SEATS PTFE O-RINGS G SERIES AODD
G200-TJ3-MMXT-GF0
- MPN:
- G200-TJ3-MMXT-GF0
Net Price: $11,481.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | G Series |
| Model | G200 |
| Material | 316 Stainless Steel |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Diaphragm Material | EPDM |
| Weight | 64.00000 |
- Manufacturer:
- All-Flo
- MPN:
- G200-TJ3-MMXT-GF0
Dimensional Data
Food Grade Air-Operated Double-Diaphragm Pump | G200
| Size | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2.00 | 50.80 | 12.60 | 320.04 | 10.60 | 269.24 | 16.60 | 421.64 | 11.00 | 279.40 | 9.40 | 238.76 | 9.10 | 231.14 | 2.80 | 71.12 | 1.50 | 38.10 | 8.30 | 210.82 | 15.20 | 386.08 | 0.80 | 20.32 | 8.30 | 210.82 | 0.30 | 7.62 | 0.50 | 12.70 | 2.00 | 50.80 |
