All-Flo

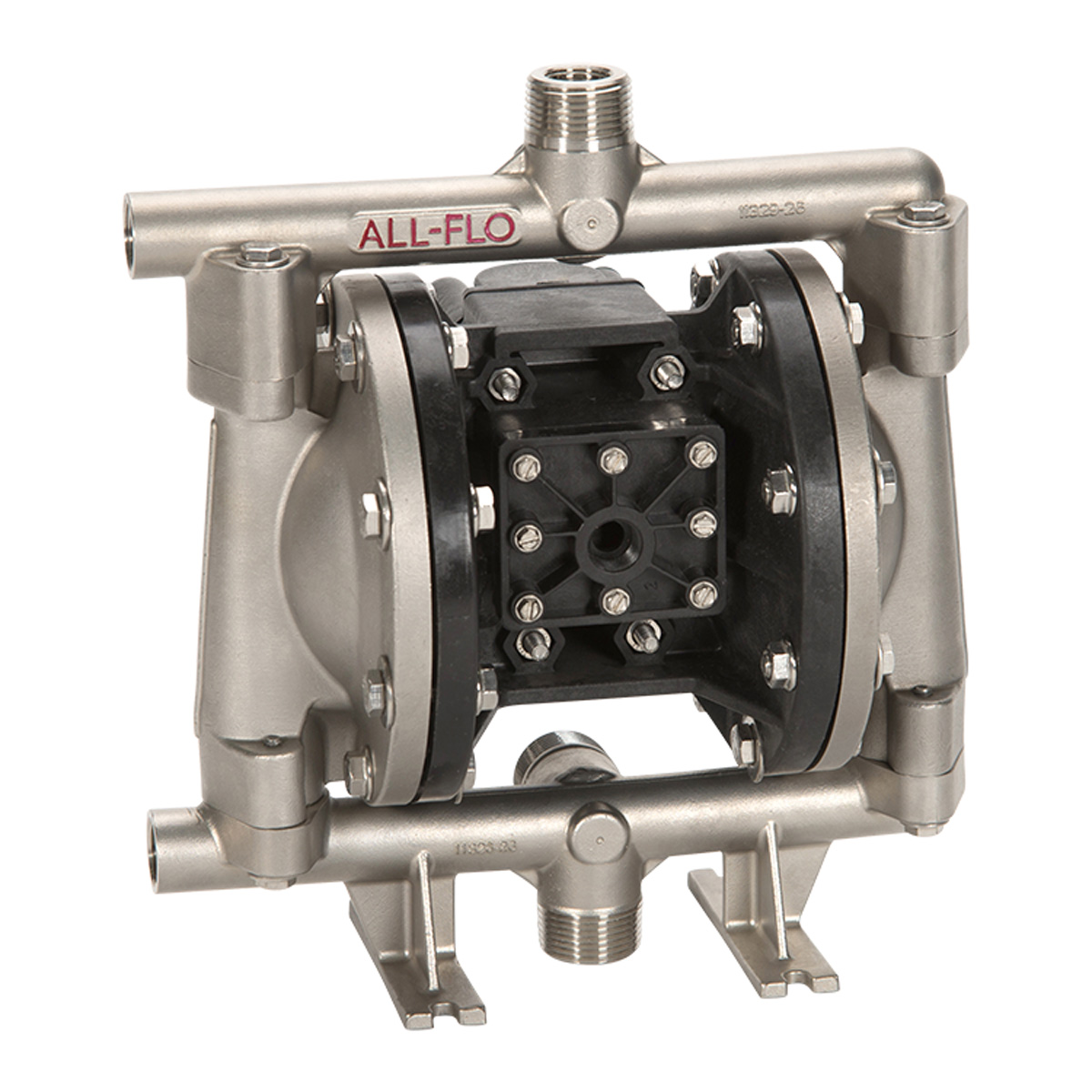

ALL-FLO A050 DIAPHRAGM PUMP 0.5" BSP BOLTED METAL 316 STAINLESS STEEL WET SIDE POLYPROPYLENE AIR SIDE SANTOPRENE DIAPHRAGM SANTOPRENE VALVE BALL 316 STAINLESS STEEL SEATS EPDM O-RINGS GROUNDING LUG INSTALLED ALL PORTS OPEN A SERIES AODD
A050-BP3-SS3E-4F0
- MPN:
- A050-BP3-SS3E-4F0
Net Price: $1,887.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|

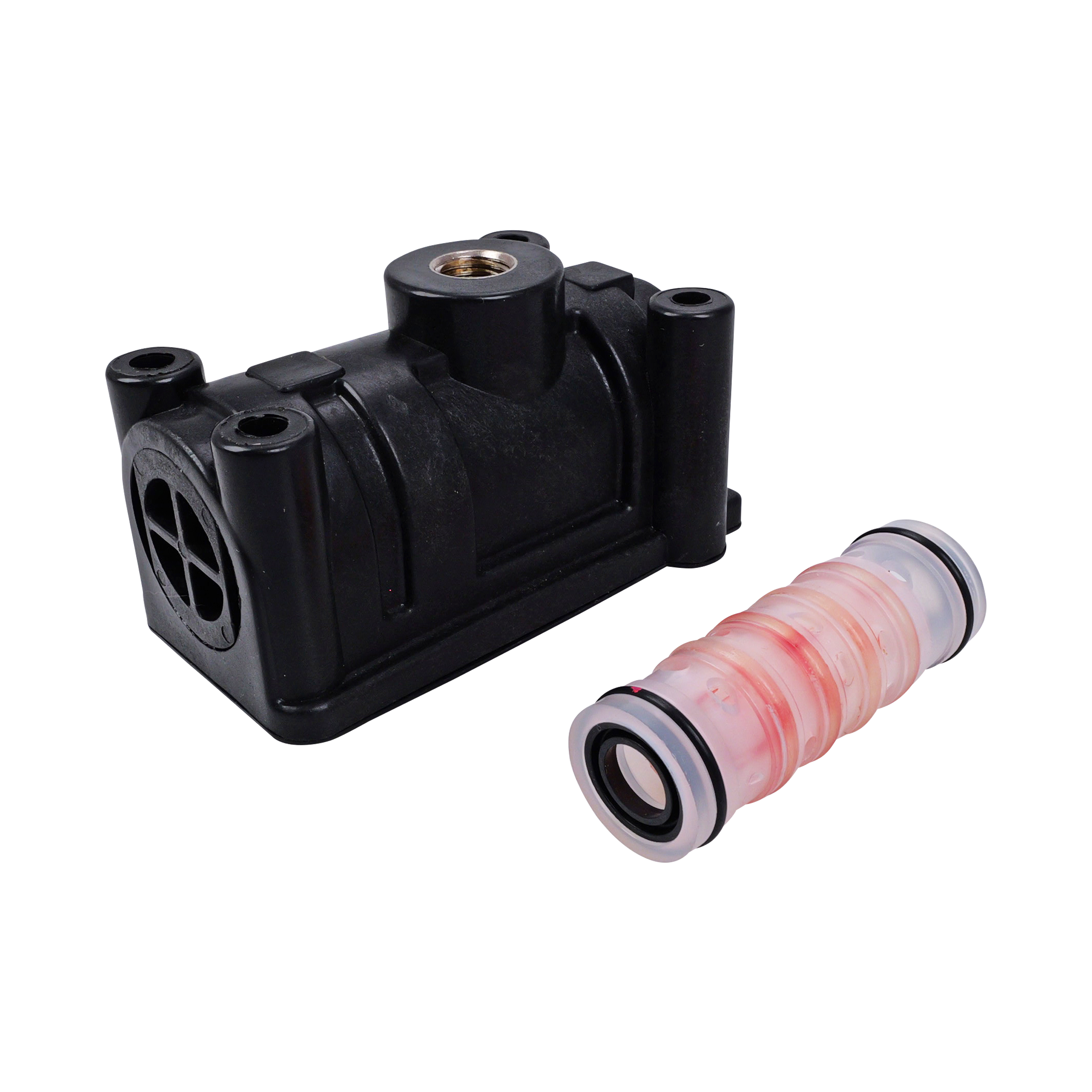

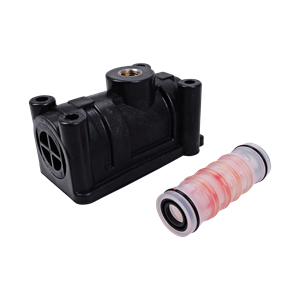

| ALL-FLO REPAIR KIT AIR 0.5" BOLTED POLYPROPYLENE |
$245.20 / EA |
|
||
| ALL-FLO REPAIR KIT WET 0.5" BOLTED METAL SANTOPRENE |
$197.00 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | A Series |
| Model | A050 |
| Material | 316 Stainless Steel |
| Size 1 | 0.5" |
| Connection Type 1 | BSP |
| Diaphragm Material | Santoprene |
| Weight | 23.00000 |
- Manufacturer:
- All-Flo
- MPN:
- A050-BP3-SS3E-4F0
Dimensional Data
A050 SS Dimensional Diagram
| A | B | C | D | E | F | G | H | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 9.50 | 242.00 | 6.30 | 160.00 | 1.80 | 44.00 | 10.30 | 262.00 | 5.40 | 138.00 | 11.20 | 284.00 | 7.30 | 186.00 | 6.30 | 160.00 |
