ALL-FLO A050 DIAPHRAGM PUMP 0.5" BSP BOLTED METAL ALUMINUM WET SIDE ALUMINUM AIR SIDE SANTOPRENE DIAPHRAGM SANTOPRENE VALVE BALL POLYPROPYLENE SEATS EPDM O-RINGS A SERIES AODD
A050-BAA-SSPE-S30
- MPN:
- A050-BAA-SSPE-S30
Net Price: $783.00 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| ALL-FLO REPAIR KIT AIR 0.5" BOLTED ALUMINUM |
$245.20 / EA |
|
||

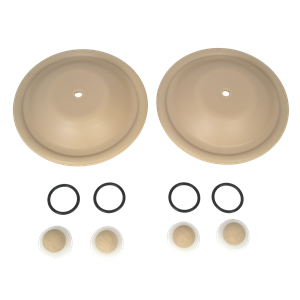

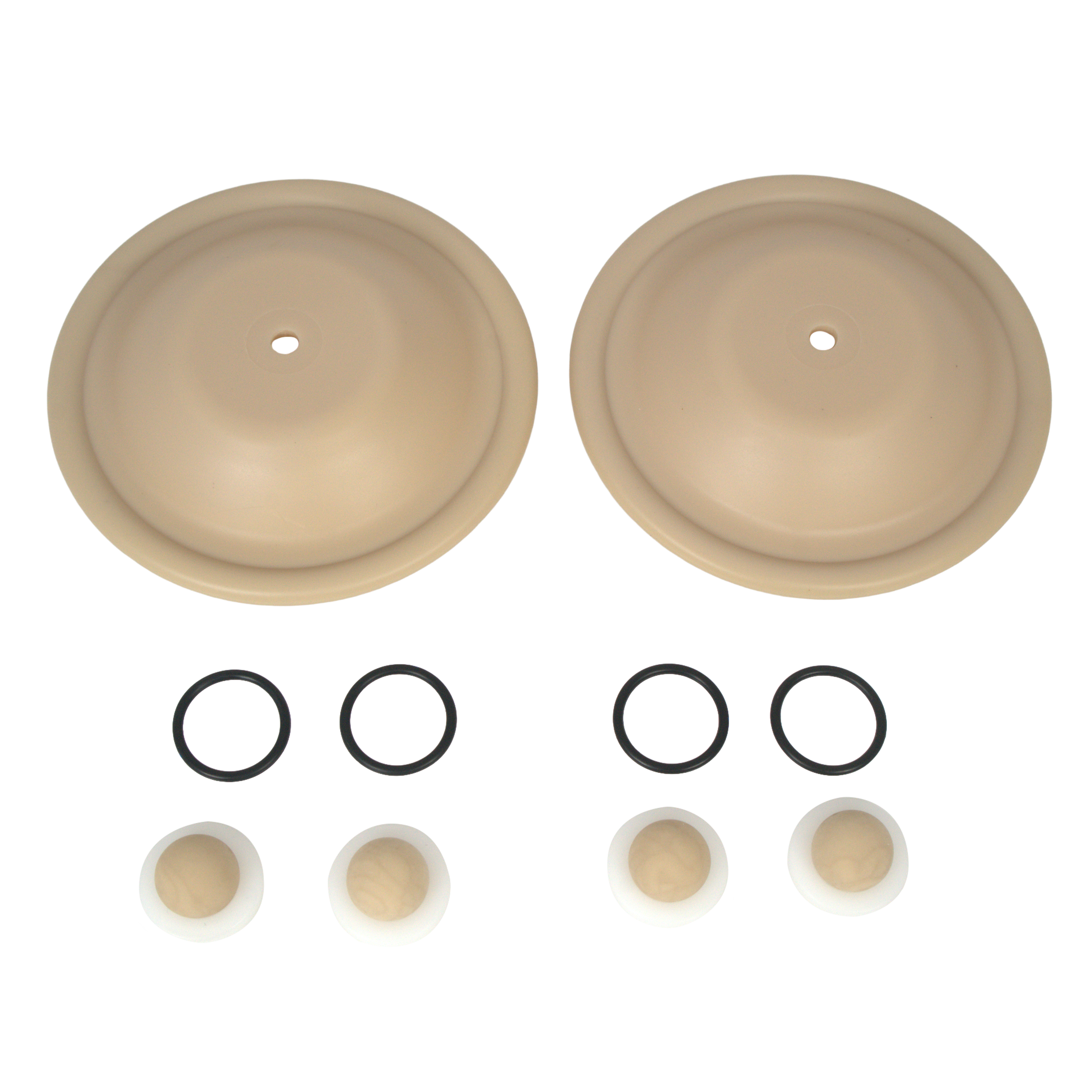

| All-Flo Repair Kit Wet End Santoprene for 0.5" Bolted Metal Pumps |
$119.90 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | All-Flo |
|---|---|
| Product Type | Pumps |
| Product Subtype | Diaphragm Pumps |
| Series | A Series |
| Model | A050 |
| Material | Aluminum |
| Size 1 | 0.5" |
| Connection Type 1 | BSP |
| Diaphragm Material | Santoprene |
| Weight | 10.00000 |
- Manufacturer:
- All-Flo
- MPN:
- A050-BAA-SSPE-S30
Dimensional Data
A050 Metal Dimensional Diagram
| A | B | C | D | E | F | G | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 9.50 | 242.00 | 6.70 | 171.00 | 1.80 | 44.00 | 10.30 | 262.00 | 5.40 | 138.00 | 11.20 | 284.00 | 6.40 | 164.00 |
Resources
0Data Sheets
All-Flo A050 Metal Data Sheet
1Manuals
22D Drawings
All-Flo A050 Metal 2D Drawing
33D Models
4Performance Curves
5Spare Part Lists
8Other Literature
