Ampco
Ampco LCV542 Centrifugal Pump and Motor 3" x 2.5" Tri-Clamp 316L 32Ra C/SC Single Mechanical FKM (Viton) 175mm Impeller 284TSC 25HP 3500 RPM TEFC Baldor 90 Degree Discharge 0.5" Vertical Drain
LCV542175M28TS2YYN16-25HTB
Net Price: $14,266.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SEAL KIT SC/C VITON SINGLE SEAL SIZE 735 L SERIES AMPCO |
$351.00 / EA |
|
||

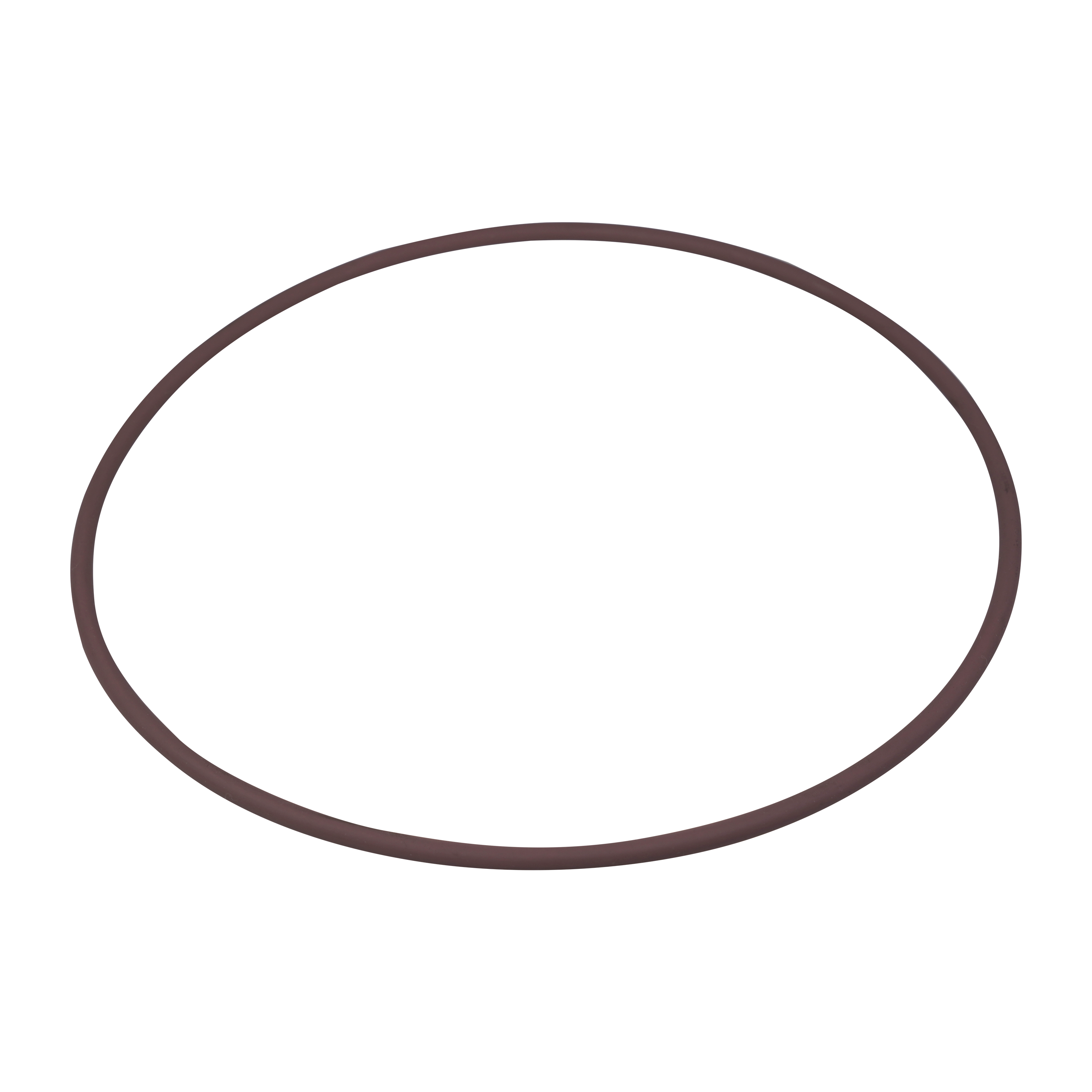

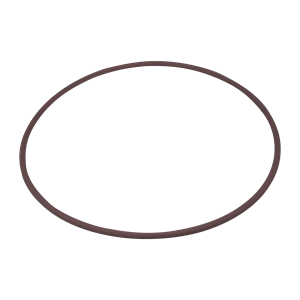

| COVER GASKET VITON V540 LC AMPCO |
$44.00 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Ampco |
|---|---|
| Motor Brand | Baldor |
| Product Type | Pumps |
| Product Subtype | Centrifugal Pumps |
| Series | LC Series |
| Model | LC V542 |
| Material | 316L Stainless Steel |
| Finish | 32Ra |
| Elastomer | FKM (Viton) |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2.5" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | 3-A |
| Orientation / Mount | Vertical |
| Enclosure | TEFC |
| Horsepower | 25HP |
| Motor Speed | 3500 RPM |
| Seal Type | Single Mechanical |
| Seal Material | Silicon Carbide / Carbon |
| Weight | 545.00000 |
Dimensional Data
Resources
0Data Sheets
Ampco LC Data Sheet
1Manuals
4Performance Curves
5Spare Part Lists
