Behringer

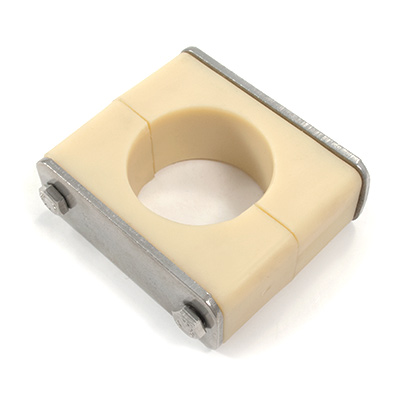

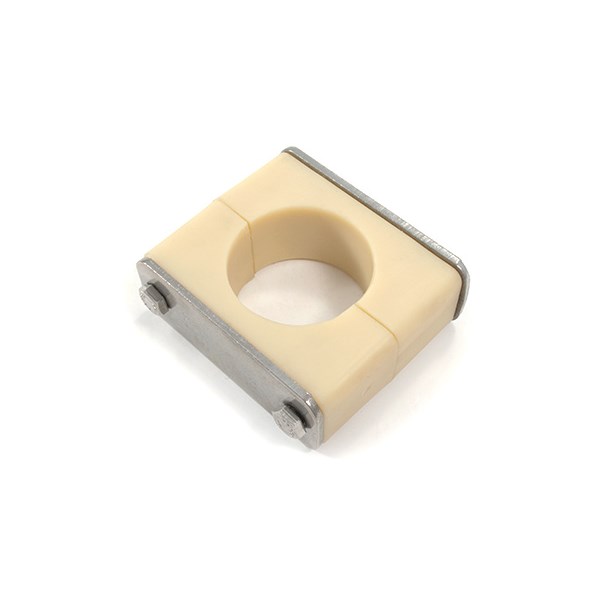

PIPE SUPPORT 4" GROUP 7A WELD SANTOPRENE INDUSTRIAL
ST7A4500-SP-COP-STW-SS
Net Price: $75.04 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Behringer |
|---|---|
| Product Type | Hangers |
| Product Subtype | Industrial Hangers |
| Series | Standard Series |
| Material | 304 Stainless Steel |
| Size 1 | 4" |
| Orientation / Mount | Weld Plate |
| Insert Material | Santoprene |
| Weight | 0.90000 |
Dimensional Data
Smooth Bore Pipe Weld Plate Mount
| Group No. | Pipe Size | D | W | H | Z | U | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 3 | ½ | 12.70 | 0.840 | 21.34 | 1.88 | 48.00 | 1.38 | 35.00 | 1.22 | 31.00 | 0.81 | 20.00 |
| 6 | ½ | 12.70 | 0.840 | 21.34 | 3.34 | 85.00 | 2.63 | 67.00 | 1.22 | 31.00 | 1.44 | 37.00 |
| ¾ | 19.05 | 0.750 | 19.05 | 3.34 | 85.00 | 2.63 | 67.00 | 1.22 | 31.00 | 1.44 | 37.00 | |
| 1 | 25.40 | 1.315 | 33.40 | 3.34 | 85.00 | 2.63 | 67.00 | 1.22 | 31.00 | 1.44 | 37.00 | |
| 1¼ | 31.75 | 1.660 | 42.16 | 3.34 | 85.00 | 2.63 | 67.00 | 1.22 | 31.00 | 1.44 | 37.00 | |
| 1½ | 38.10 | 1.900 | 48.26 | 3.34 | 85.00 | 2.63 | 67.00 | 1.22 | 31.00 | 1.44 | 37.00 | |
| 7 | 2 | 50.80 | 2.375 | 60.325 | 5.02 | 128.00 | 4.38 | 111.00 | 1.22 | 31.00 | 2.31 | 59.00 |
| 2½ | 63.50 | 2.875 | 73.03 | 5.02 | 128.00 | 4.38 | 111.00 | 1.22 | 31.00 | 2.31 | 59.00 | |
| 3 | 76.20 | 3.500 | 88.90 | 5.02 | 128.00 | 4.38 | 111.00 | 1.22 | 31.00 | 2.31 | 59.00 | |
| 8 | 6 | 152.40 | 6.625 | 168.28 | 8.88 | 226.00 | 7.65 | 194.00 | 1.50 | 38.00 | 4.01 | 102.00 |
| 9 | 8 | 203.20 | 8.625 | 219.08 | 12.50 | 318.00 | 10.00 | 254.00 | 1.75 | 44.00 | 5.38 | 137.00 |
